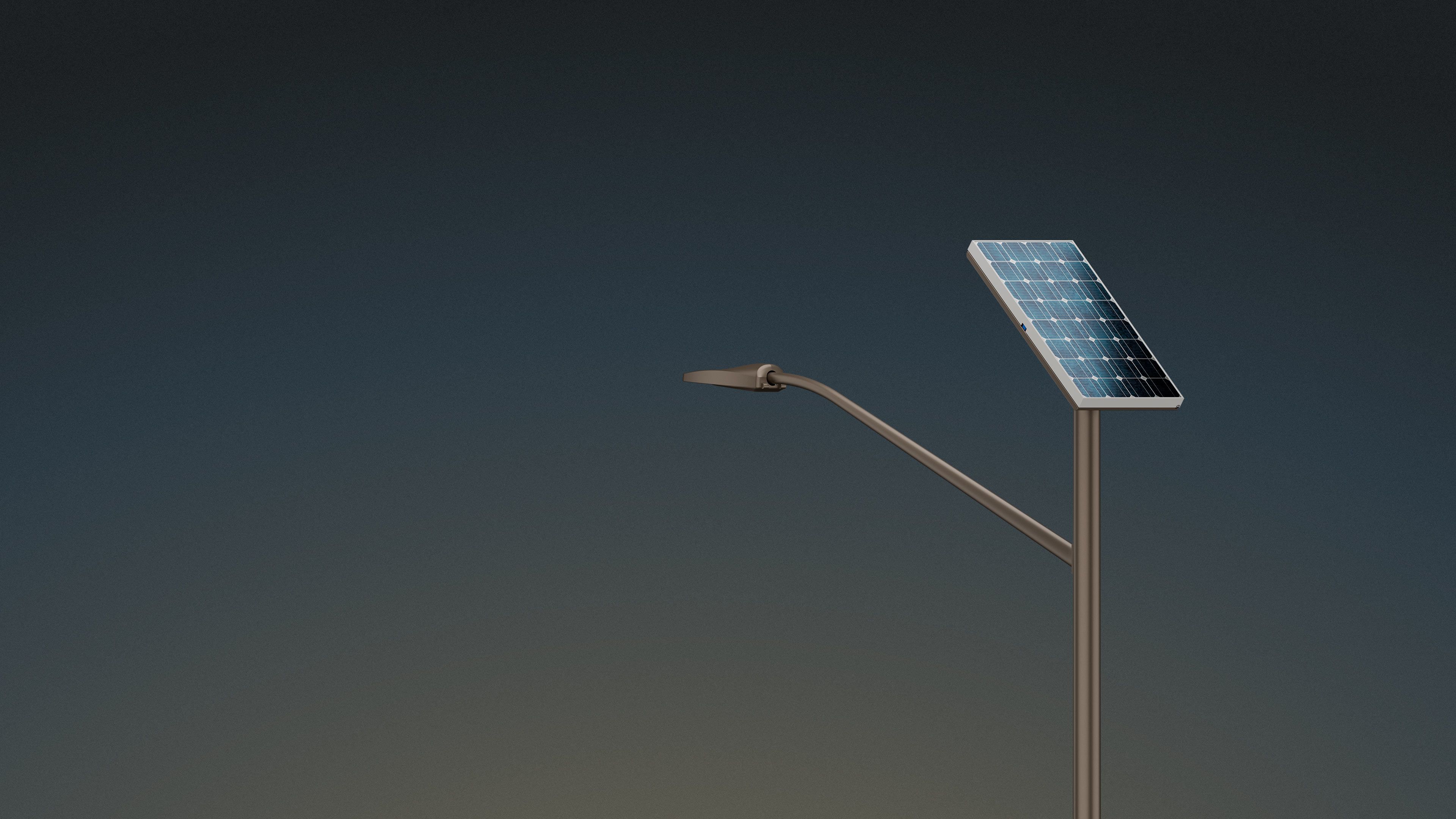

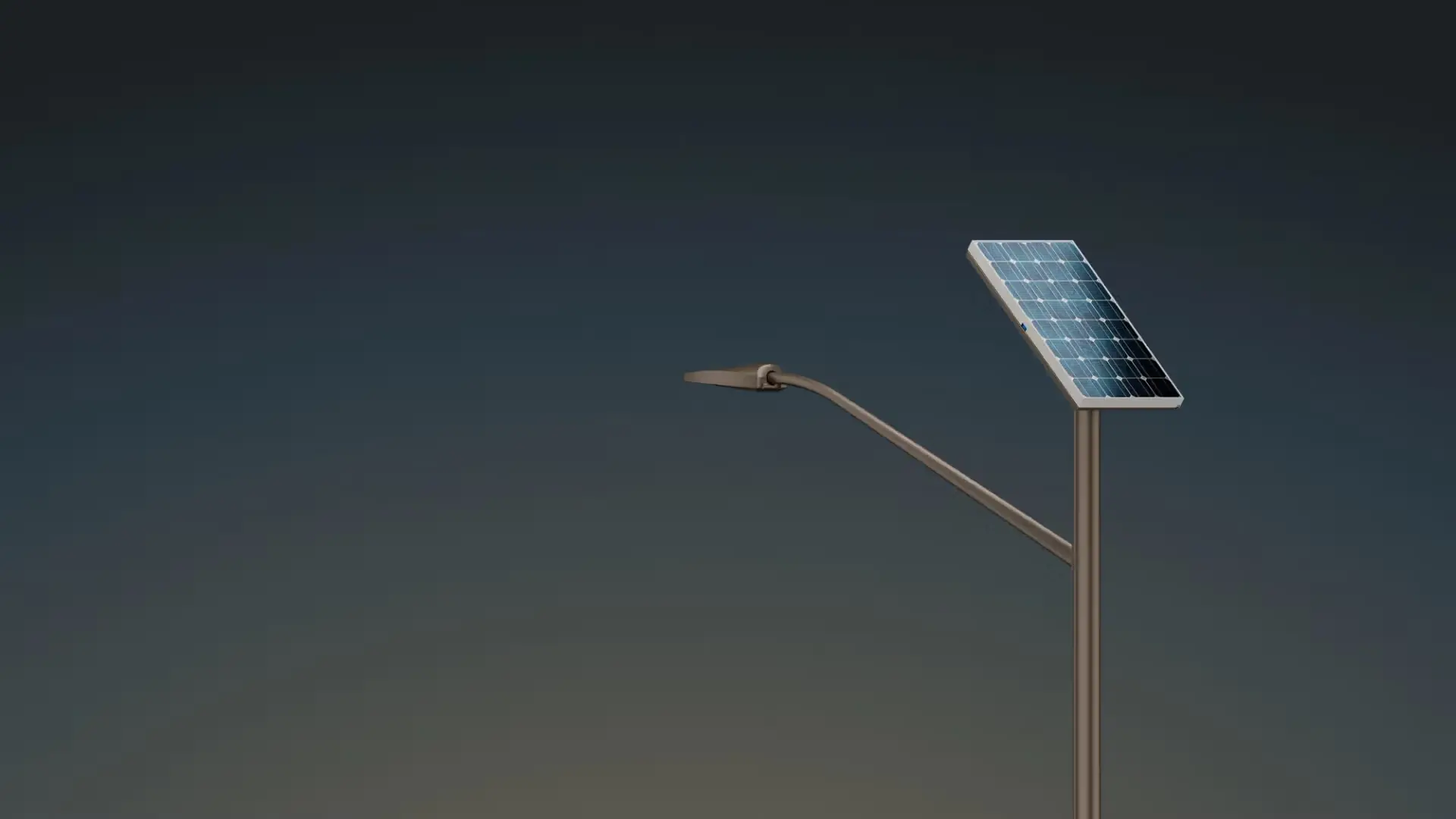

Solar-powered streetlight with solar panel mounted on top against a darkening sky.

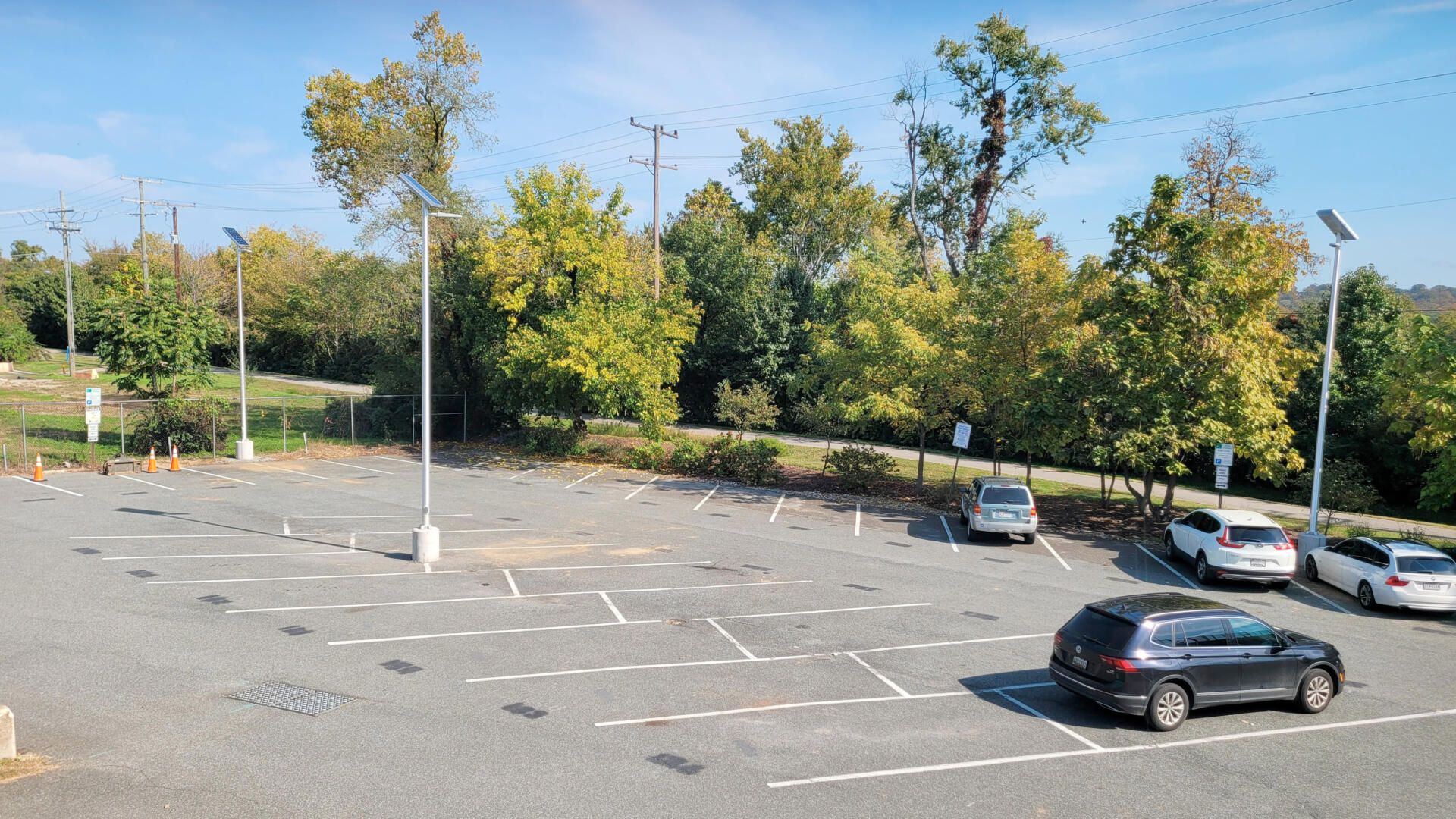

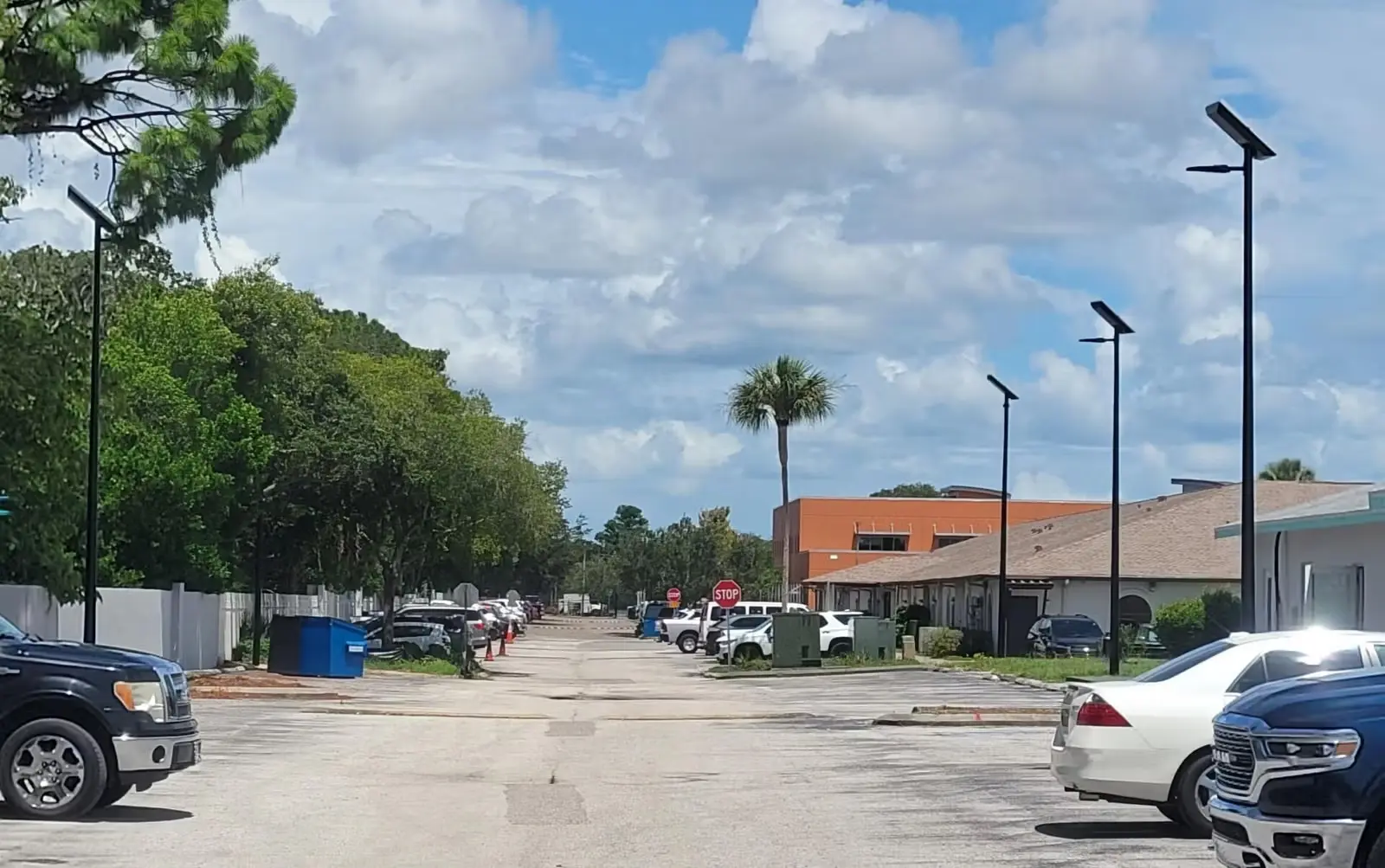

Parking lot with various parked cars, street lamps, trees, and a stop sign under a partly cloudy sky.

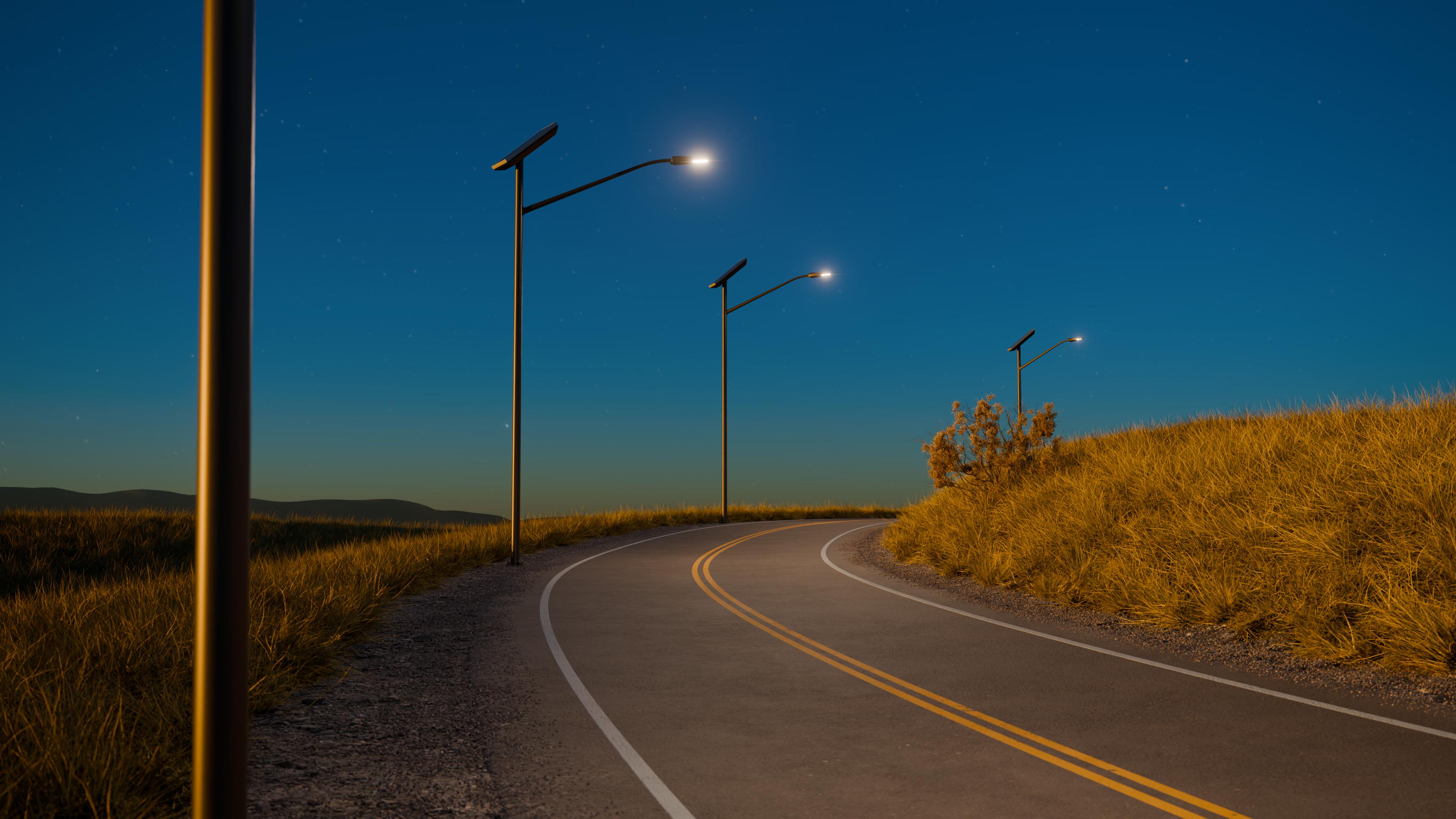

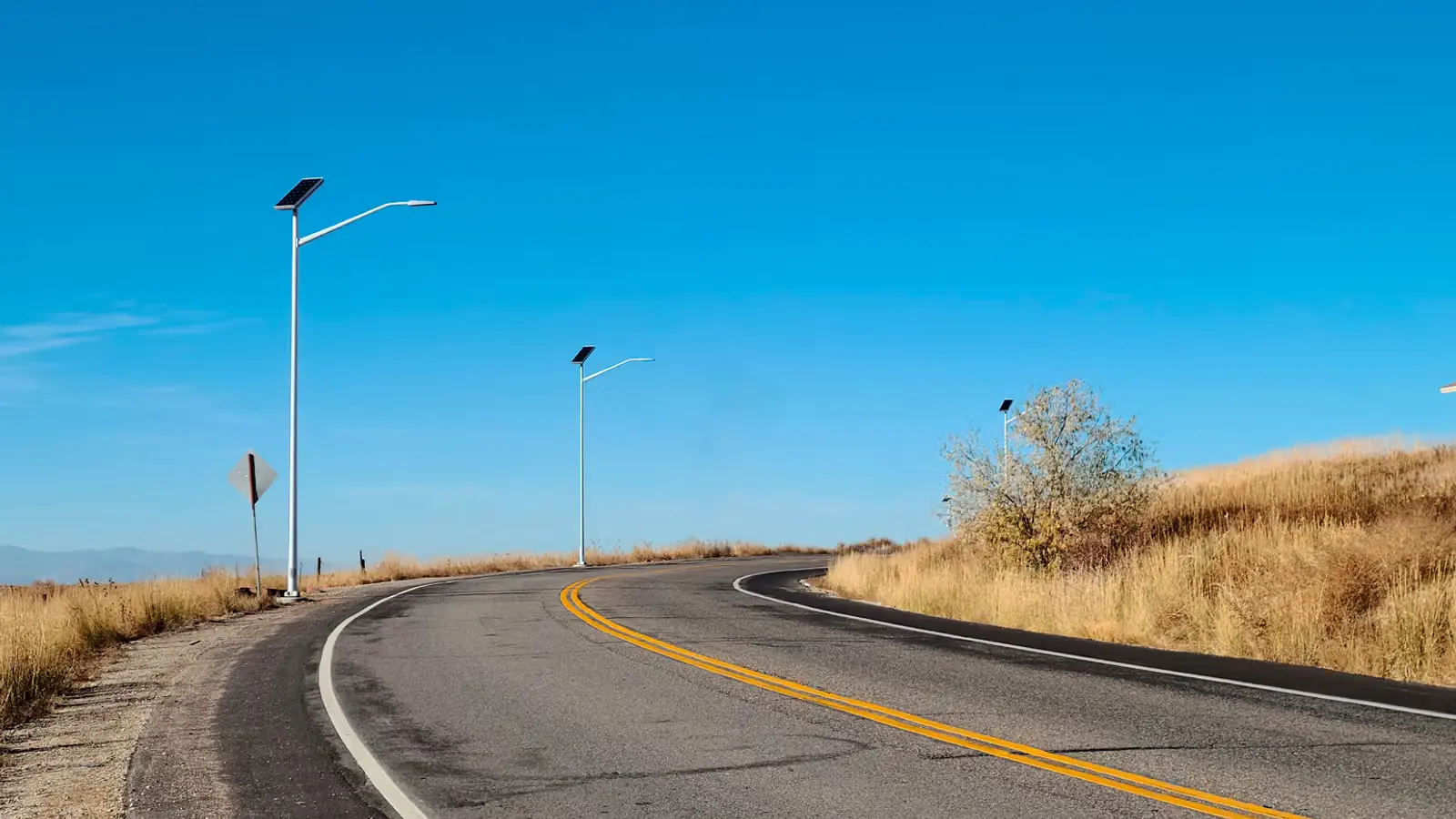

Curved rural road with solar-powered streetlights under a clear blue sky.

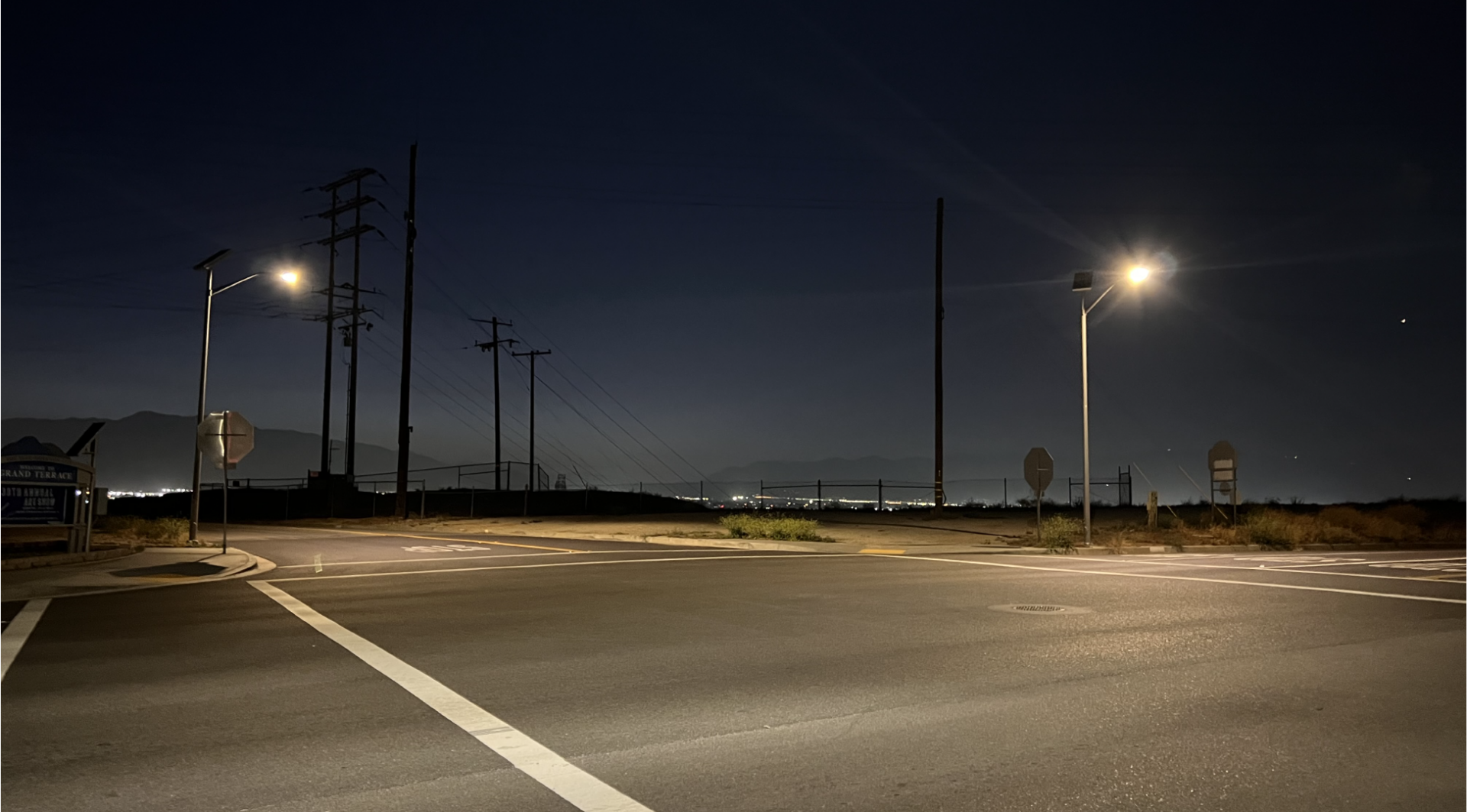

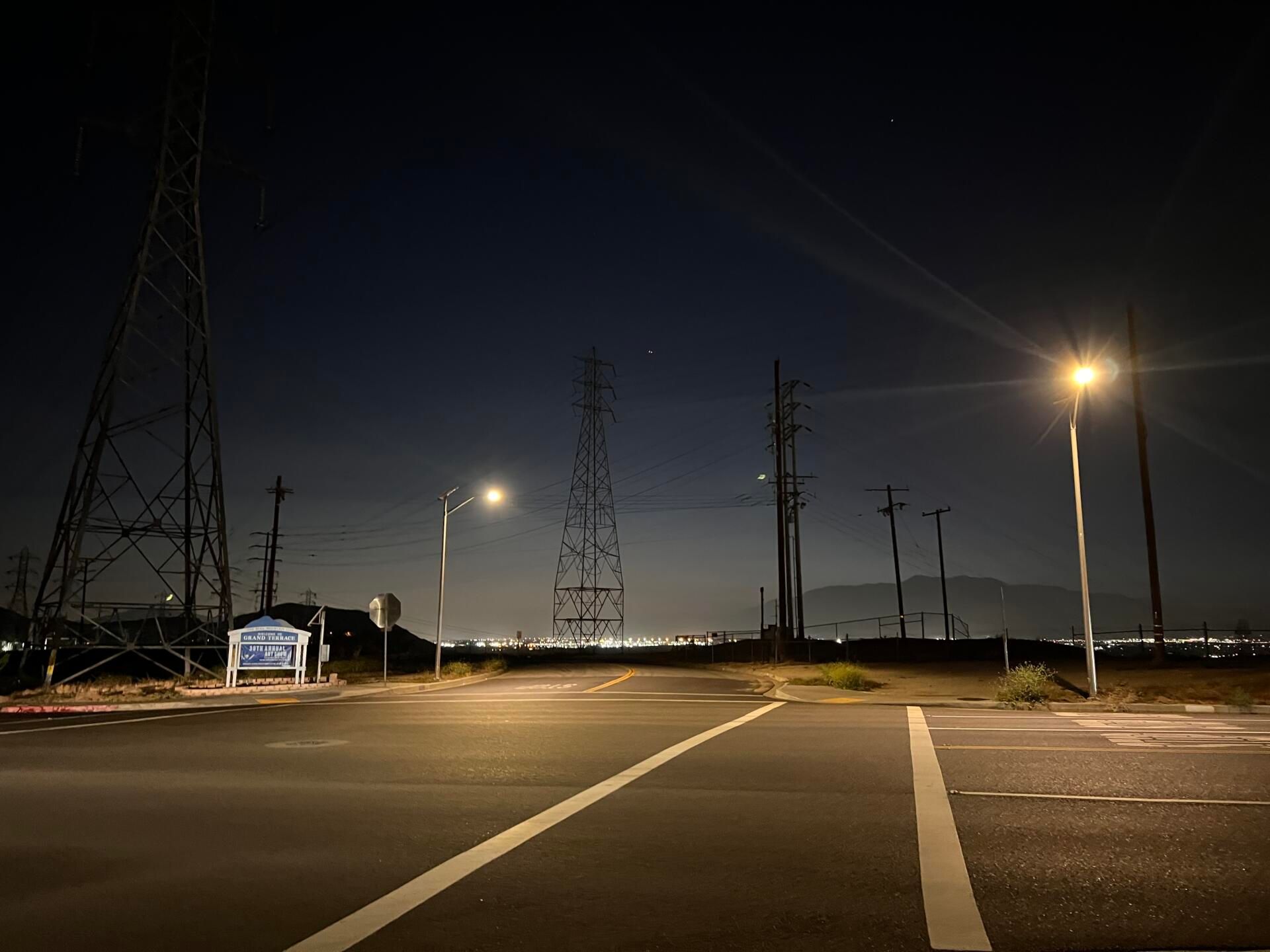

Empty street intersection at night with streetlights, power lines, and city lights in the distance.

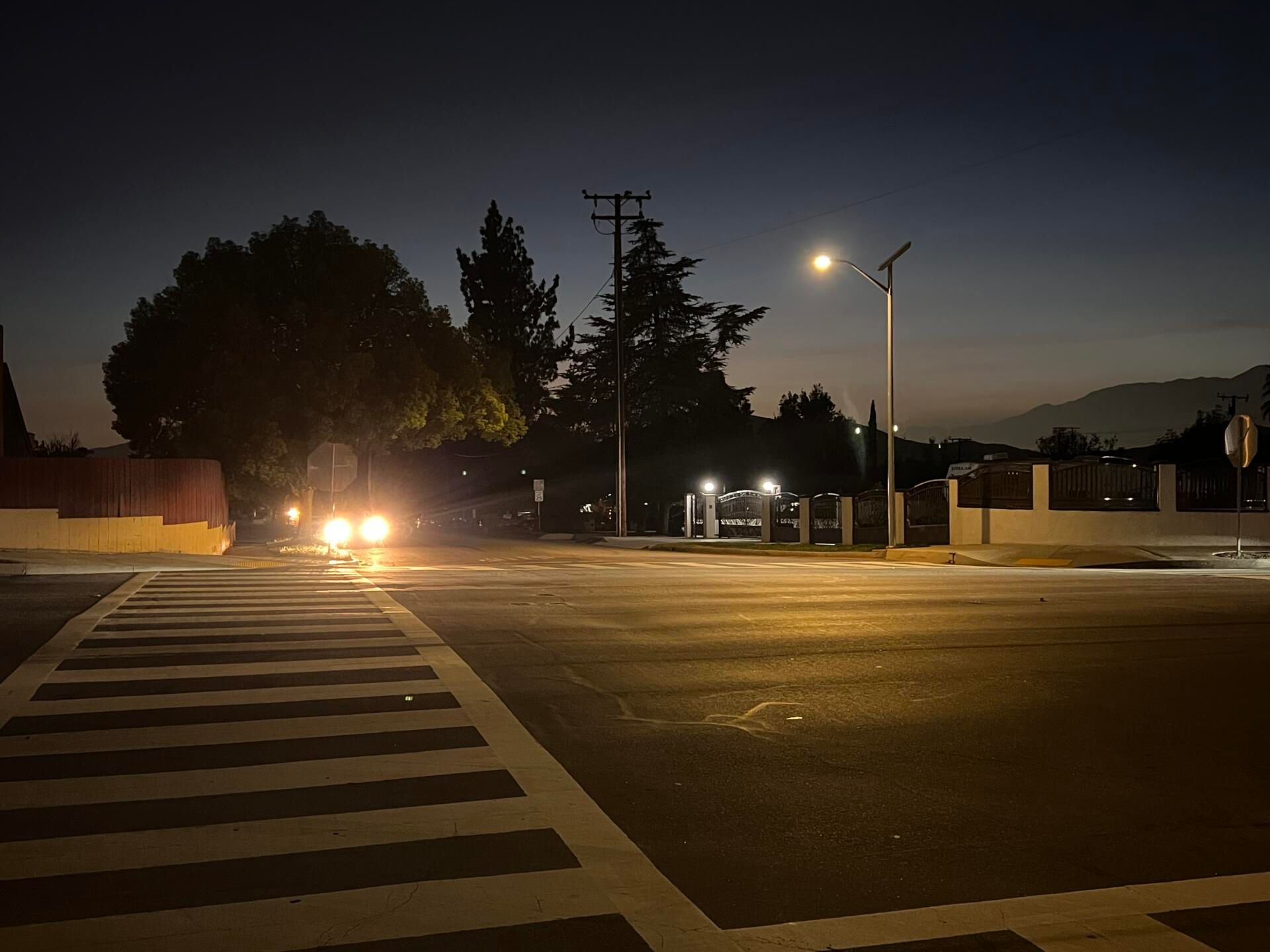

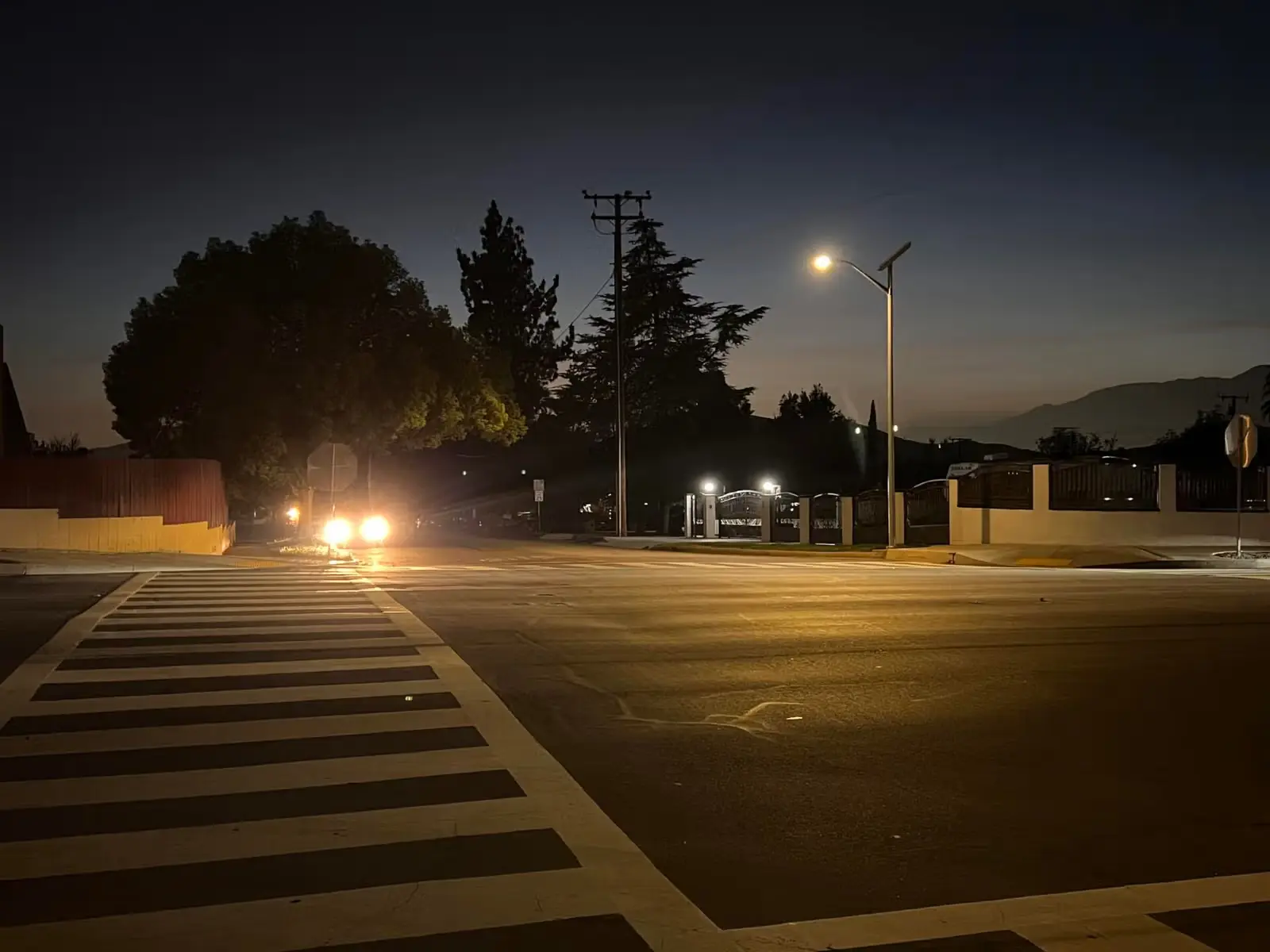

Nighttime street scene with a crosswalk, streetlight, trees, and car headlights shining toward the intersection.

BFL

When true street-level illumination is required, the BFL is the perfect solution for parking lots and residential streets. Delivering 7,220 lumens of off-grid solar power with advanced time-of-night profiles—no trenching, no electrical service, no ongoing maintenance.

request a quotedownload spec sheetDownload IES File

Product details

•
Lumen Output: 7220 lumens
•
Height: 18-30 ft
•
Color Temperature: 2700K, 3000K, 4000K
•
Optical: Type 2, 2M, 2S, 3, 3M, 3S, 4, 4F, and 5 full cutoff optics

Best for

Parking Lot, Area, Sports Field

Product details

•
No wiring, trenching, or electrical service required
•
Cost-effective design ships fully assembled and installs in minutes
•
No ongoing maintenance
•
Provides programmed illumination all night, every night
•
Time-of-night lighting profile options available
•
Wireless control & communication with your light
Overview
Specifications
Resources
Applications
Warranty

Product Overview

When true street-level illumination is required, the BFL is the perfect solution for parking lots and residential streets. Delivering 7,220 lumens of off-grid solar power with advanced time-of-night profiles—no trenching, no electrical service, no ongoing maintenance.

Available Finishes

Bronze
Black
Gray
White

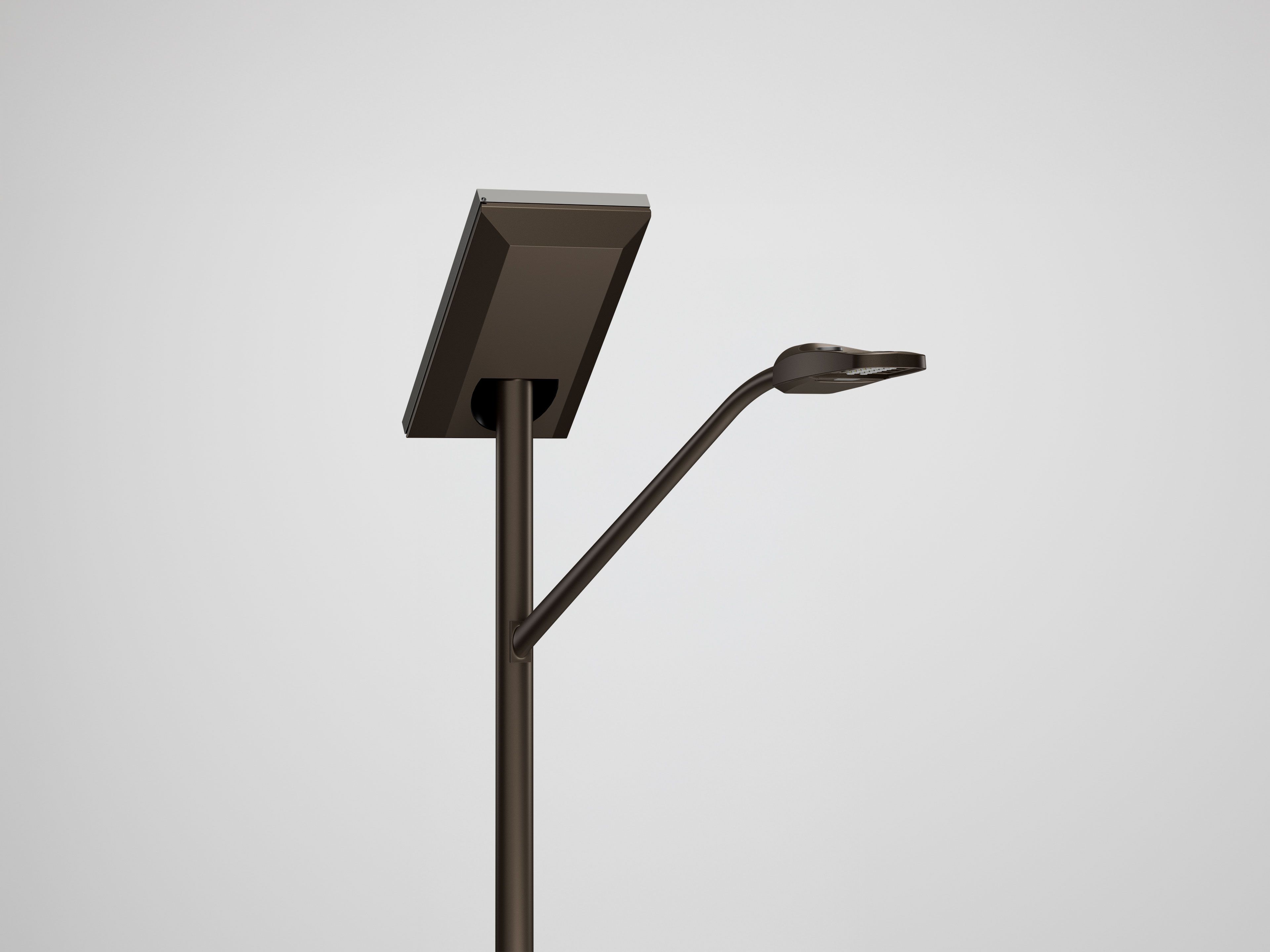

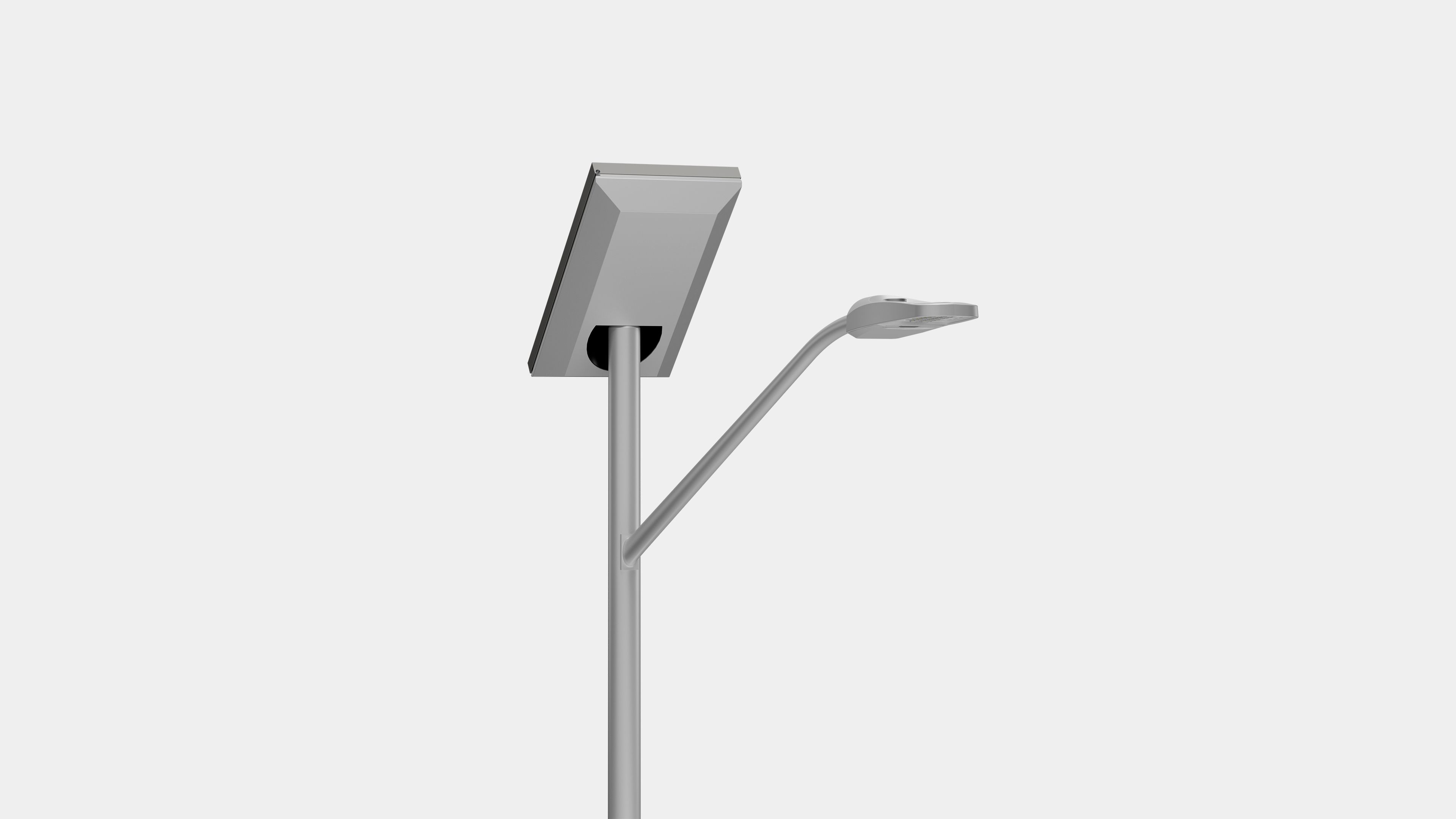

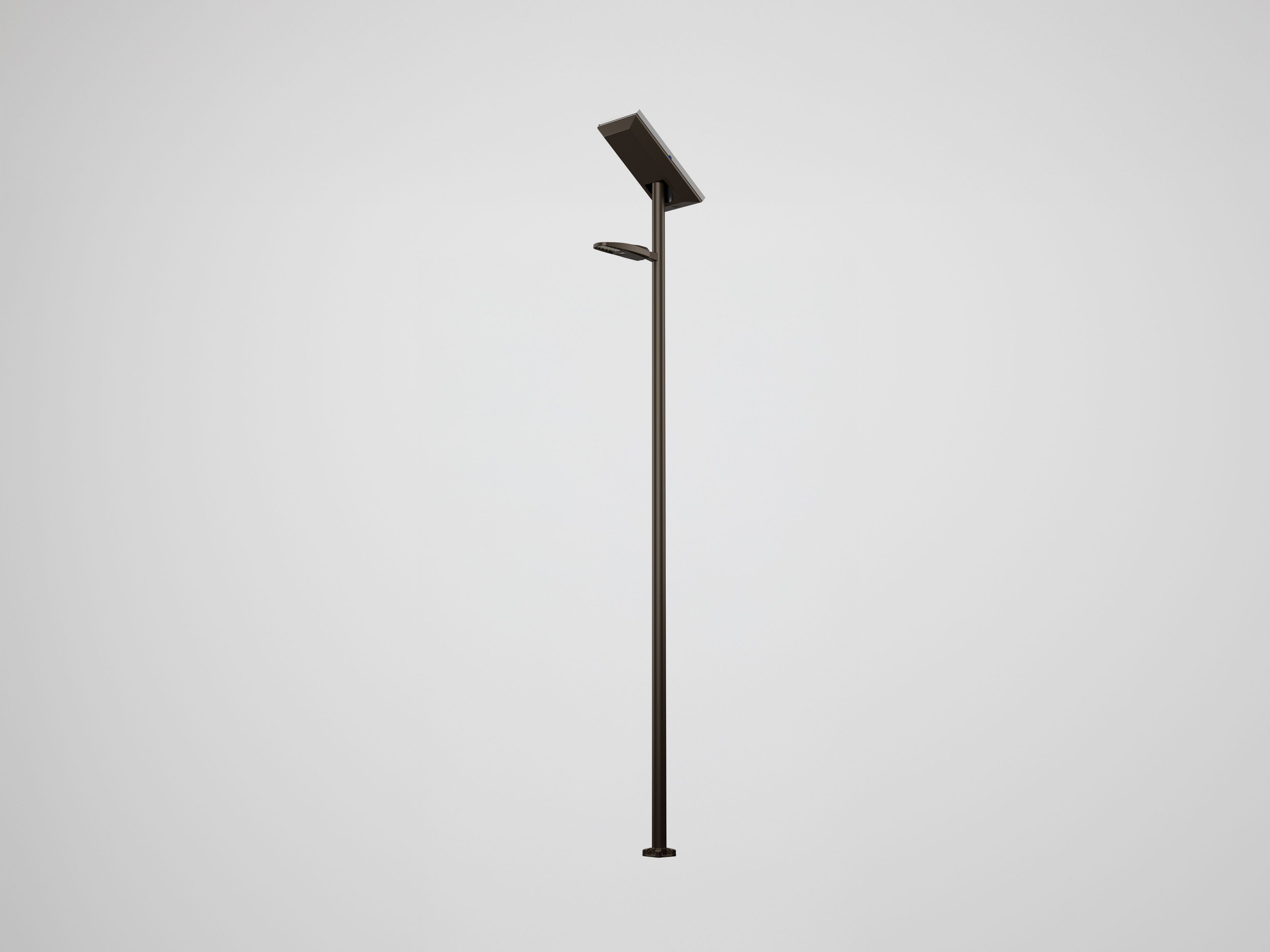

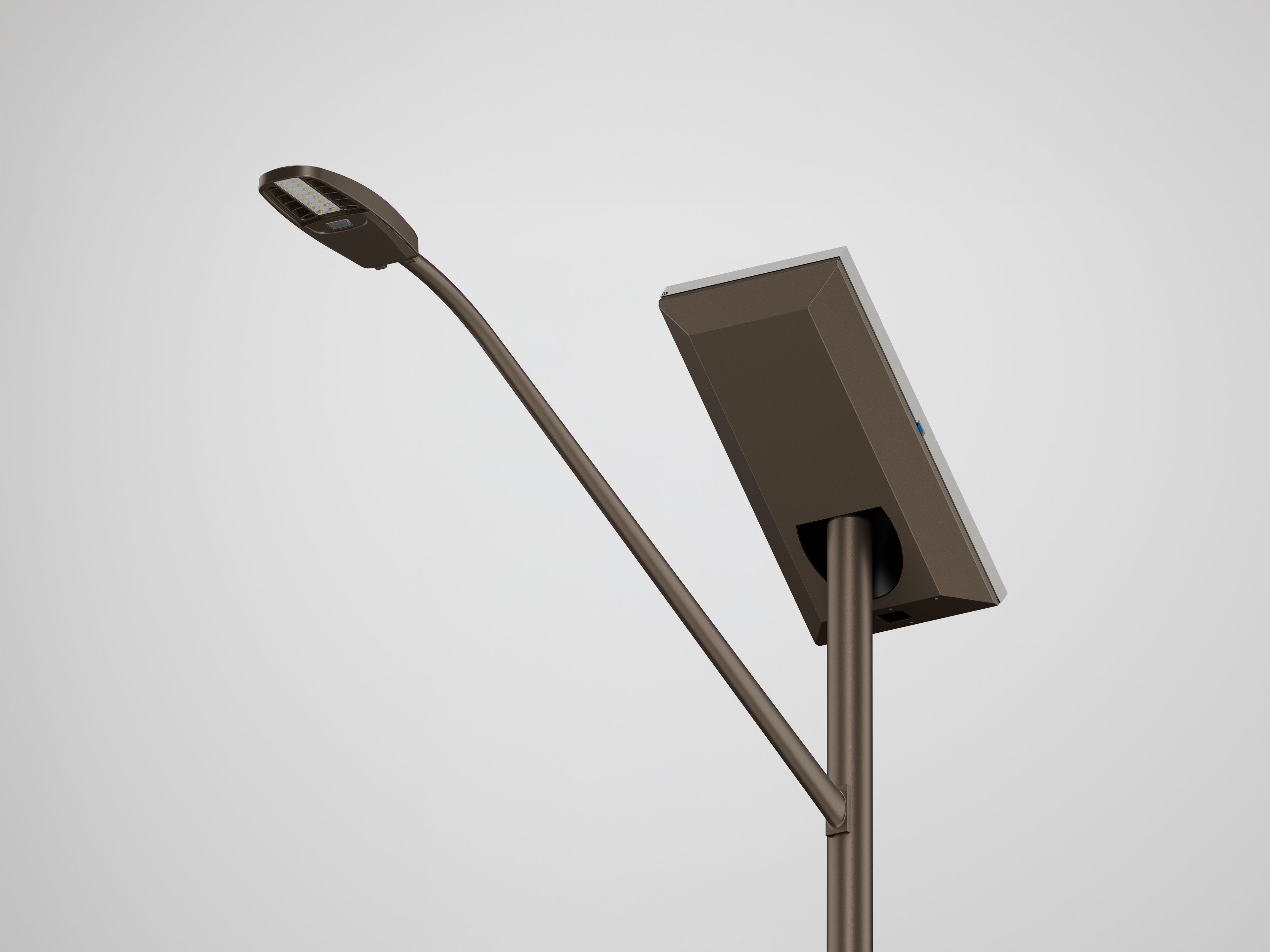

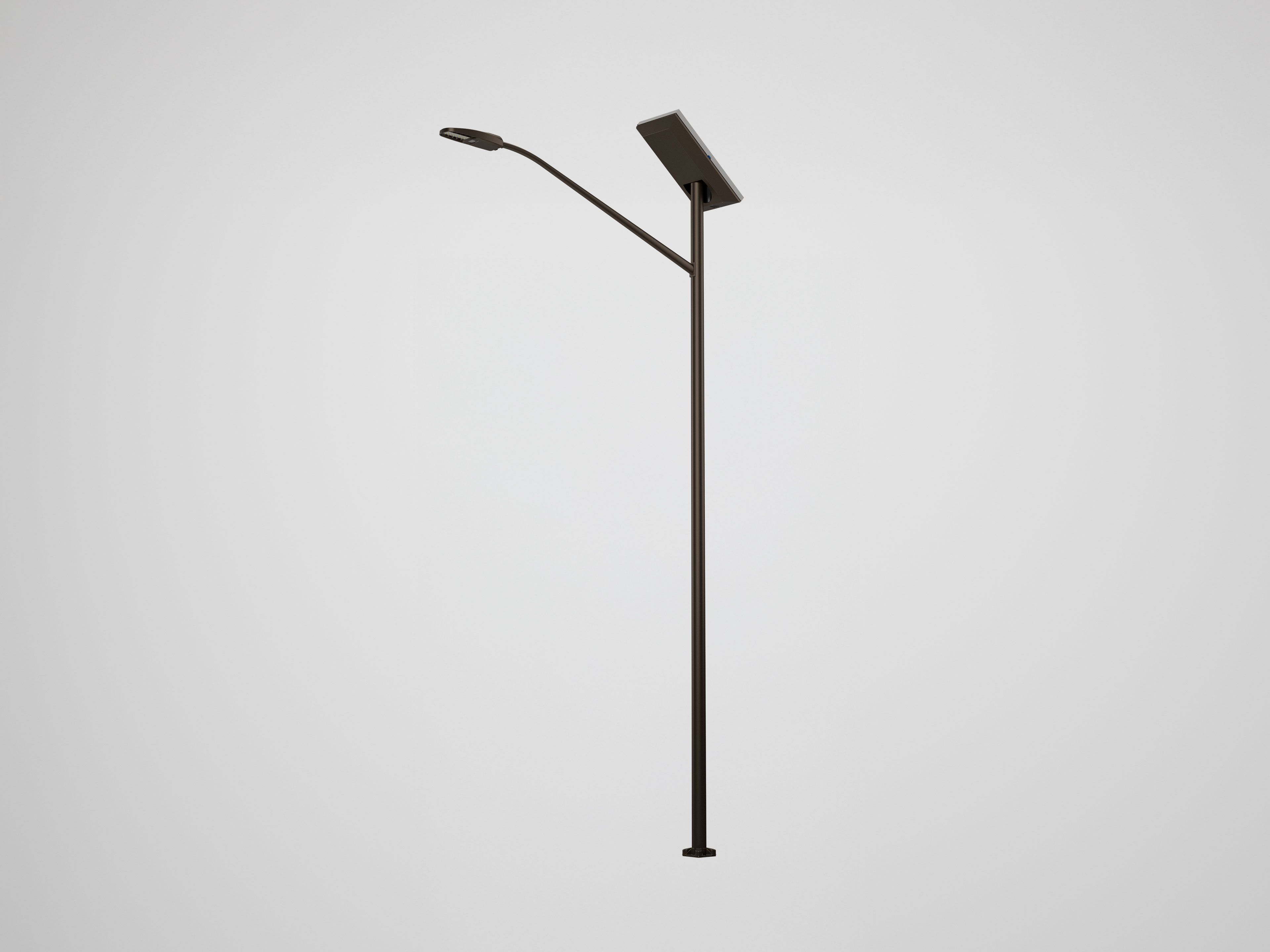

Modern black street lamp with a solar panel attached on a light gray background.

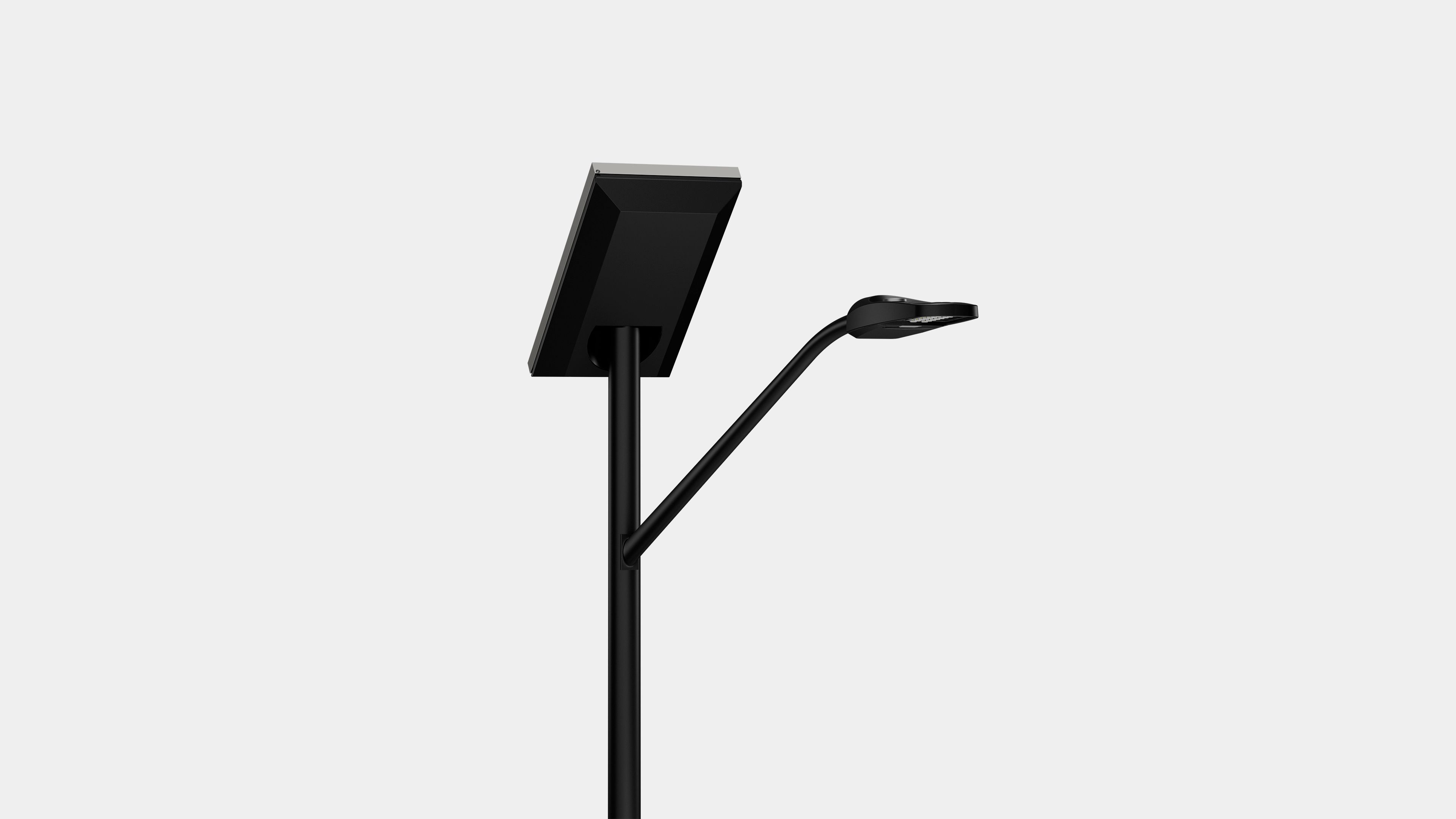

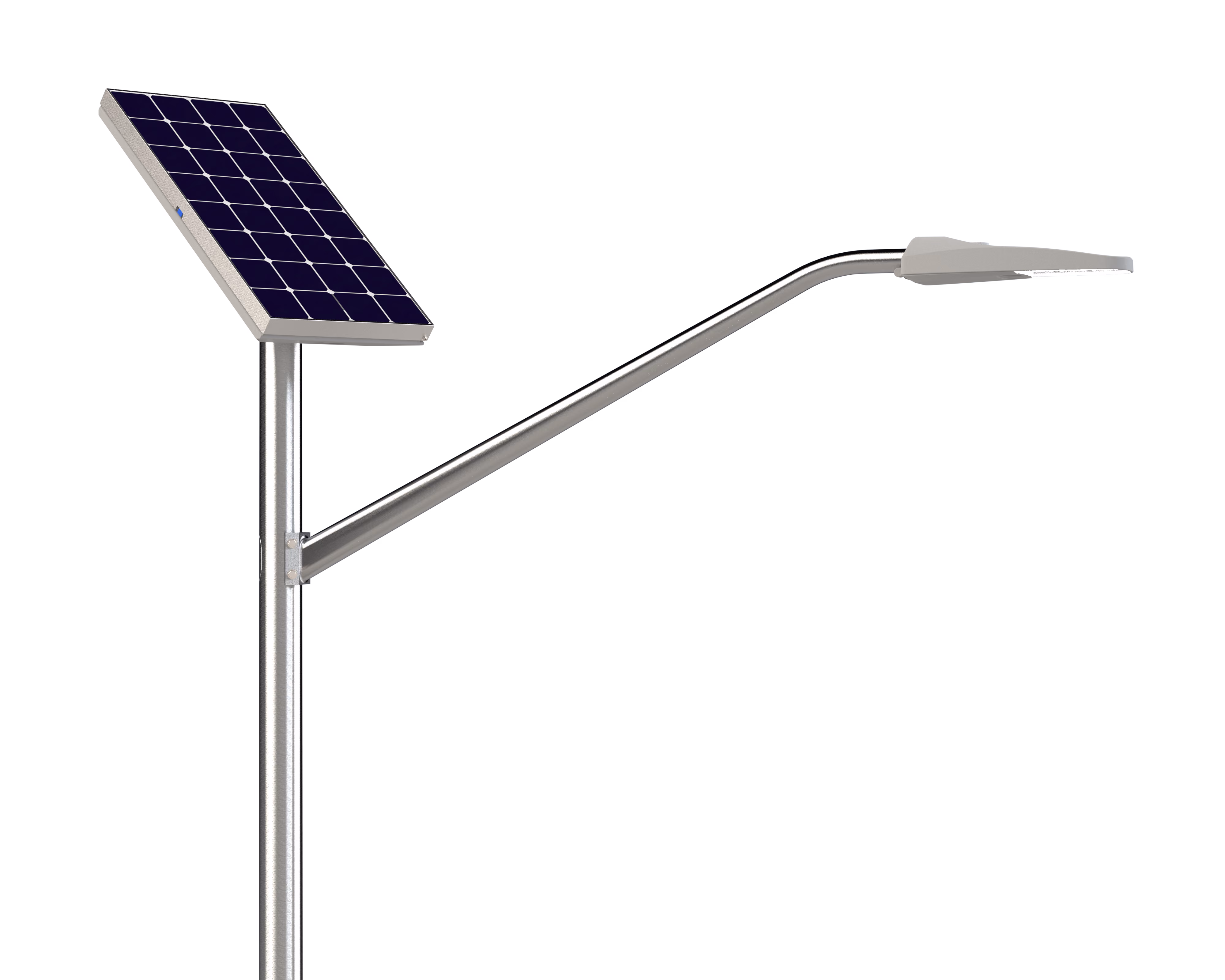

Modern black streetlight pole with a rectangular solar panel and a curved LED lamp head.

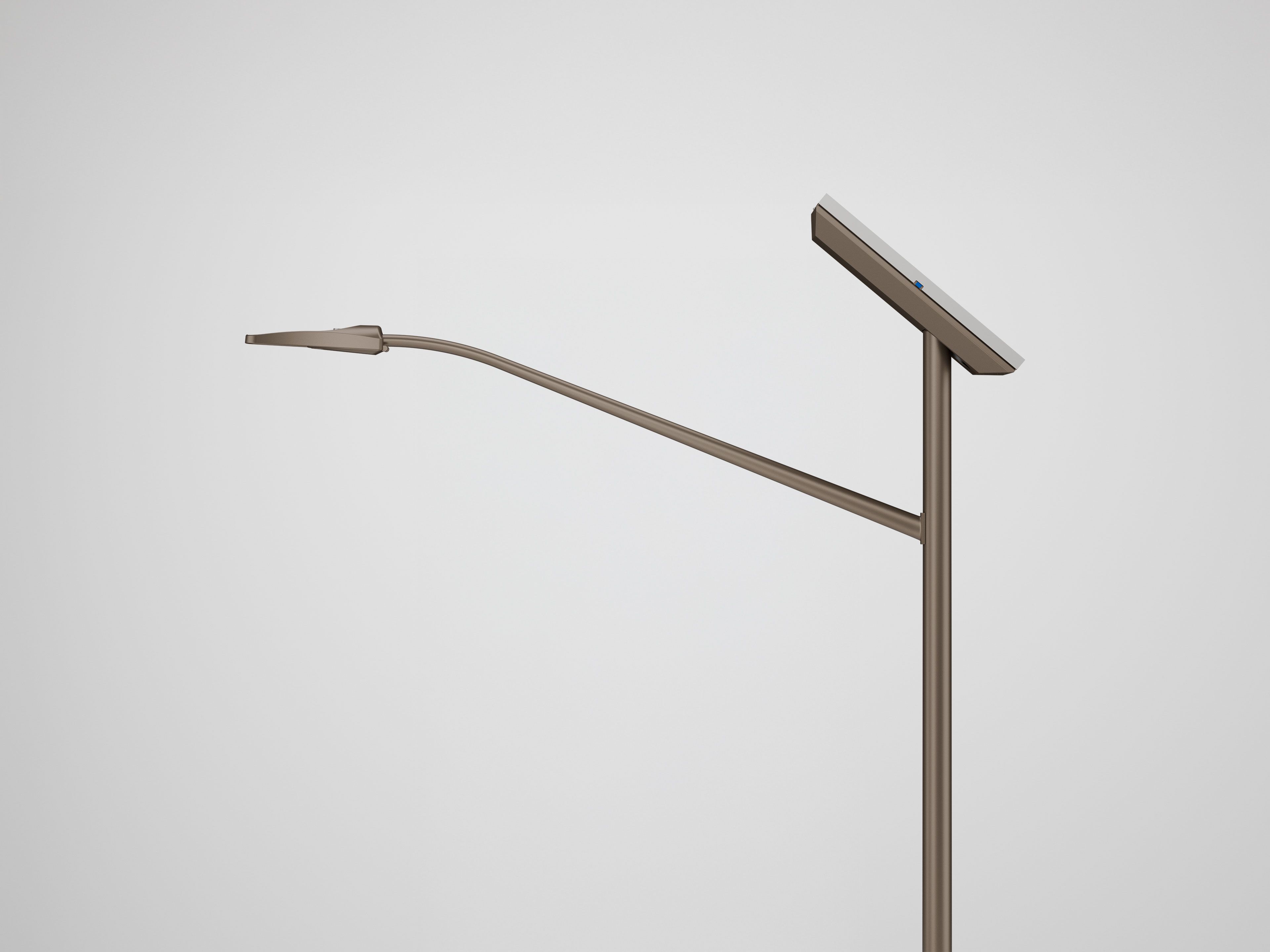

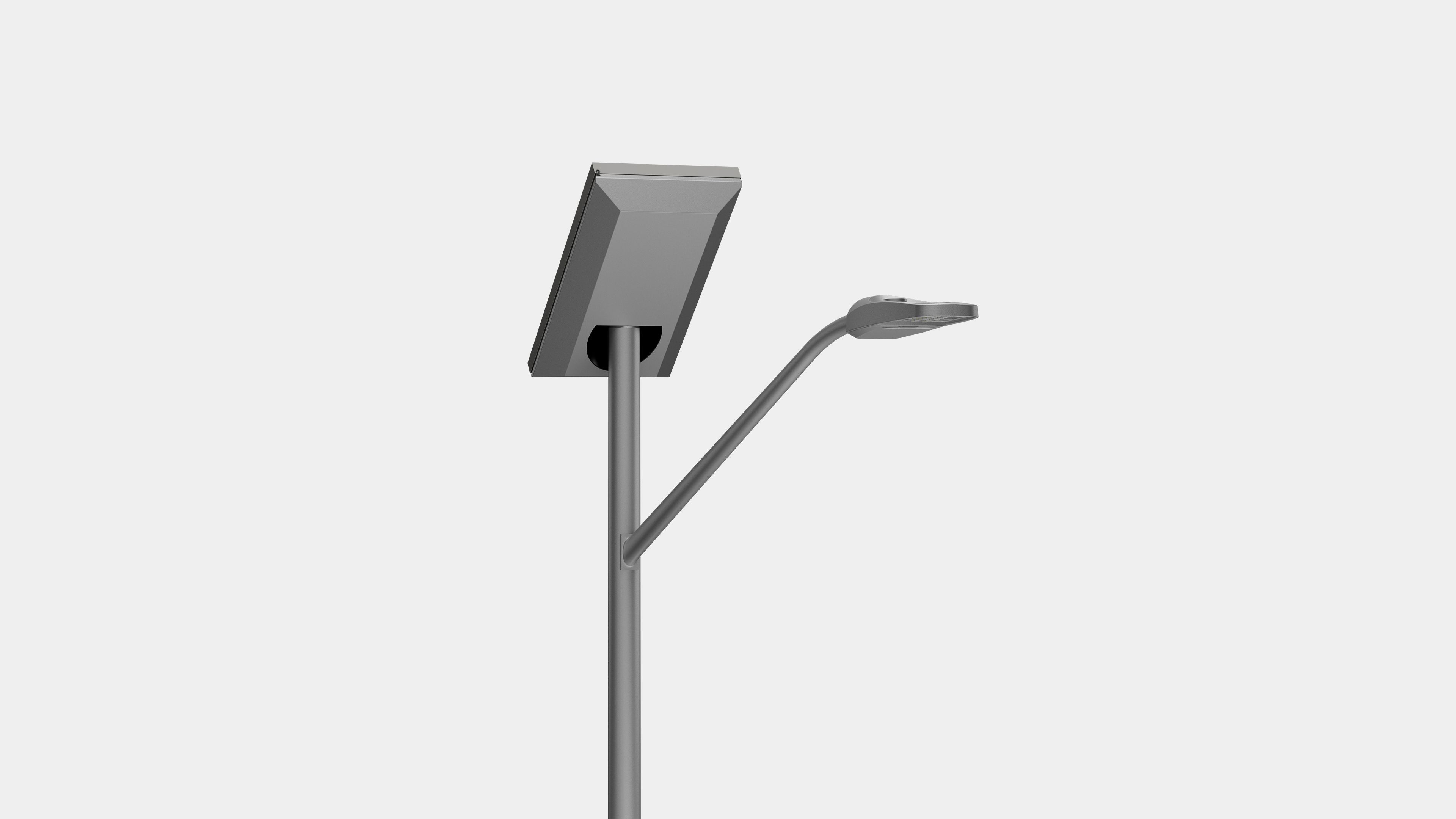

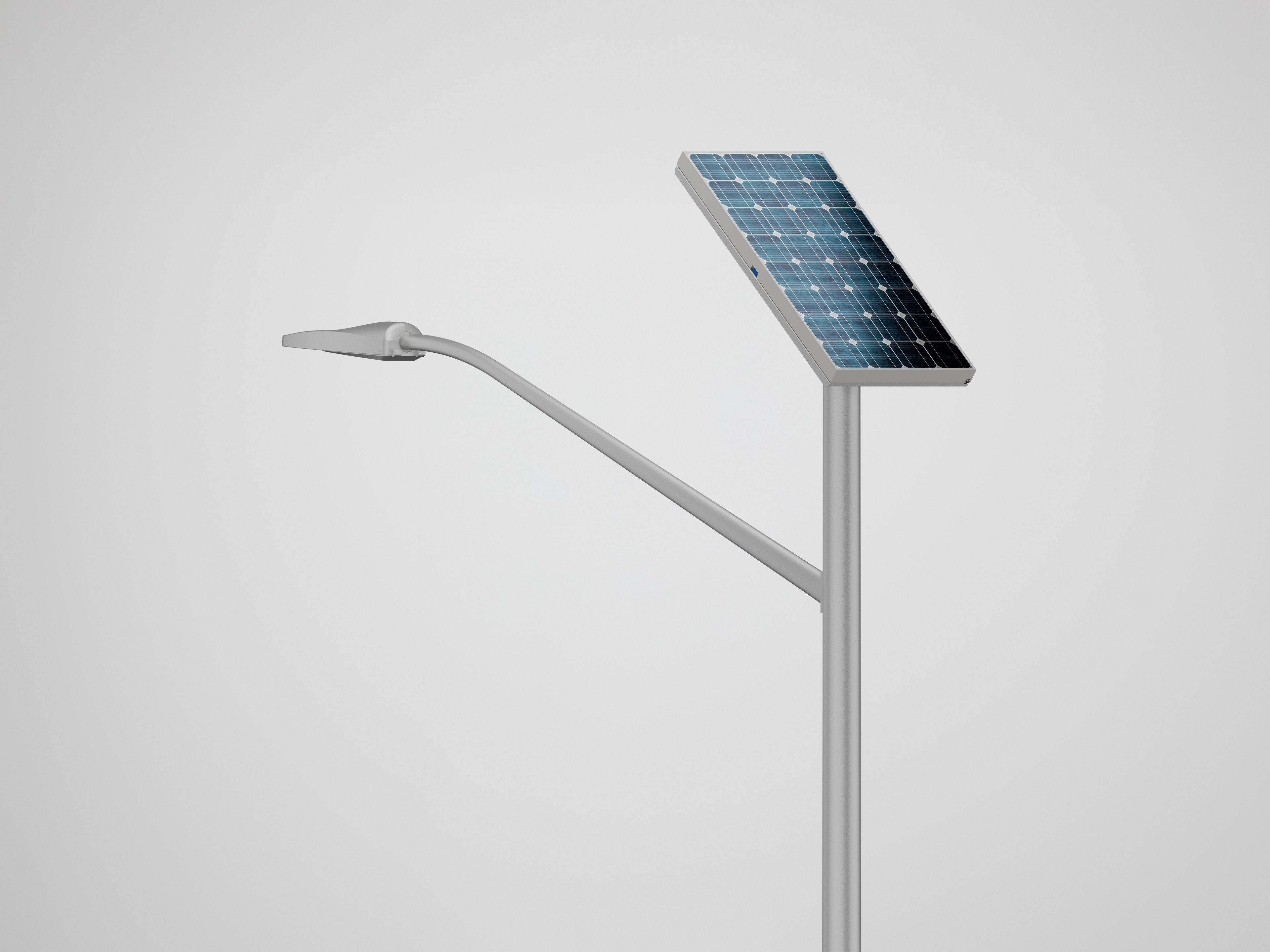

Modern streetlight pole with a solar panel on top and an extended arm holding an LED lamp.

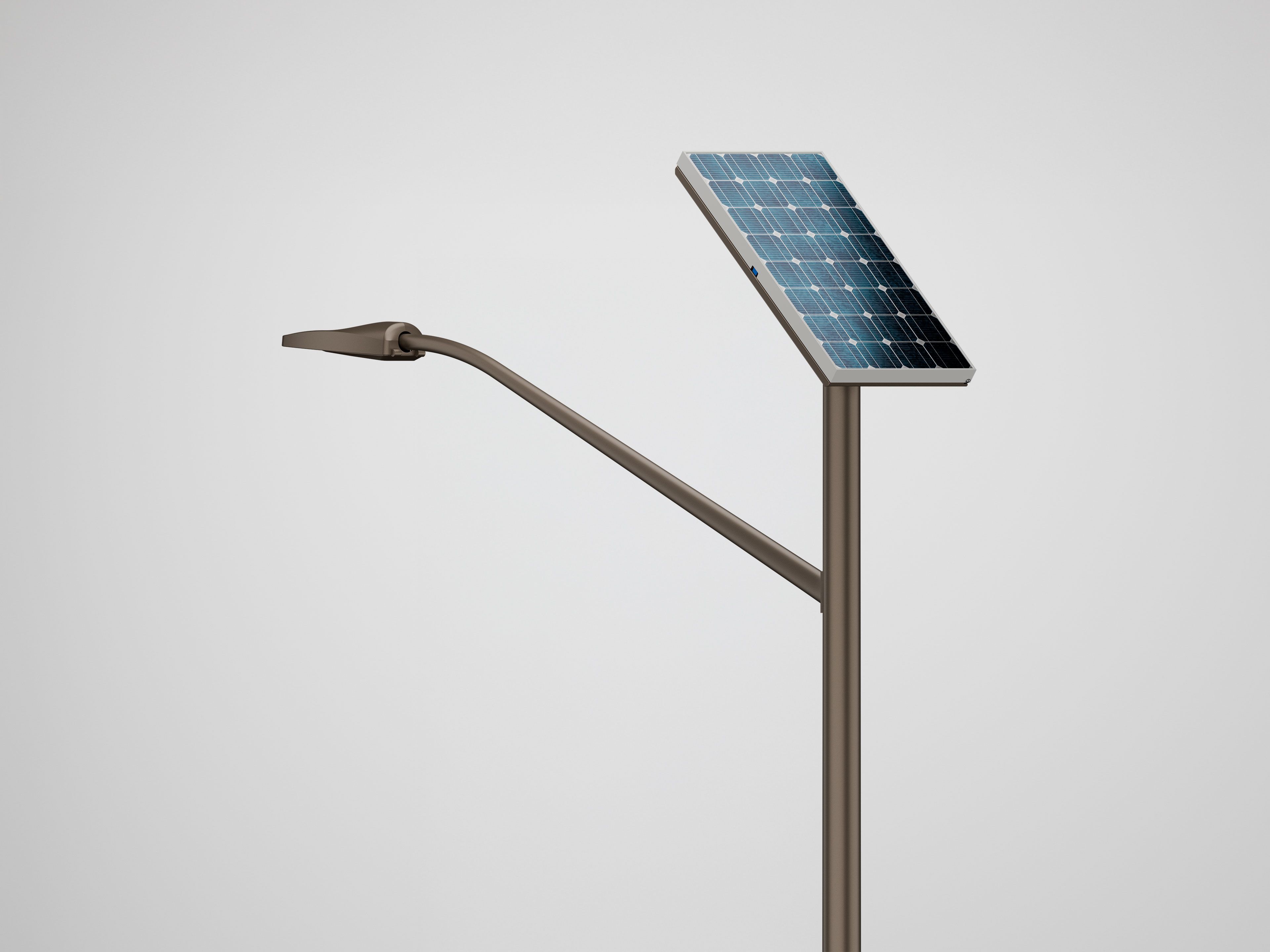

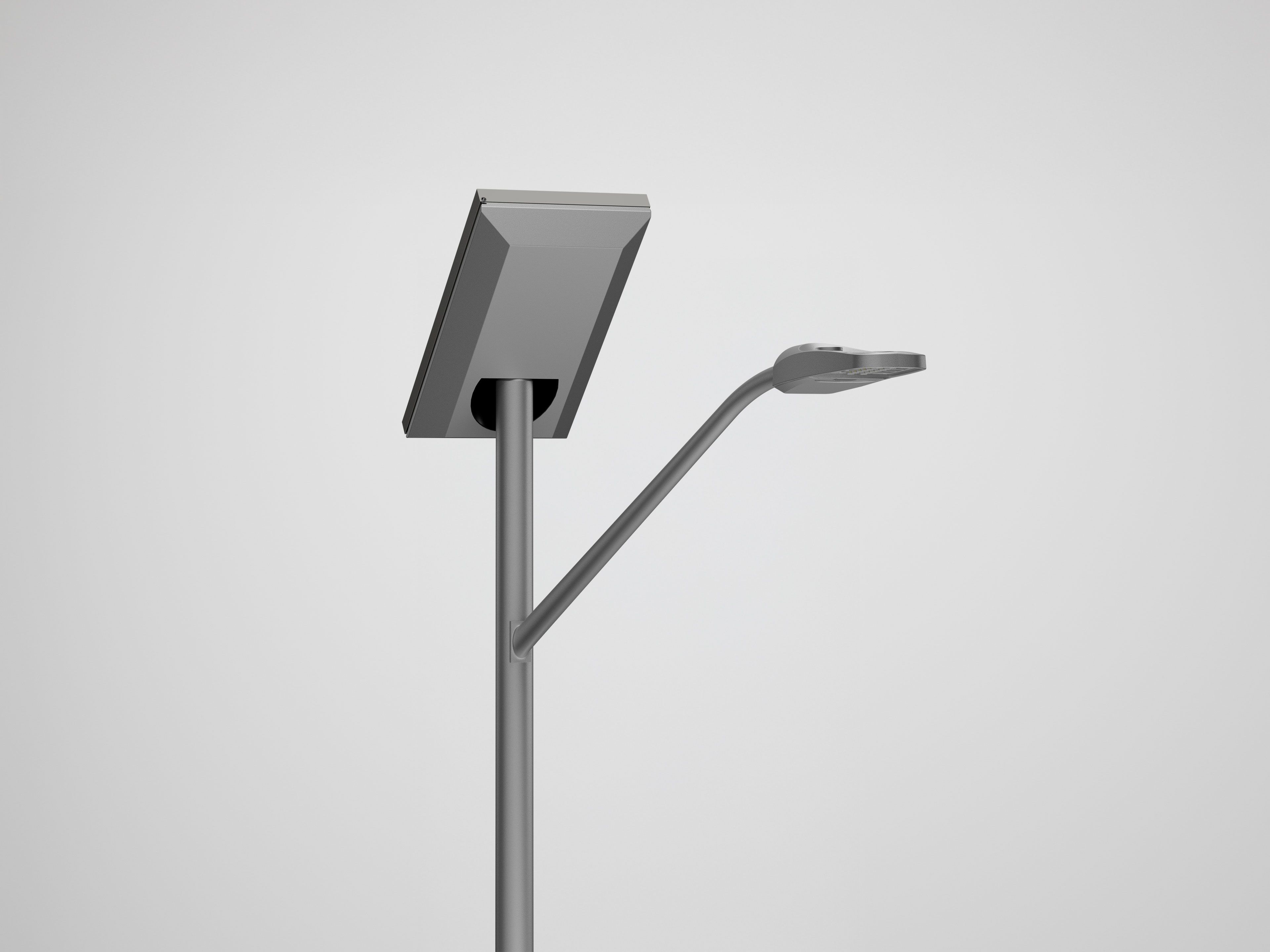

Modern solar-powered street lamp with a rectangular solar panel and a curved arm holding the light.

Photometric Diagrams

Overview

FLT's optical solutions efficiently focus light where it’s needed. There are several standard lighting distributions that optimize performance for different applications. Each lighting distribution is full cutoff and compliant with DarkSky requirements. Measurements are in footcandles.

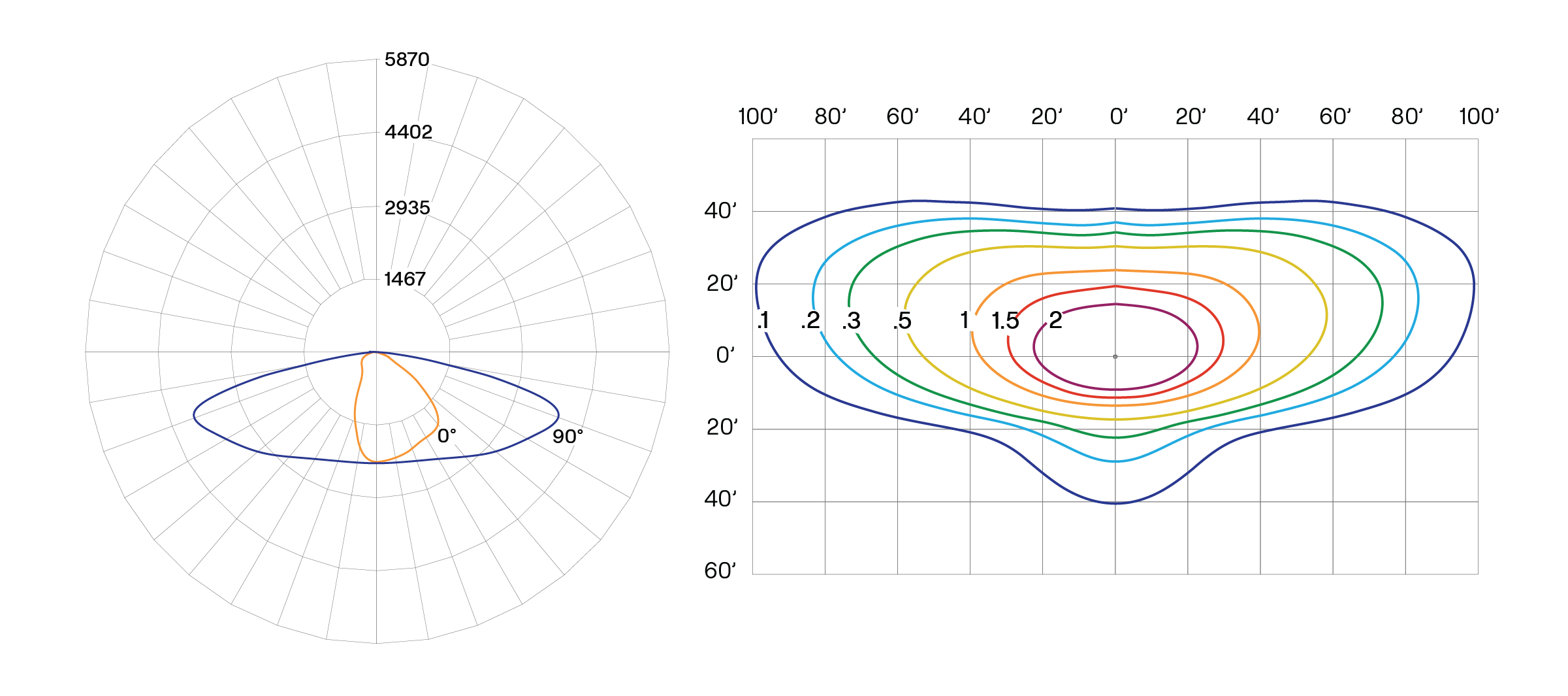

Type 2M

Two plots side by side: left is a polar coordinate plot with a red closed curve inside a circular grid; right is a rectangular contour plot with multiple colored contour lines forming irregular concentric shapes.

Type 2S

Comparison of a circular radar chart with a red highlighted sector and a horizontal color-coded contour plot with multiple contour lines representing different levels.

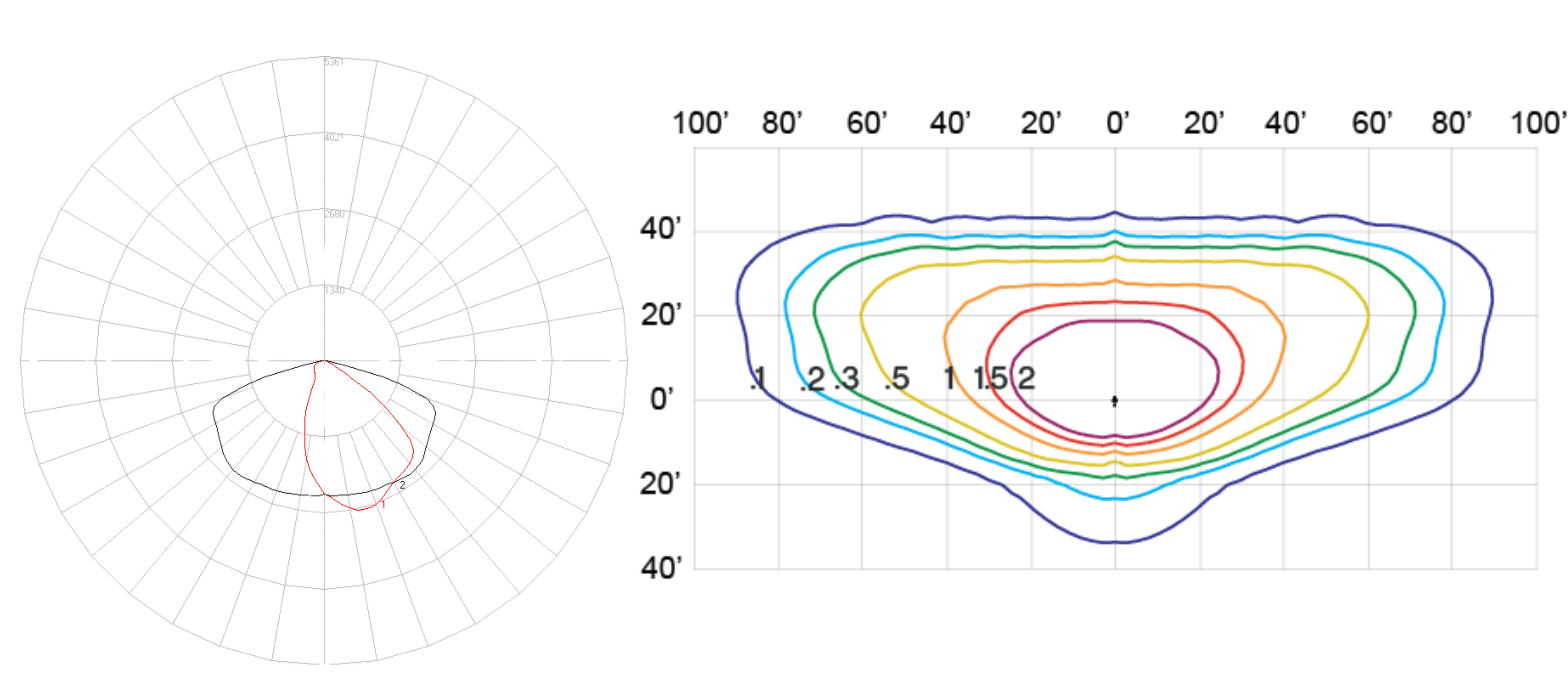

Type 3M

Two scientific diagrams: a polar plot showing a red outlined region within concentric grey radial lines on the left, and a multi-colored contour plot with nested, irregular loops on the right.

Type 3S

Two plots: on the left, a polar plot with radial and angular gridlines and a red line forming an irregular shape; on the right, a contour plot with concentric, irregularly shaped color-coded lines representing different levels on a black background.

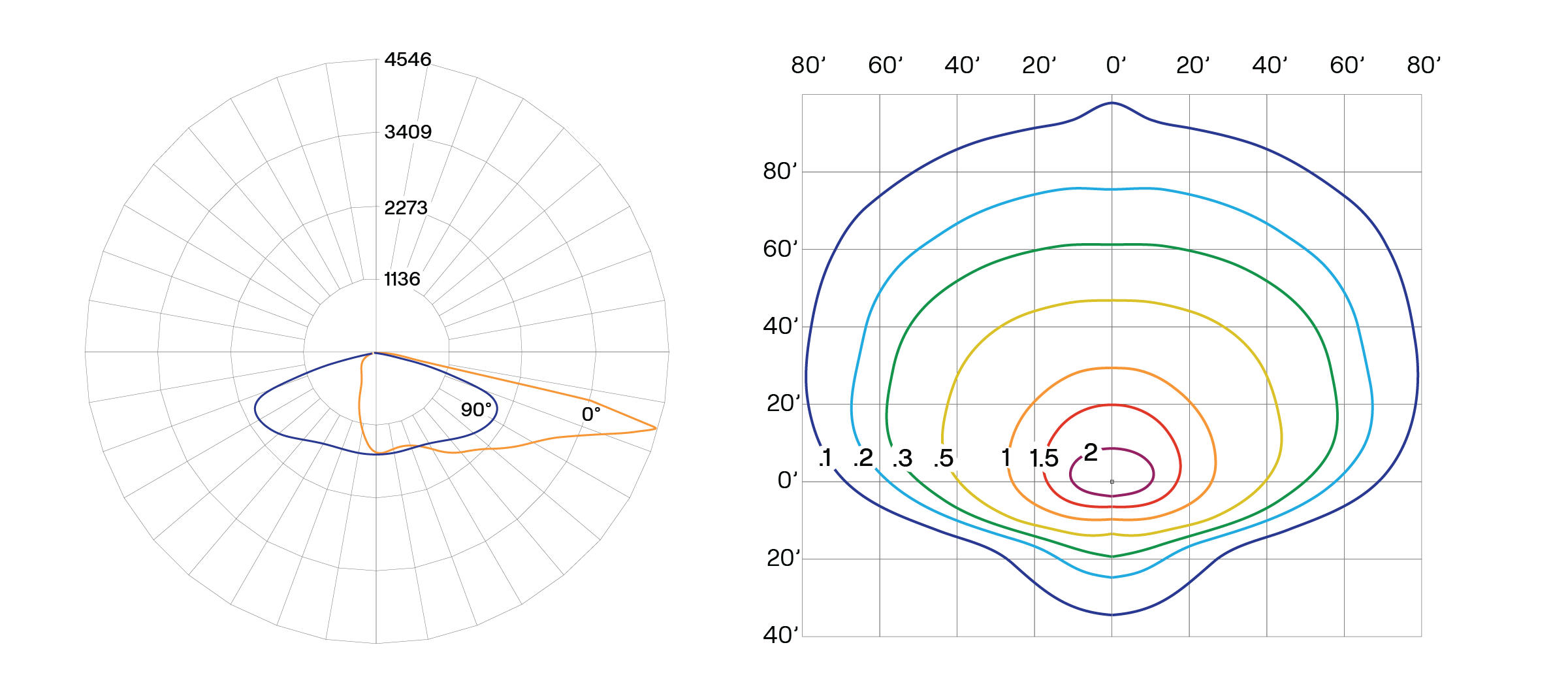

Type 4

Two scientific diagrams side by side: left shows a polar plot with radial grid lines and an irregular red shape, right is a colored contour plot with concentric lines on a grid.

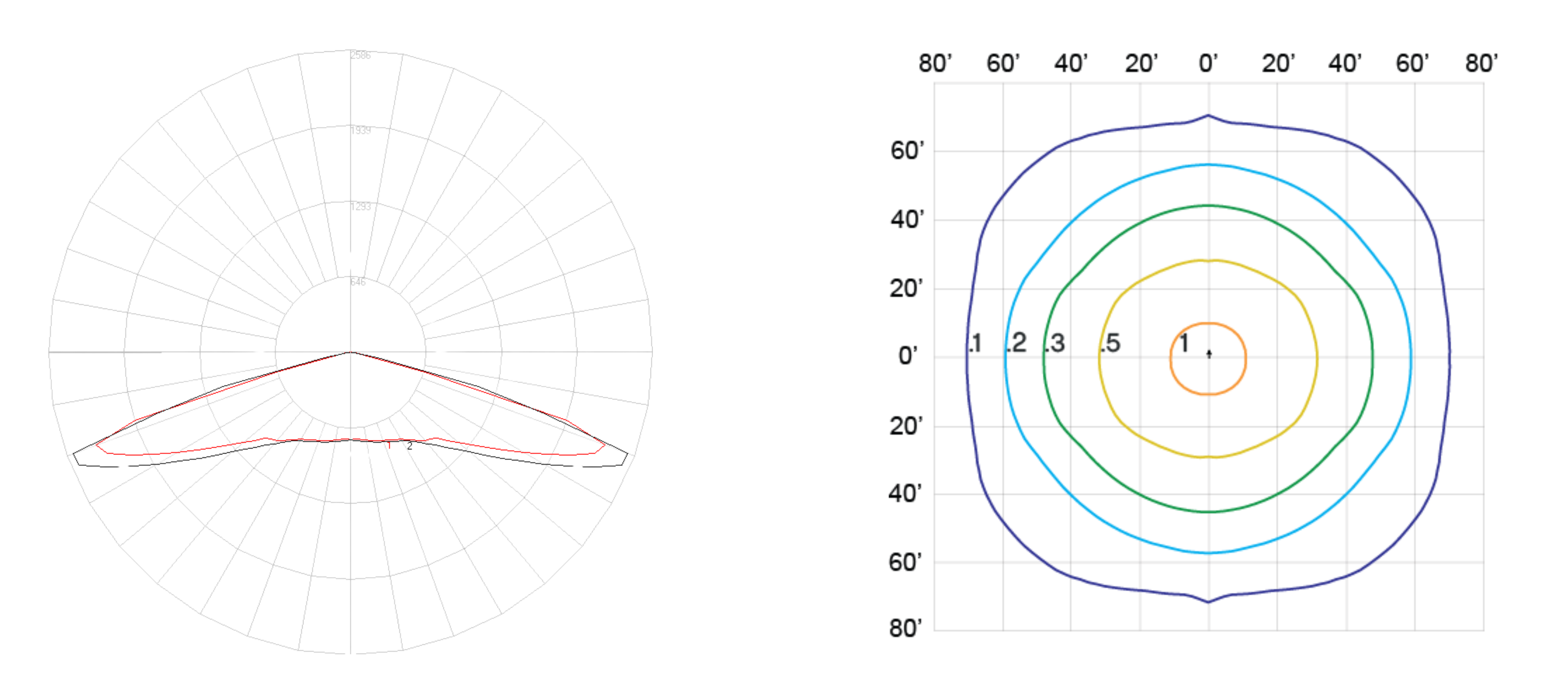

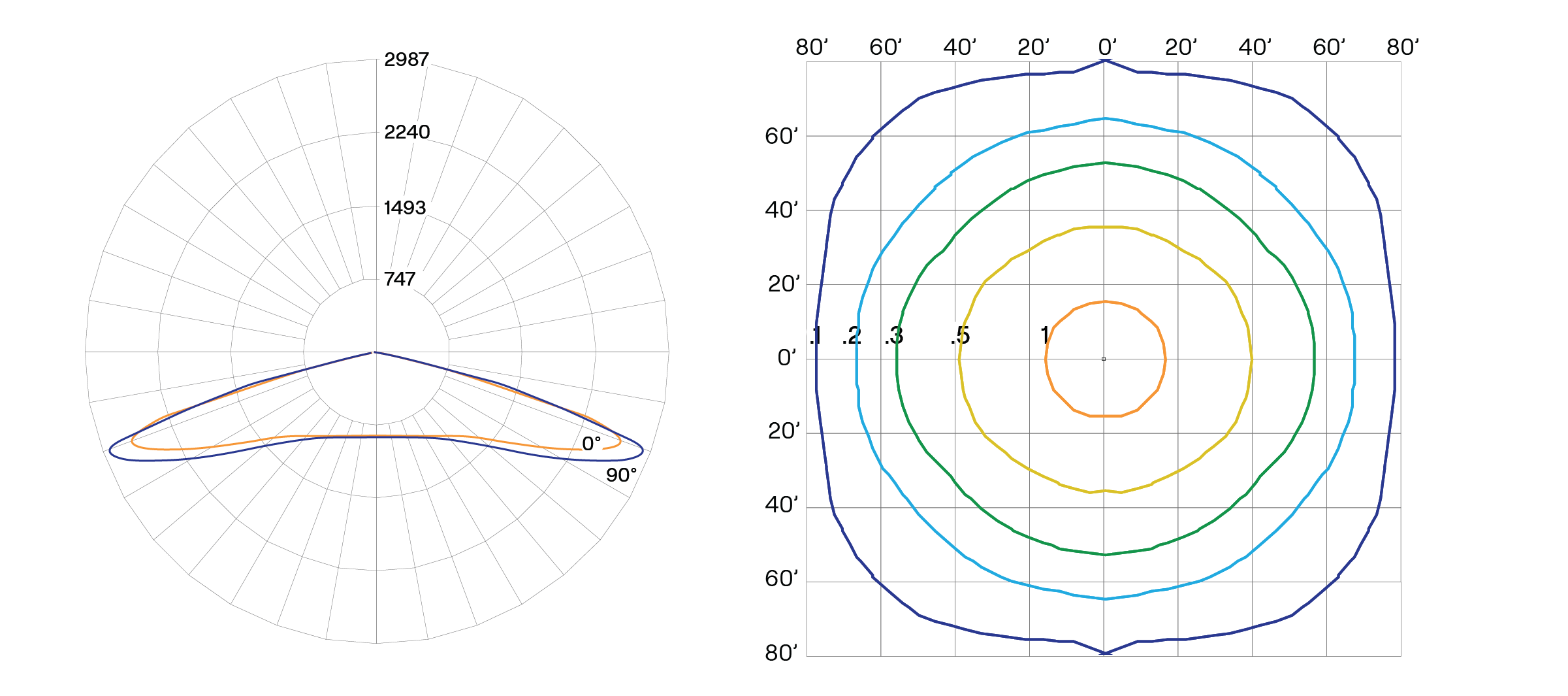

Type 5

Two scientific plots side by side: left is a polar plot with a red triangular shape and angular grid lines; right is a contour plot with five colored concentric contours labeled from 0.1 to 0.9 on a black background grid.

Technical Specifications

Technical Specifications

Style
Classic cobra head design
System Dimensions
Luminaire: 22.75 inches x 8.38 inches
Solar engine: 28.2 inches x 20.7 inches
System Height
Luminaire: 4.38 Inches
Solar engine: 6.1 Inches
System Weight
Luminaire: 9.4 lbs (4.3kg)
Solar engine: 65 lbs (29.5kg)
System EPA
Solar engine: 3.42 feet2 (0.32 m2)
Fixture: 0.52 feet2 (0.05 m2)
Construction
Marine grade chassis & die-cast luminaire
Stainless fasteners
Pre-drilled for seamless installation
Finish
Architectural grade, durable TGIC powder coat
Powder Coat Color
Bronze, Black, Gray, White or Custom color

Mounting Specifications

Mounting Options
Solar engine mounts to a vertical tenon
Luminaire head mounts to a mast arm or horizontal tenon

Pole Recommendations

Pole Considerations
FLT’s BFL lightweight pole options are designed for quick and easy installation. This includes a tenon on top for the simple and quick mounting of the solar engine and a mast arm for mounting the fixture.
The pole and mast arm are delivered pre-drilled with an additional handhole at the mast arm connection to facilitate easier wiring.
Pole Shape Options
BFL poles are round tapered
Pole Height Options
18 feet
20 feet
25 feet
30 feet
Pole Material Options
Lightweight corrosion resistant aluminum or steel options
Pole Reliability
180+ mph wind rated
15+ year powder coat lifetime
100% recyclable

Adaptive Intelligence

Management
Intelligently manages lighting performance based on
environmental conditions and lighting requirements
Commissioning
Automatically calibrates and commissions for location using GPS after connection to the battery
Data Logging
On-board multi-year data logging
Integration
Microcontroller based technology

LED Engine & Controller

Lumen Output
7220 lumens
Color Temperature Options
4000K Not DarkSky compatible
3000K DarkSky Approved
2700K DarkSky Approved
LED Lifetime
100,000 hour LED L70 lifetime
Control
High-efficiency, Maximum Power Point Tracking (MPPT) battery charger
High-efficiency integrated LED driver
Integrated optics maximize application efficiency and light distribution

Power

Solar Module
Industry’s most efficient solar panel technology
Active cell technology optimizes power generation
even if partially blocked
Battery
High-performance Lithium Iron Phosphate (LiFePO4) technology
Exceptional 10+ year life cycle
High and low temperature tolerance
Optical
High-efficiency type 2, 3, 4, 4F and type 5 full cutoff optics
Achieves pathway and area lighting standards with typical output of 7220 lumens
B2 – U0 – G1 BUG Rating

Downloads & Resources

Supporting Resources

Spec Sheets

BFL Spec Sheet
PDF Download

IES Files

BFL IES Files
PDF Download

Installation

BFL Installation Instructions
PDF Download

Lighting Profile Sheet

Choosing the right lighting profile
PDF Download

Ideal Applications

Streets

BFL is engineered for optimal performance in streets environments, providing reliable solar-powered illumination without trenching or wiring.

Roadways

BFL is engineered for optimal performance in roadways environments, providing reliable solar-powered illumination without trenching or wiring.

Parking Lots

BFL is engineered for optimal performance in parking lots environments, providing reliable solar-powered illumination without trenching or wiring.

Large Areas

BFL is engineered for optimal performance in large areas environments, providing reliable solar-powered illumination without trenching or wiring.

Reliability & Warranty

•
Tested for high- & low- heat and humidity
•
5-year warranty
•
10+ year battery life
•
20-year lifespan
•
Designed and manufactured in North America
