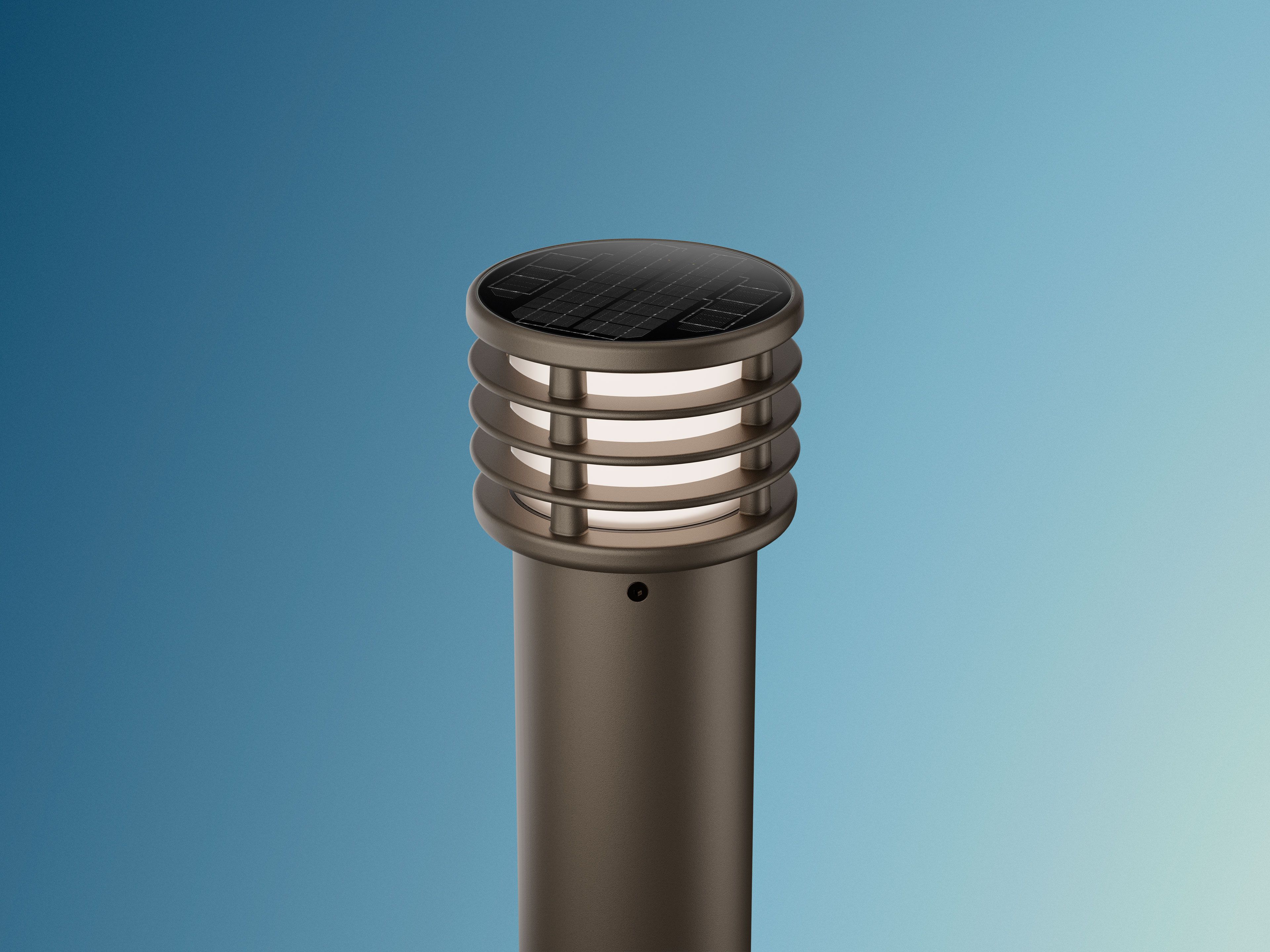

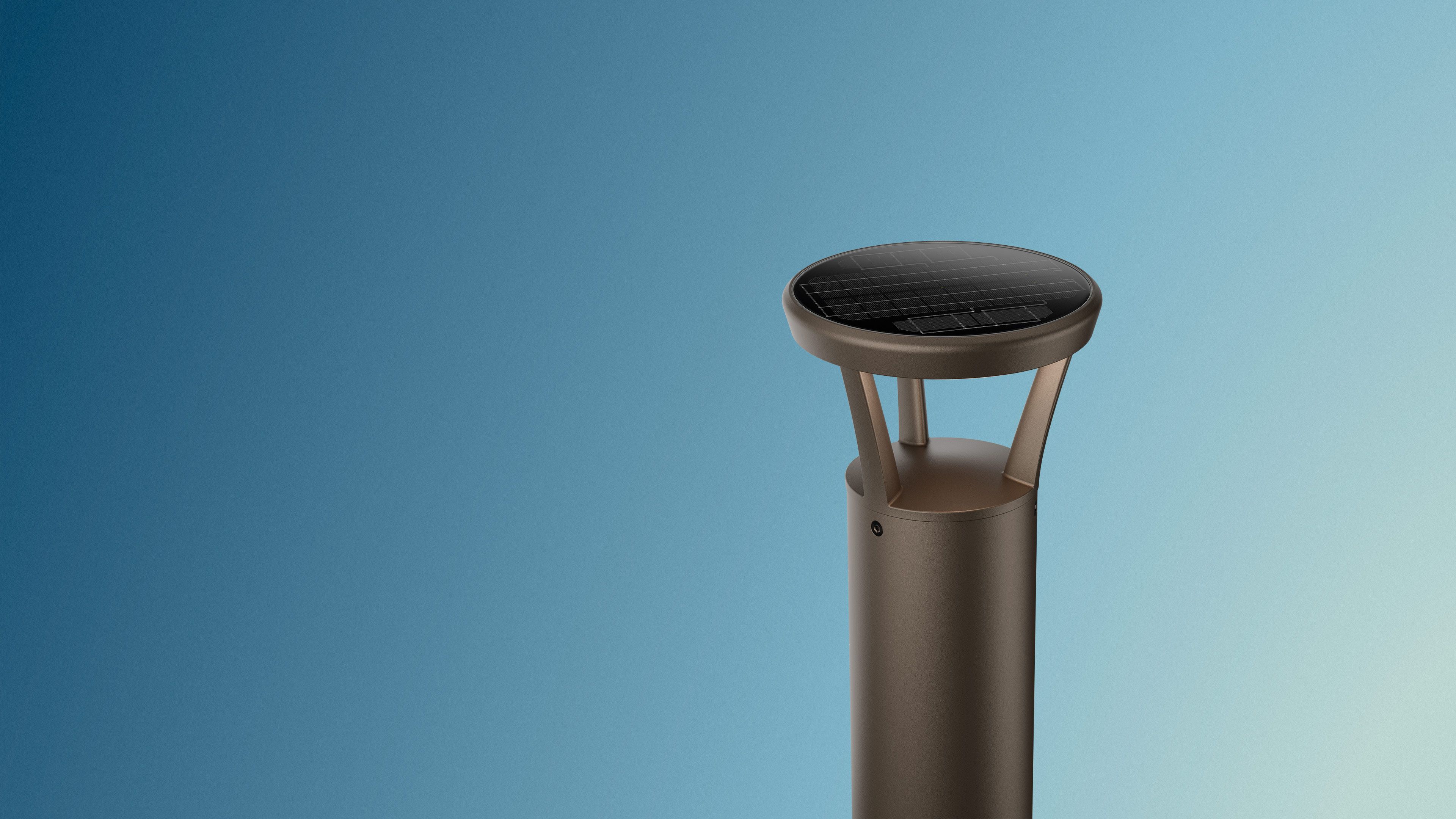

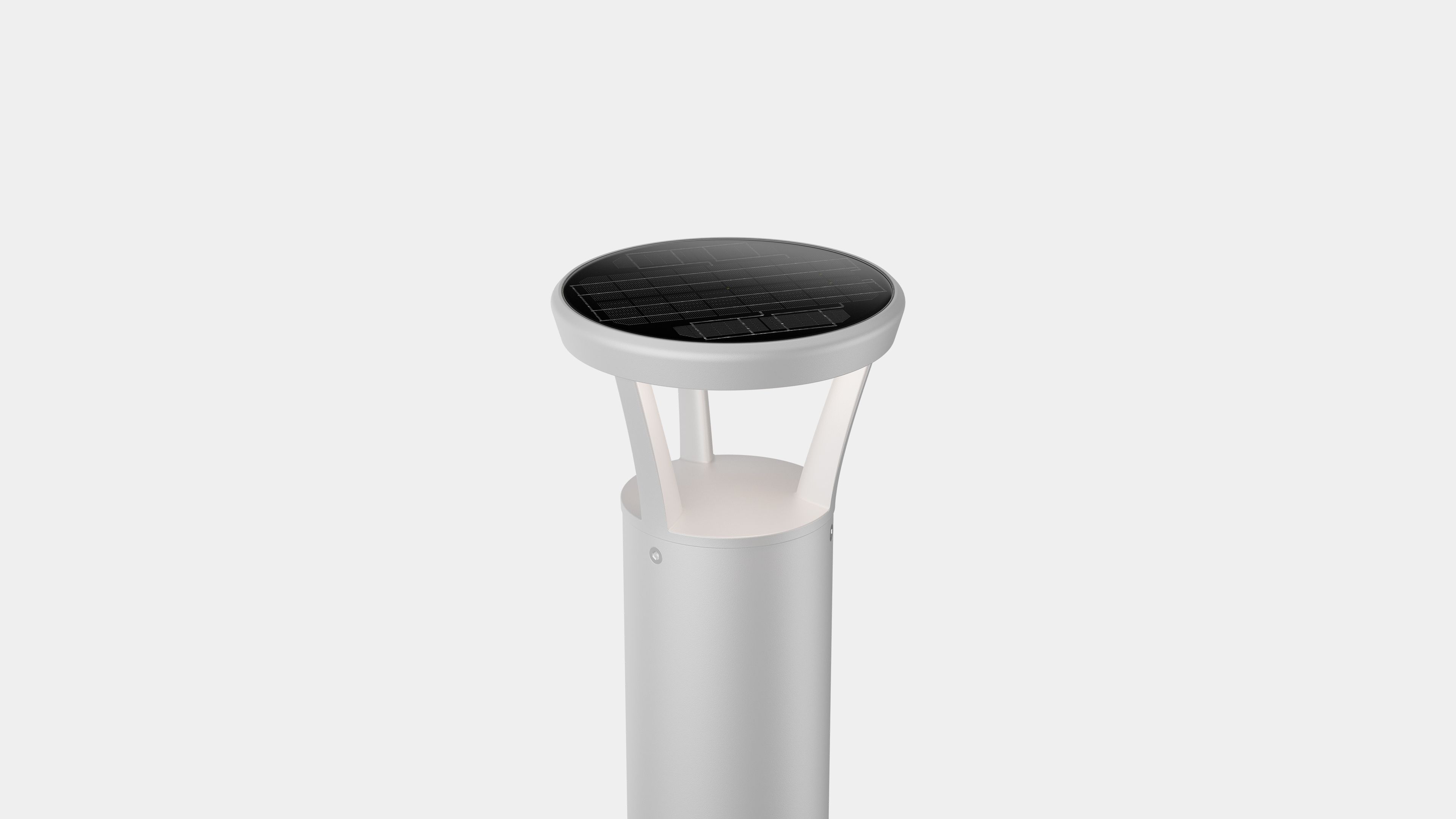

Modern outdoor solar-powered bollard light with a cylindrical base and round solar panel top against a gradient blue background.

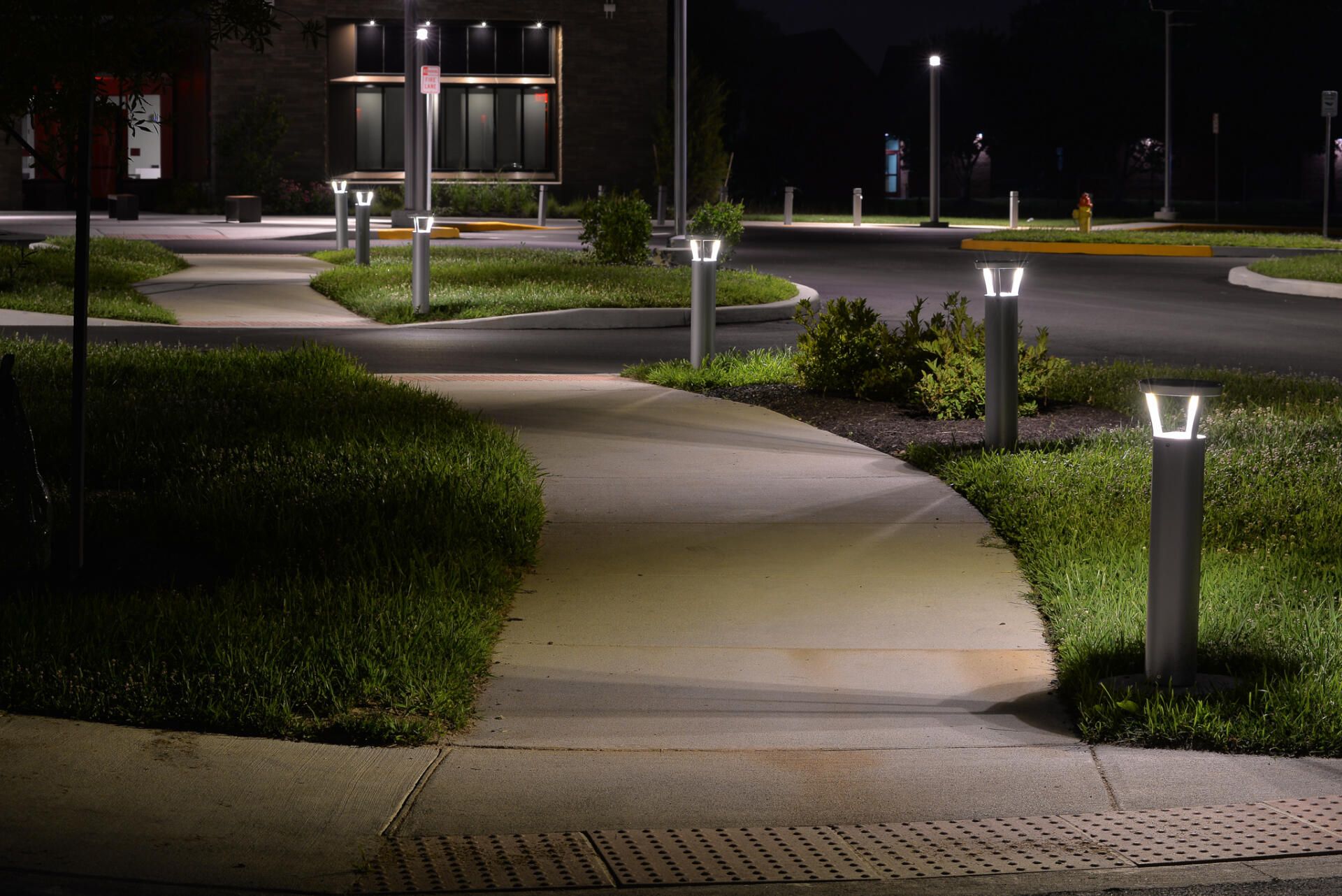

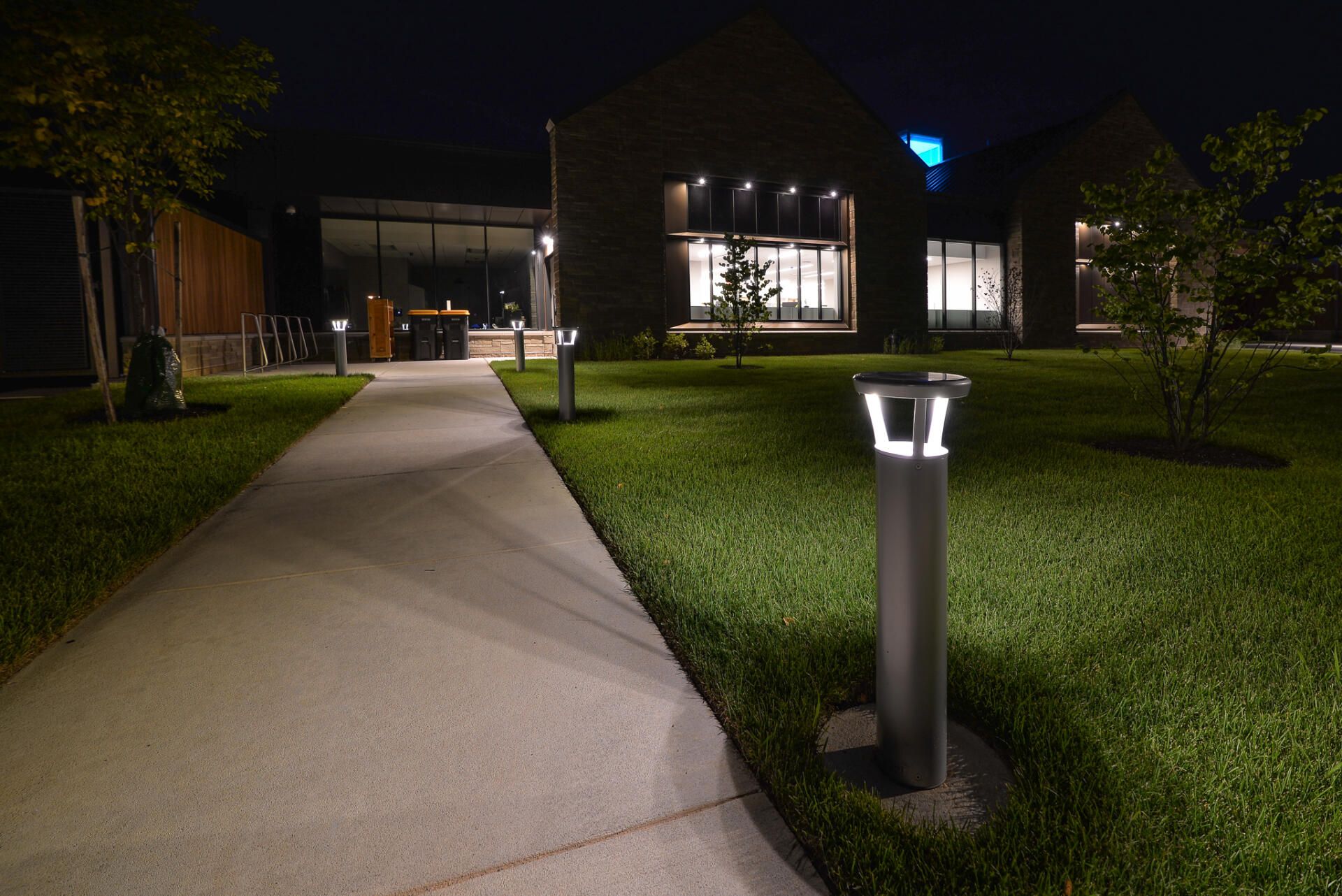

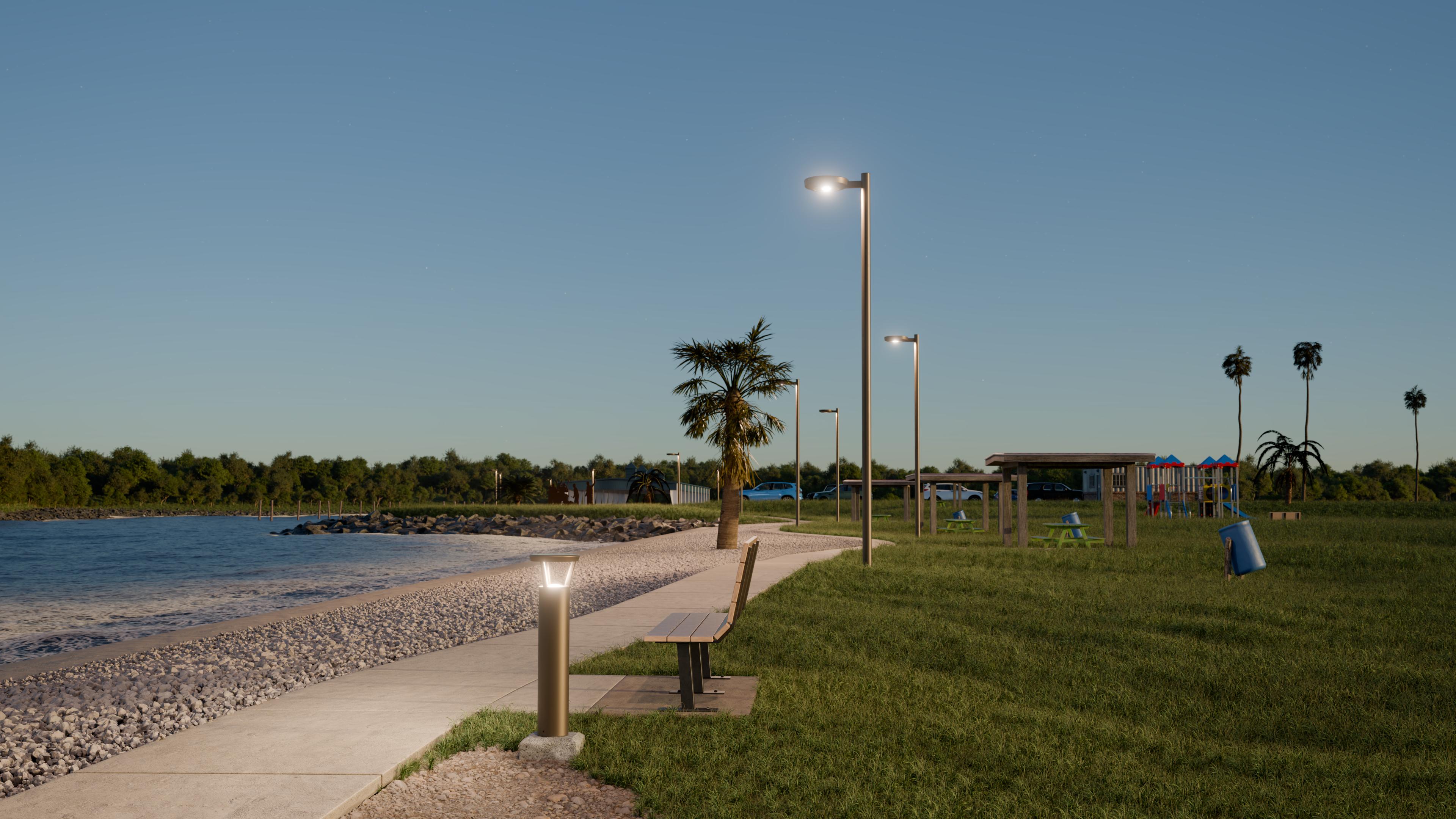

Illuminated modern pathway with bollard lights leading to a building with large windows at night.

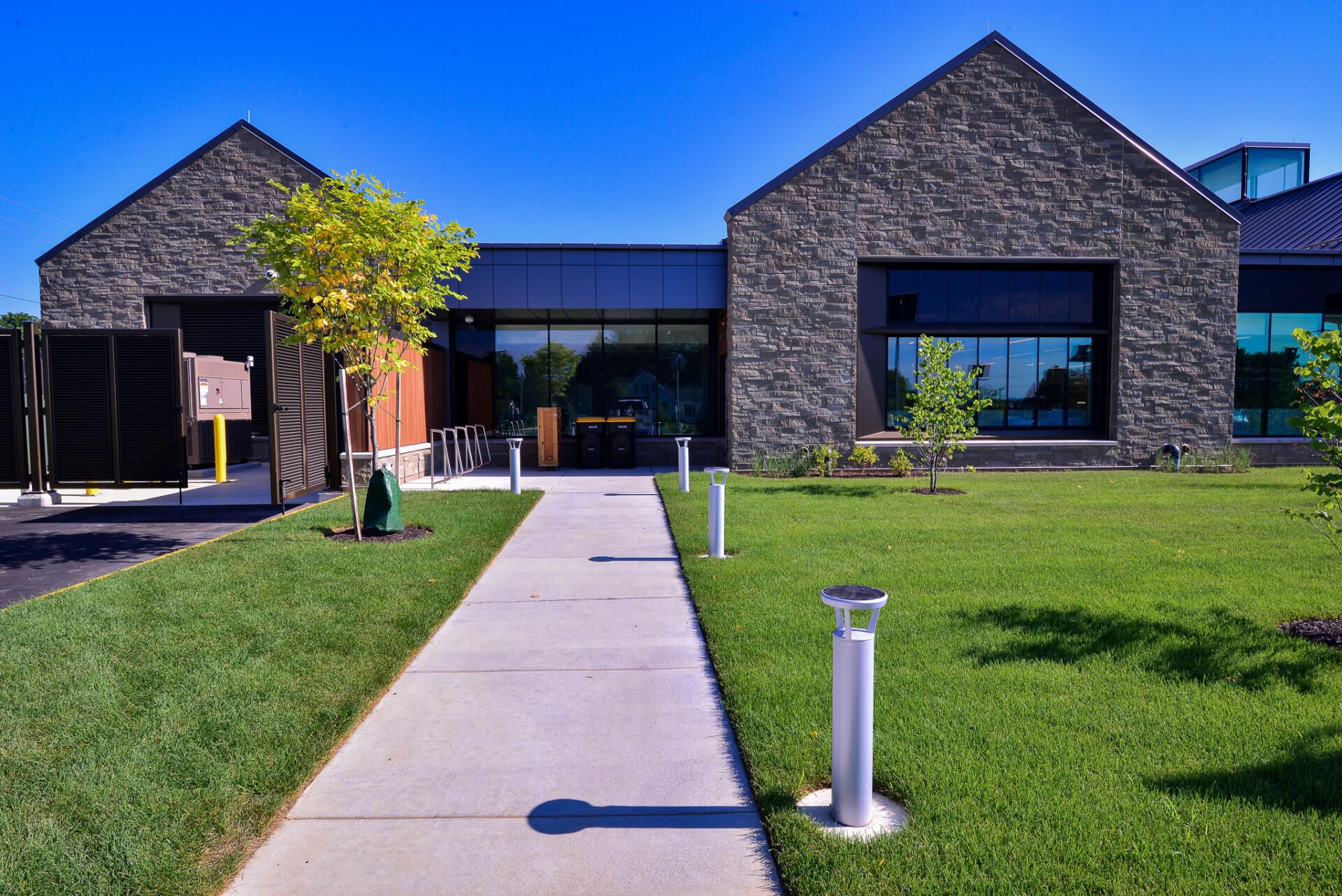

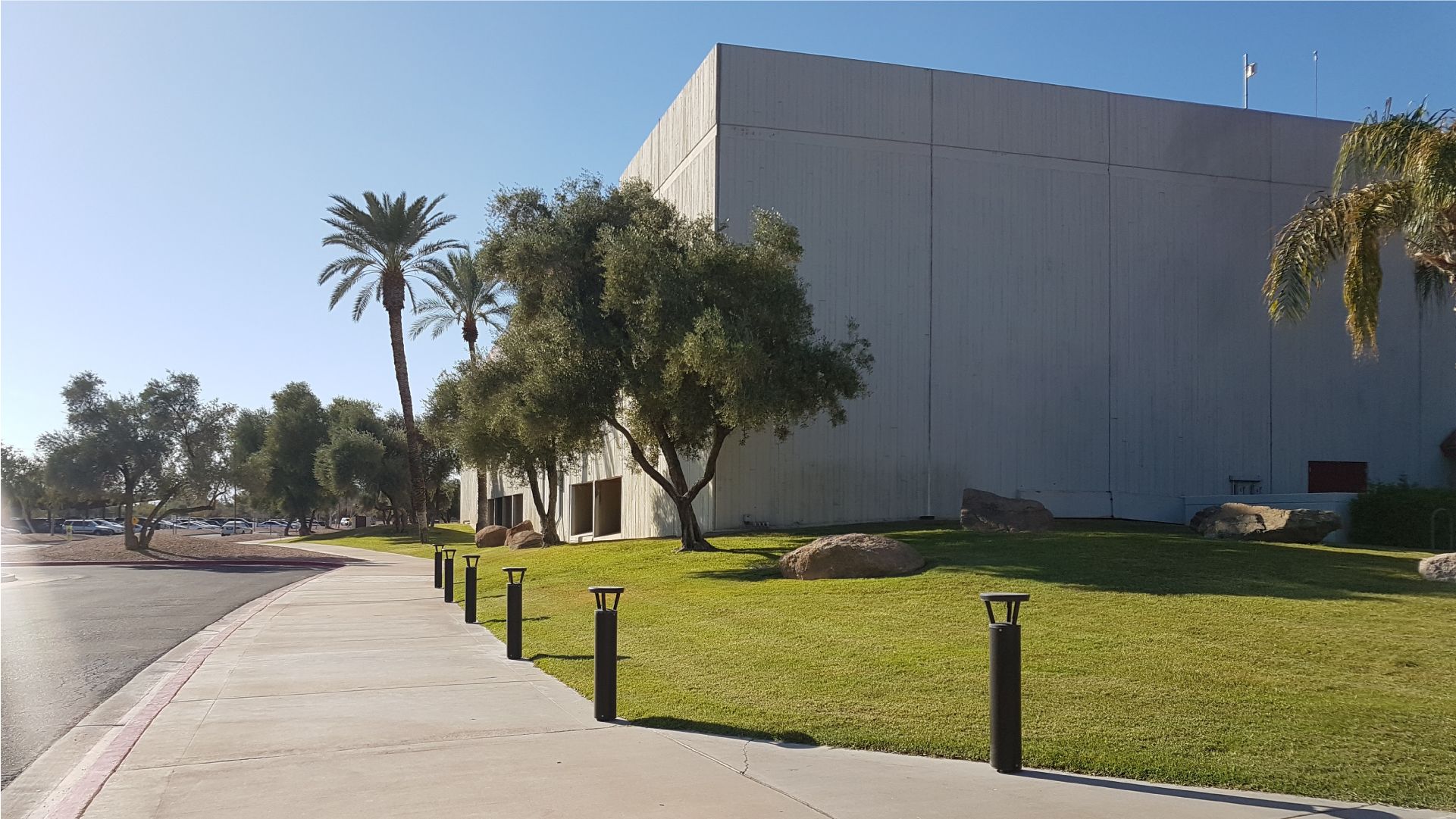

Modern commercial building with stone facades, large windows, and a concrete walkway surrounded by green grass and small trees.
Well-lit sidewalk winding through grassy areas with modern lamp posts at night.

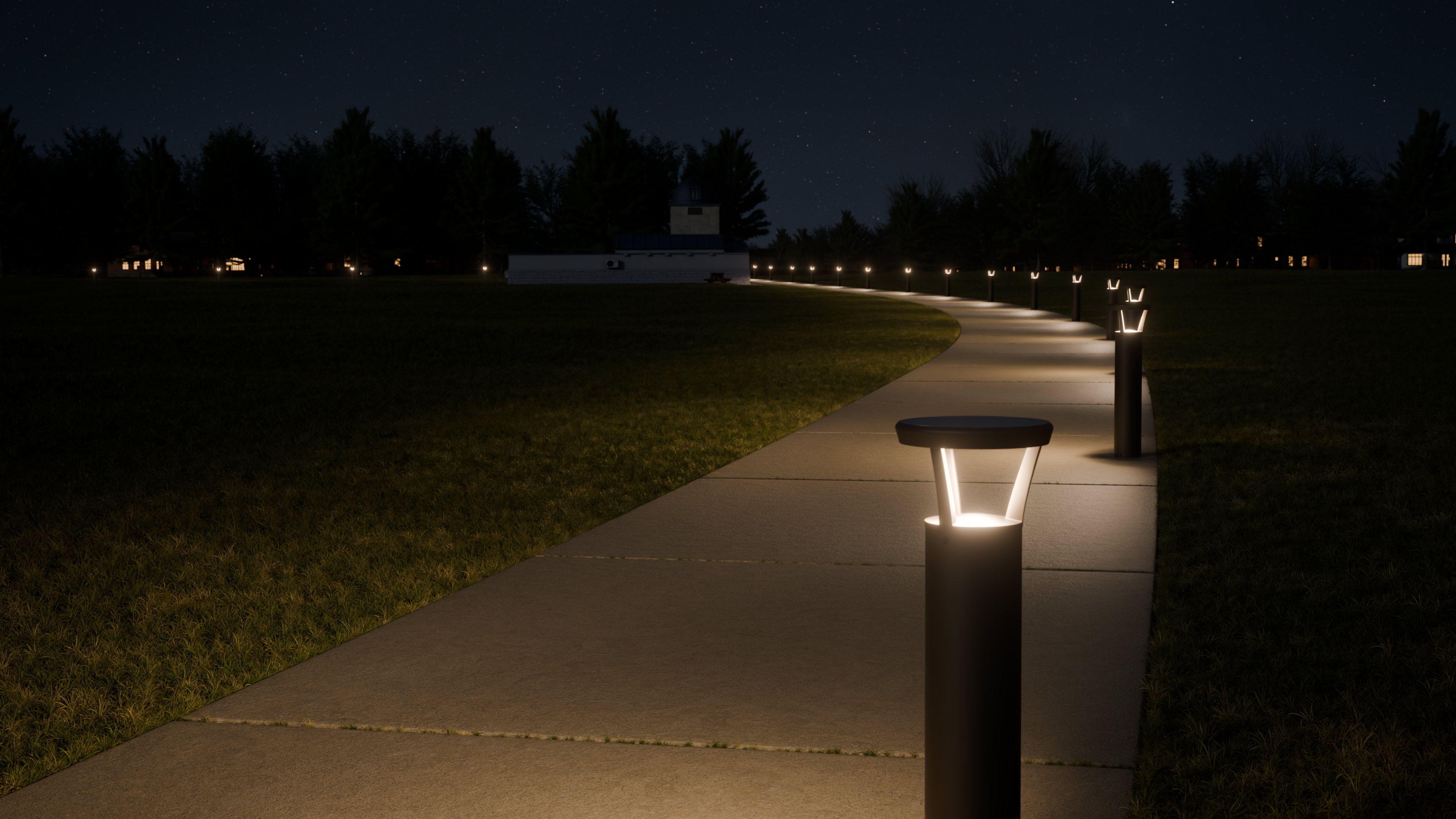

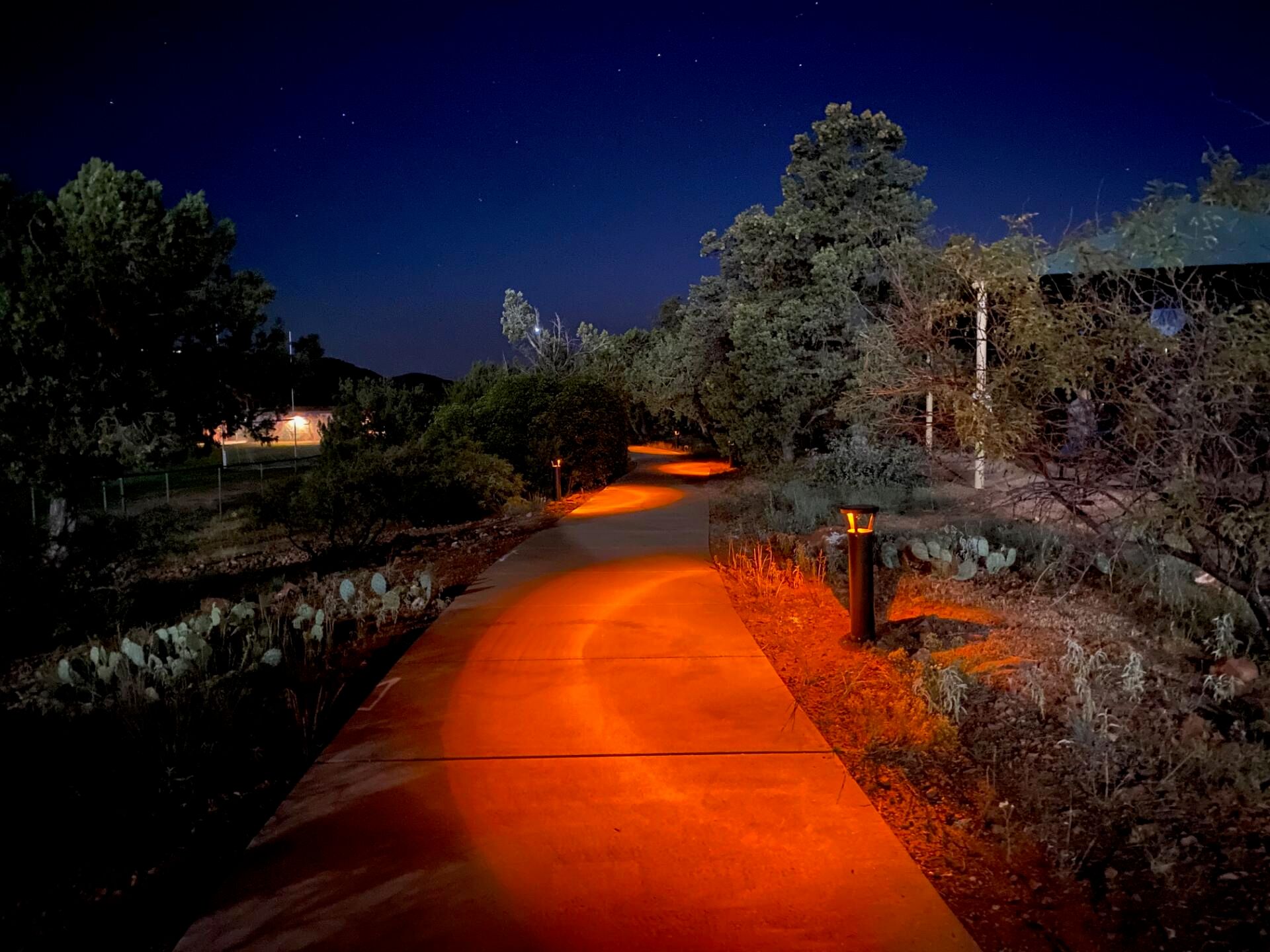

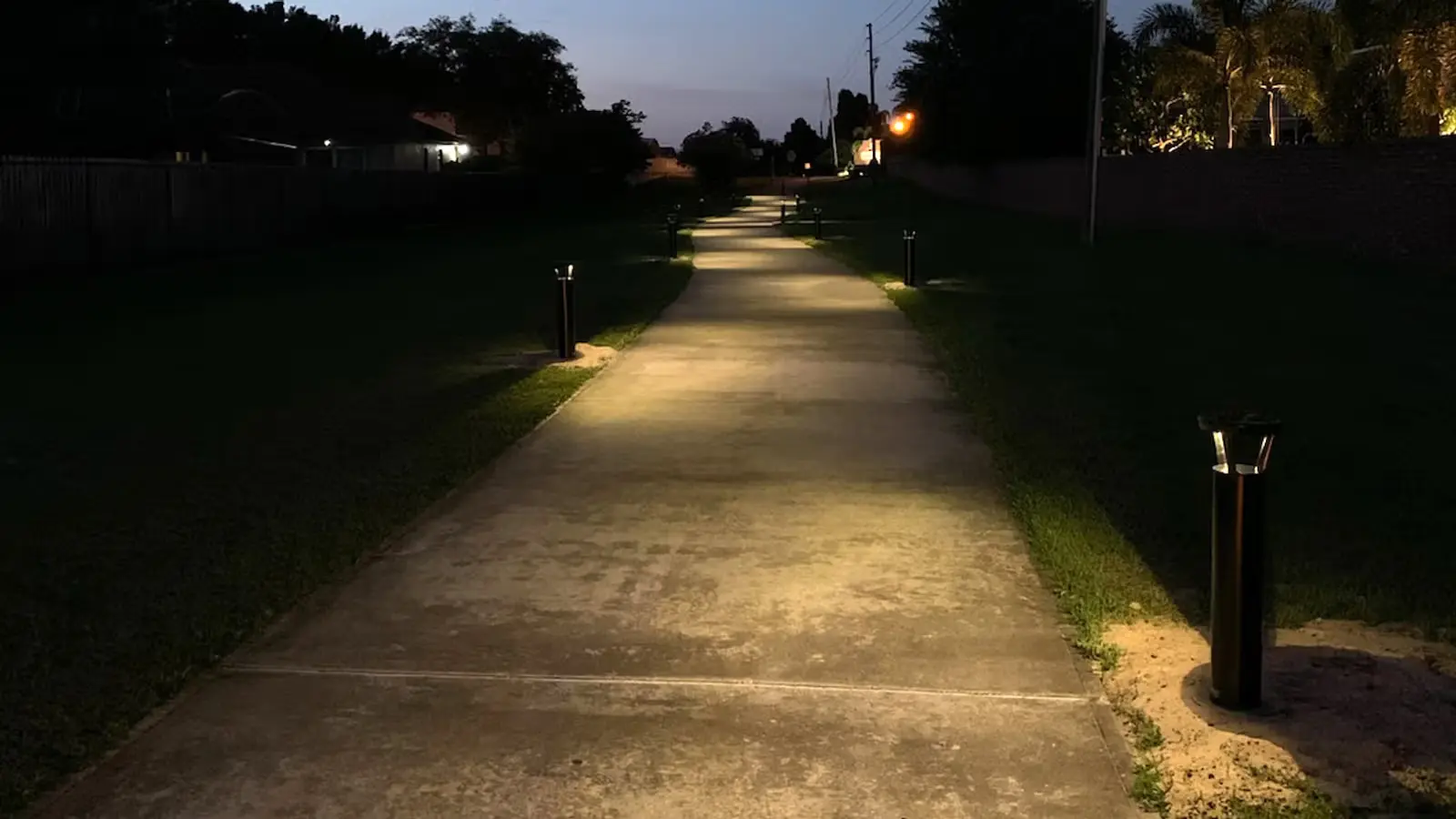

A dimly lit concrete pathway at night with small black bollard lights lining both sides.

PLB

When clean architectural lighting is required without the hassle of trenching or wiring, the PLB delivers uniform pathway illumination straight out of the box. Bolt it to the footing—it's that easy.

Request A QuoteDownload Spec SheetDownload IES File

Product details

•
Lumen Output: 450 lumens
•
Color Temperature: 2700K, 3000K, 4000K, Amber (595nm)
•
Optical: Type 3 and type 5 full-cutoff optics

Best for

Pathway, Park, Parking Lot

Product details

•
No wiring, trenching, or electrical service required
•
Self-contained build designed to improve project aesthetics
•
Cost-effective design ships fully assembled and installs in minutes
•
No ongoing maintenance
•
Provides programmed illumination all night, every night
•
Wireless control & communication with your light
Overview
Specifications
Resources
Applications
Warranty

Product Overview

When clean architectural lighting is required without the hassle of trenching or wiring, the PLB delivers uniform pathway illumination straight out of the box. Bolt it to the footing—it's that easy.

Available Finishes

Bronze
Black
Silver
White

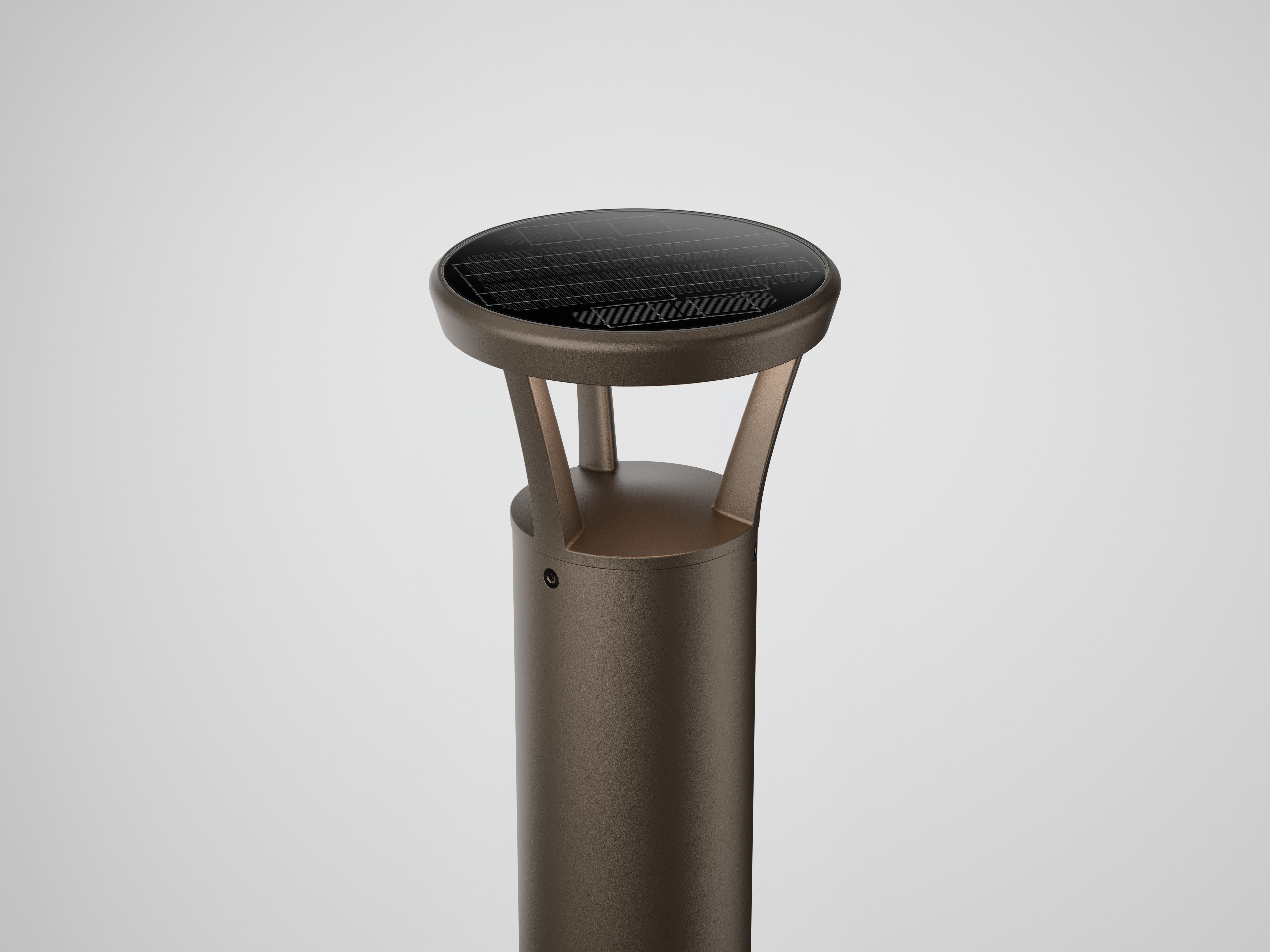

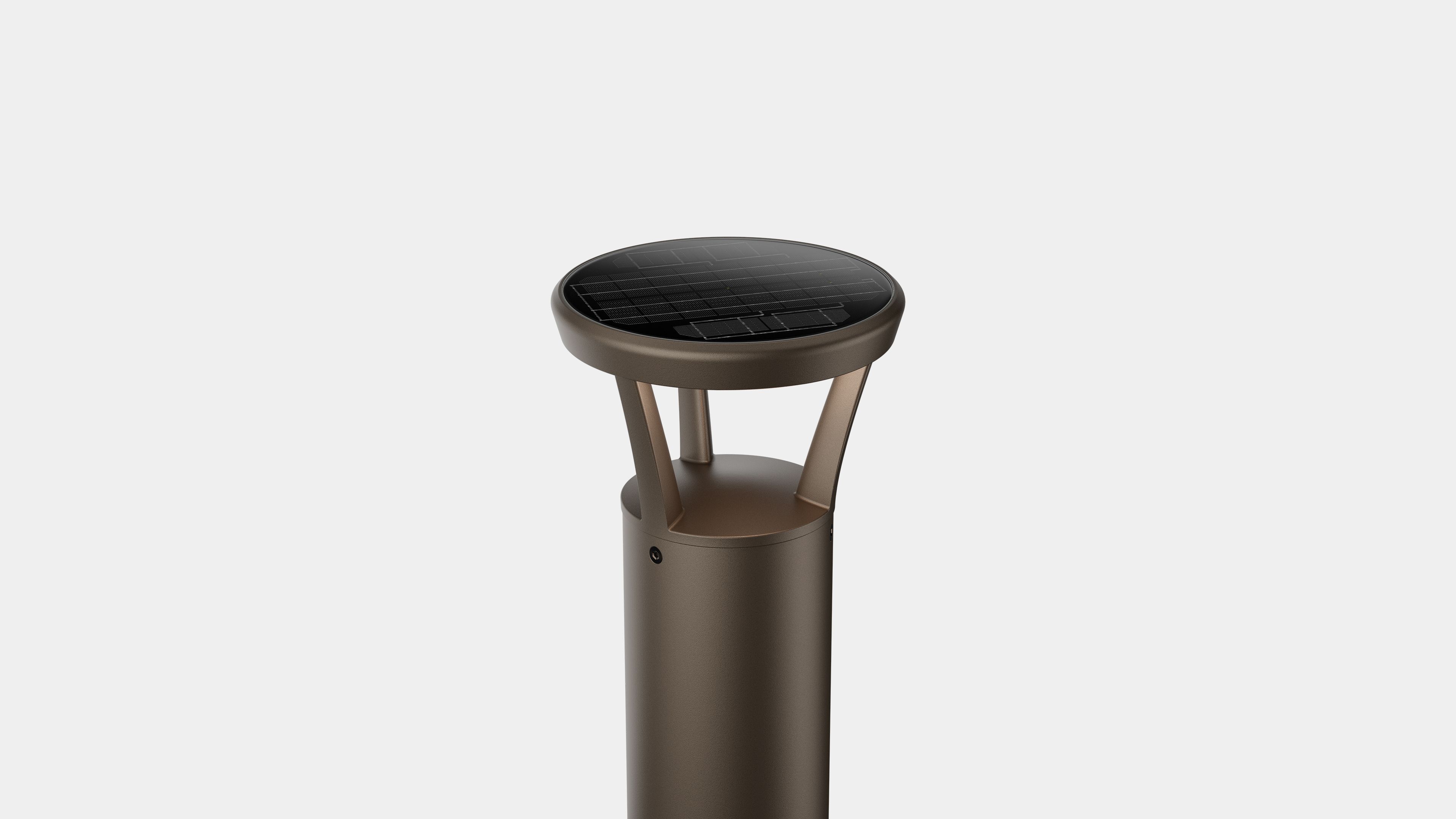

Bronze solar bollard light with a round, flat top and a translucent diffuser panel.
Black solar bollard light with a round, flat top and a translucent diffuser panel.

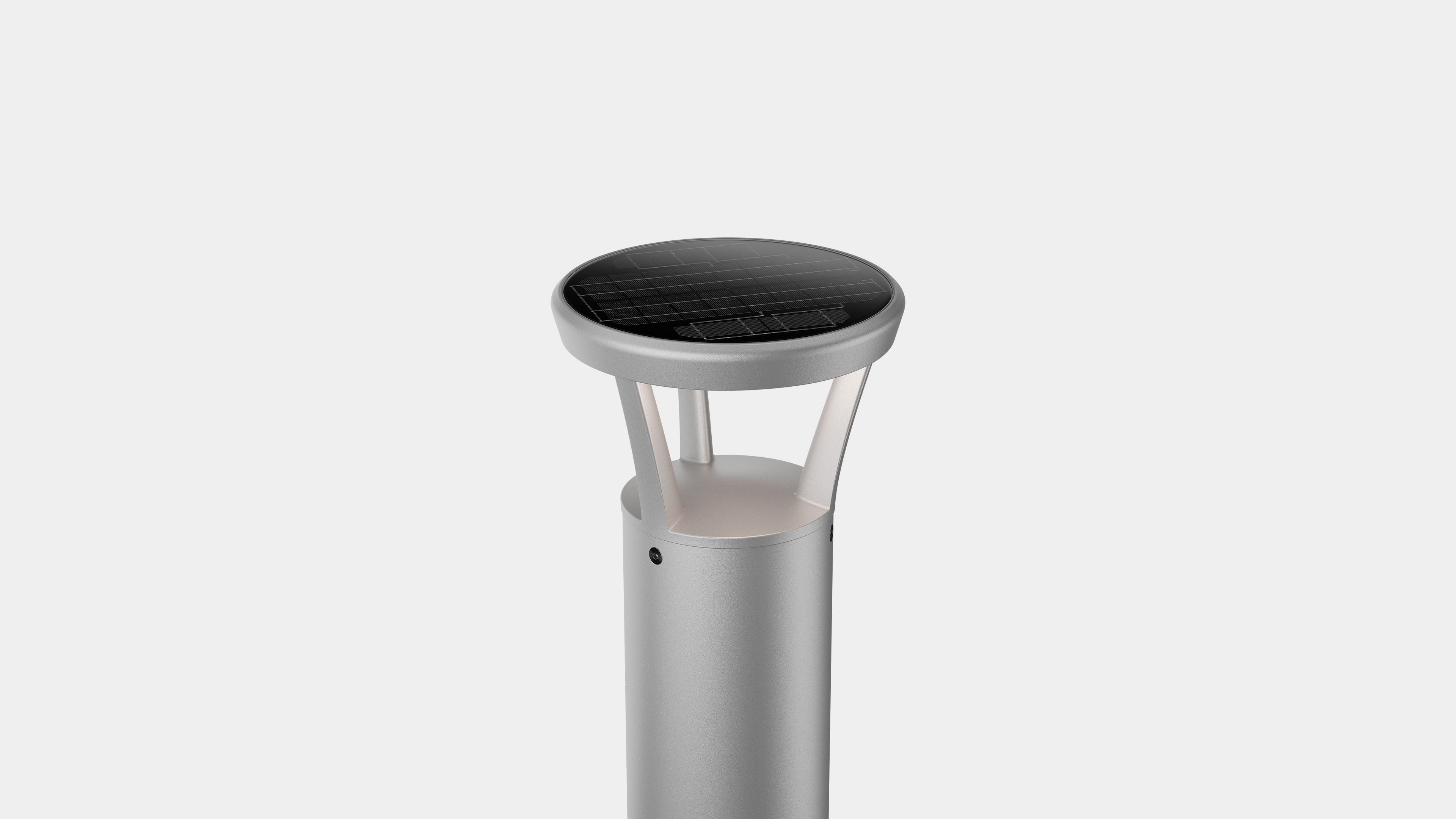

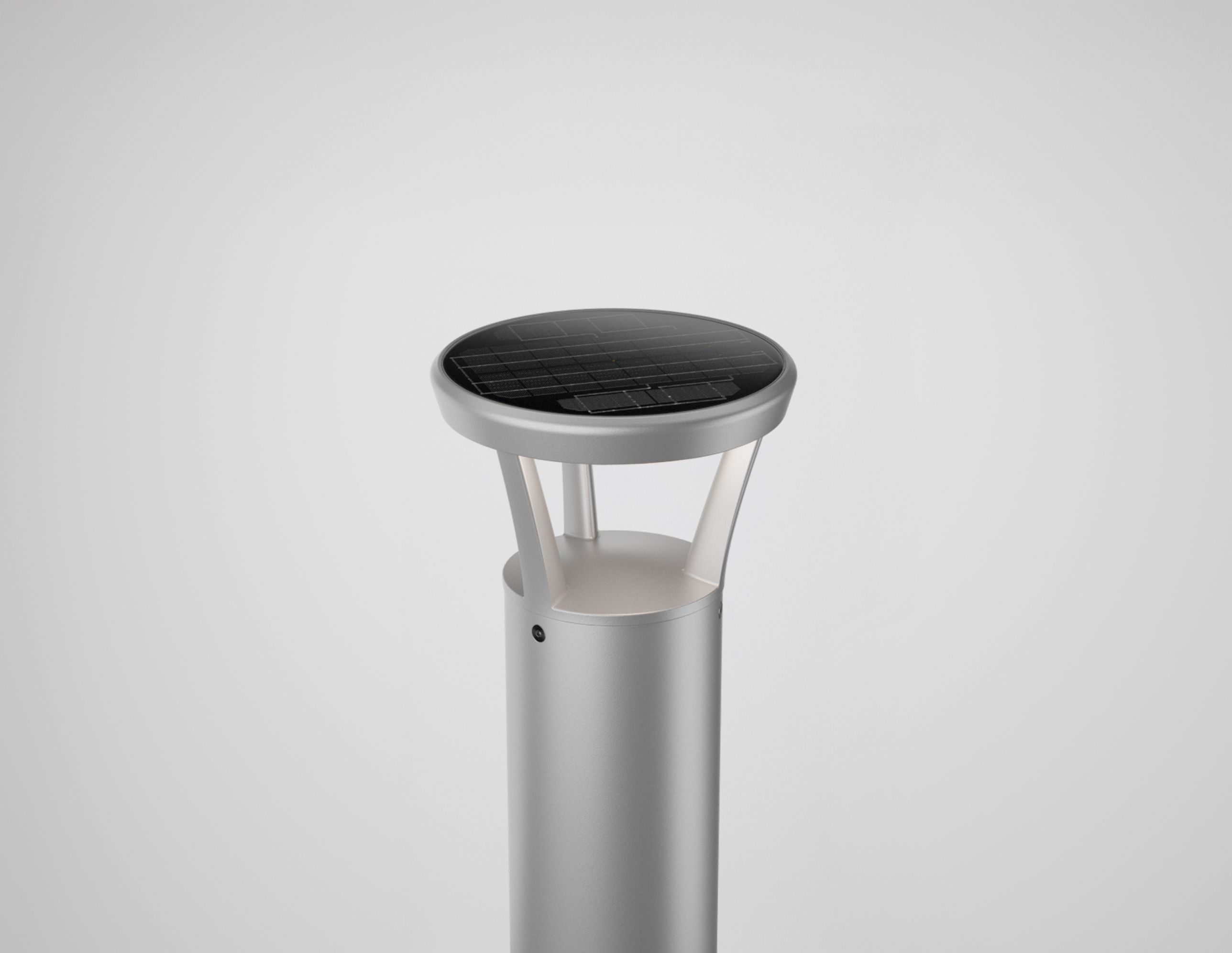

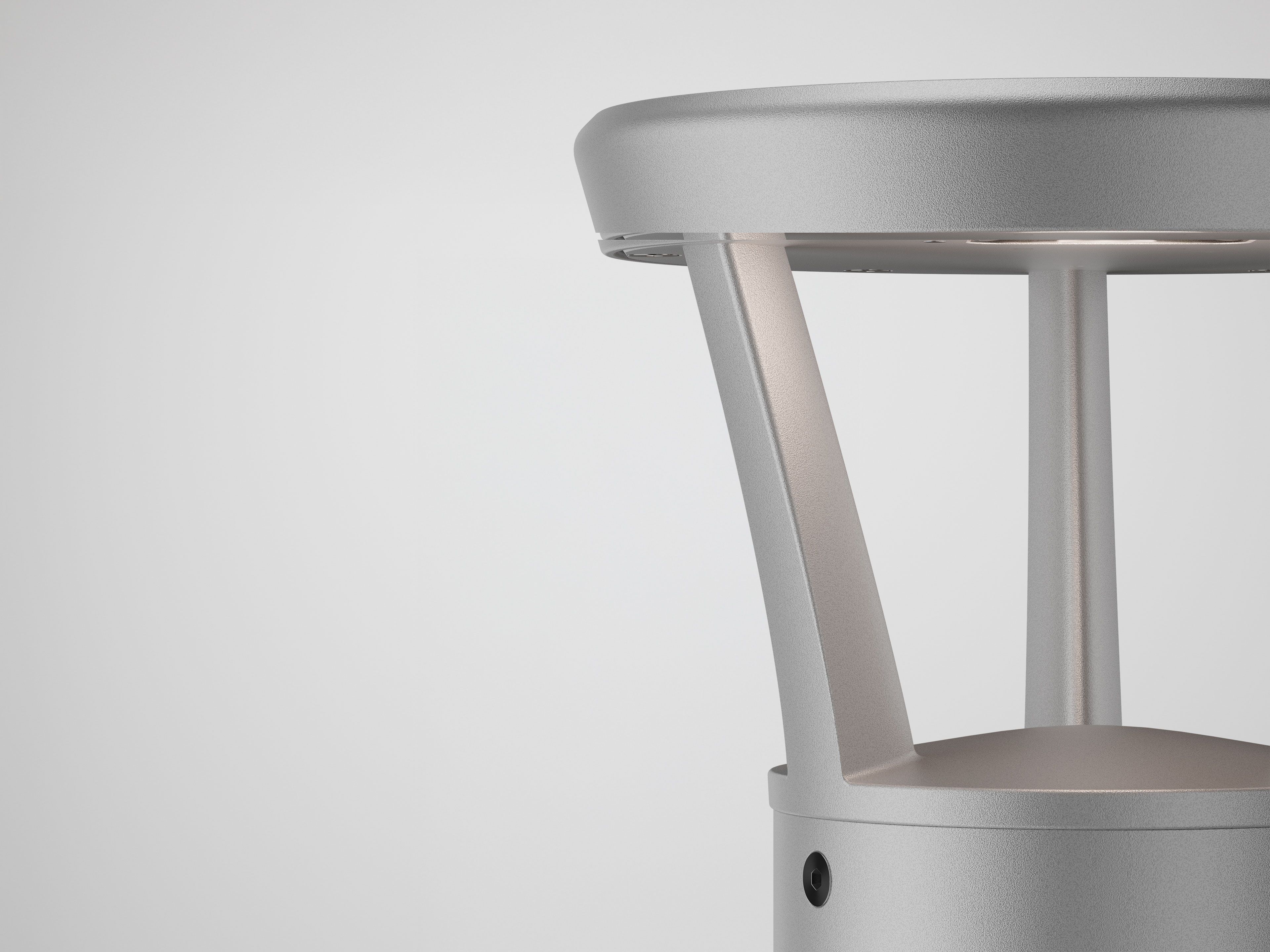

Silver solar bollard light with a round, flat top and a translucent diffuser panel.
White solar bollard light with a round, flat top and a translucent diffuser panel.

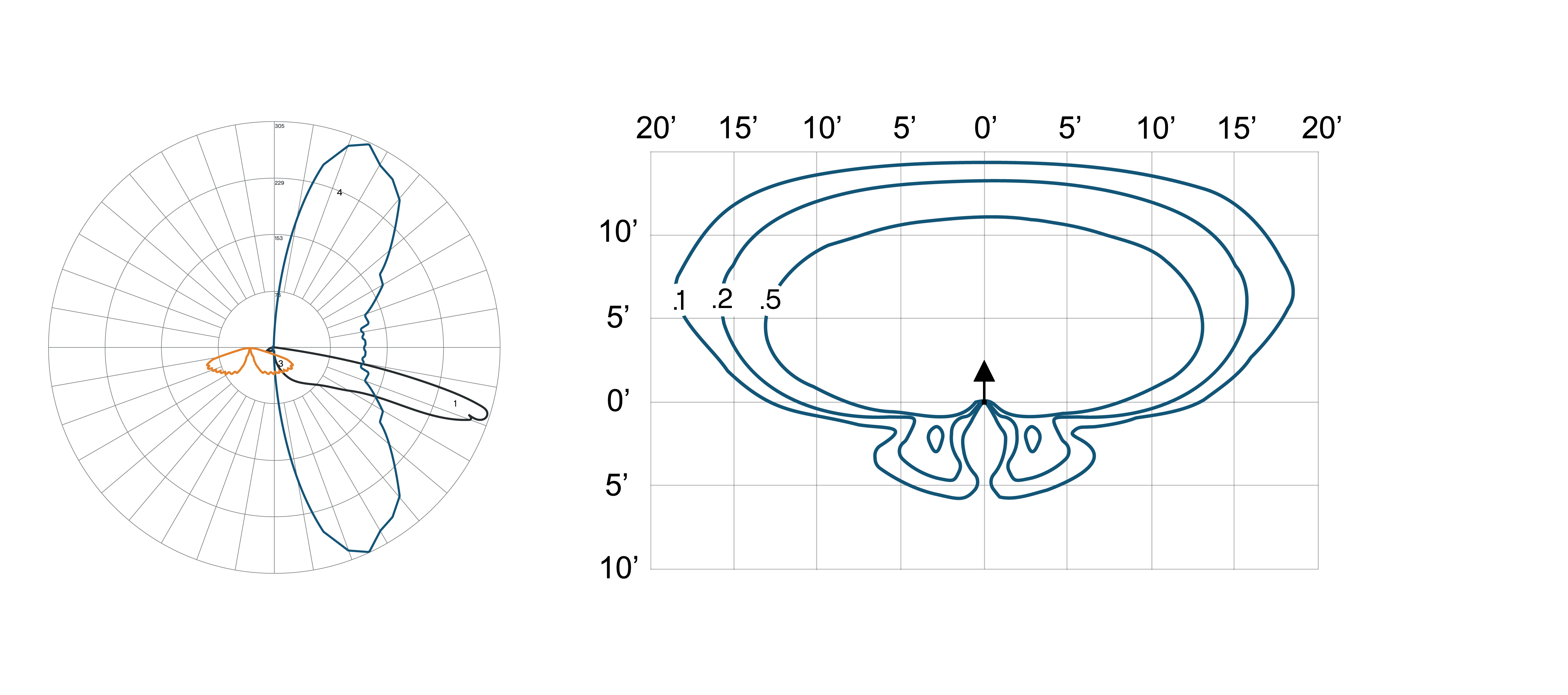

Photometric Diagrams

Overview

FLT's optical solutions efficiently focus light where it’s needed. There are several standard lighting distributions that optimize performance for different applications. Each lighting distribution is full cutoff and compliant with DarkSky requirements. Measurements are in footcandles.

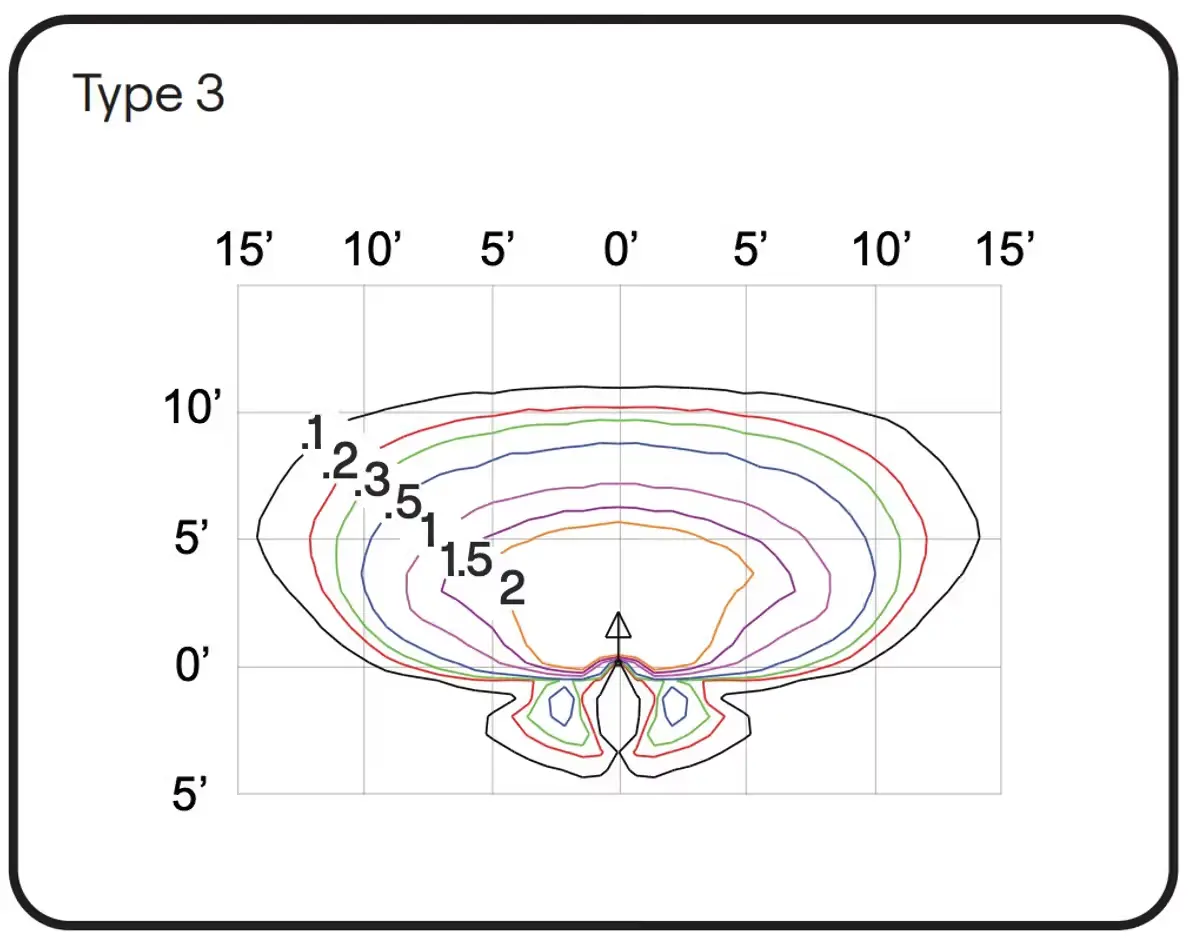

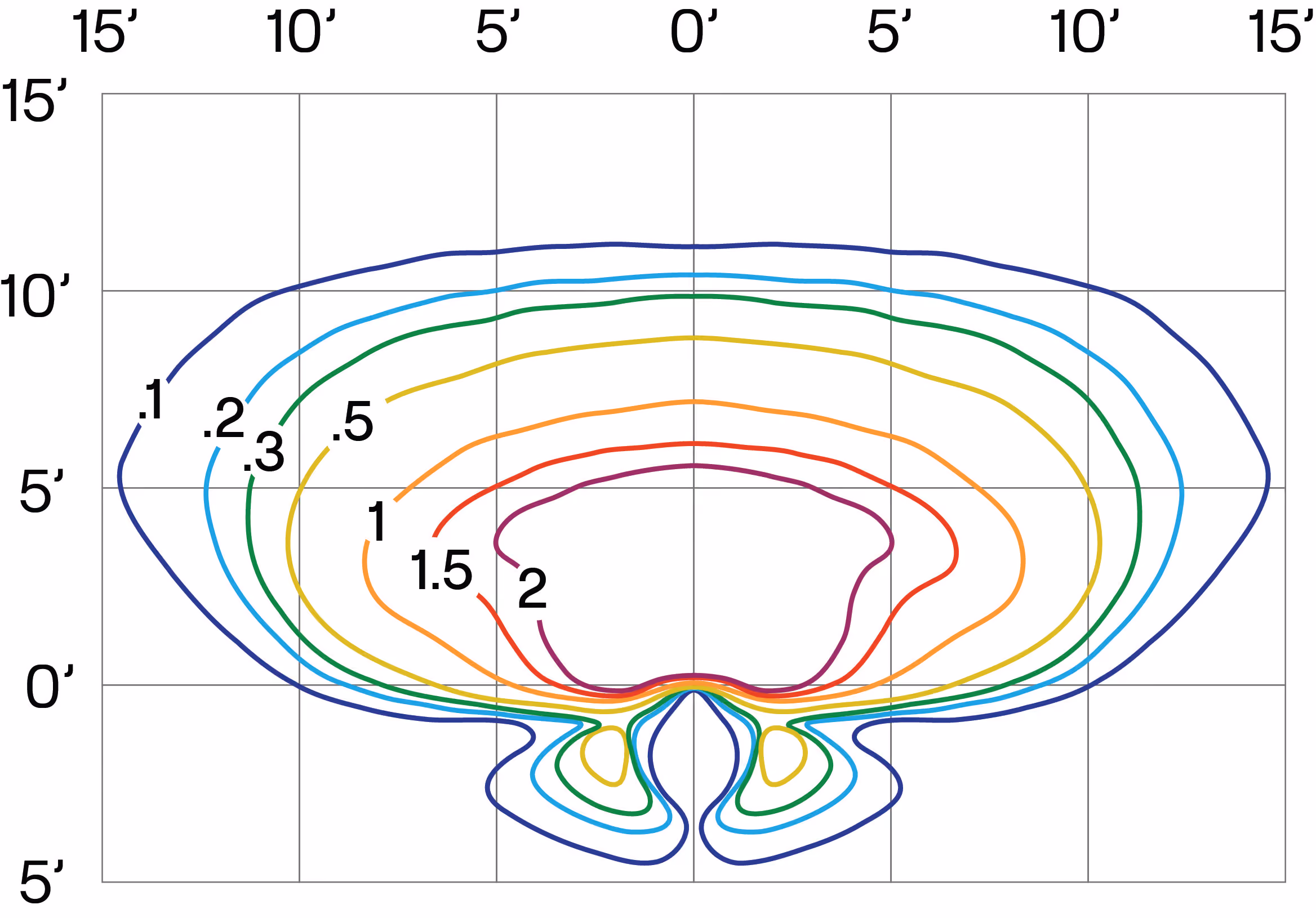

Type 3

Contour plot labeled Type 3 showing concentric curved lines with values from 0.1 to 2, marked on a grid with feet units ranging from 0 to 15 in both horizontal and vertical directions.

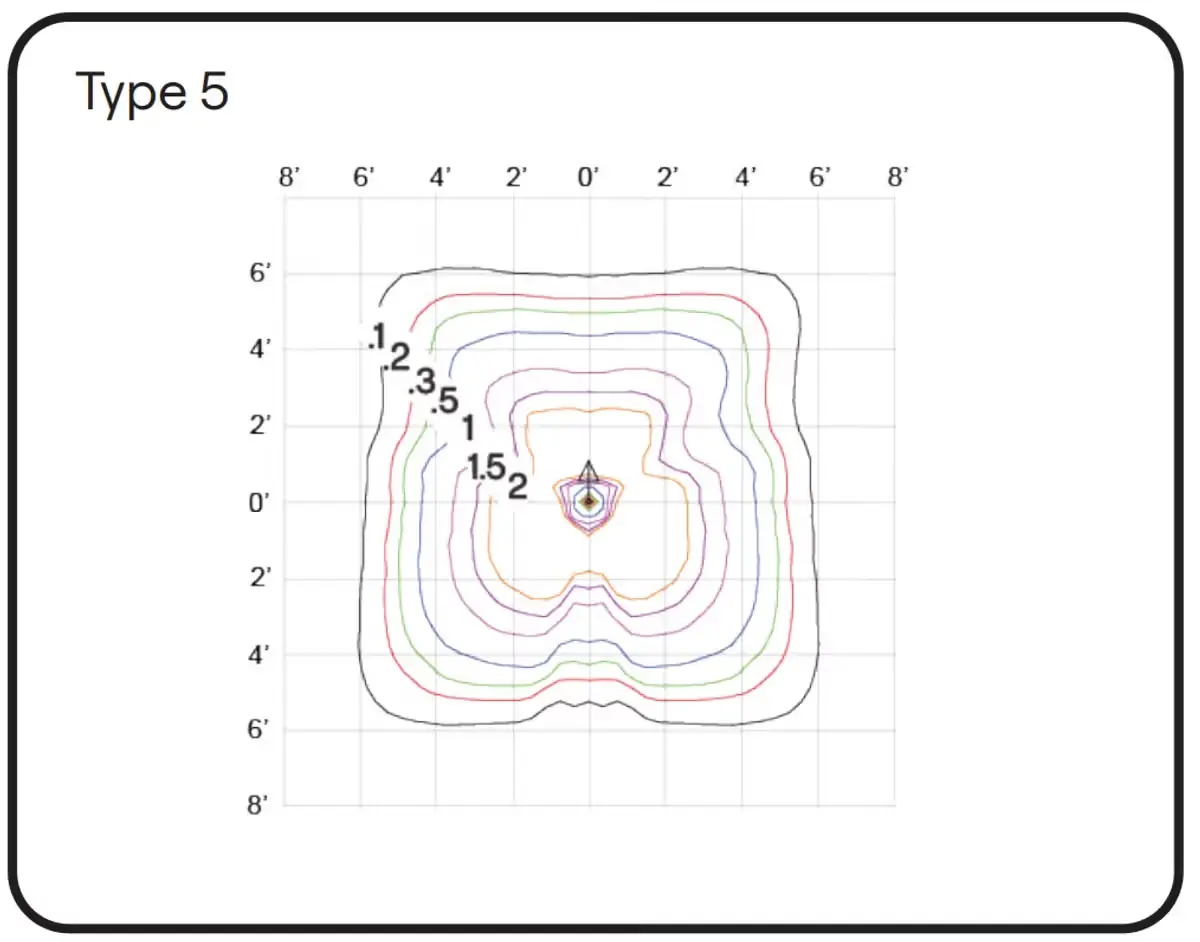

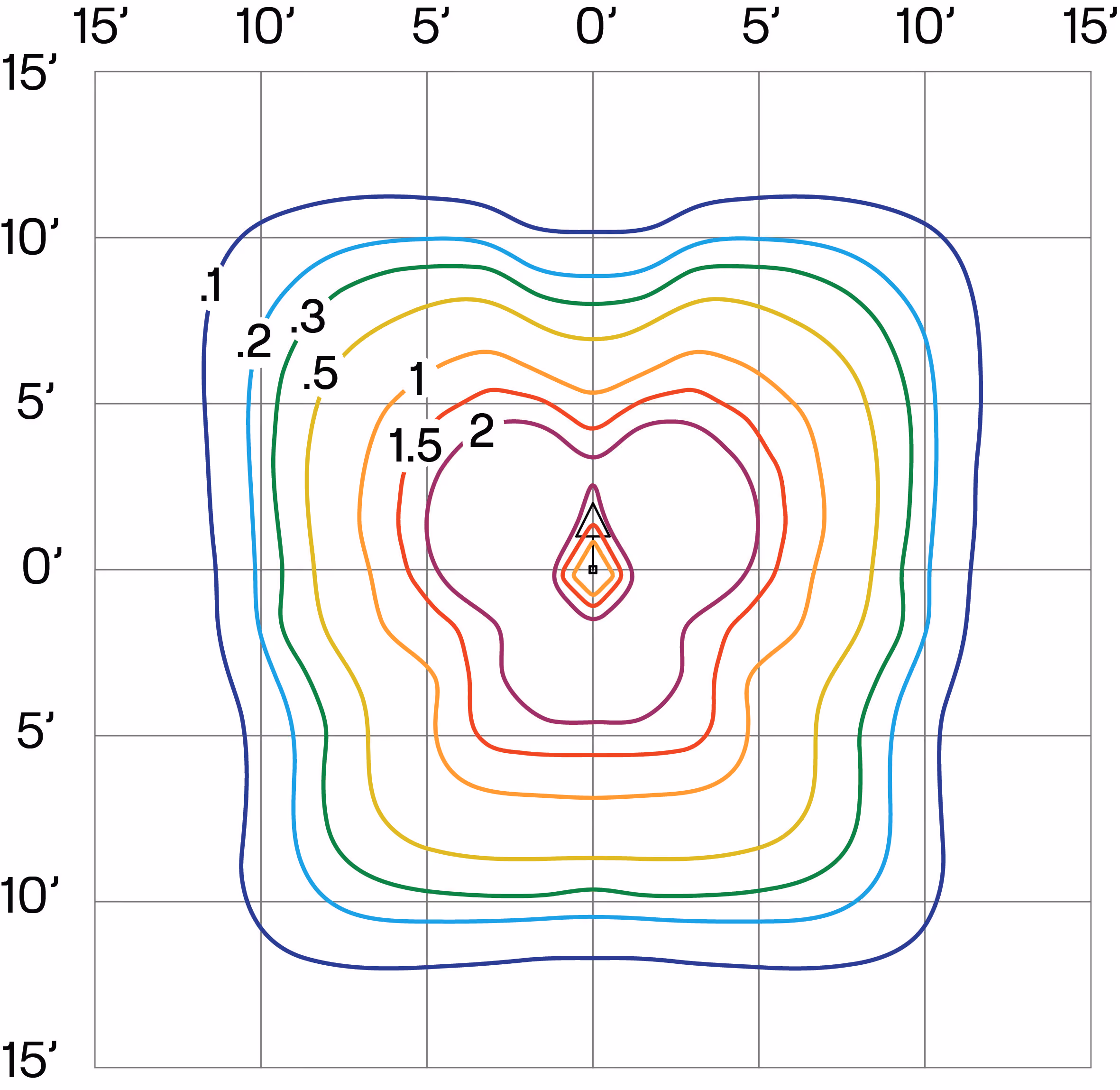

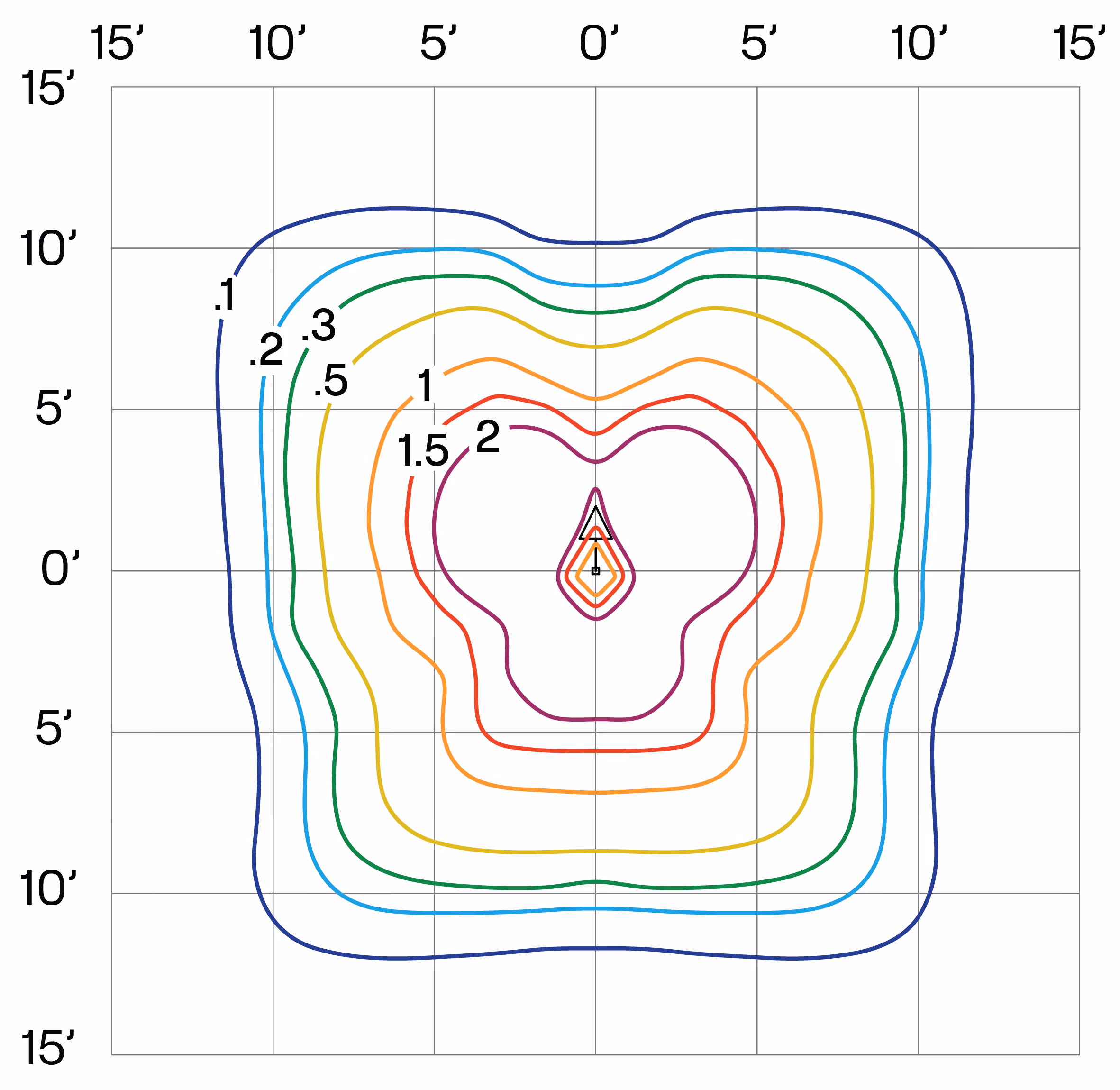

Type 5

Type 5 contour map with concentric, irregularly shaped lines marked with measurements from 0 to 8 feet on both axes and values from 0.1 to 3.5 along part of the contour.

Technical Specifications

Technical Specifications

Style
Commercial Solar Bollard
Fixture Diameter
Top diameter: 10 inch (24.7cm)
Post diameter: 6 inch (15.2cm)
Fixture Height
14 inches (36.7cm)
35 inches (88.9cm)
Construction
Rugged cast-aluminum
Stainless fasteners
Pre-drilled for seamless installation
Finish
Architectural grade, durable TGIC powder coat
Powder Coat Color
Bronze, Black, Silver, White or Custom color

Mounting Specifications

Mounting Options
Cast aluminum mounting plate on concrete footer or ground screw

Adaptive Intelligence

Management
Intelligently manages lighting performance based on environmental conditions and lighting requirements
Commissioning
Automatically calibrates and commissions for location using GPS
Data Logging
On-board multi-year data logging
Integration
Microcontroller and electronics integrated within the luminaire

LED Engine & Controller

Lumen Output
450 lumens
Color Temperature & Amber Options
4000K Not DarkSky compatible
3000K DarkSky Approved
2700K DarkSky ApprovedA
mber (595nm) DarkSky Approved
LED Lifetime
100,000 hour LED L70 lifetime
Control
High-efficiency, Maximum Power Point Tracking (MPPT) battery charger
High-efficiency integrated LED driver
Integrated optics maximize application efficiency and light distribution

Power

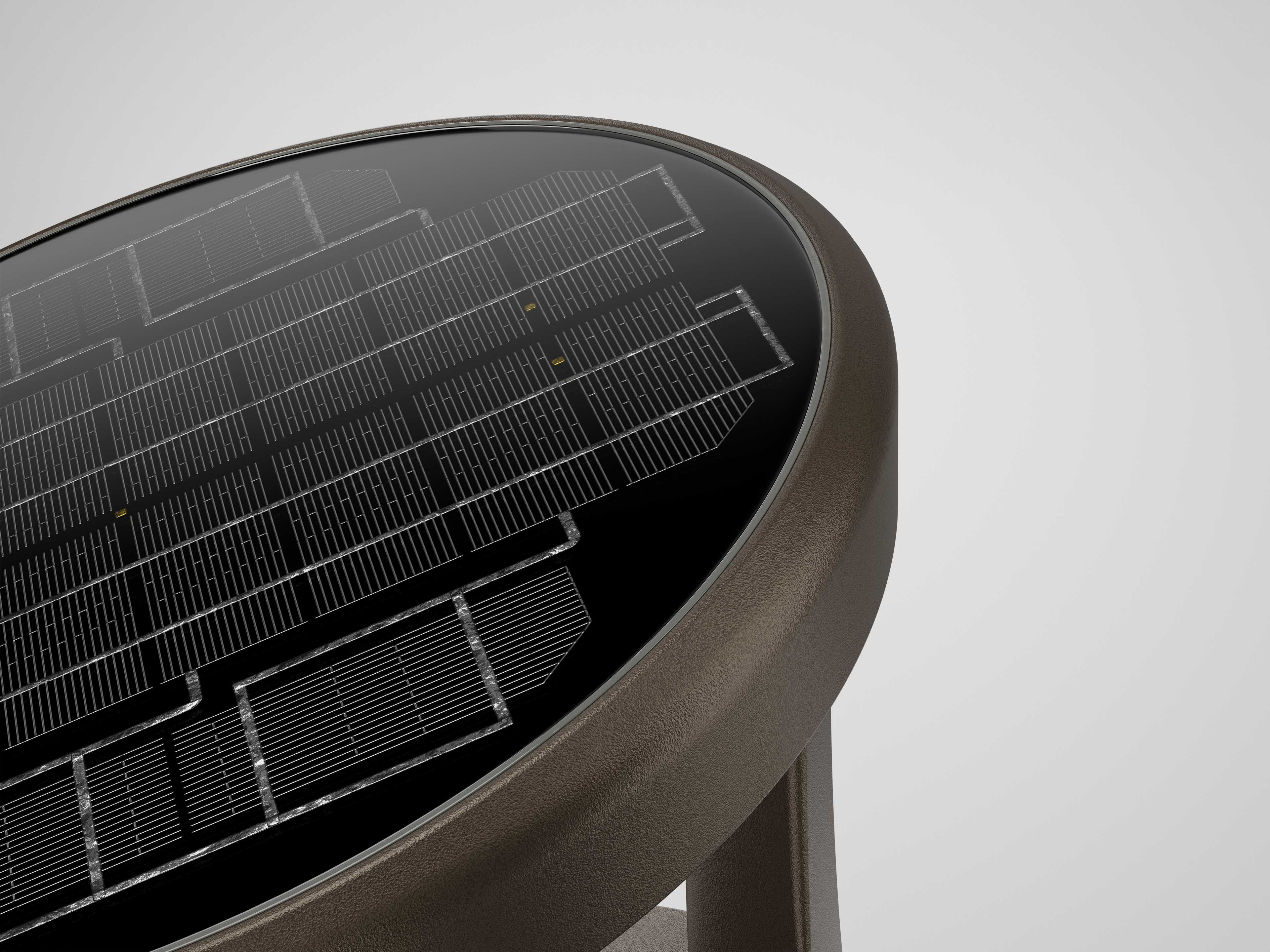

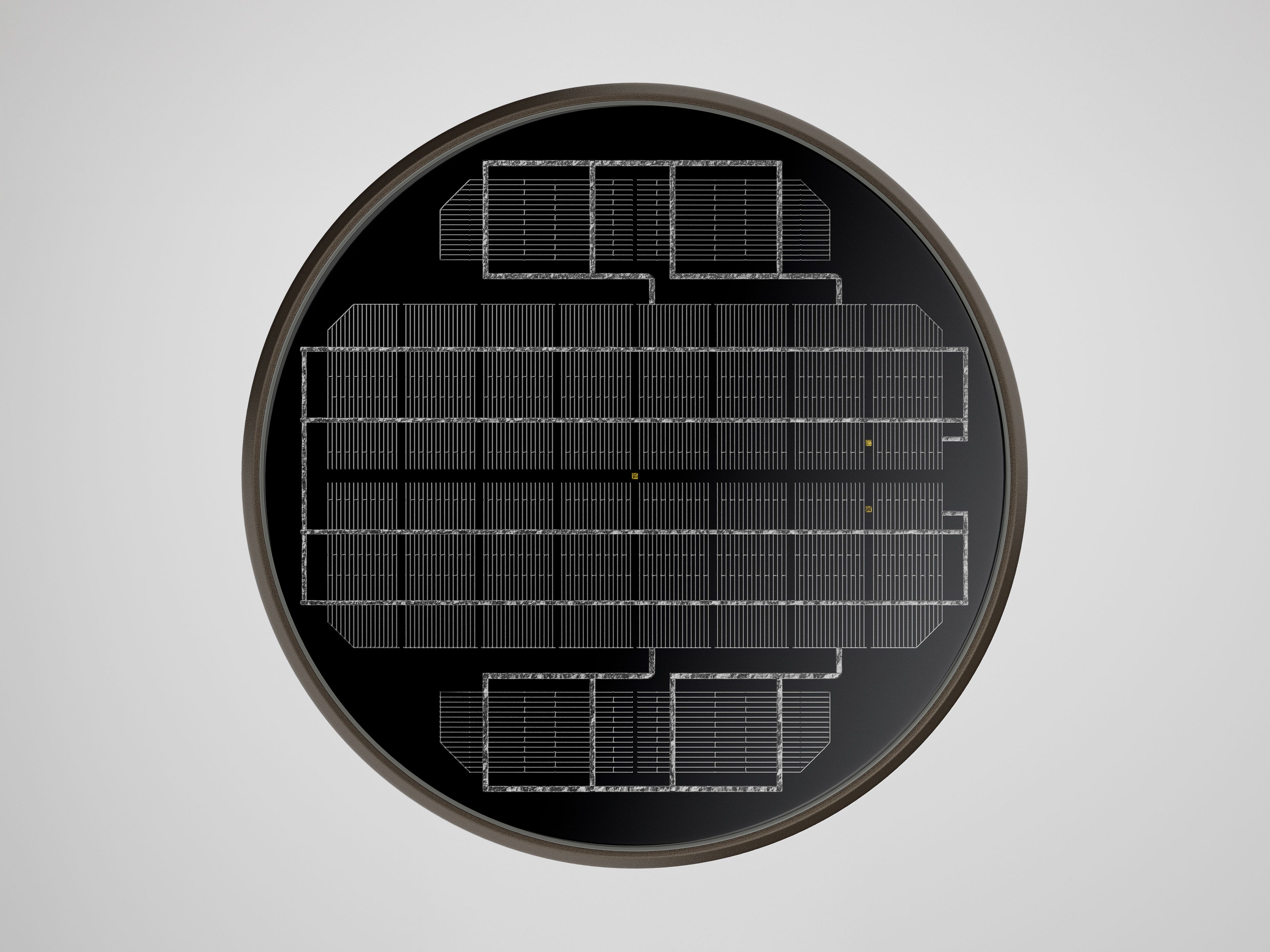

Solar Panel
Industry’s most efficient solar panel technology
Integrated into the top of the luminaire
Battery
High-performance Lithium Iron Phosphate (LiFePO4) technology
Exceptional 10+ year life cycle
High and low temperature tolerance
Integrated within the luminaire housing
Optical
High-efficiency Type 3 and Type 5 full cutoff optics
Optional backlight shield
Achieves pathway and area lighting standards with a typical output of 450 lumens
B0-U0-G0 BUG Rating

Downloads & Resources

Supporting Resources

Spec Sheets

PLB Spec Sheet
PDF Download

IES Files

PLB IES File
PDF Download

Installation

PLB Installation Instructions
PDF Download

Backlight Shield Kit Installation

PLB Backlight Shield Kit Installation Instructions
PDF Download

Lighting Profile Sheet

Choosing the right lighting profile
PDF Download

Ideal Applications

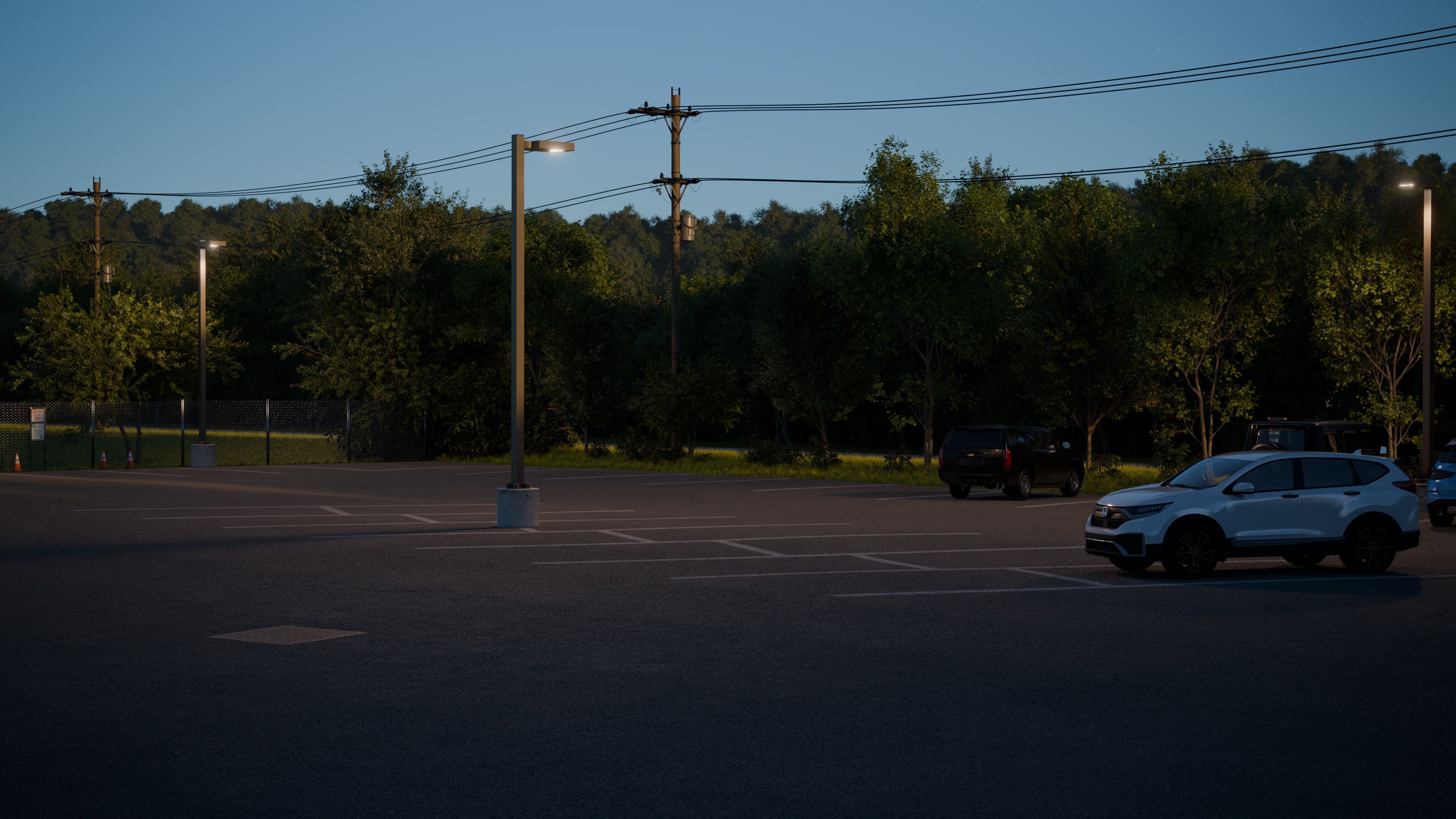

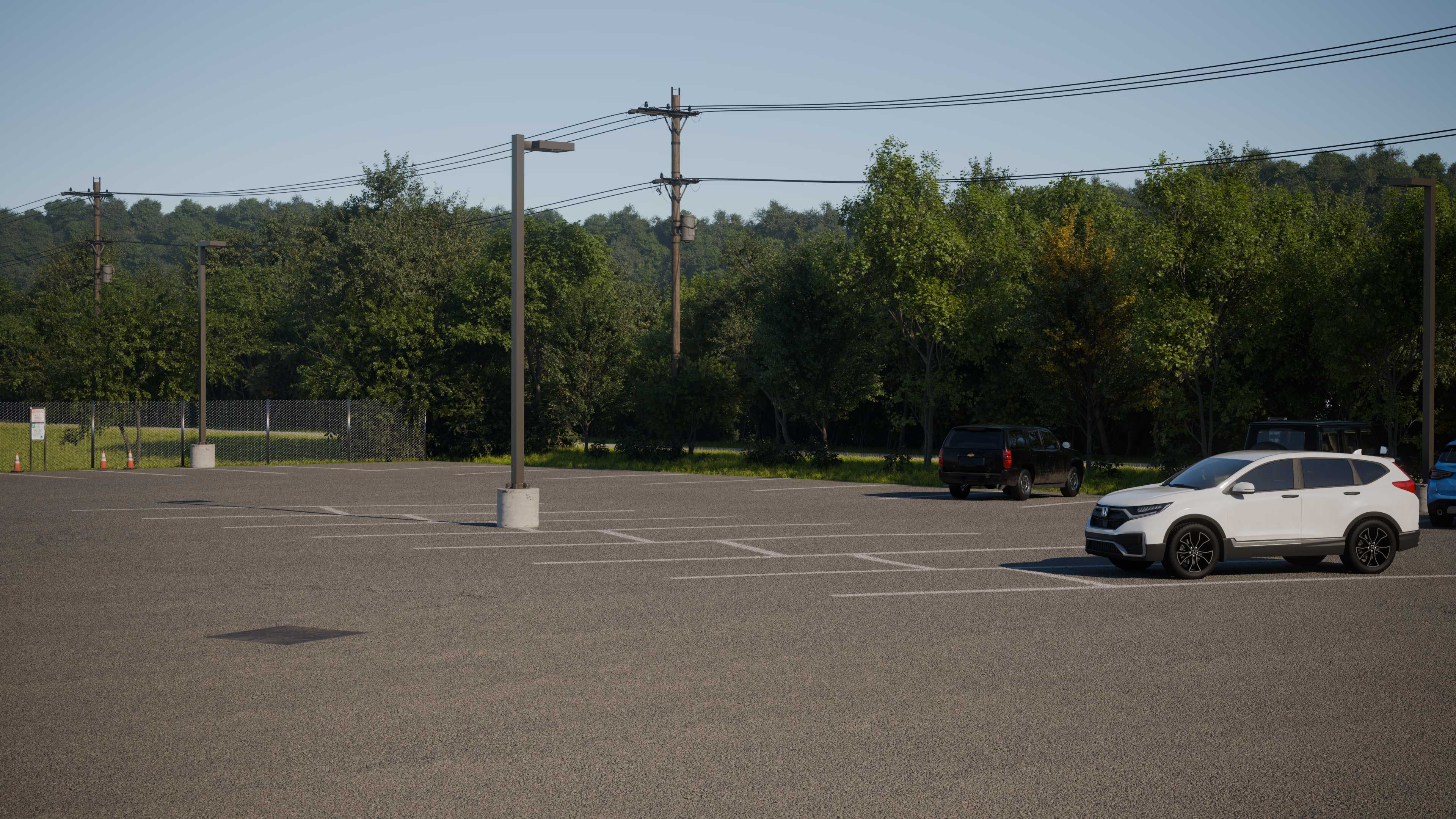

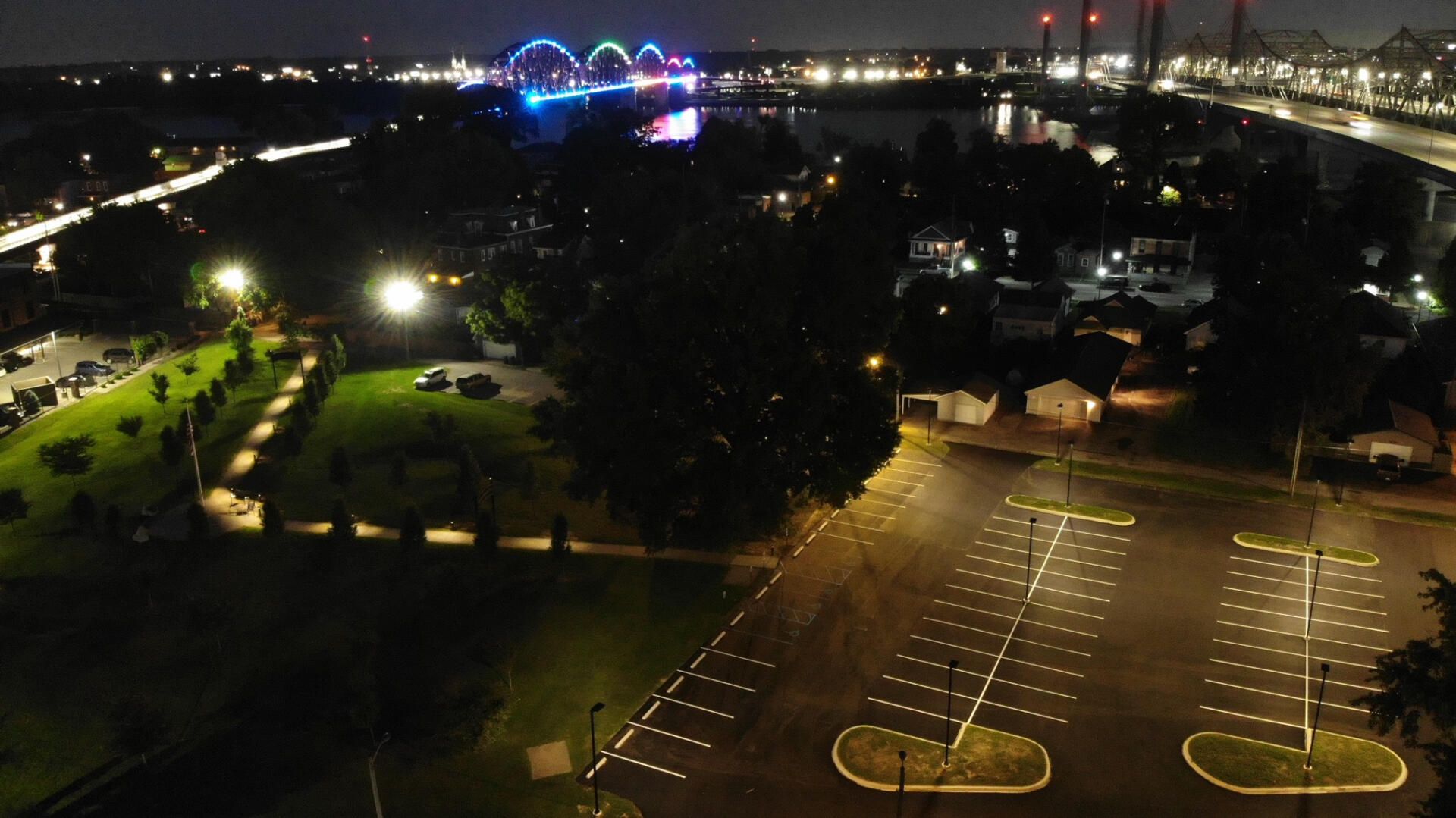

Parking Lots

PLB is engineered for optimal performance in parking lots environments, providing reliable solar-powered illumination without trenching or wiring.

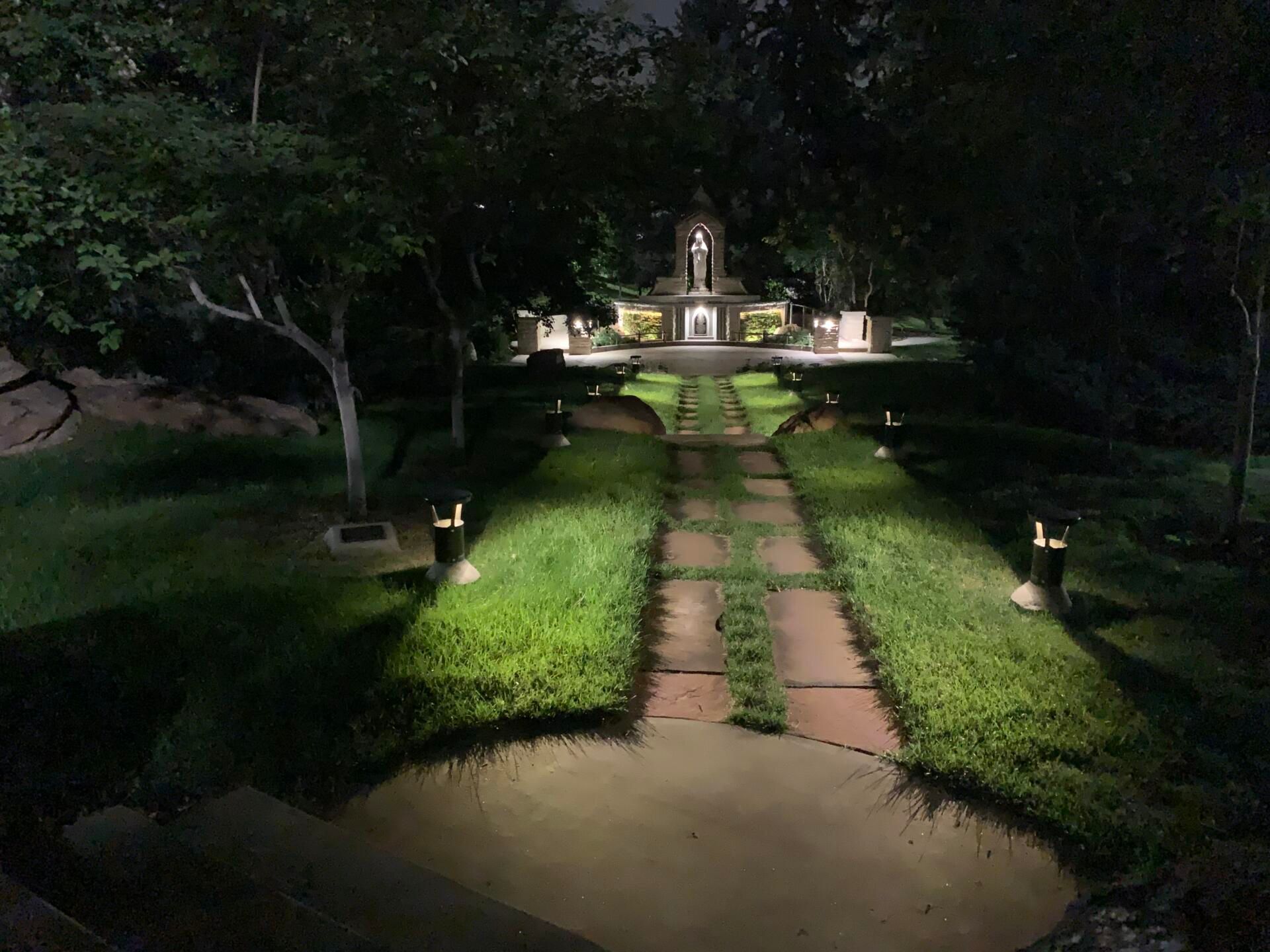

Pathways

PLB is engineered for optimal performance in pathways environments, providing reliable solar-powered illumination without trenching or wiring.

Plazas

PLB is engineered for optimal performance in plazas environments, providing reliable solar-powered illumination without trenching or wiring.

Wildlife Settings

PLB is engineered for optimal performance in wildlife settings environments, providing reliable solar-powered illumination without trenching or wiring.

Reliability & Warranty

•
No wiring, trenching, or electrical service required
•
10+ year battery life
•
5-year warranty
•
20-year lifespan
•
IP67 protection
•
Designed and manufactured in North America
