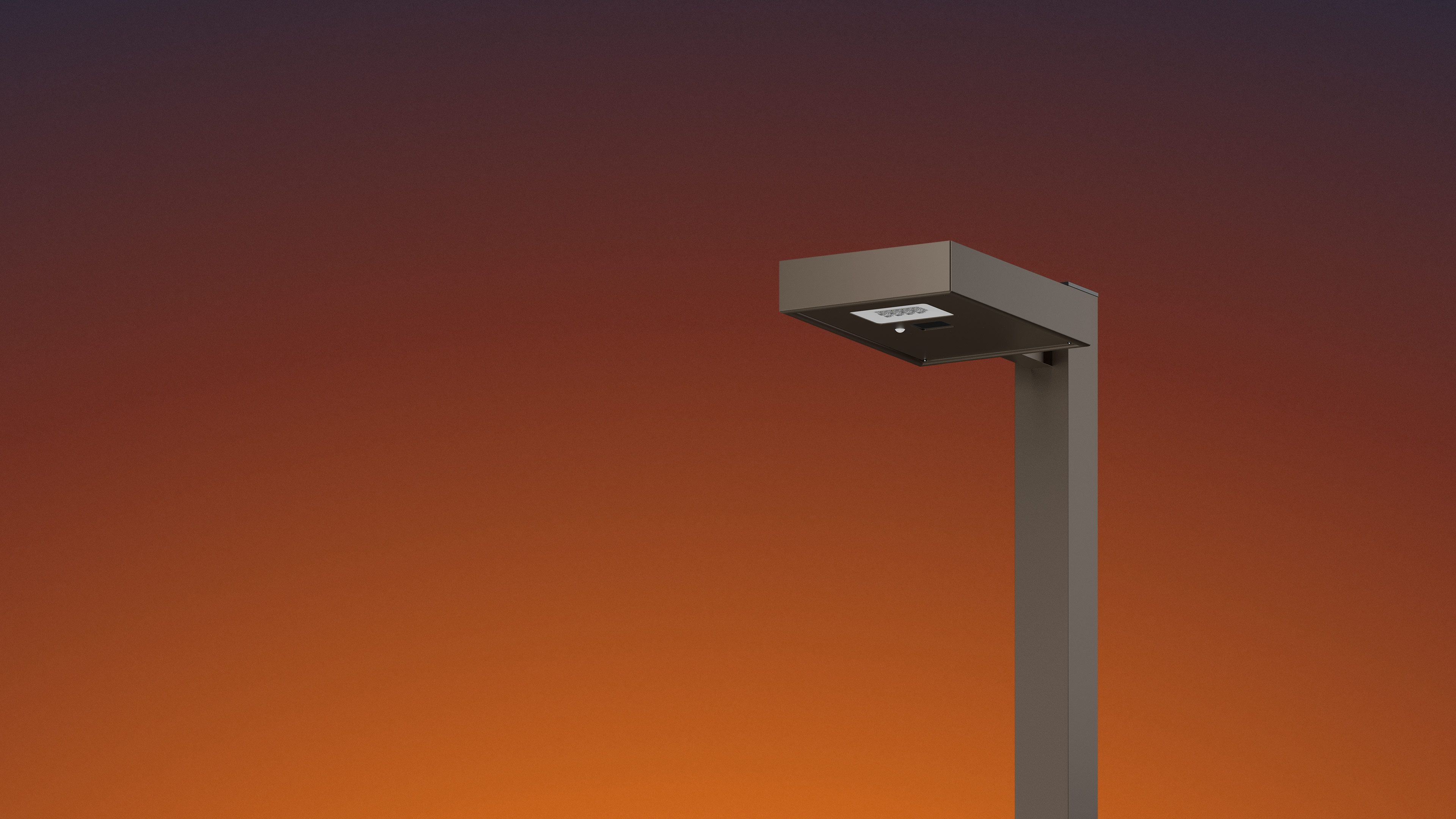

Modern street lamp with a rectangular light fixture against a gradient sunset sky.

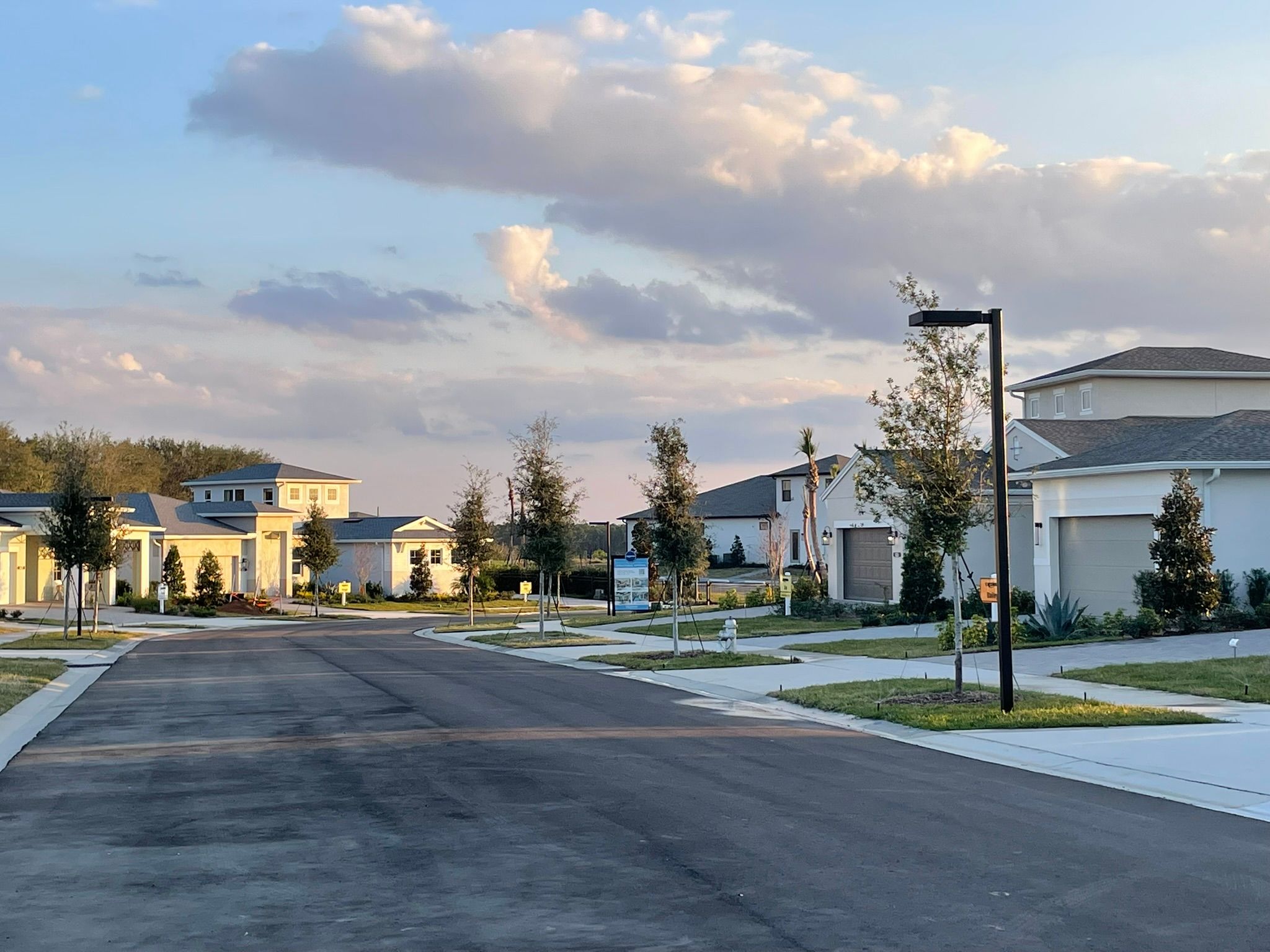

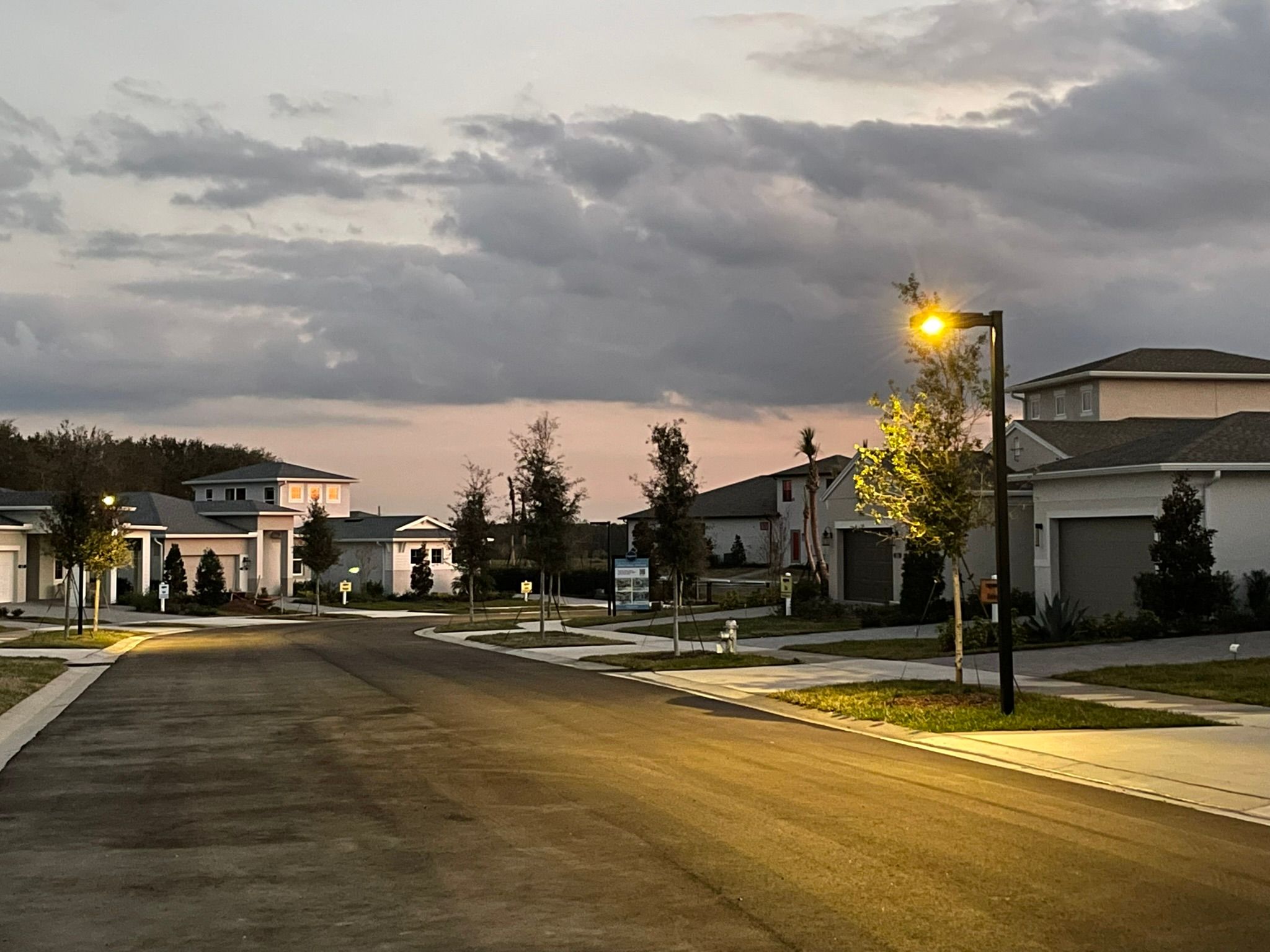

Quiet residential street with modern houses, young trees, and street lamps under a partly cloudy sky at sunset.
Residential street at dusk with modern houses, lit streetlamps, and partly cloudy sky.

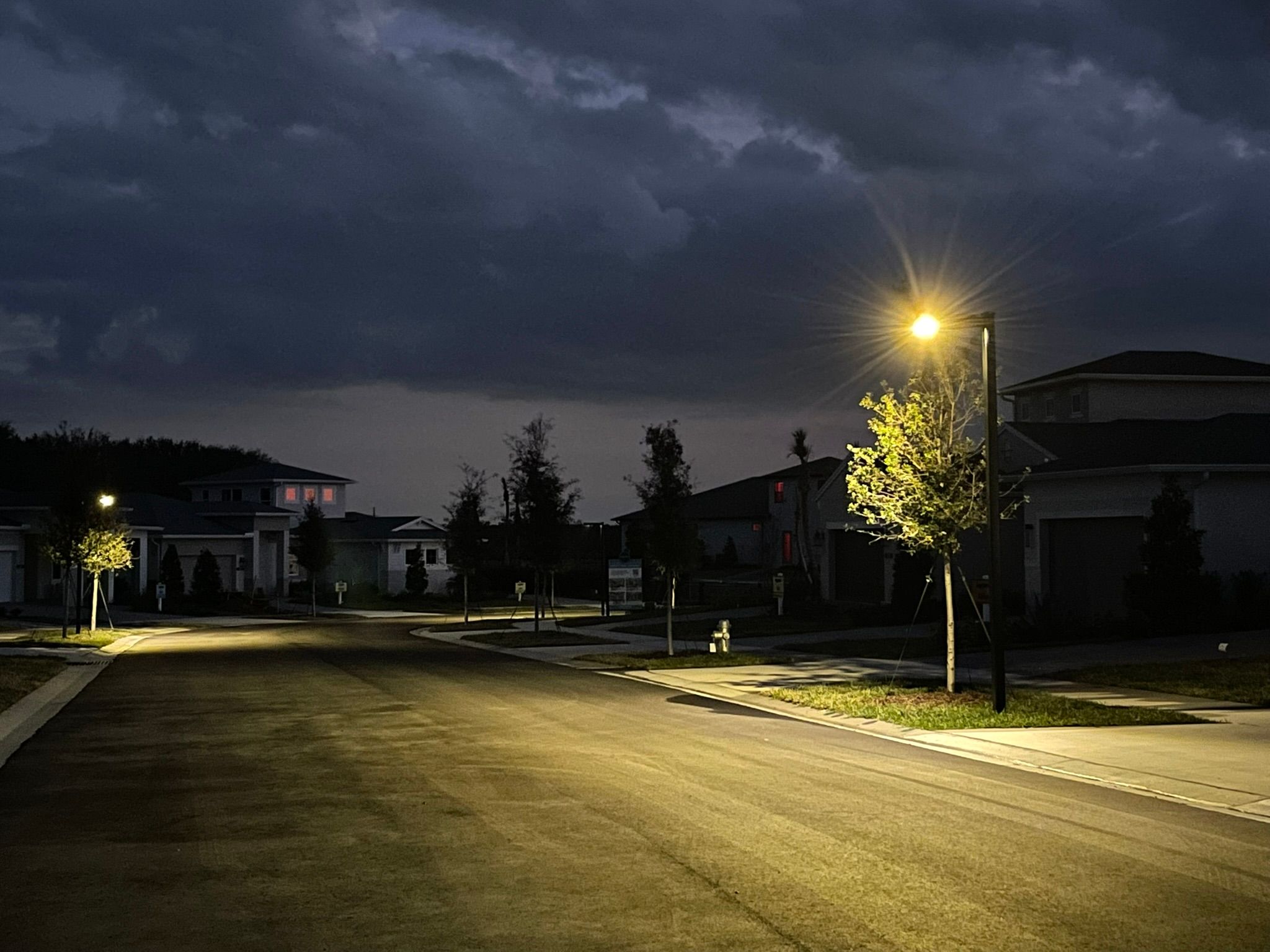

Dimly lit suburban street at night with streetlights illuminating small trees and houses.

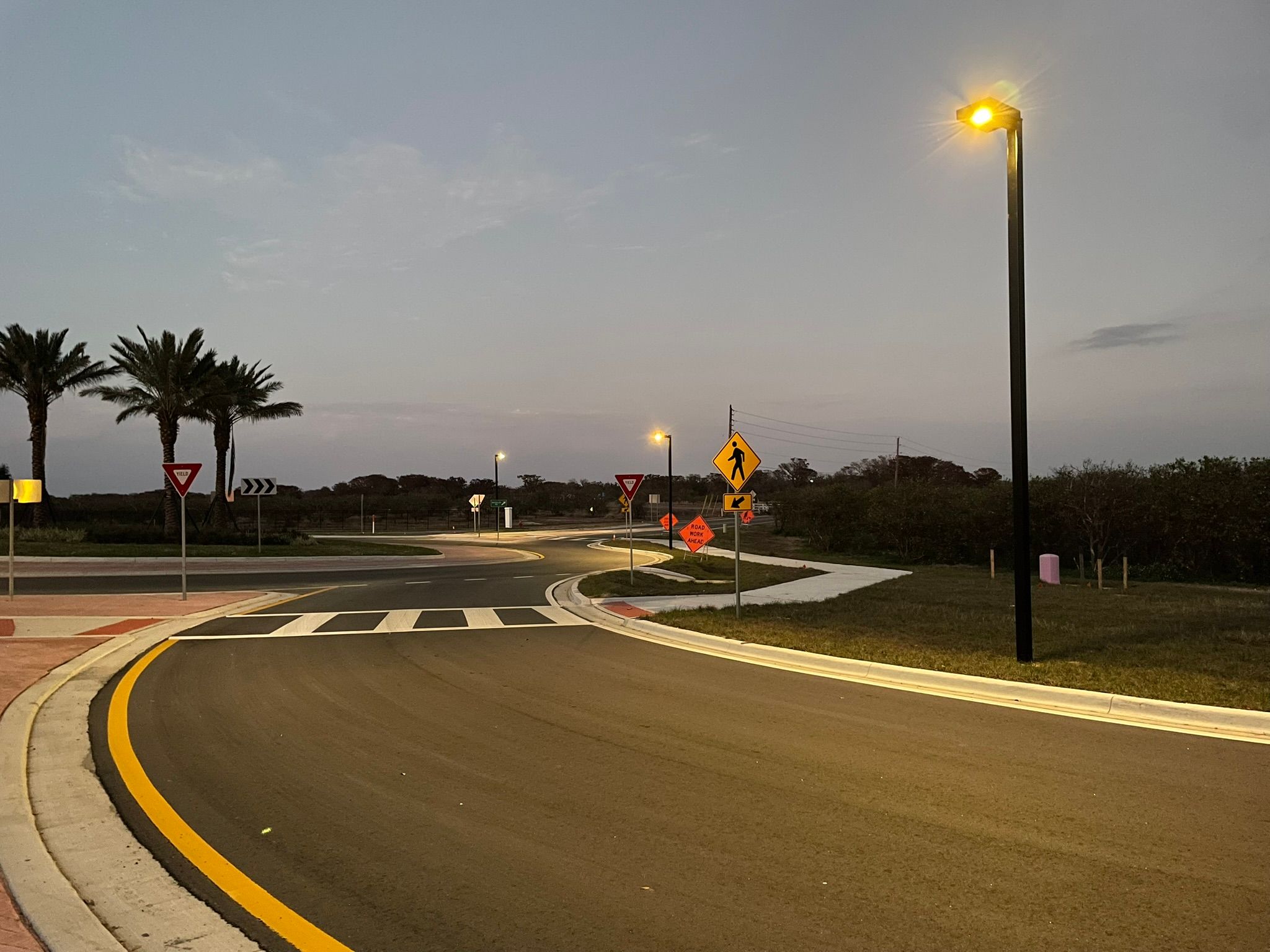

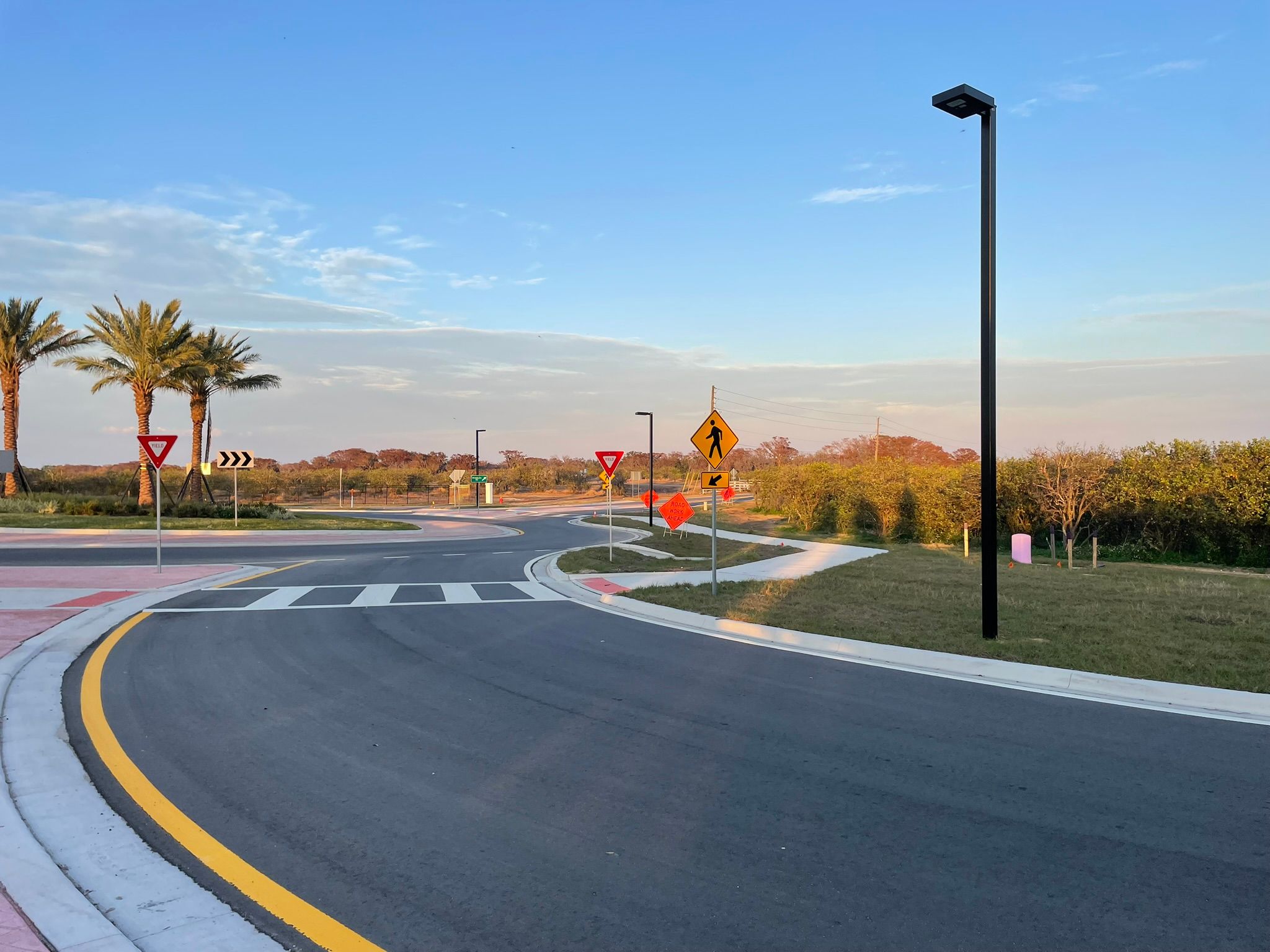

Empty curved road with crosswalk and multiple traffic signs, palm trees, streetlights, and clear sky at sunset.

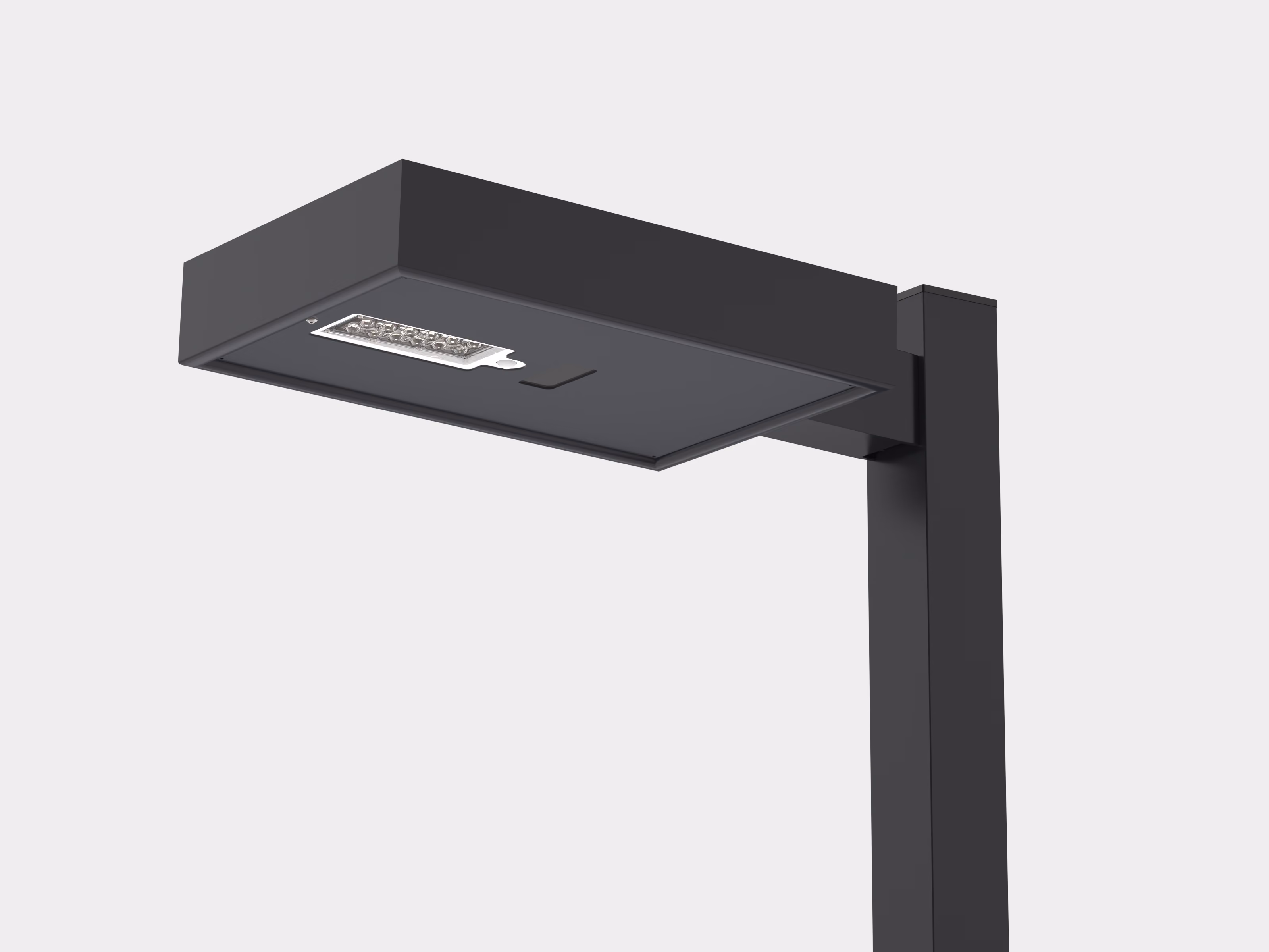

SCL2

When maximum illumination is required, the SCL2 is the perfect solution for parking lots and neighborhood streets

request a quotedownload spec sheetDownload IES File

Product details

•
Lumen Output: 3680 lumens
•
Color Temperature: 2700K, 3000K, 4000K, Amber (595nm)
•
Optical: Type 2, 3, 4, 5 and T4F full cutoff optics

Best for

Parking Lot, Pathway, Area

Features

•
No wiring, trenching, or electrical service required
•
Self-contained build designed to improve project aesthetics
•
Cost-effective design ships fully assembled and installs in minutes
•
No ongoing maintenance
•
Provides programmed illumination all night, every night
•
Wireless control & communication with your light
Overview
Specifications
Resources
Applications
Warranty

Product Overview

When maximum illumination is required, the SCL2 is the perfect solution for parking lots and neighborhood streets

Available Finishes

Bronze
Black
Silver
White

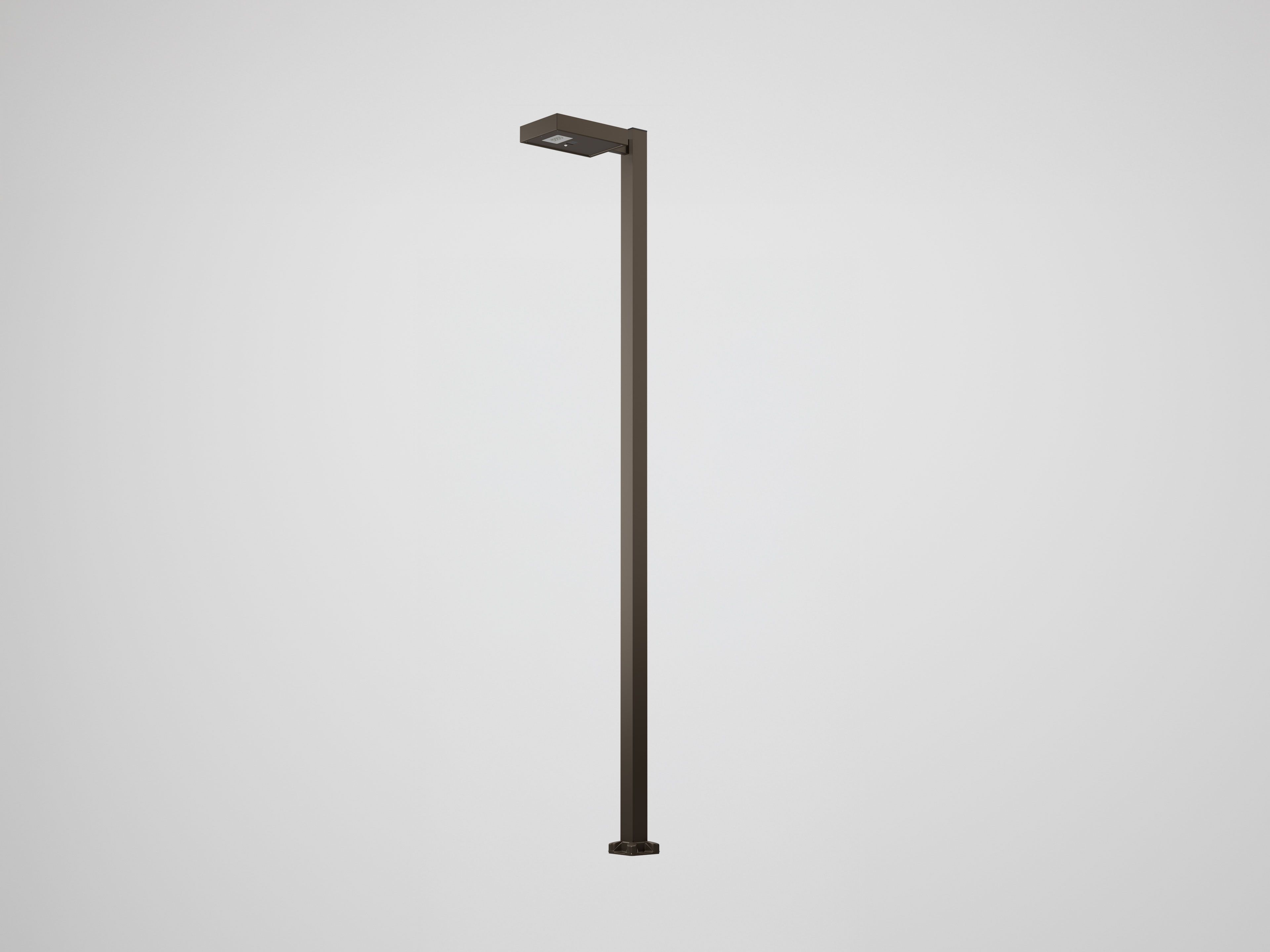

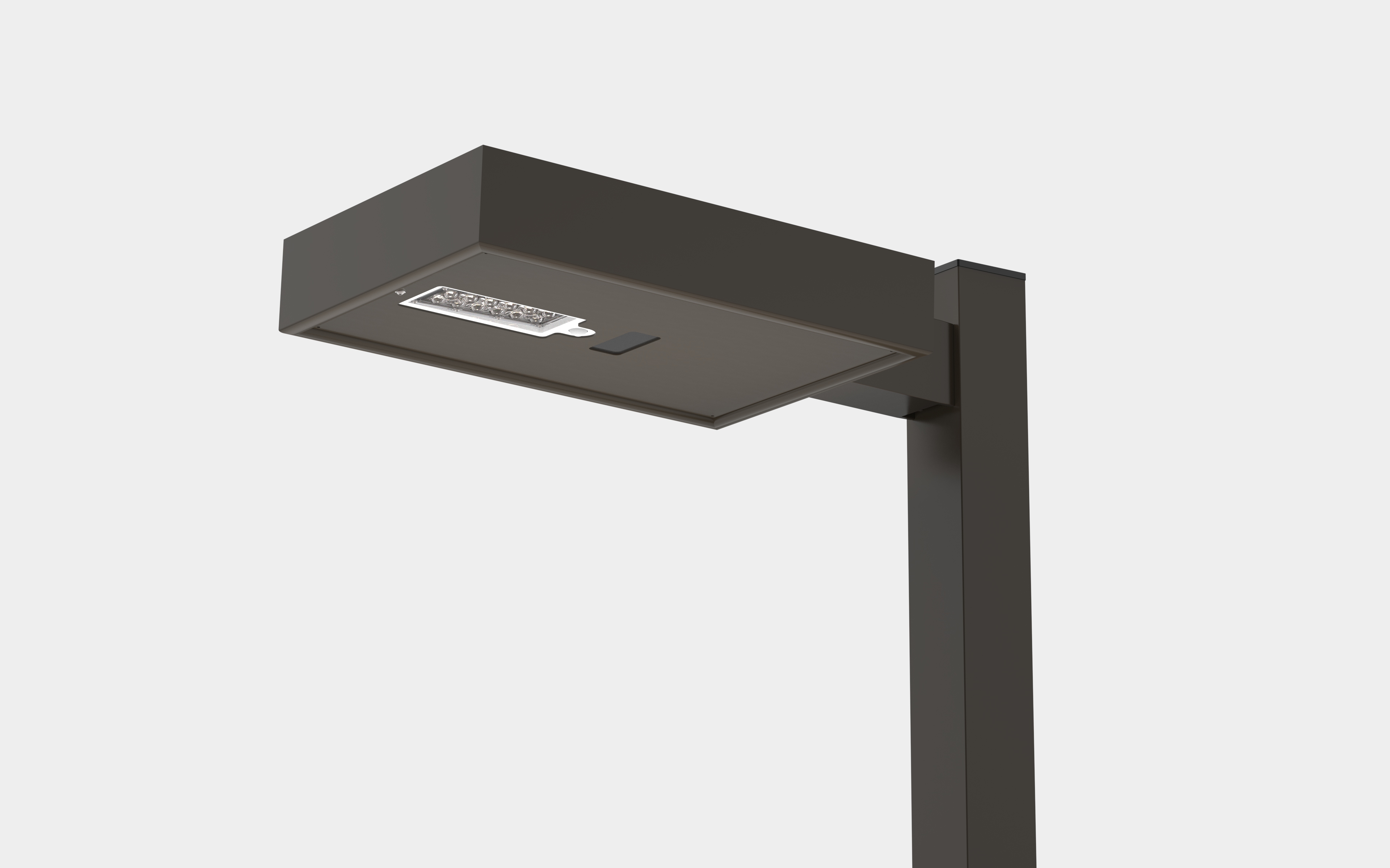

Modern sleek brown outdoor lamp post with flat rectangular light fixture against a light gray background.

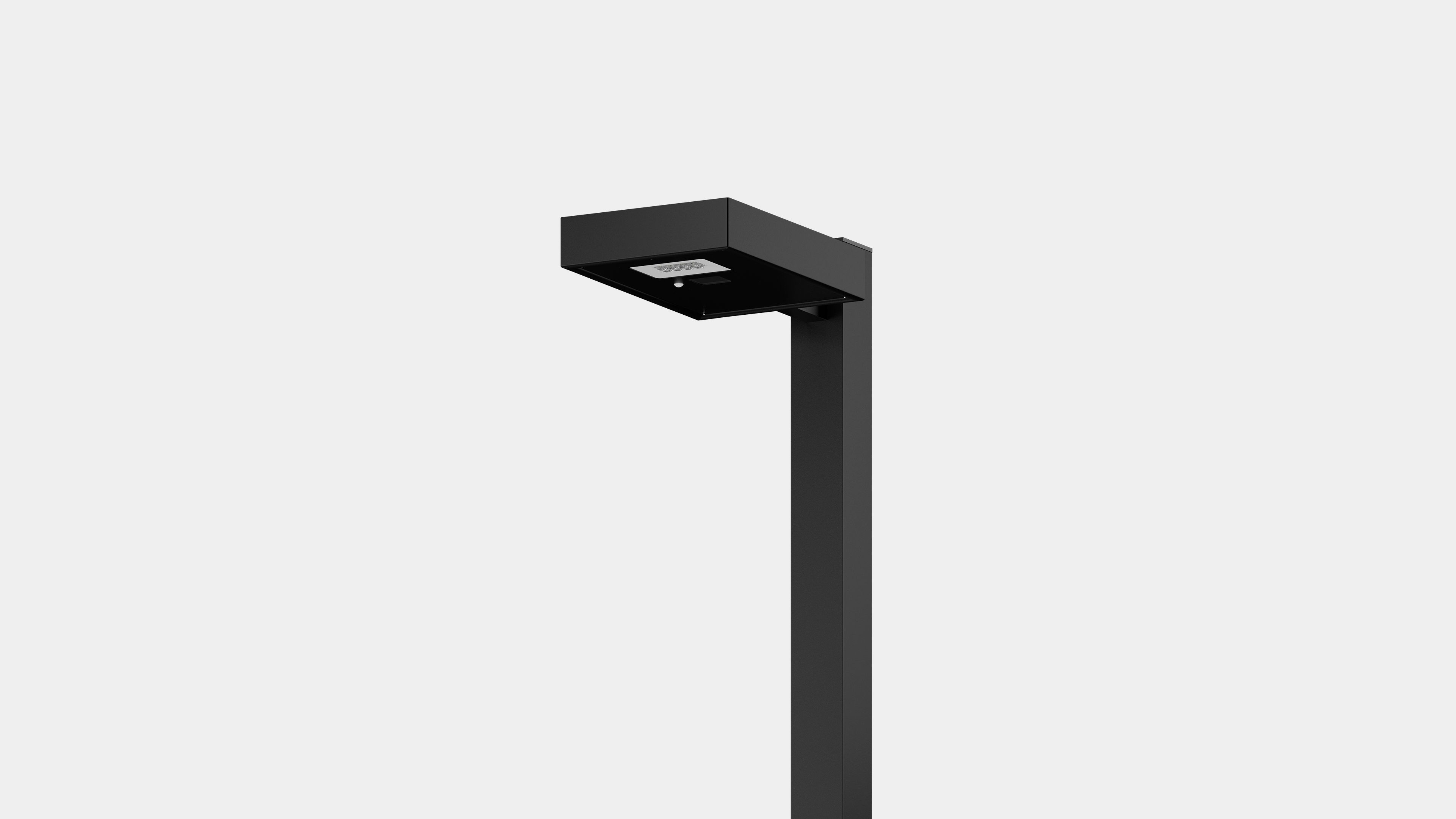

Modern black outdoor street lamp against a light gray background.
Modern minimalist street lamp post with a rectangular light fixture against a plain gray background.

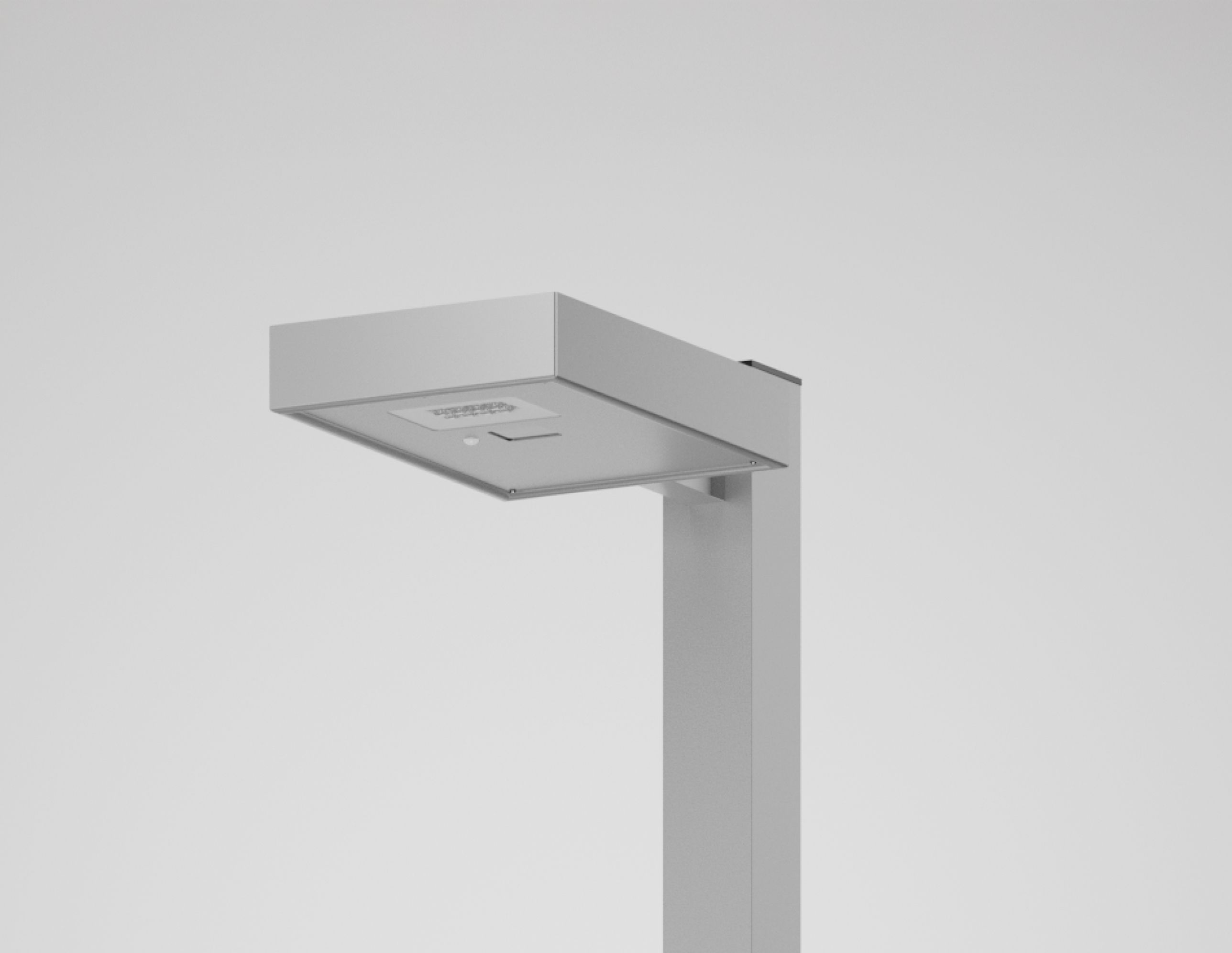

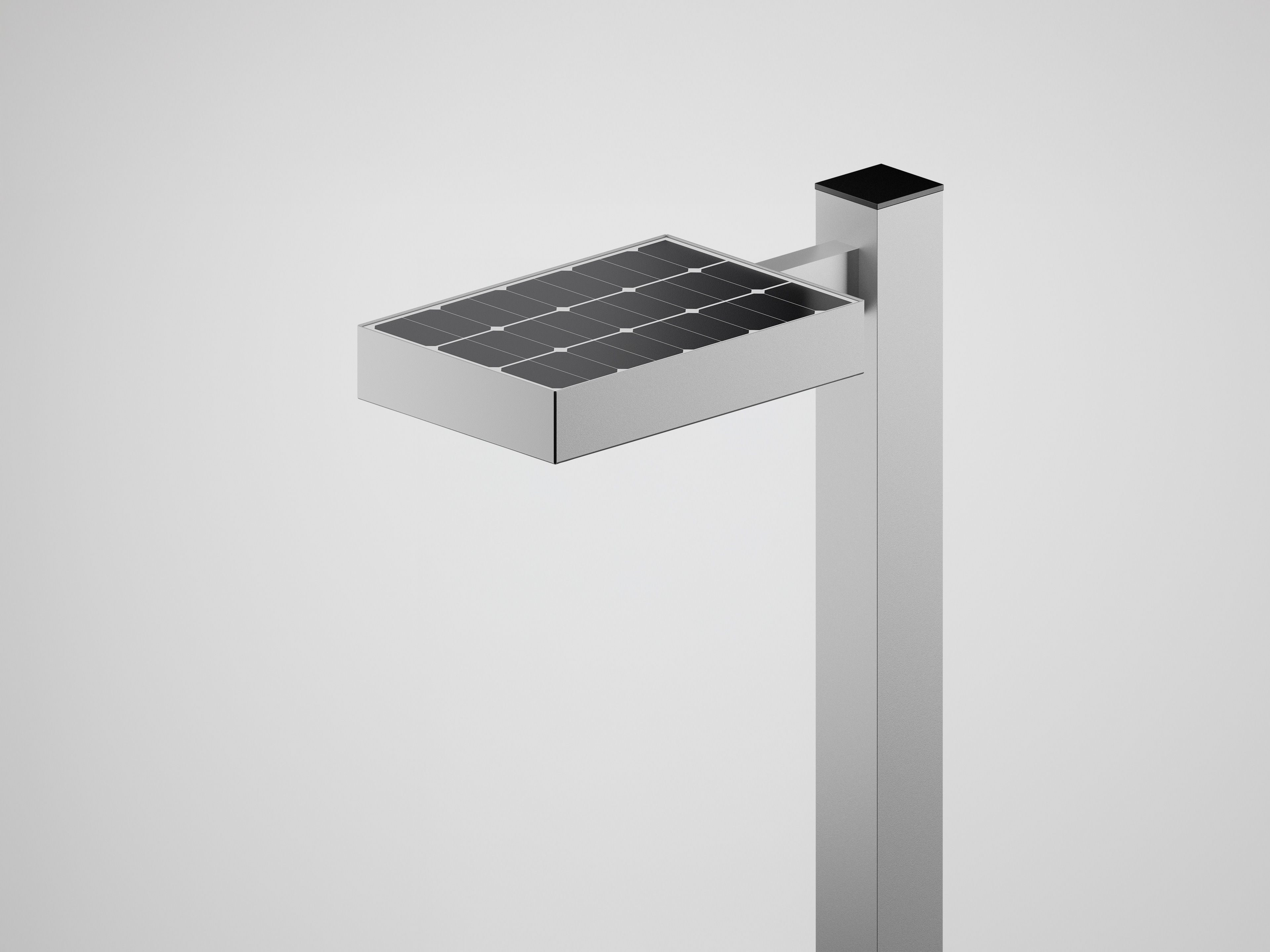

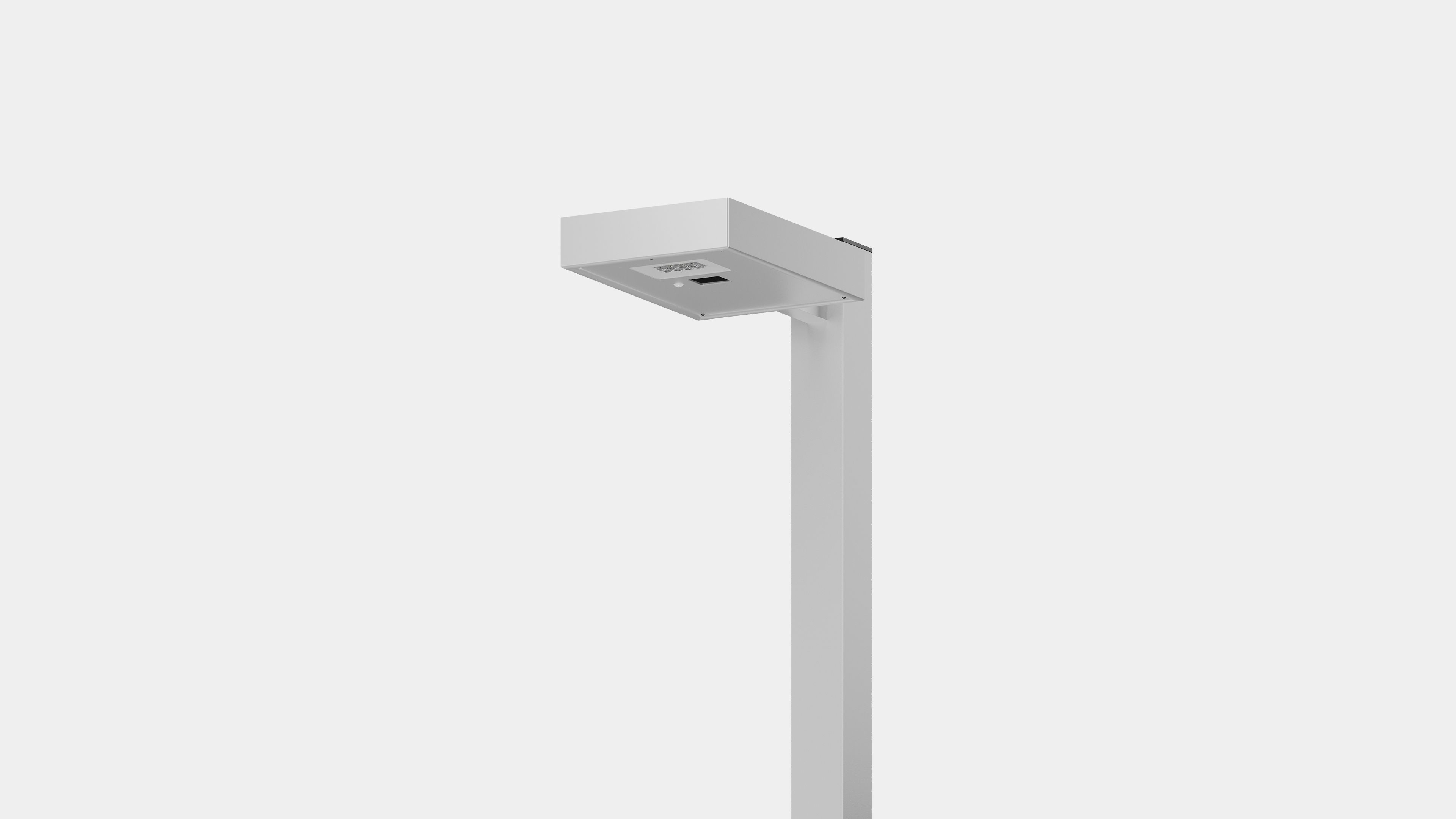

Modern, minimalist gray street lamp post with a rectangular light fixture against a plain light background.

Photometric Diagrams

Overview

FLT's optical solutions efficiently focus light where it’s needed. There are several standard lighting distributions that optimize performance for different applications. Each lighting distribution is full cutoff and compliant with DarkSky requirements. Measurements are in footcandles.

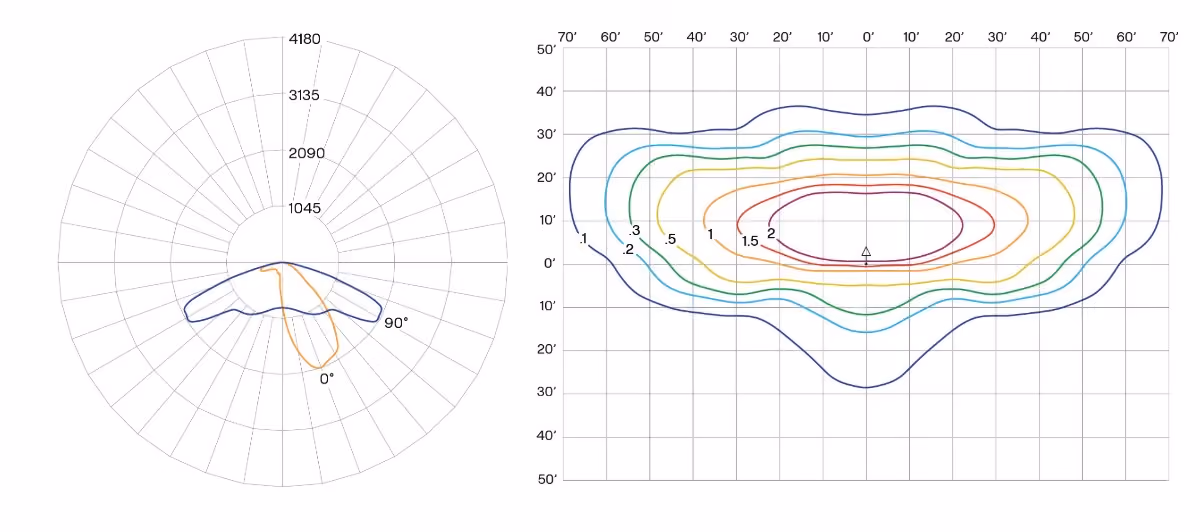

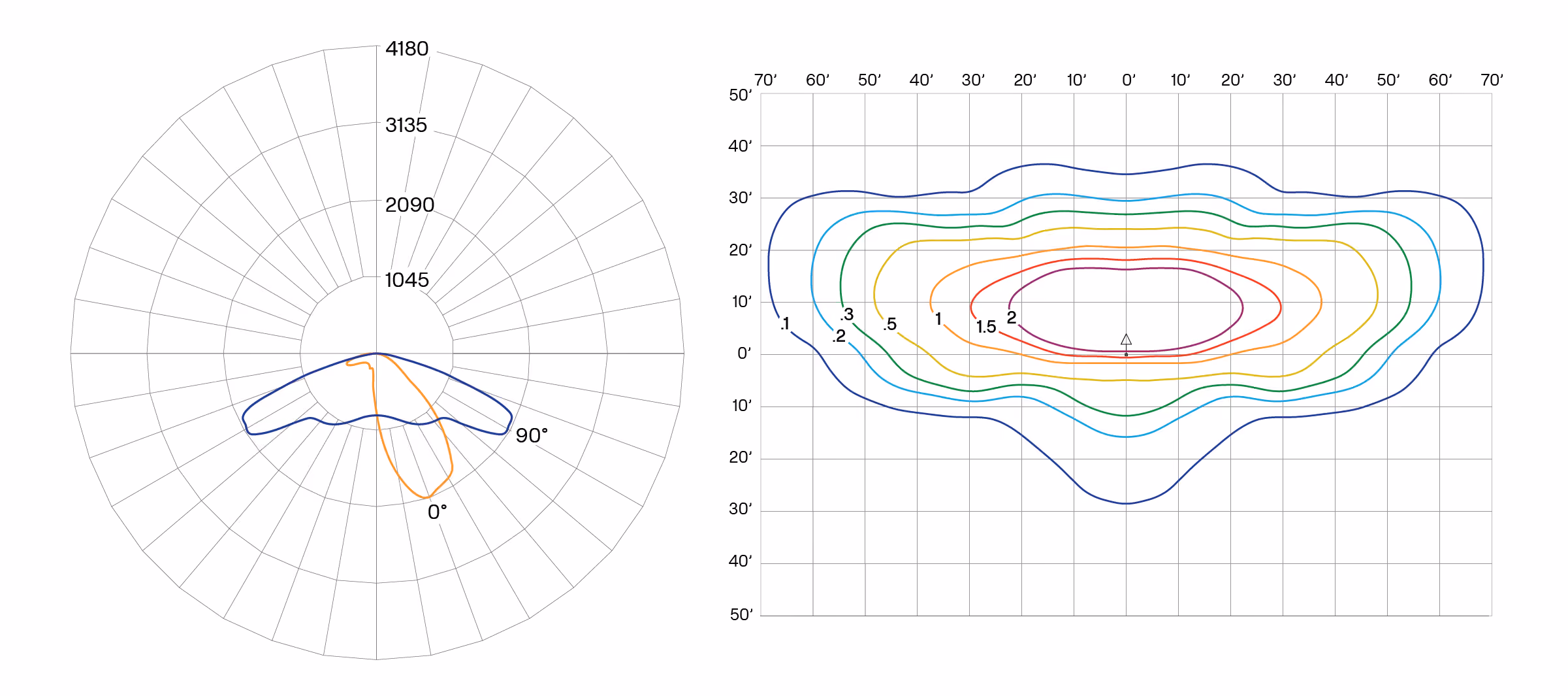

Type 2

Graphical representation of a particle accelerator's detection system showing circular detector segments on the left and a multi-colored contour plot of particle distribution on the right.

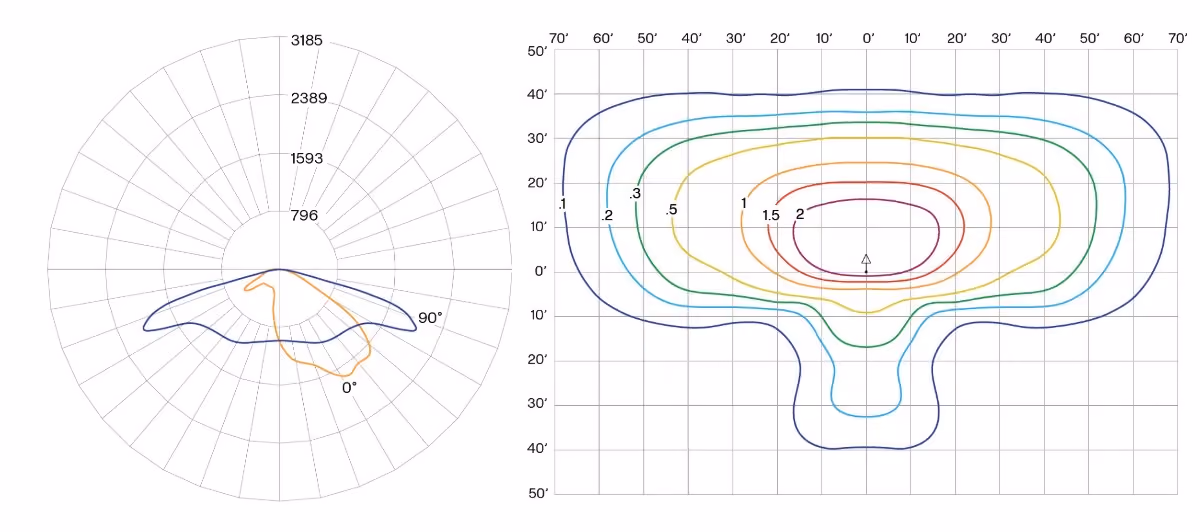

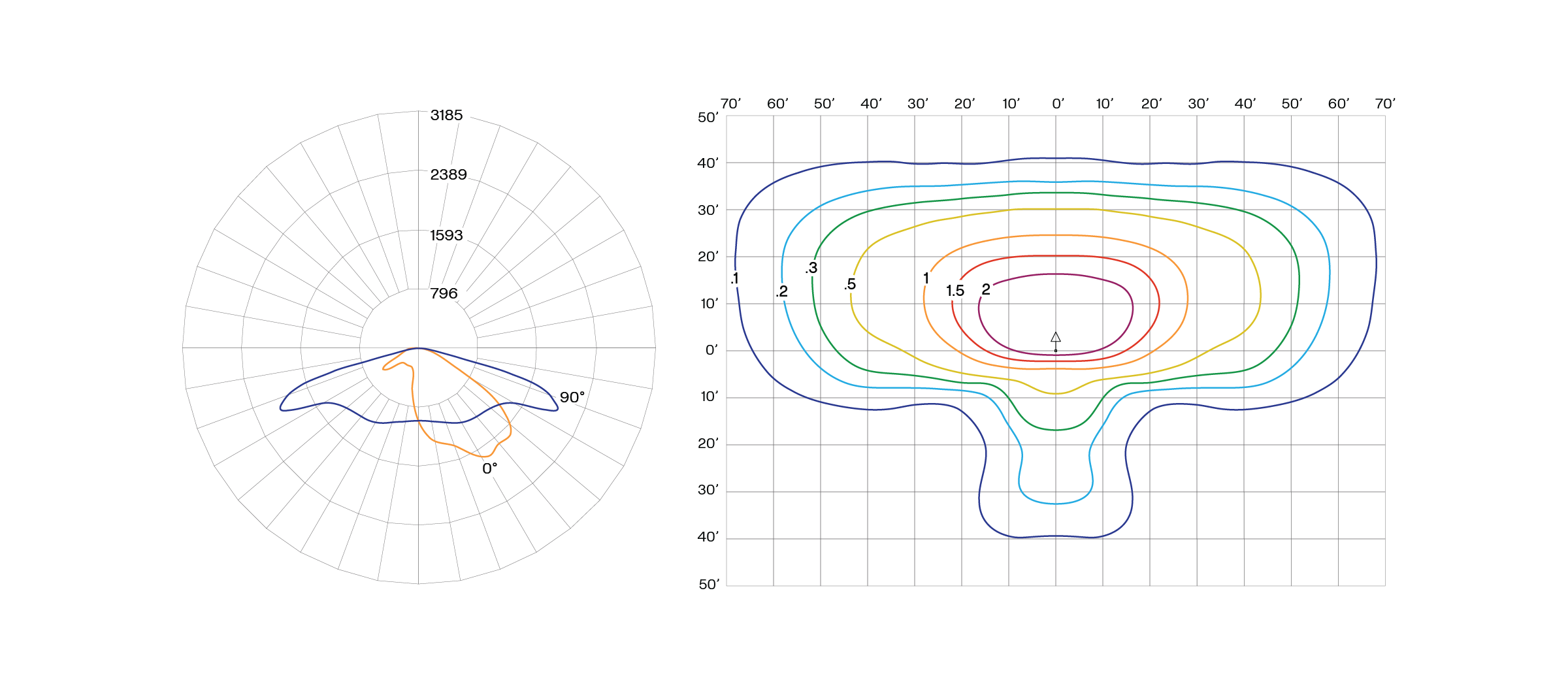

Type 3

Two scientific contour plots showing a three-dimensional surface; the left plot is circular with radial and concentric grid lines and colored contours, the right plot is a rectangular grid with multicolored concentric contours depicting a 3D shape.

Type 4

Two contour plots: a polar plot with a red irregular closed curve and angular/radial grid on the left; a square Cartesian plot on the right with concentric irregular closed contours in purple, red, orange, yellow, green, light blue, and dark blue.

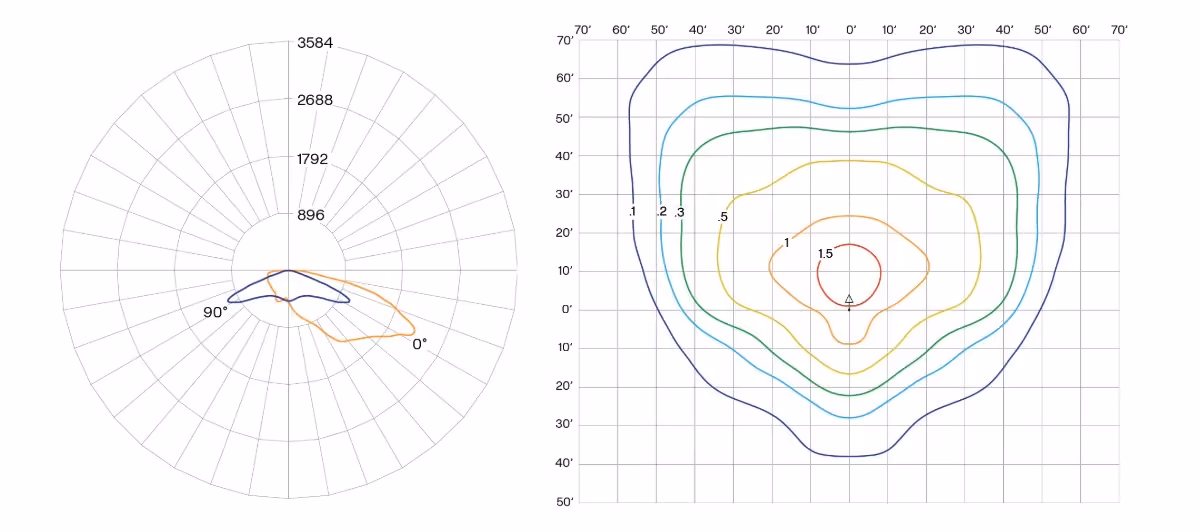

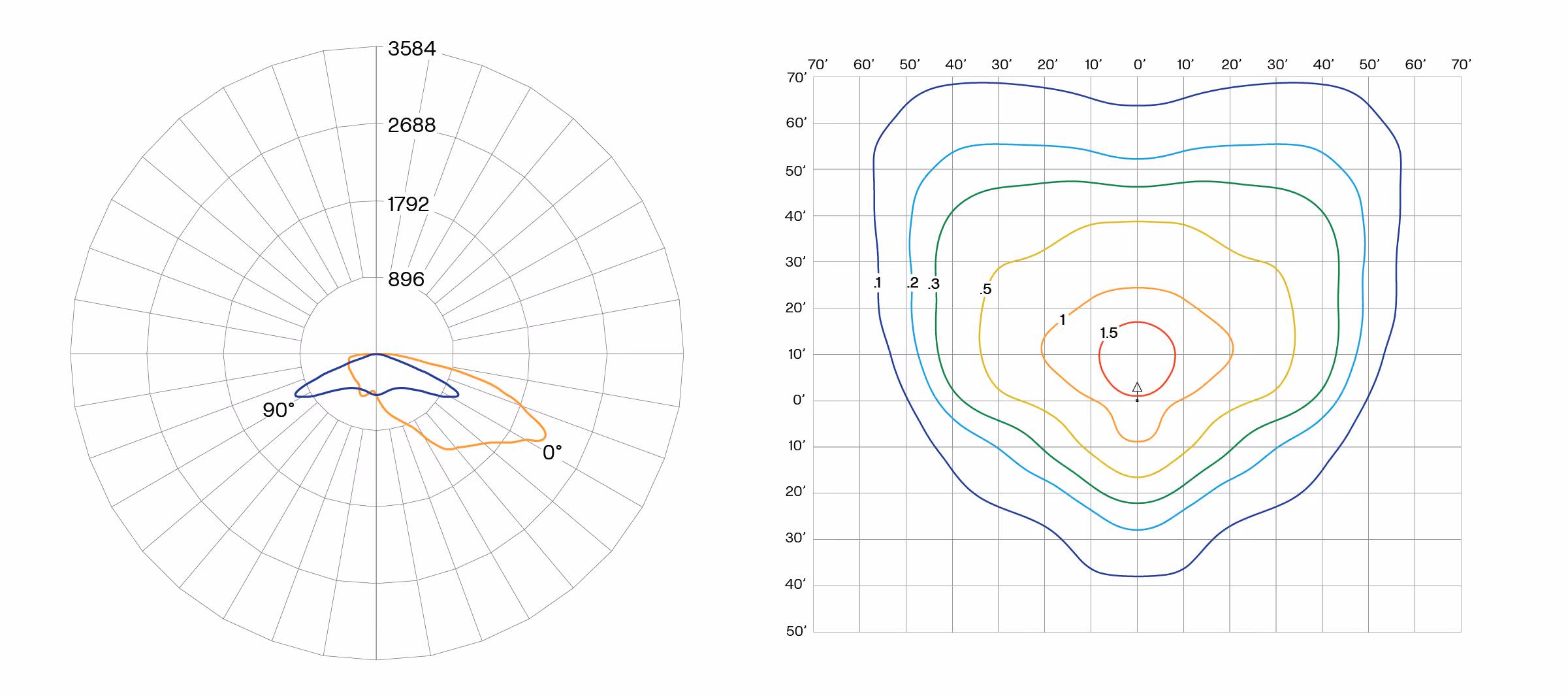

Type 4F

Two scientific plots side by side: left is a polar diagram with a red irregular loop and labeled angles and radial ticks; right is a contour plot with concentric colored lines on a grid background.

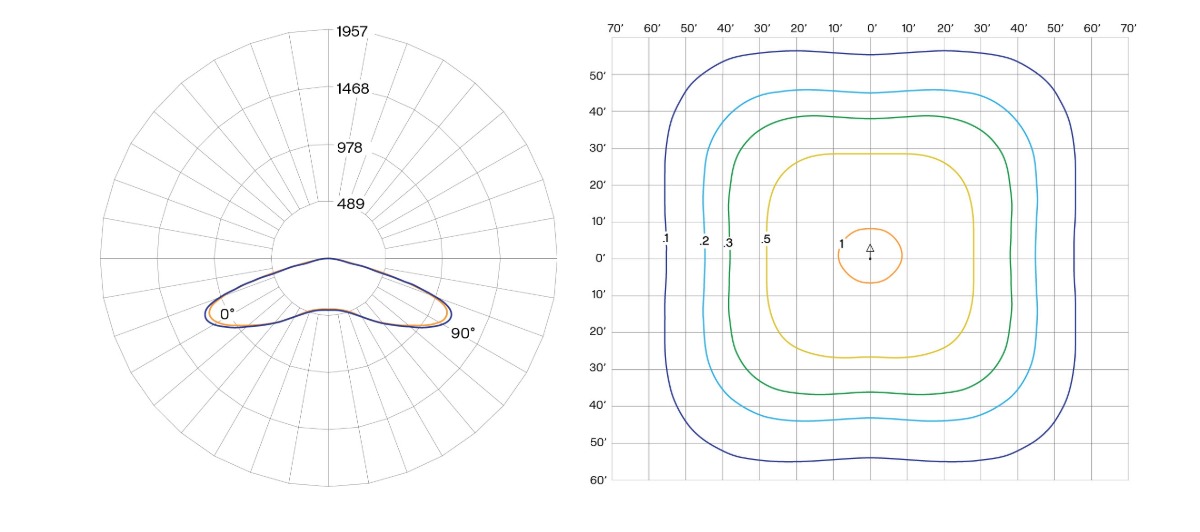

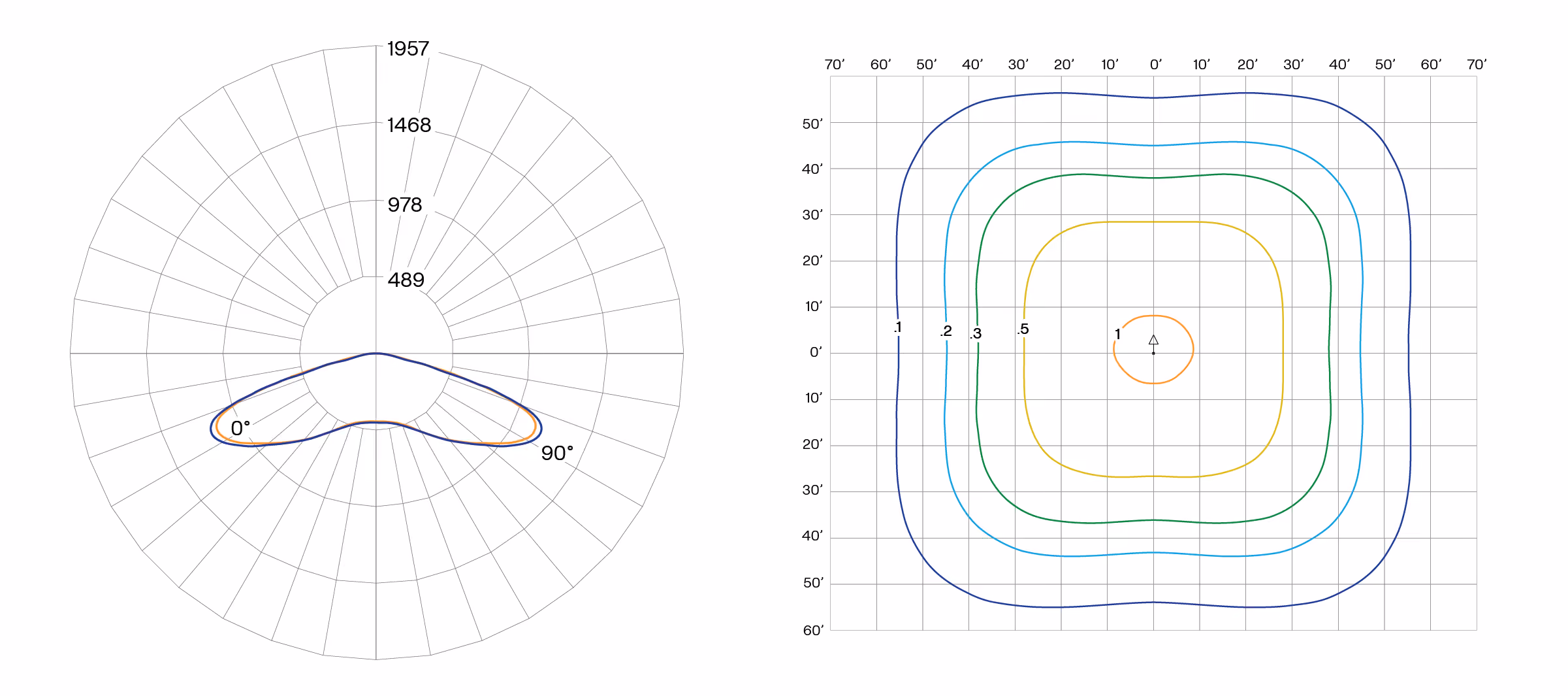

Type 5

Two scientific plots side by side: left is a polar plot with a red closed curve; right is a contour plot with four nested contours in yellow, green, cyan, and blue on a grid.

Technical Specifications

Technical Specifications

Style
Contemporary solar area light
Fixture Diameter
16.1 inches x 23.7 inches
Fixture Height
4.0 Inches
Fixture Weight
34 lbs (15.4 kg) including battery
Luminaire EPA
0.99 feet2 (0.09 m2)
Construction
Marine-grade aluminum
Stainless fasteners
Pre-drilled for seamless installation
Finish
Architectural grade, durable TGIC powder coat
Powder Coat Color
Bronze, Black, Silver, White or Custom color

Mounting Specifications

Mounting Options
Side pole mount

Pole Recommendations

Pole Considerations
FLT offers a range of poles that are seamlessly matched to the SCL2 luminaire. We’re always available to answer questions about mounting, poles, or installation for your project.
Pole Shape Options
The SCL2 can be easily affixed as a side mount fixture on square, round or tapered poles
Pole Height Options
16 feet
18 feet
20 feet
25 feet
Pole Material Options
Aluminum and steel poles are available

Adaptive Intelligence

Management
Intelligently manages lighting performance based on environmental conditions and lighting requirements
Data Logging
On-board multi-year data logging
Integration
Microcontroller and electronics integrated within the luminaire
Motion Sensing
Equipped for motion sensing

LED Engine & Controller

Lumen Output
3680 lumens
Color Temperature & Amber Options
4000K Not DarkSky compatible
3000K DarkSky Approved
2700K DarkSky Approved
Amber (595nm) DarkSky Approved
LED Lifetime
100,000 hour LED L70 lifetime
Control
High-efficiency, Maximum Power Point Tracking (MPPT) battery charger
High-efficiency integrated LED driver
Integrated optics maximize application efficiency and light distribution

Power

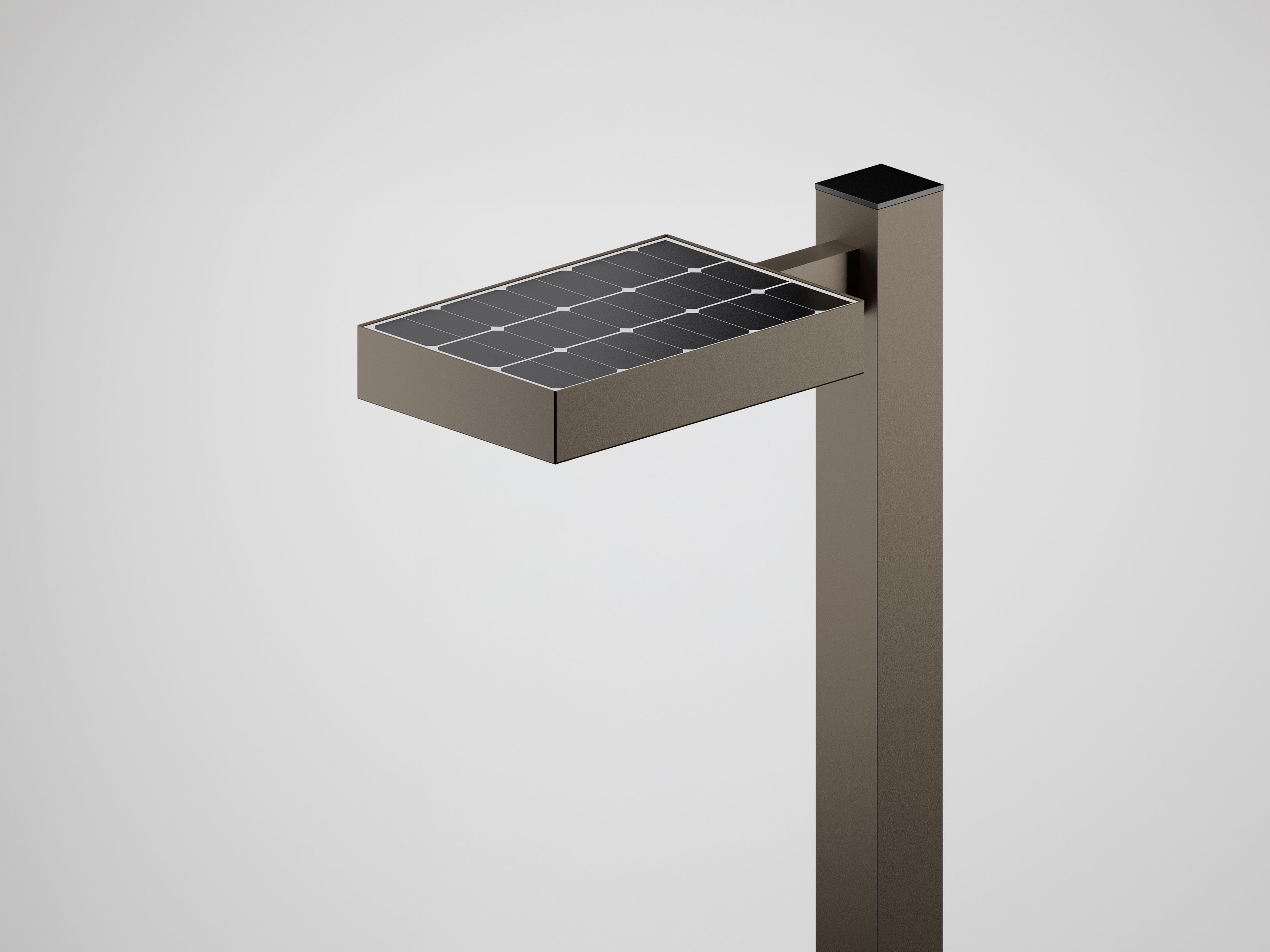

Solar Panel
Industry’s most efficient solar panel technology
Integrated into the top of the luminaire
Active cell technology optimizes power generation even when partially blocked
Battery
High-performance Lithium Iron Phosphate (LiFePO4) technology
Exceptional 10+ year life cycle
High and low temperature tolerance
Integrated within the luminaire housing
Optical
High-efficiency type 2, 3, 4, 5, and T4F full cutoff optics
Optional backlight shield
Achieves pathway and area lighting standards with typical output of 3680 lumens
B0 – U0 – G1 BUG Rating

Downloads & Resources

Supporting Resources

Spec Sheets

SCL2 Spec Sheet
PDF Download

IES Files

SCL2 IES Files
PDF Download

Installation

Install Instructions
PDF Download

Backlight Shield Kit Installation

SCL2 Backlight Shield Kit Installation Instructions
PDF Download

Lighting Profile Sheet

Choosing the right lighting profile
PDF Download

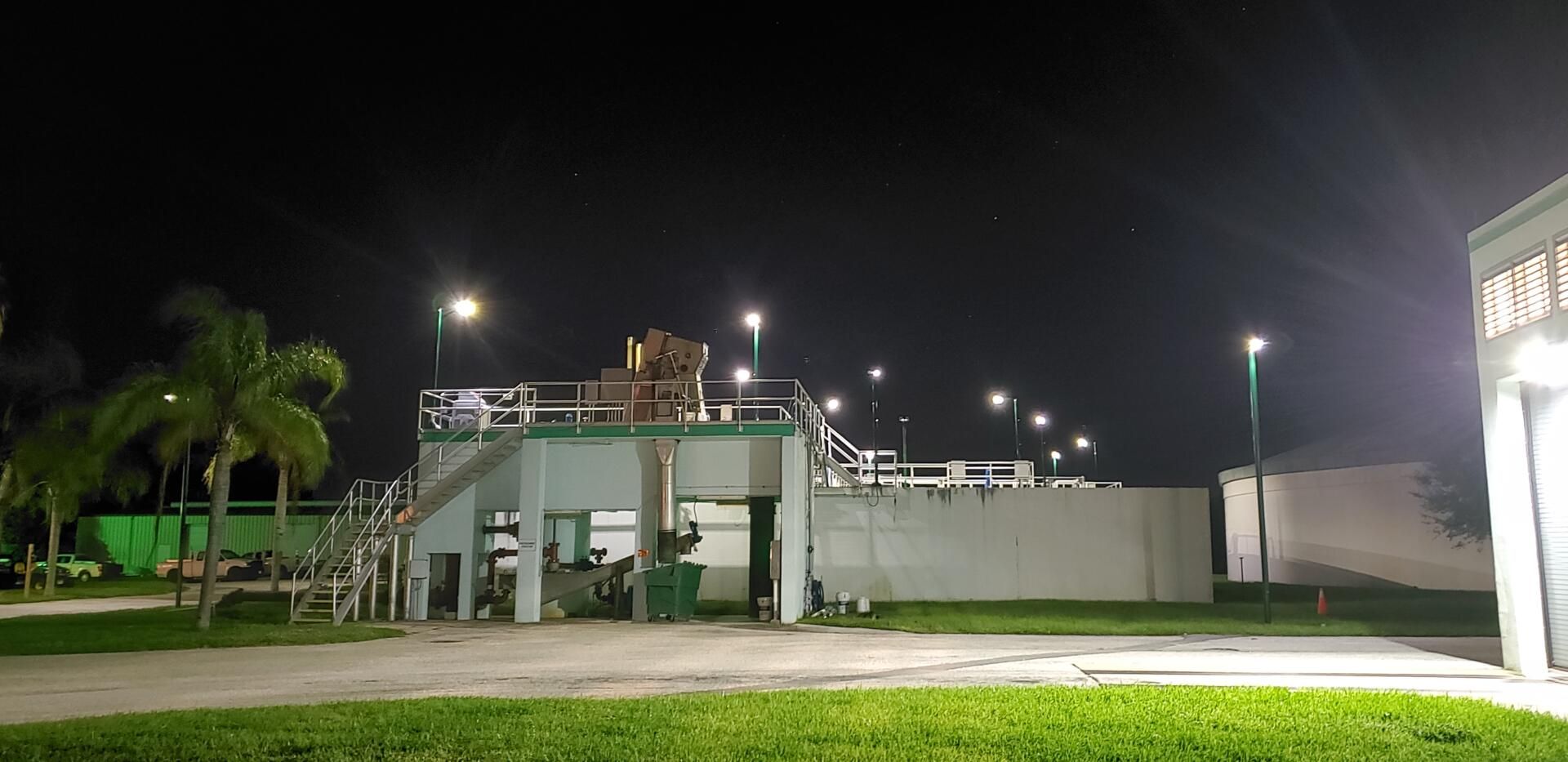

Ideal Applications

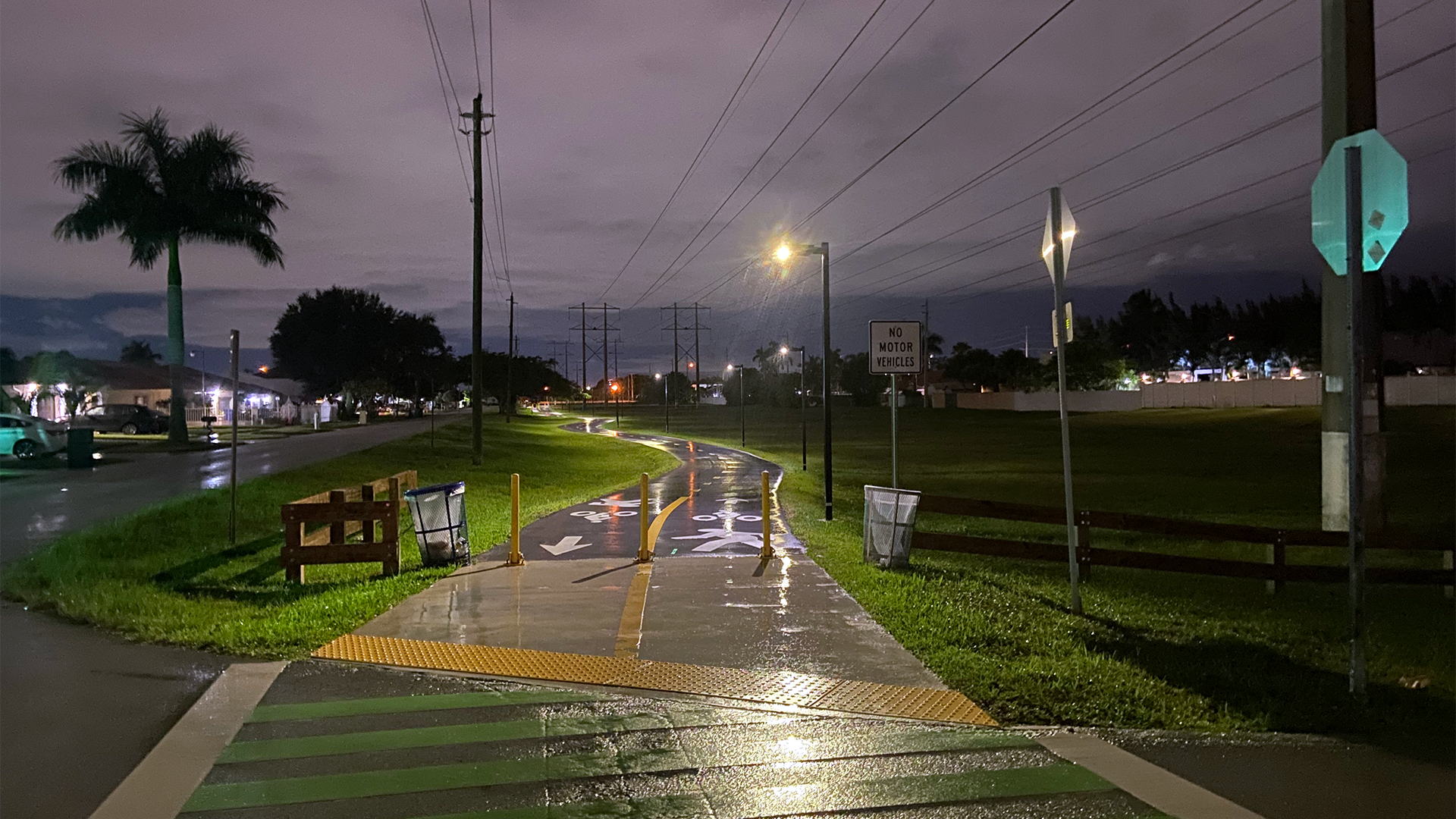

Pathways

SCL2 is engineered for optimal performance in pathways environments, providing reliable solar-powered illumination without trenching or wiring.

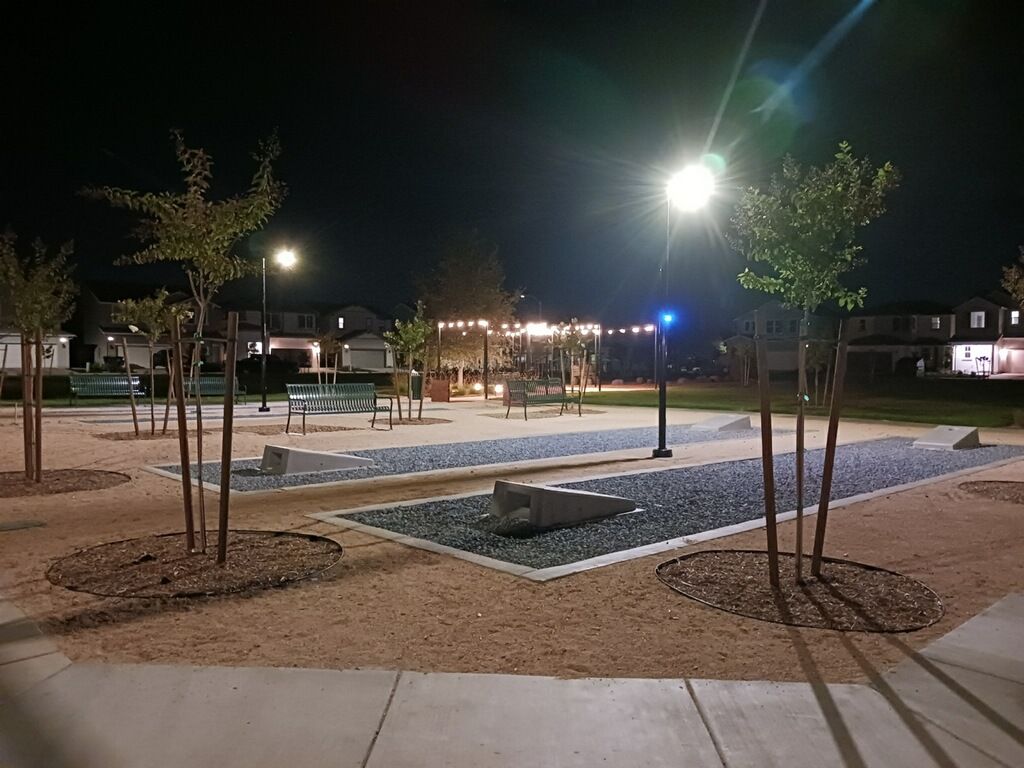

Parks

SCL2 is engineered for optimal performance in parks environments, providing reliable solar-powered illumination without trenching or wiring.

Streets

SCL2 is engineered for optimal performance in streets environments, providing reliable solar-powered illumination without trenching or wiring.

Plazas

SCL2 is engineered for optimal performance in plazas environments, providing reliable solar-powered illumination without trenching or wiring.

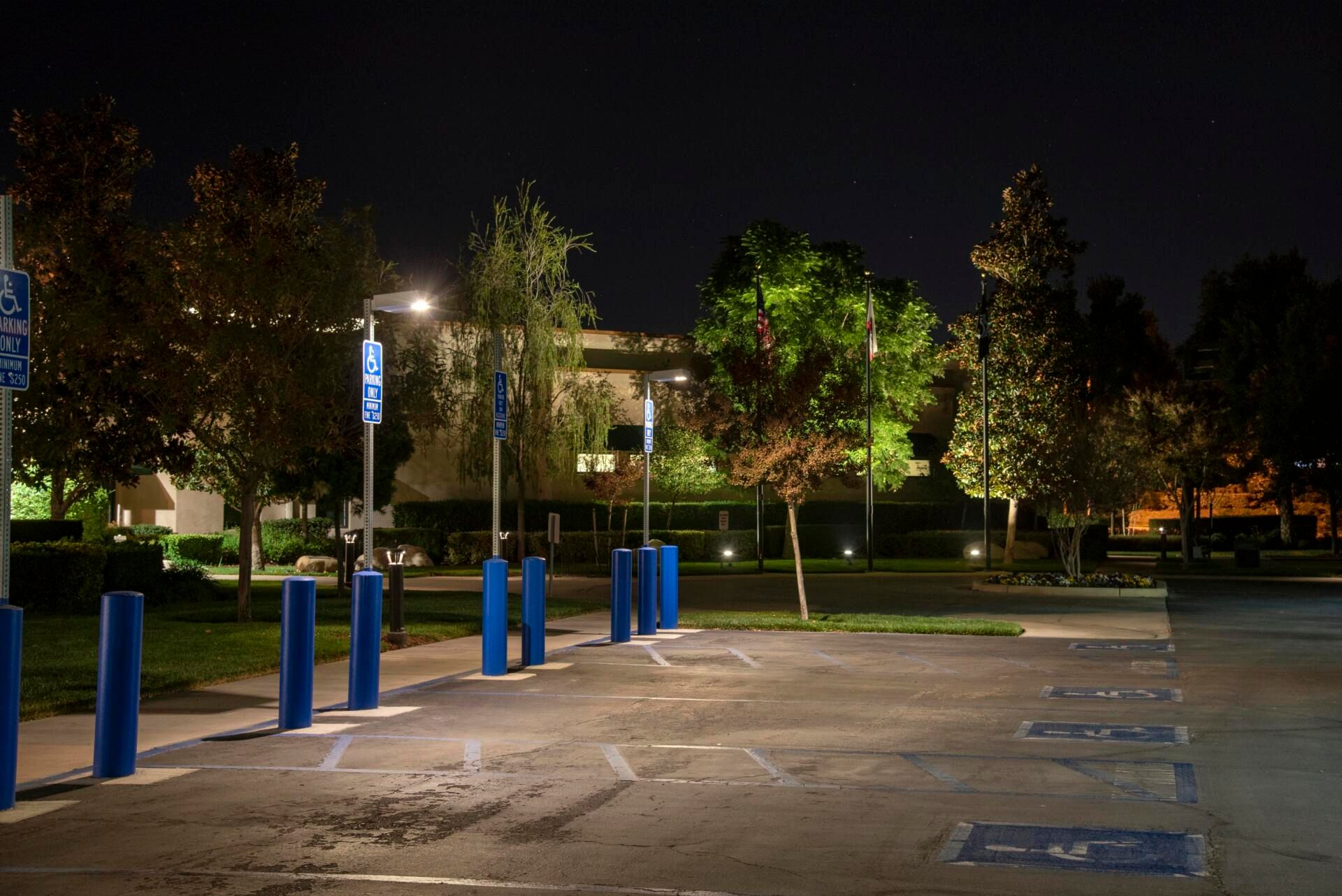

Parking Lots

SCL2 is engineered for optimal performance in parking lots environments, providing reliable solar-powered illumination without trenching or wiring.

Area Lighting

SCL2 is engineered for optimal performance in area lighting environments, providing reliable solar-powered illumination without trenching or wiring.

Perimeter Security

SCL2 is engineered for optimal performance in perimeter security environments, providing reliable solar-powered illumination without trenching or wiring.

Wildlife Settings

SCL2 is engineered for optimal performance in wildlife settings environments, providing reliable solar-powered illumination without trenching or wiring.

Reliability & Warranty

•
Tested for high- & low- heat and humidity
•
5-year warranty
•
10+ year battery life
•
20-year lifespan
•
Designed and manufactured in North America
