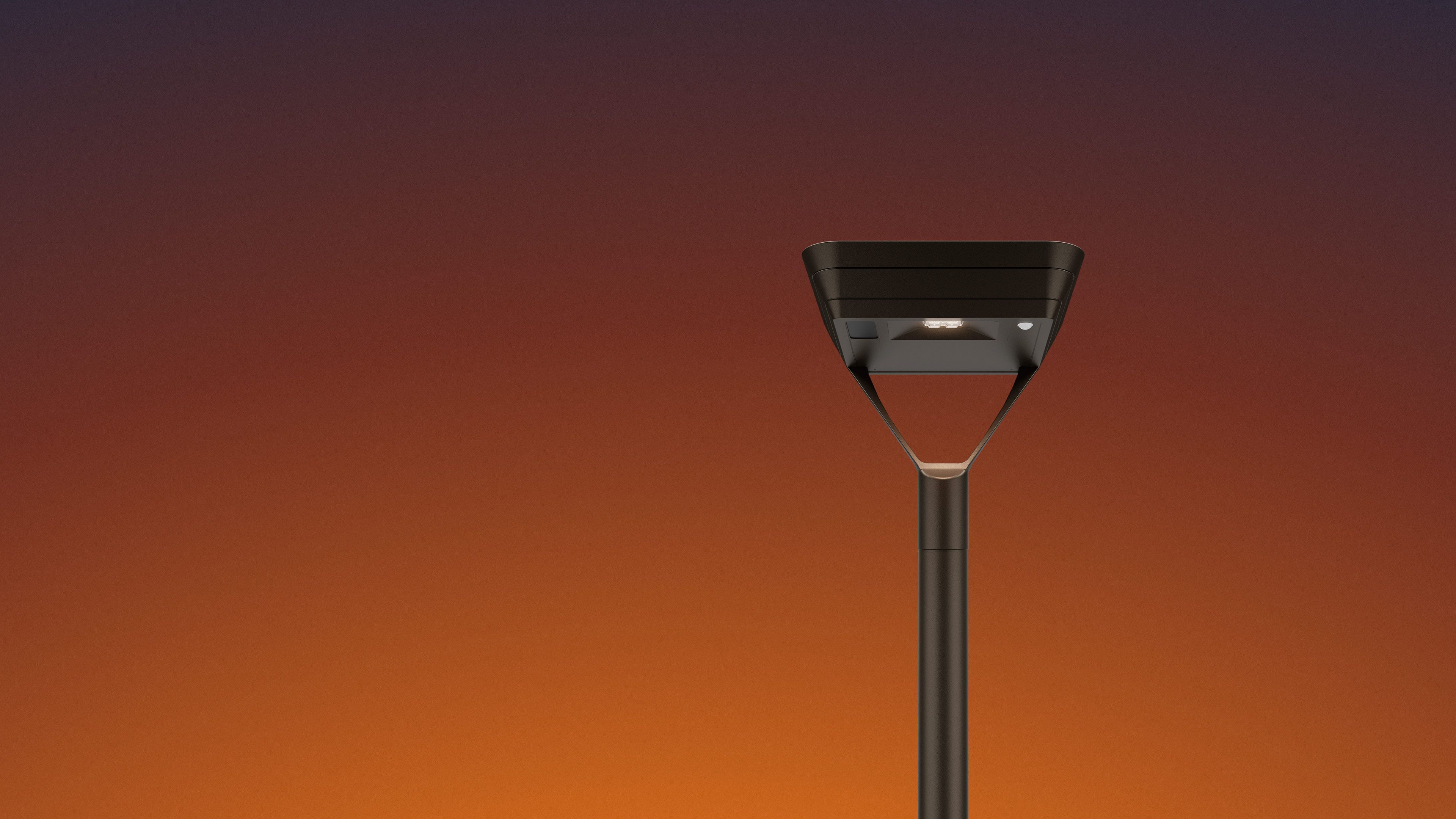

Modern black street lamp post against a gradient sunset sky.

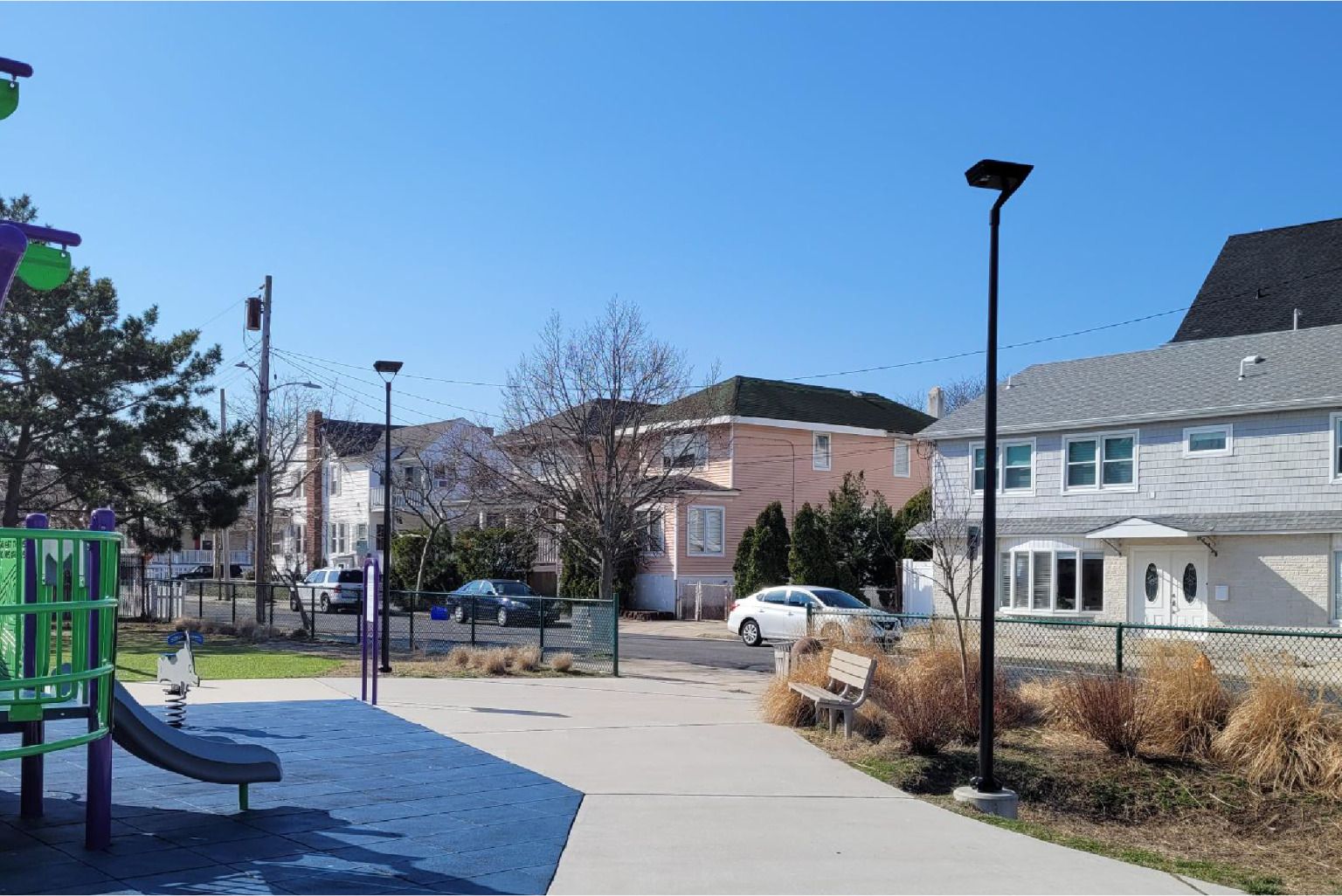

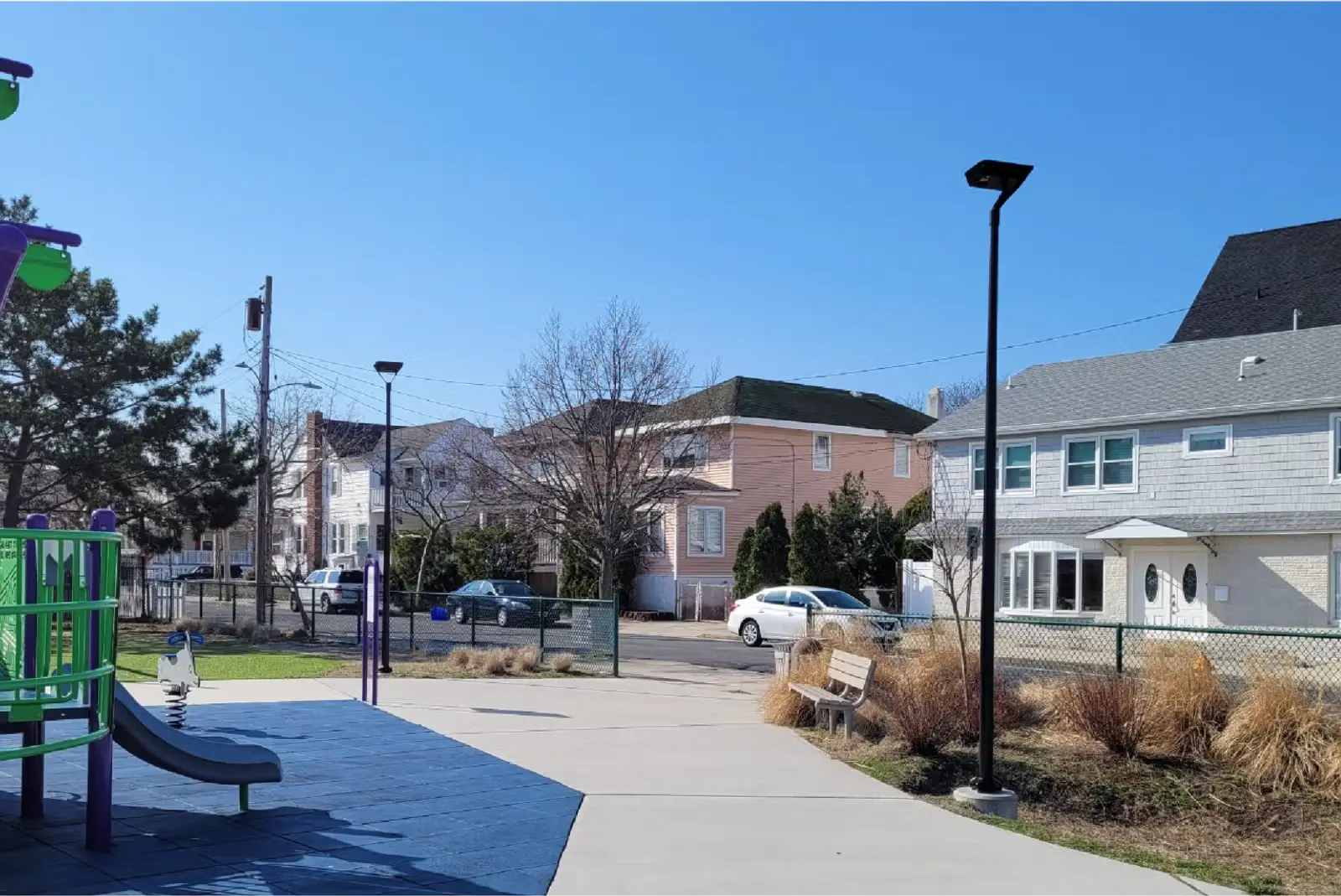

Playground area with a slide, bench, and residential houses in the background under a clear blue sky.

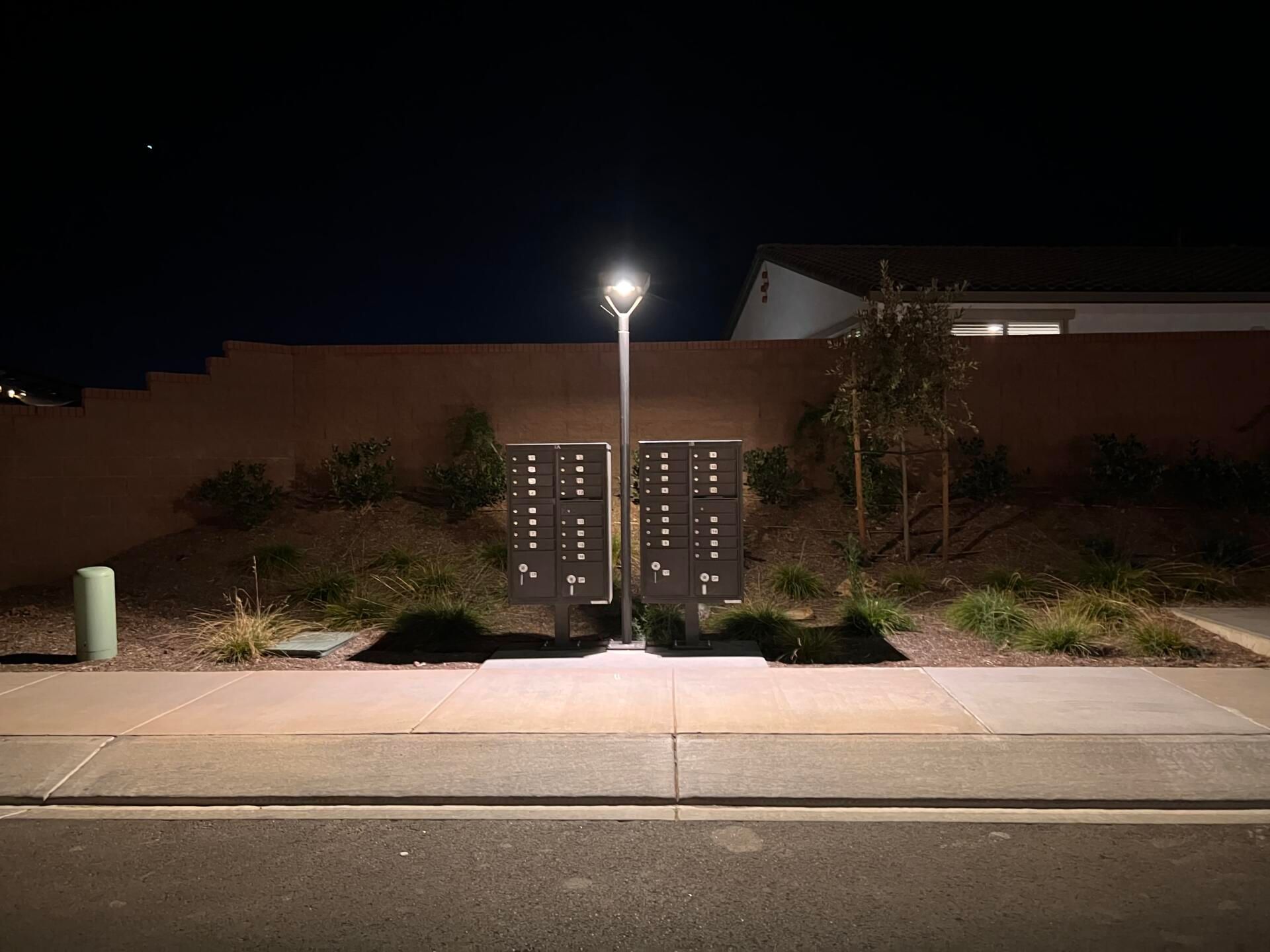

Two sets of black community mailboxes illuminated by a streetlamp at night, with a sidewalk and residential landscaping in the background.
Curved concrete path through a landscaped park with bushes, trees, and lamp posts under clear blue sky.

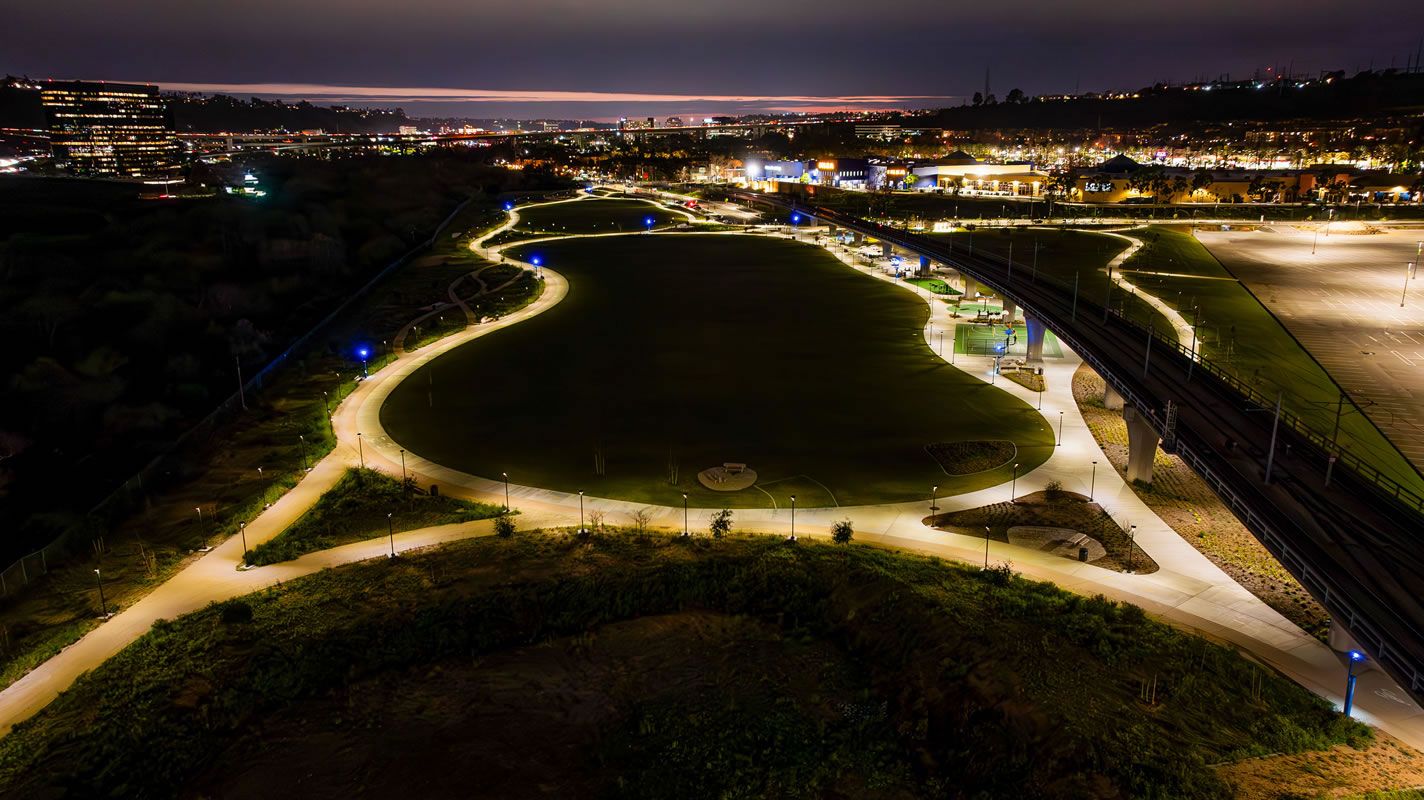

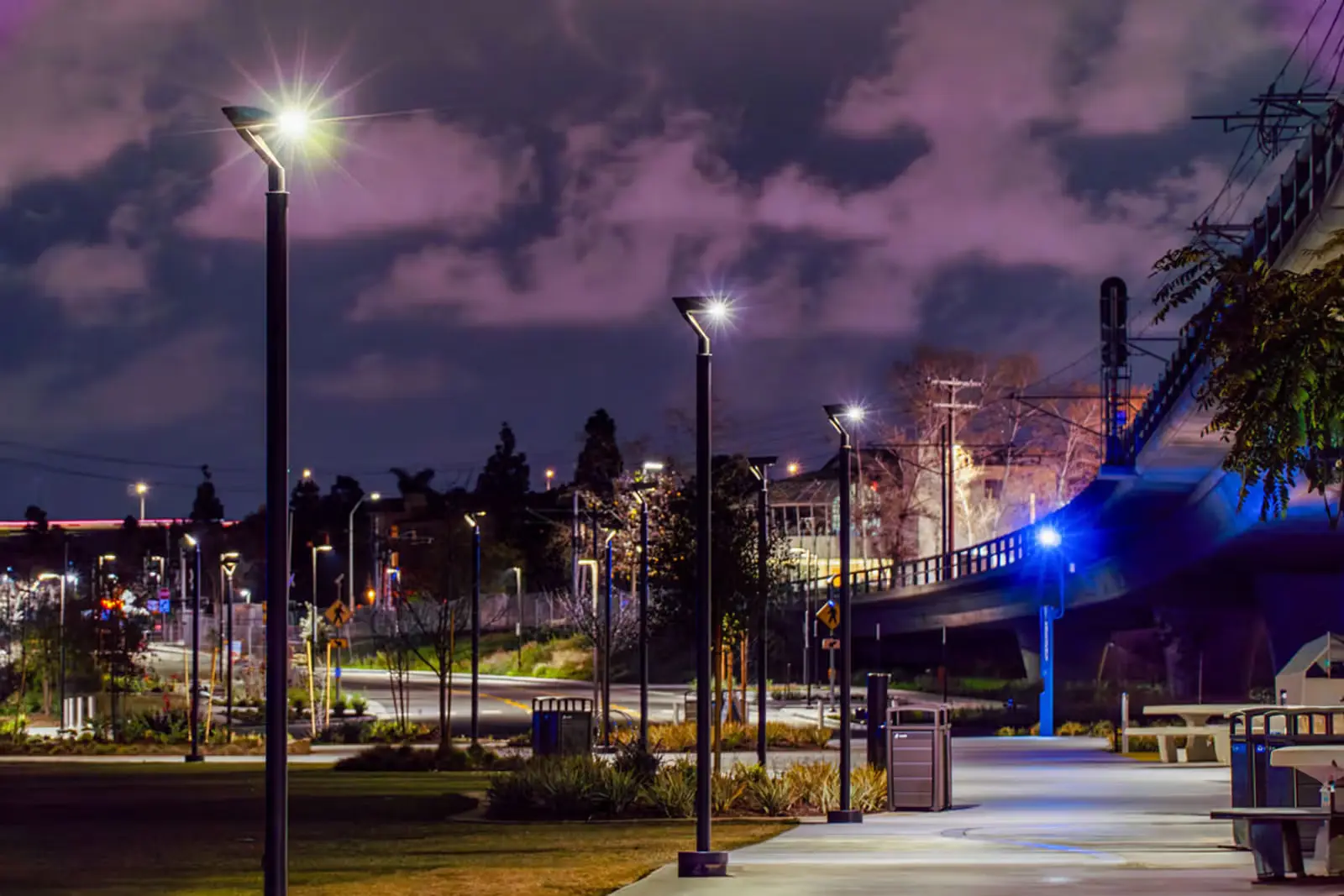

Night view of a modern park pathway illuminated by tall streetlights with a bridge and city lights in the background.

IPL

When clean, modern pathway lighting is required, the IPL is the perfect solution for commercial pathways, bike trails, and public spaces. Integrated solar with a contemporary square design—no trenching, no wiring, no visual clutter.

request a quotedownload spec sheetDownload iES File

Product details

•
Lumen Output: 1360 lumens
•
Color Temperature: 2700K, 3000K, 4000K, Amber (595nm)
•
Optical: Type 2, 3, 4, 5 and T4F full cutoff optics

Best for

Parking Lot, Pathway, Area

Product details

•
No wiring, trenching, or electrical service required
•
Self-contained build designed to improve project aesthetics
•
Cost-effective design ships fully assembled and installs in minutes
•
No ongoing maintenance
•
Provides programmed illumination all night, every night
•
Wireless control & communication with your light
•
Note: 3000K and 2700K are Dark Sky approved. Choose Amber for Wildlife Friendly lighting compliance.
Overview
Specifications
Resources
Applications
Warranty

Product Overview

When clean, modern pathway lighting is required, the IPL is the perfect solution for commercial pathways, bike trails, and public spaces. Integrated solar with a contemporary square design—no trenching, no wiring, no visual clutter.

Available Finishes

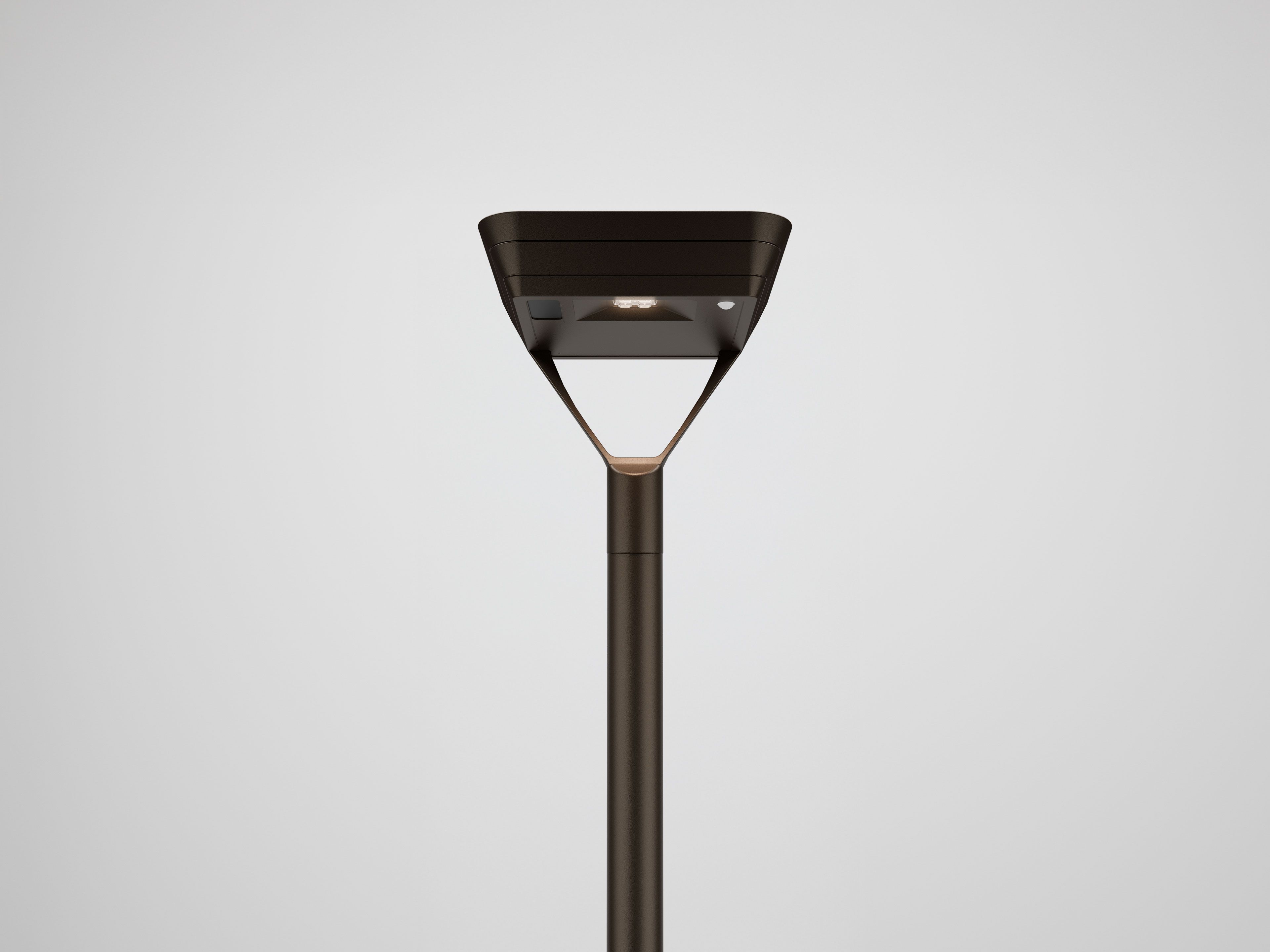

Bronze

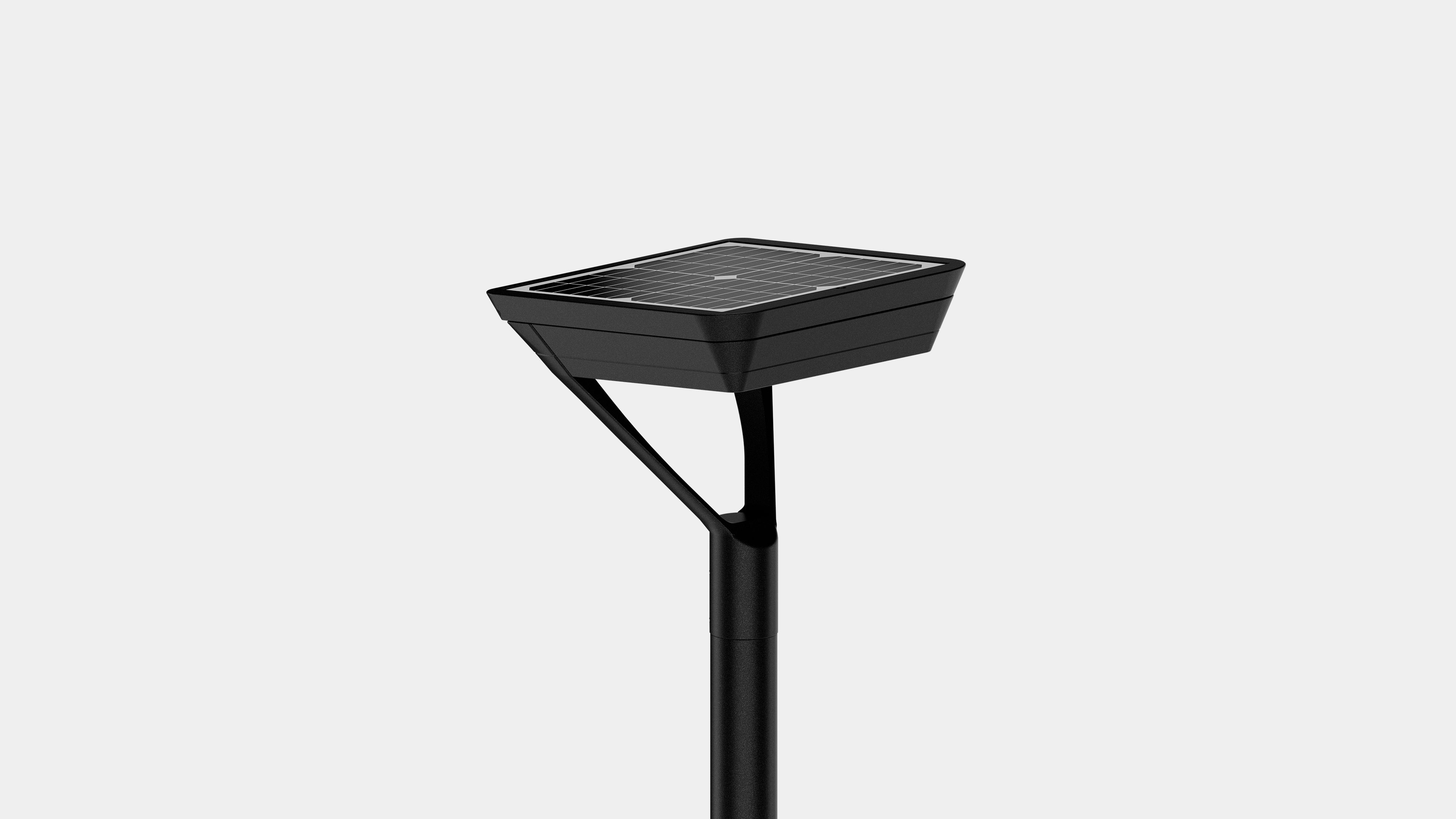

Black
Silver

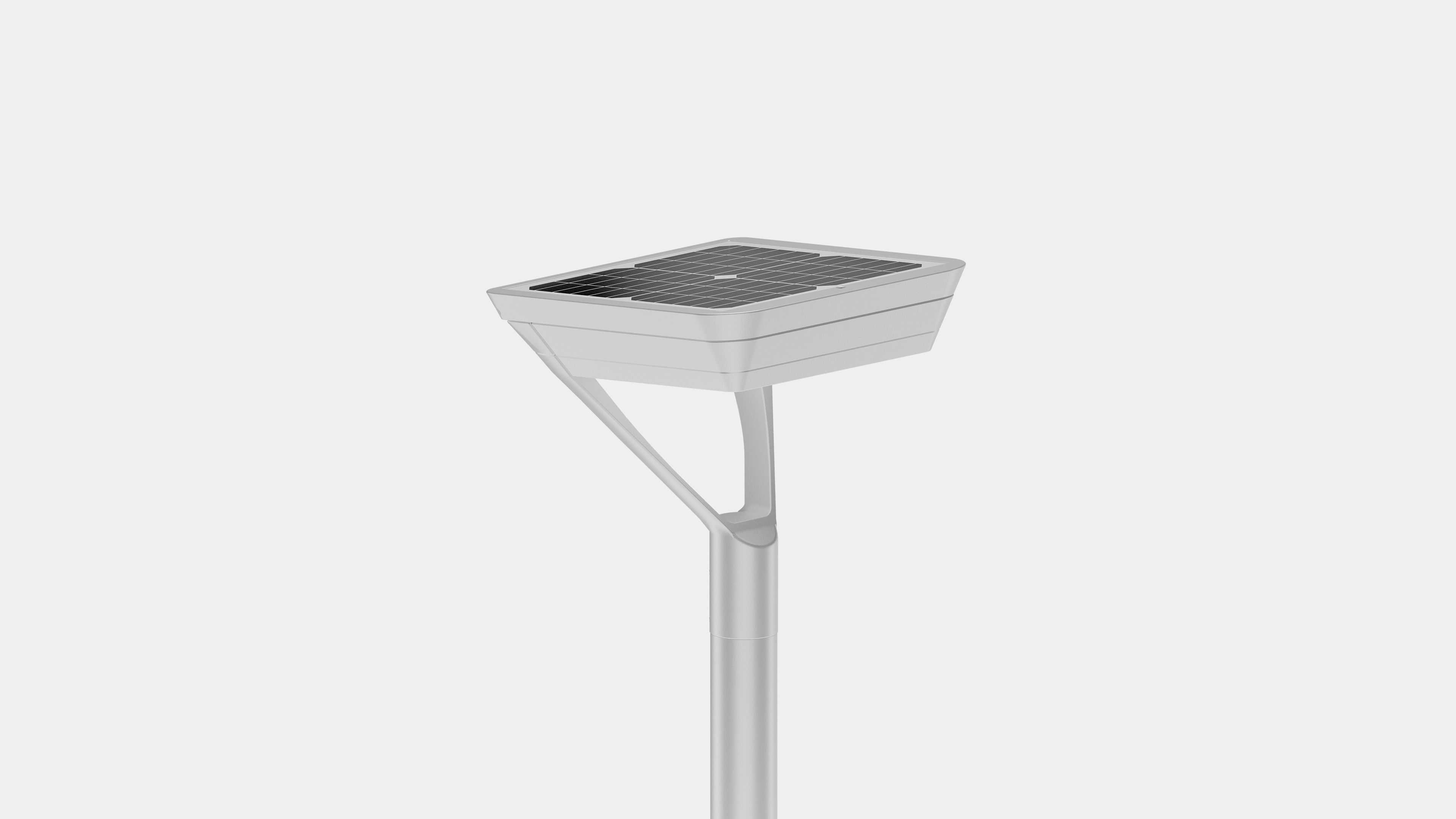

White

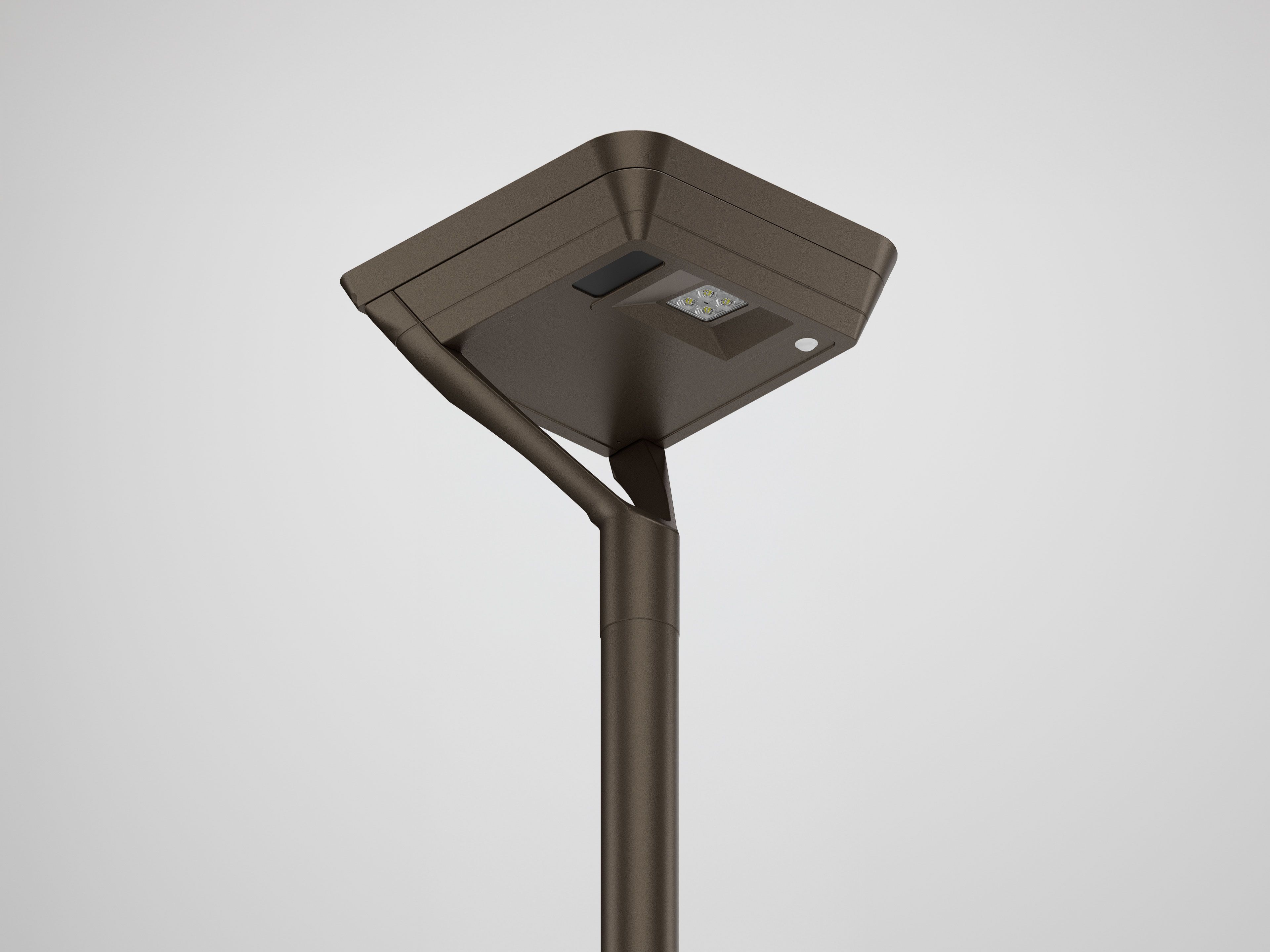

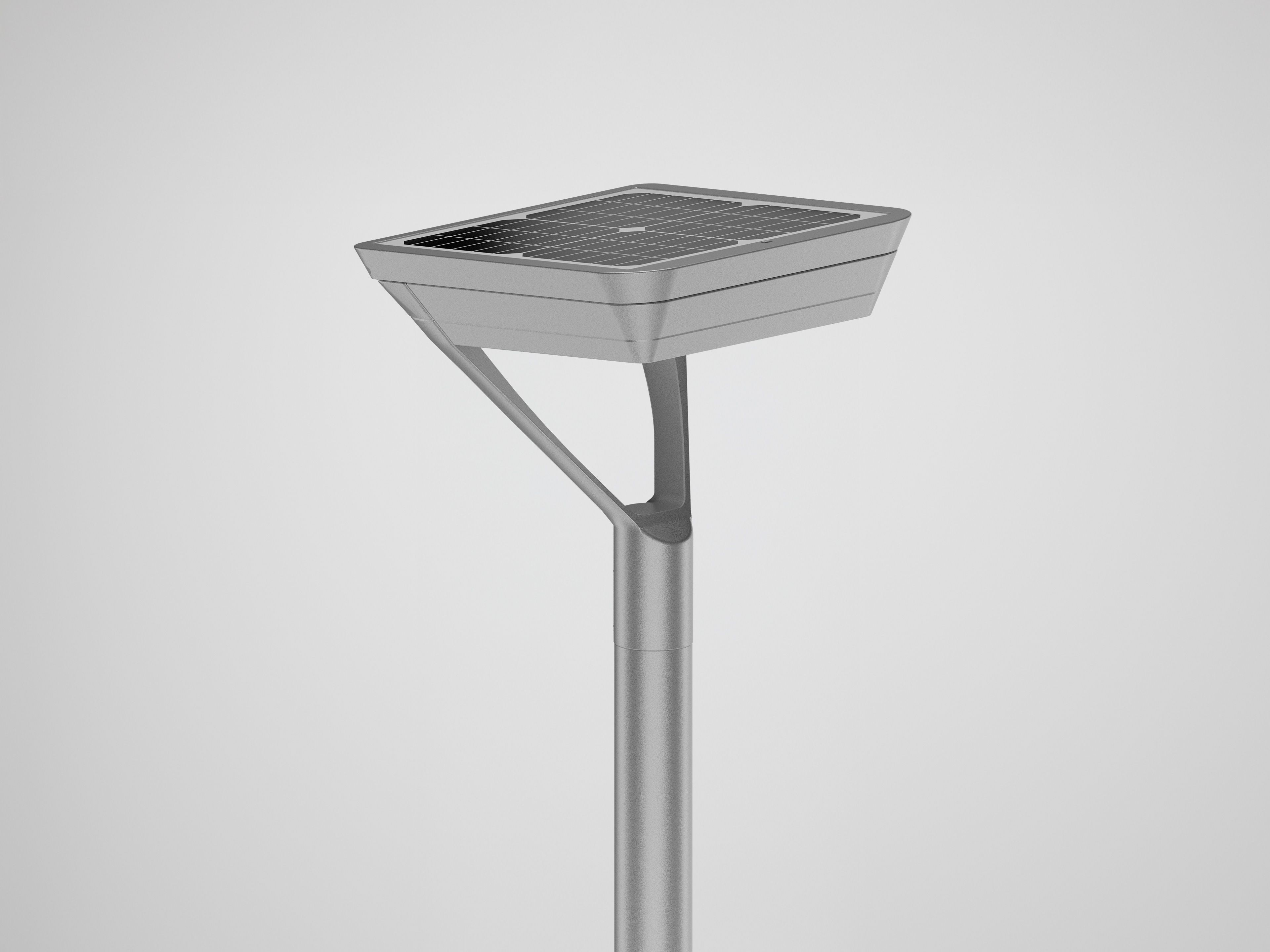

Modern outdoor solar-powered street lamp with a square solar panel on top.

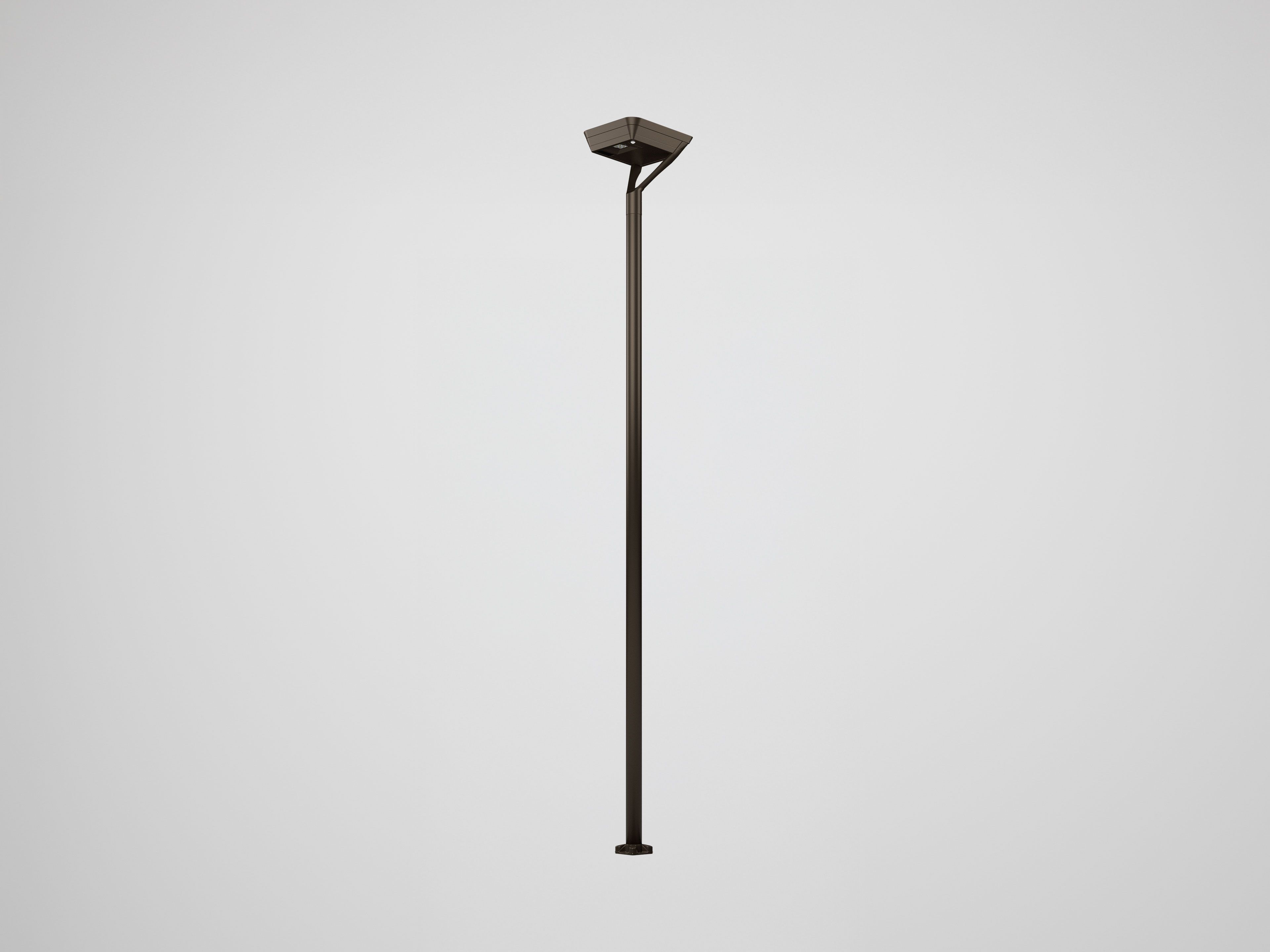

Modern black solar-powered street lamp with a rectangular solar panel on top.
Modern solar-powered street light with a sleek rectangular solar panel on top.

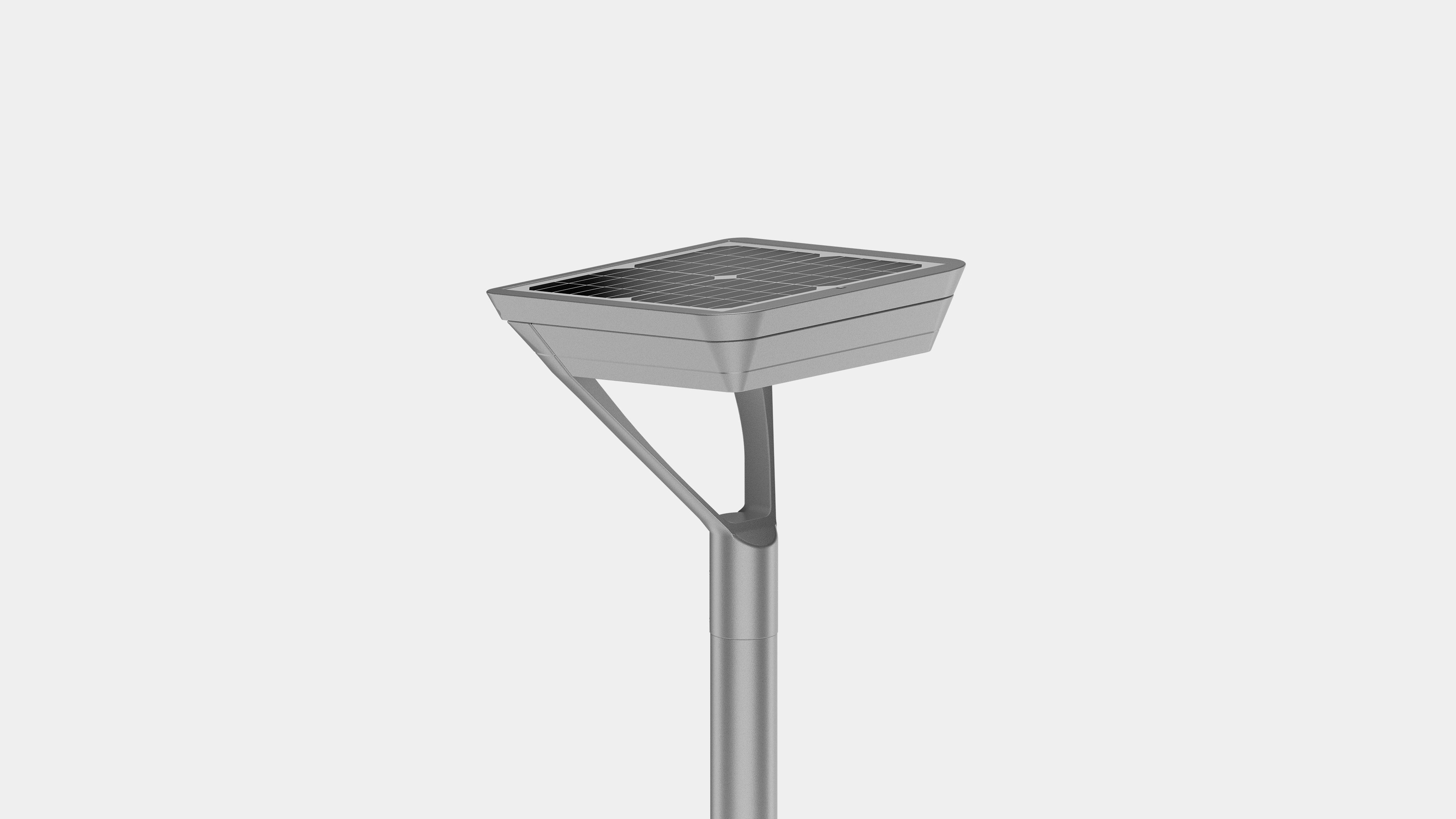

Modern solar-powered street light with a rectangular solar panel on top of a slim pole.

Photometric Diagrams

Overview

FLT's optical solutions efficiently focus light where it’s needed. There are several standard lighting distributions that optimize performance for different applications. Each lighting distribution is full cutoff and compliant with DarkSky requirements. Measurements are in footcandles.

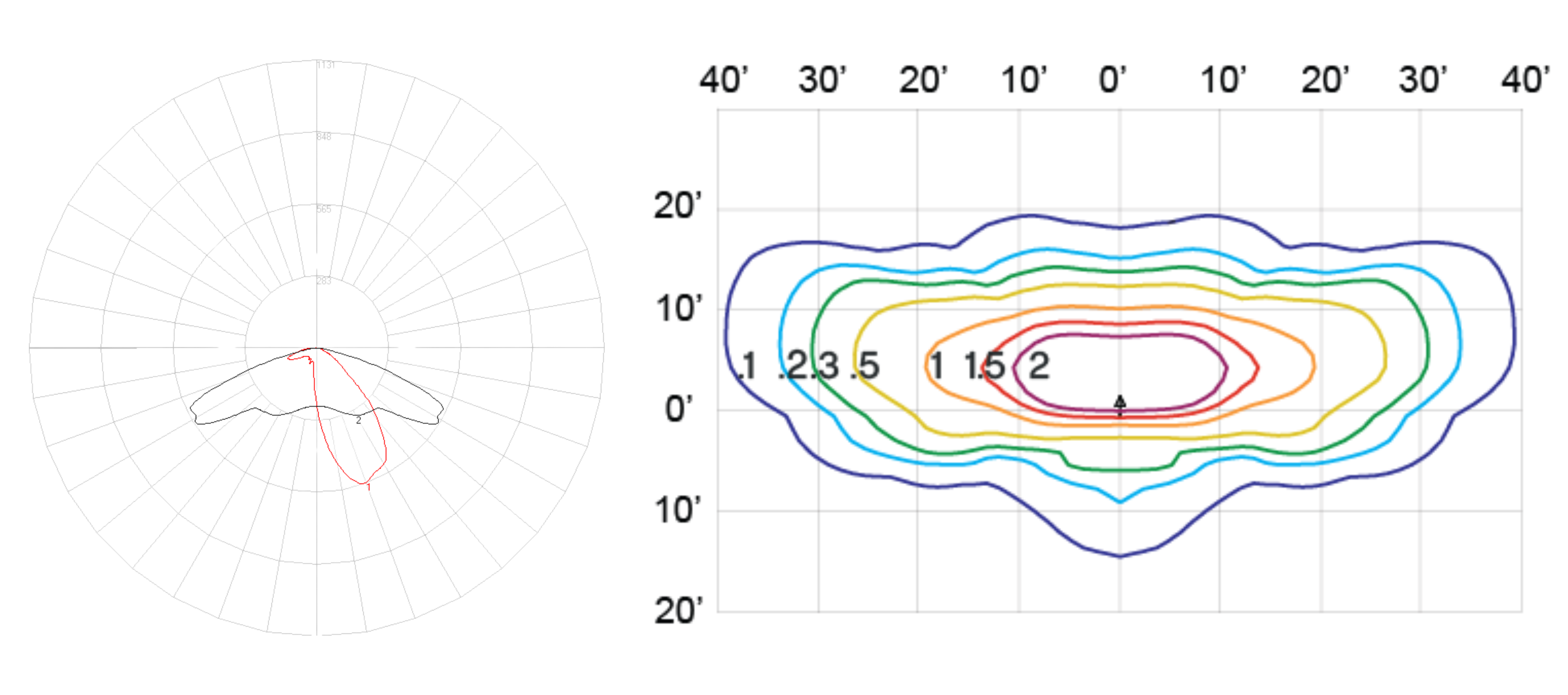

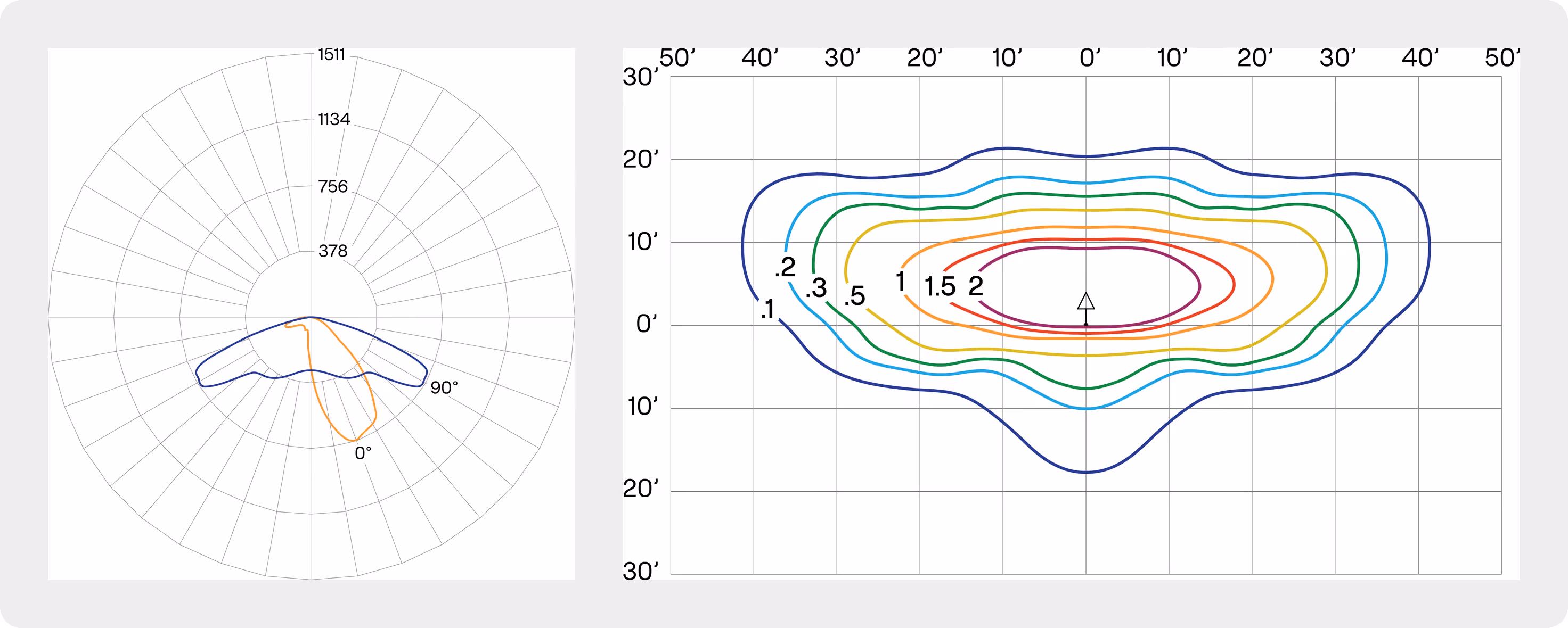

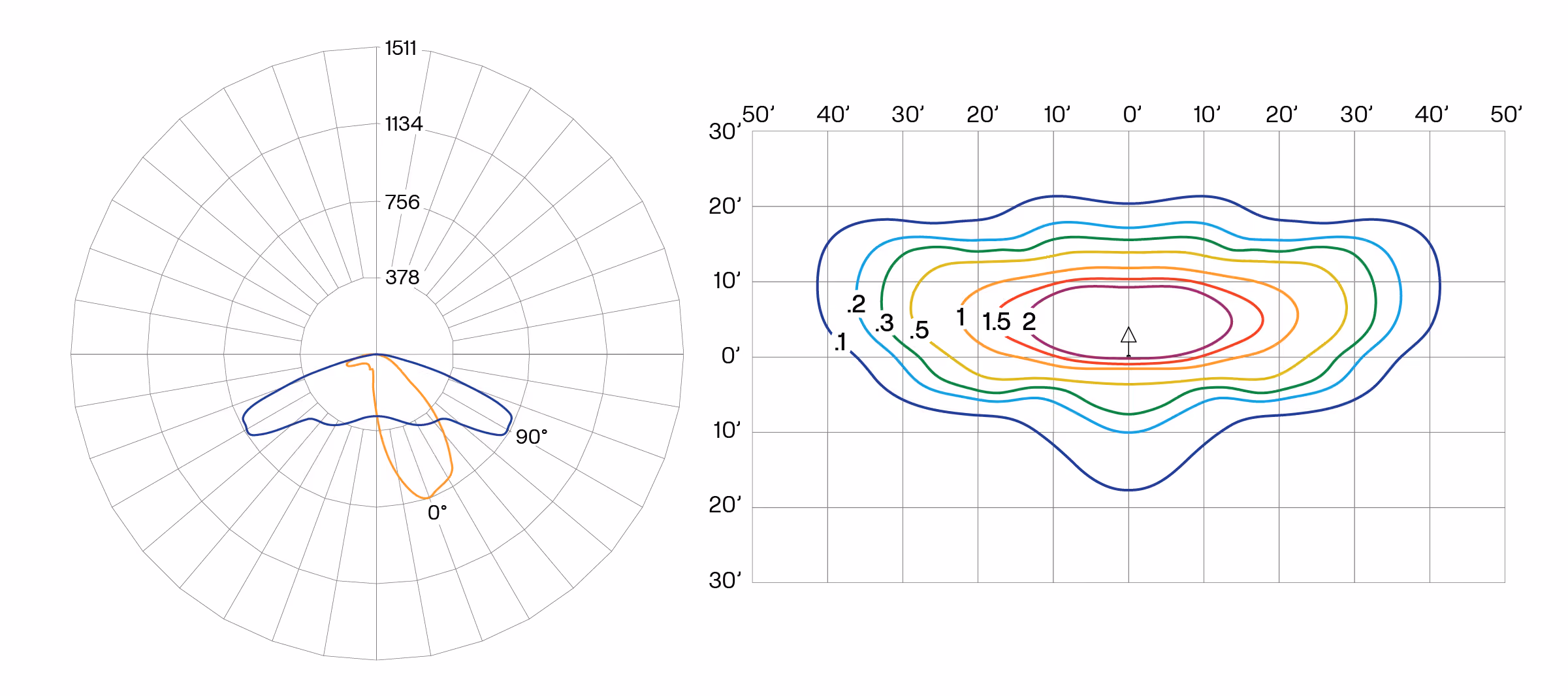

Type 2

Polar coordinate plot with shaded area in red on the left and a horizontal contour plot with colored contour lines from purple to blue to yellow on the right.

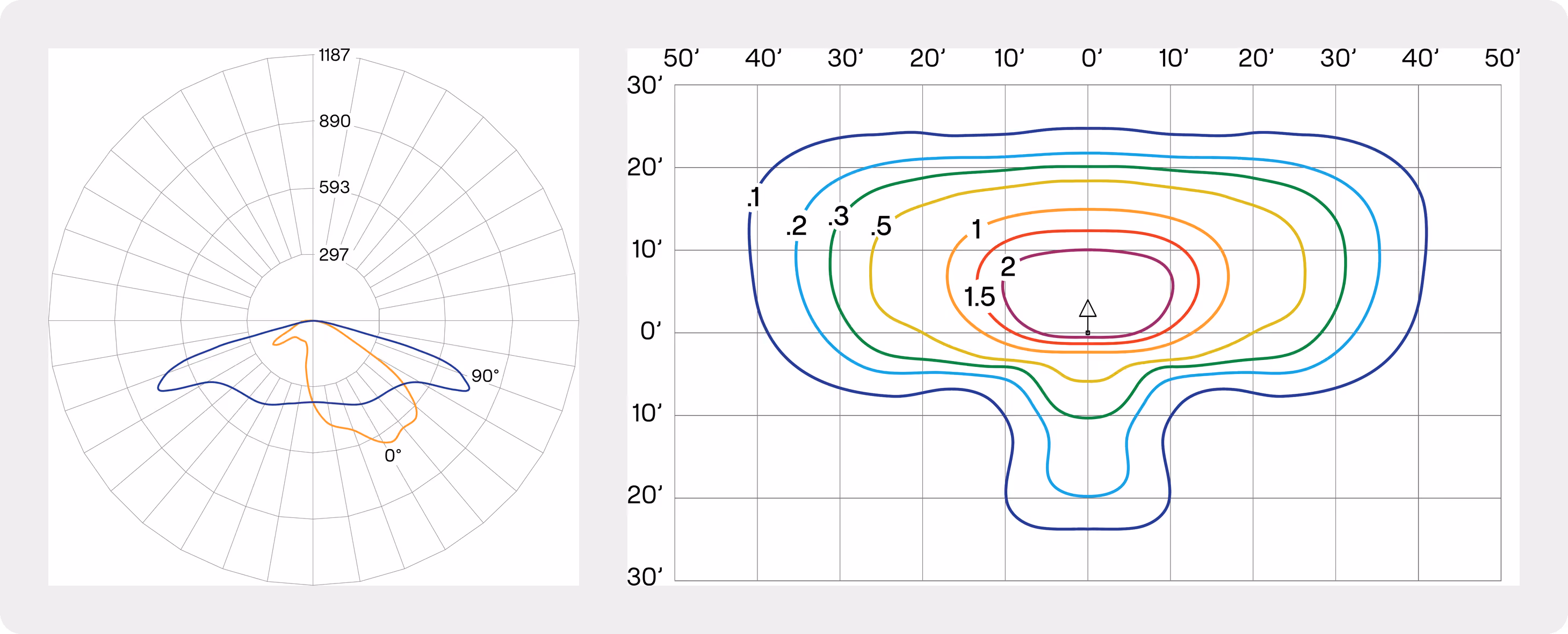

Type 3

Two diagrams side by side: a polar coordinate grid on the left with a red curve, and a contour plot on the right showing colored contour lines in blue, green, yellow, orange, and red.

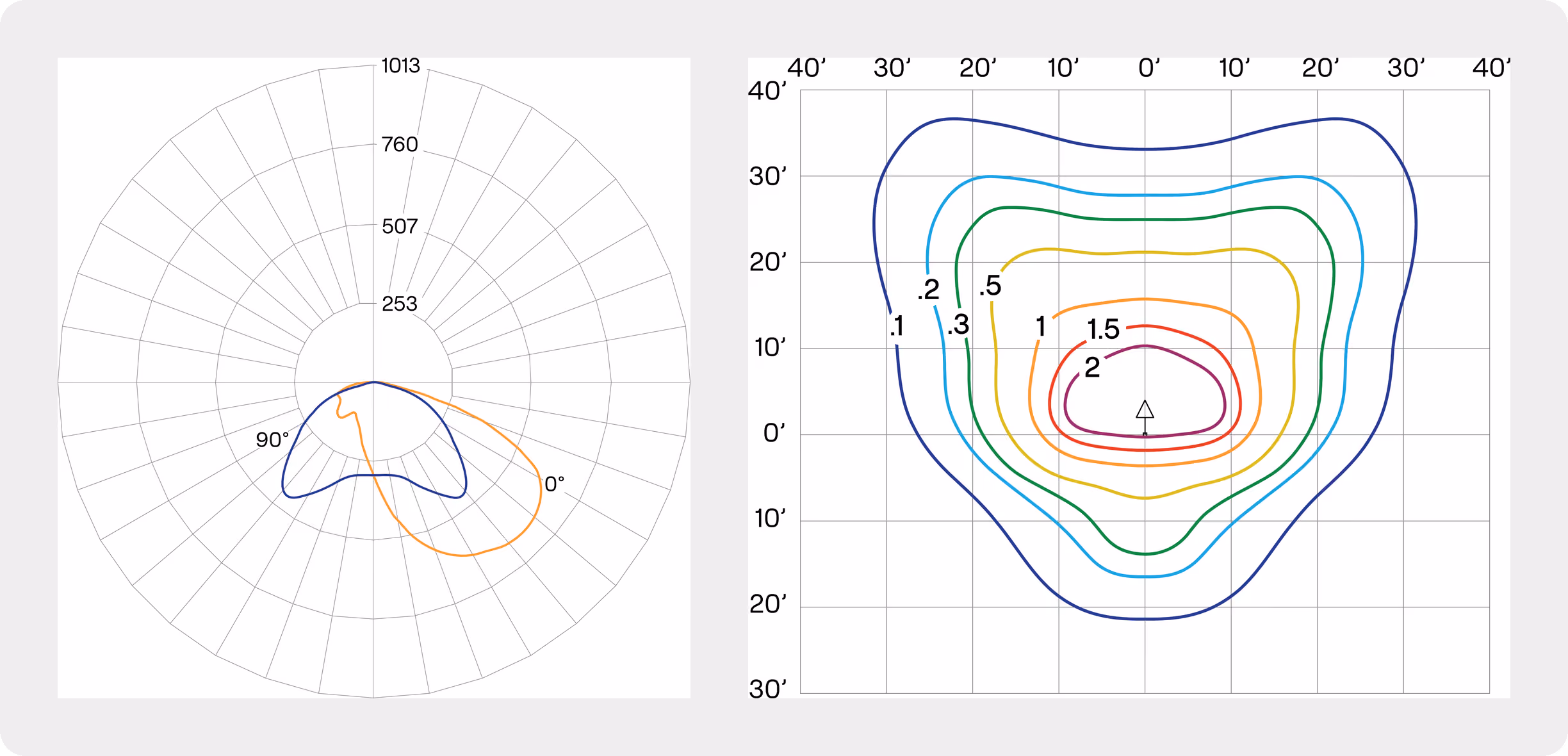

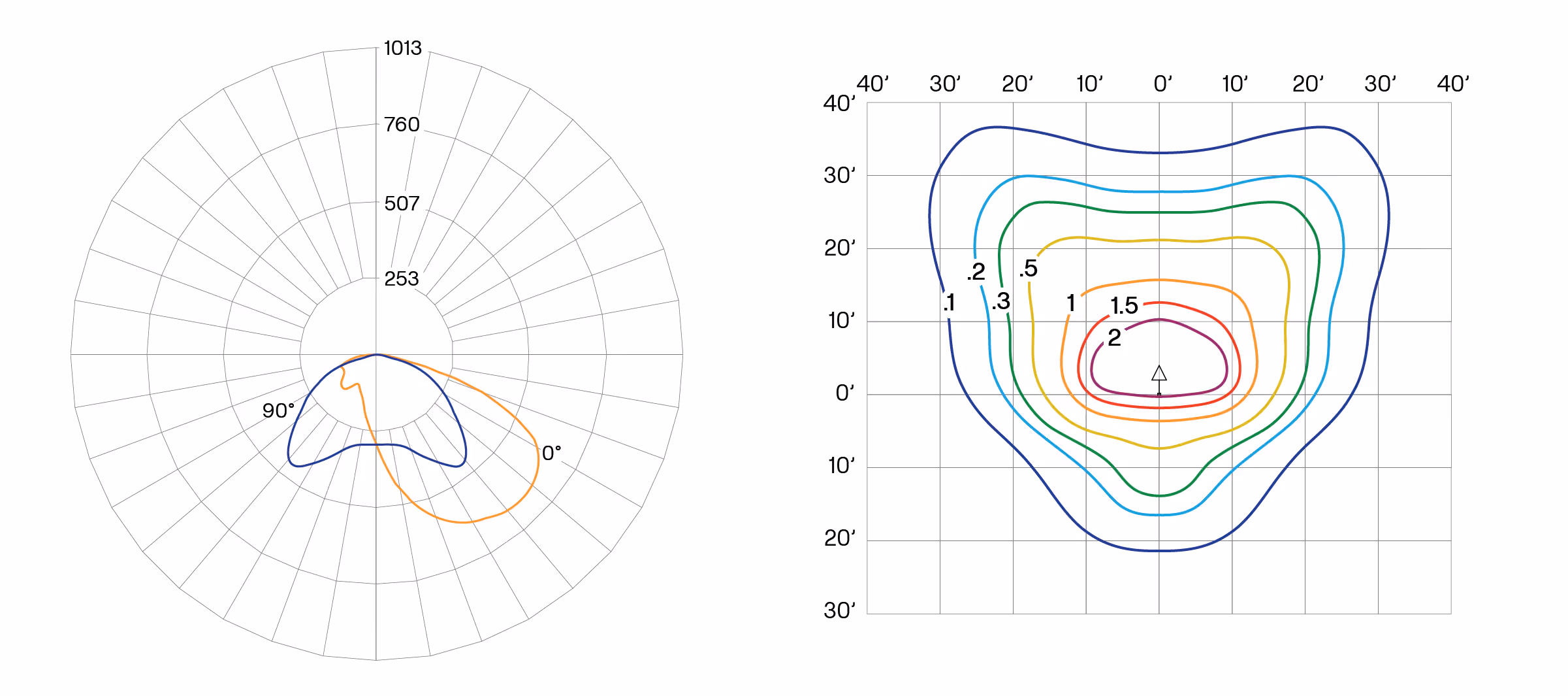

Type 4

Two scientific contour plots: a polar plot with radial ticks and a red irregular closed curve inside, and a rectangular plot with multi-colored nested contour lines forming a complex shape.

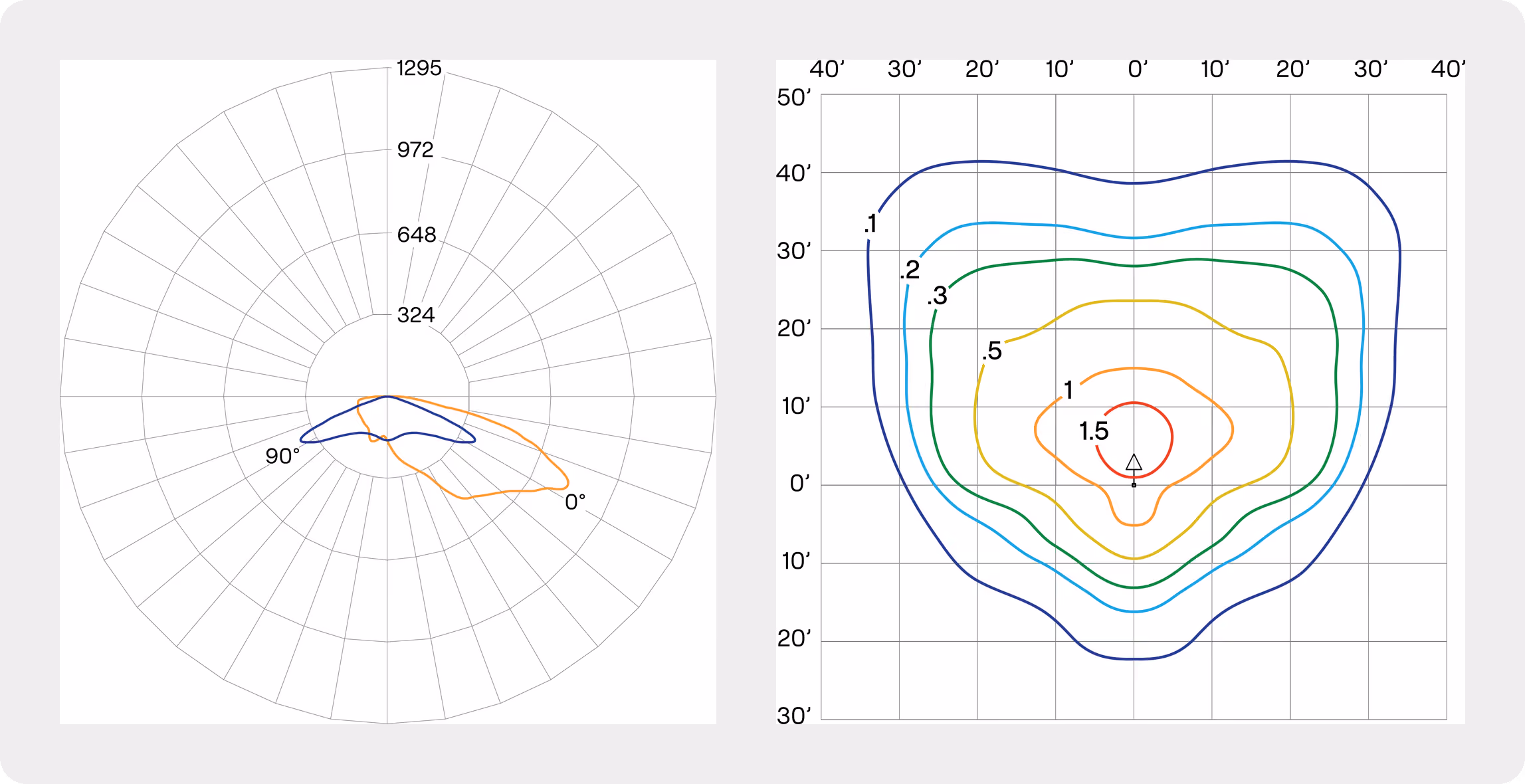

Type 4F

Two scientific charts: on the left, a red irregular shape plotted on a circular polar grid with radial and angular divisions; on the right, a contour plot with multicolored contour lines forming nested irregular shapes on a square grid with labeled axes.

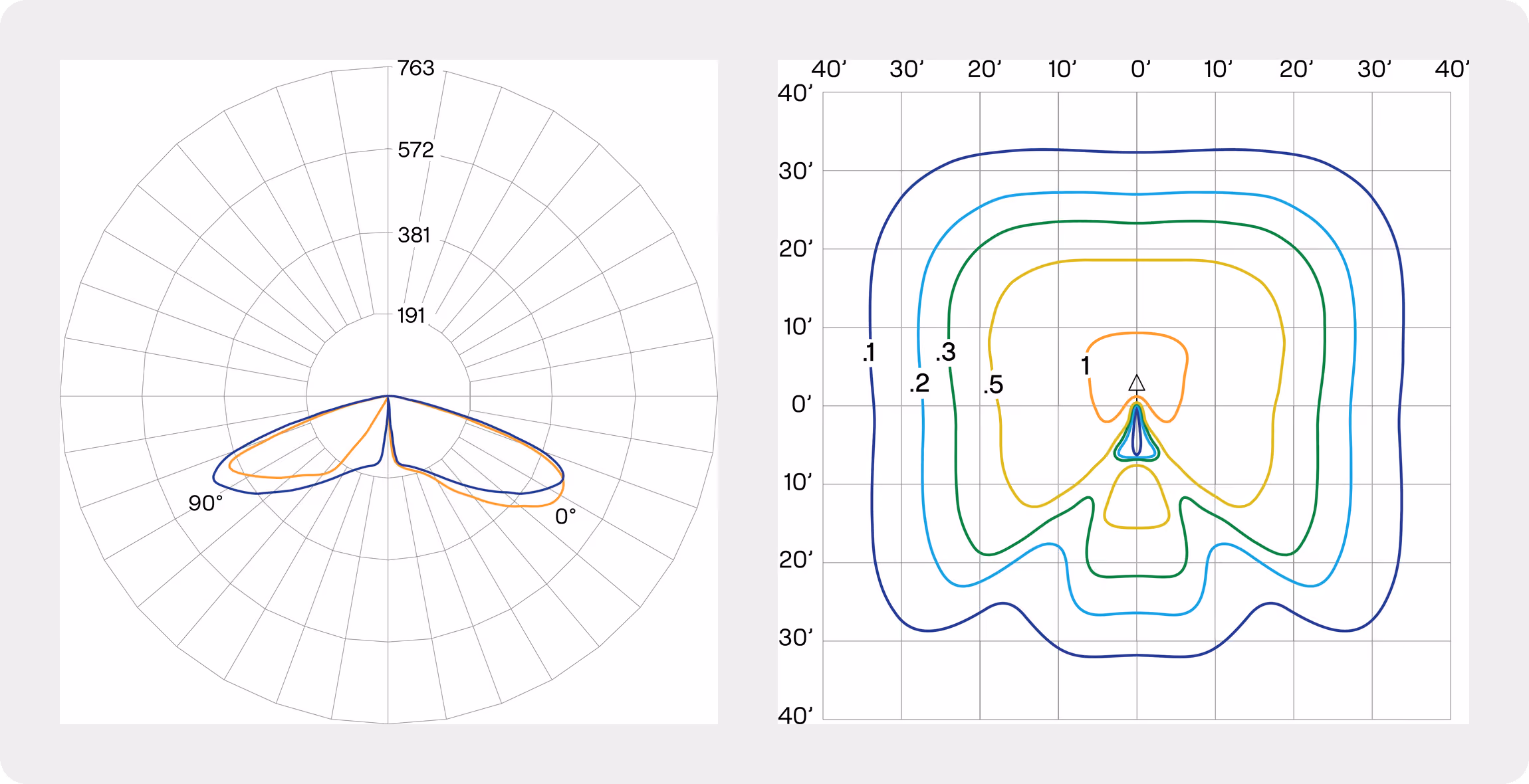

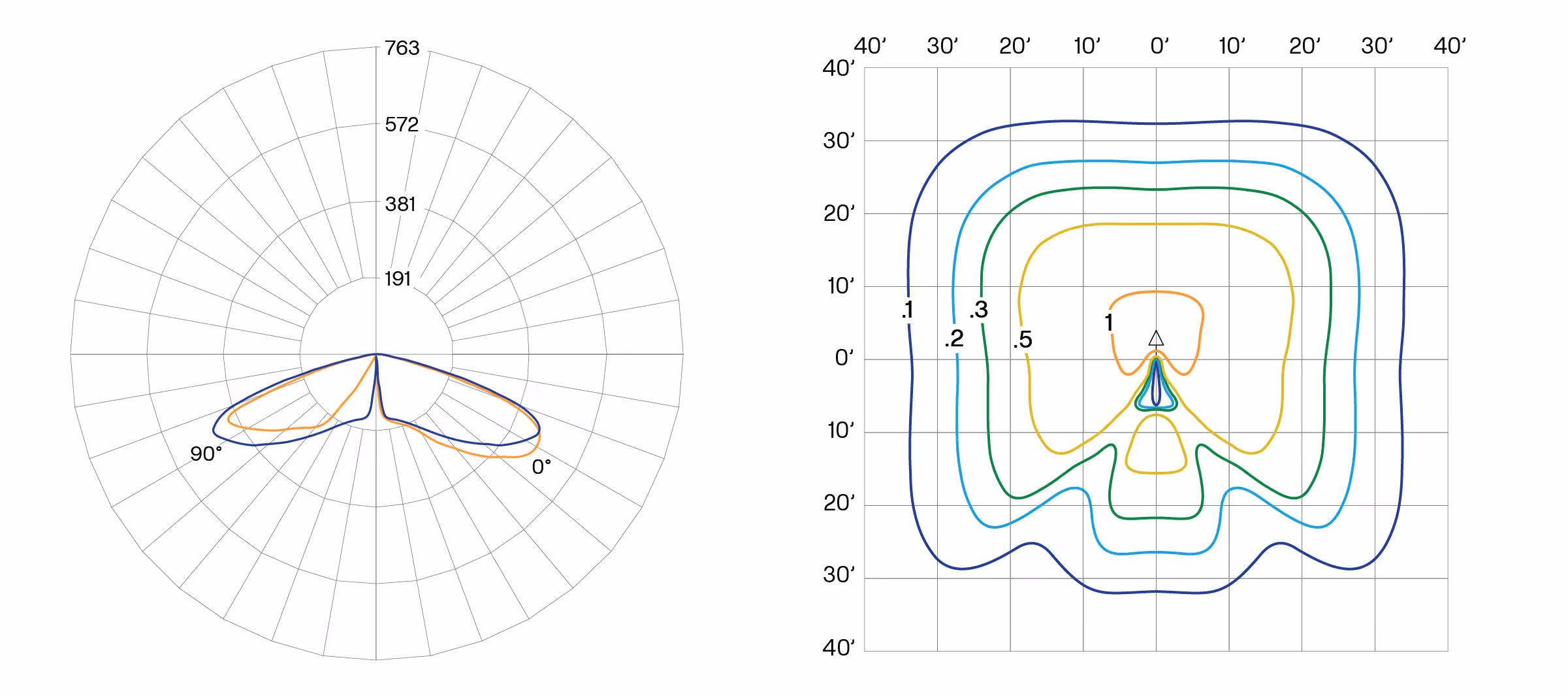

Type 5

Polar plot on the left showing a red directional radiation pattern and a colored contour plot on the right displaying multiple concentric shapes in blue, cyan, green, and yellow on a grid background.

Technical Specifications

Technical Specifications

Style
Contemporary, solar pole top area light
Fixture Diameter
15.8 inches x 15.7 inches
Fixture Height
16.6 Inches
Fixture Weight
24.7 lbs (11.2 kg) including battery
EPA
0.65 feet2 (0.06 m2)
Construction
Rugged cast-aluminun
Stainless fasteners
Pre-drilled for seamless installation
Finish
Architectural grade, durable TGIC powder coat
Powder Coat Color
Bronze, Black, Gray, White or Custom colorn

Mounting Specifications

Mounting Options
Pole top to 2 ⅜ inch (60mm) tenon

Pole Recommendations

Pole Considerations
FLT offers a full range of pole options that are seamlessly matched to the IPL luminaire. The expert team at FLT can answer questions about mounting, poles, or installation for your project
Pole Shape Options
The IPL can be easily affixed to a round pole
Pole Height Options
10 feet
12 feet
14 feet
Pole Material Options
Aluminum or steel poles are available

Adaptive Intelligence

Management
Intelligently manages lighting performance based on environmental conditions and lighting requirements
Data Logging
On-board multi-year data logging
Integration
Microcontroller and electronics integrated within the luminaire
Motion Sensing
Equipped for motion sensing

LED Engine & Controller

Lumen Output
1360 lumens
Color Temperature & Amber Options
4000K Not DarkSky compatible
3000K DarkSky Approved
2700K DarkSky Approved
Amber (595nm) DarkSky Approved
LED Lifetime
100,000 hour LED L70 lifetime
Control
High-efficiency, Maximum Power Point Tracking (MPPT) battery charger
High-efficiency integrated LED driver
Integrated optics maximize application efficiency and light distribution

Power

Solar Panel
Industry’s most efficient solar panel technology
Integrated into the top of the luminaire
Active cell technology optimizes power generation even when partially blocked
Battery
High-performance Lithium Iron Phosphate (LiFePO4) technology
Exceptional 10+ year life cycle
High and low temperature tolerance
Integrated within the luminaire housing
Optical
High-efficiency type 2, 3, 4, 5 and T4F full cutoff optics
Optional backlight shield
Achieves pathway and area lighting standards with typical output of 1360 lumens
B0 – U0 – G1 BUG Rating

Downloads & Resources

Supporting Resources

Spec Sheets

IPL Spec Sheet
PDF Download

IES Files

IPL IES Files
PDF Download

Installation

IPL Installation Instructions
PDF Download

Backlight Shield Kit Installation

IPL Backlight Shield Kit Installation Instructions
PDF Download

Lighting Profile Sheet

Choosing the right lighting profile
PDF Download

Ideal Applications

Area

IPL is engineered for optimal performance in area environments, providing reliable solar-powered illumination without trenching or wiring.

Plazas

IPL is engineered for optimal performance in plazas environments, providing reliable solar-powered illumination without trenching or wiring.

Pathways

IPL is engineered for optimal performance in pathways environments, providing reliable solar-powered illumination without trenching or wiring.

Parking Lots

IPL is engineered for optimal performance in parking lots environments, providing reliable solar-powered illumination without trenching or wiring.

Wildlife Settings

IPL is engineered for optimal performance in wildlife settings environments, providing reliable solar-powered illumination without trenching or wiring.

Reliability & Warranty

•
Tested for high- & low- heat and humidity
•
10+ year battery life
•
5-year warranty
•
20-year lifespan
•
Designed and manufactured in North America
