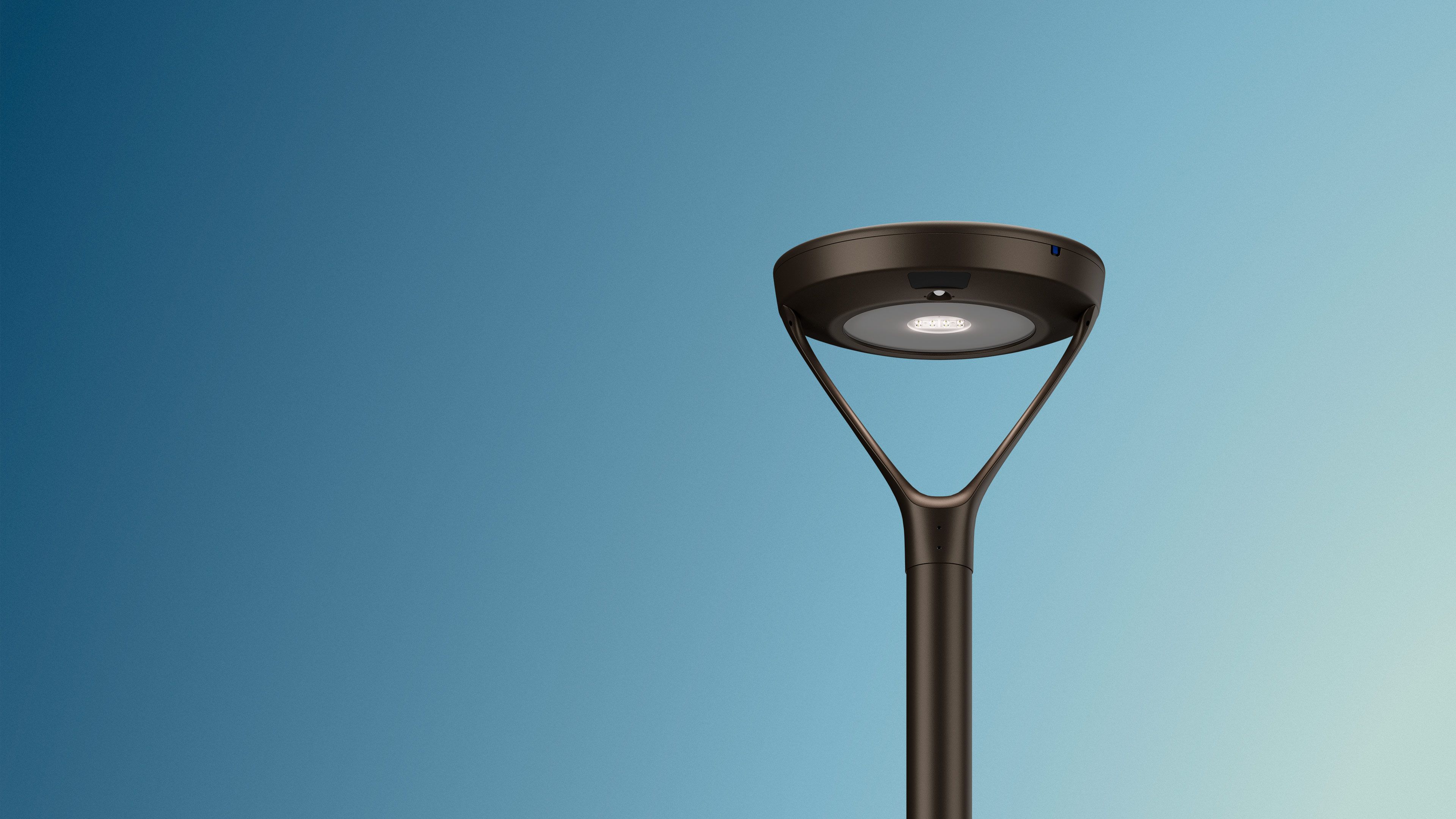

Modern black street lamp with circular LED light fixture against a gradient blue sky.

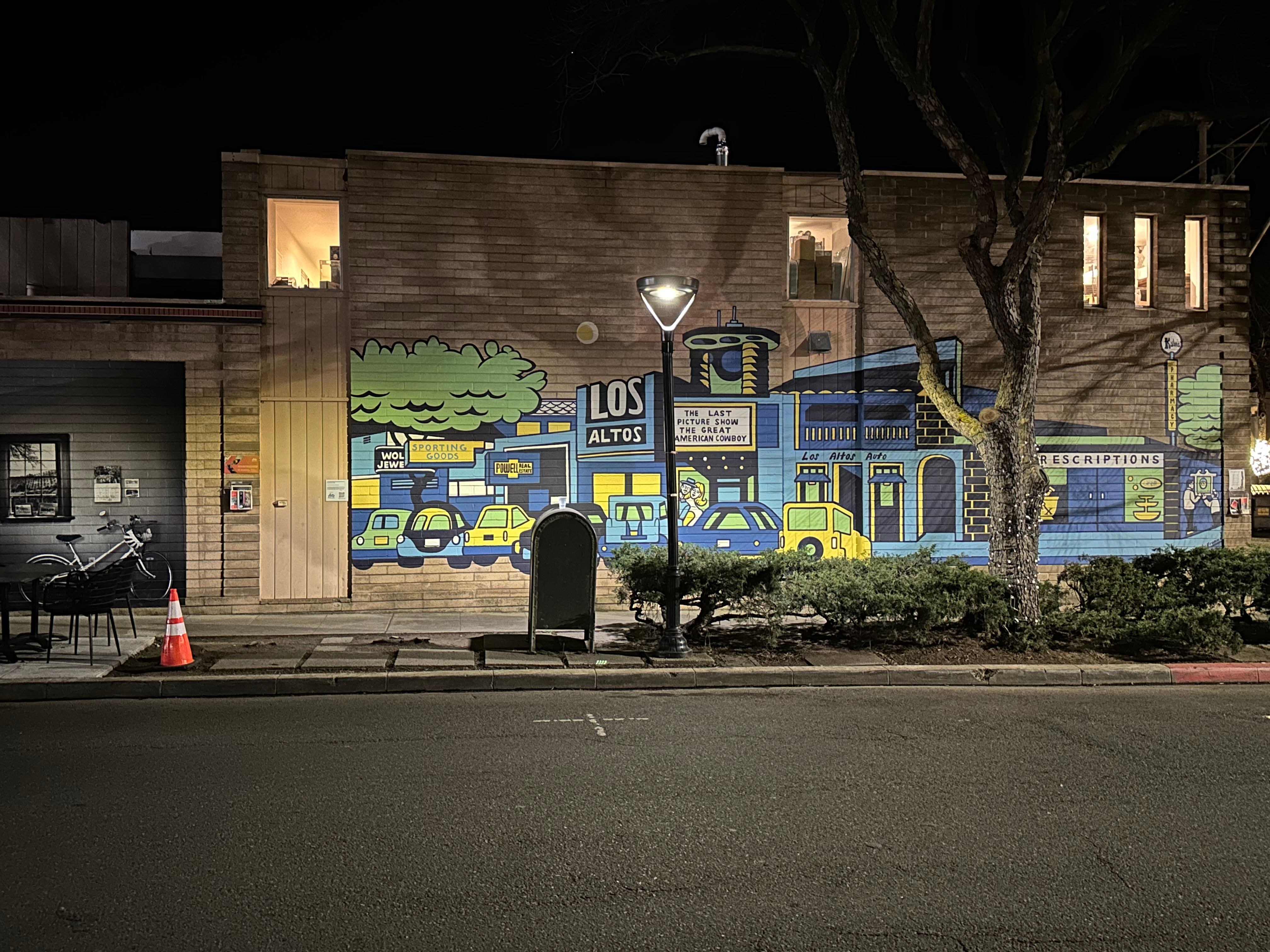

Street view at night featuring a building wall mural depicting a colorful cityscape with cars, trees, and storefront signs including 'Los Altos', 'Sporting Goods', and 'Prescriptions'.

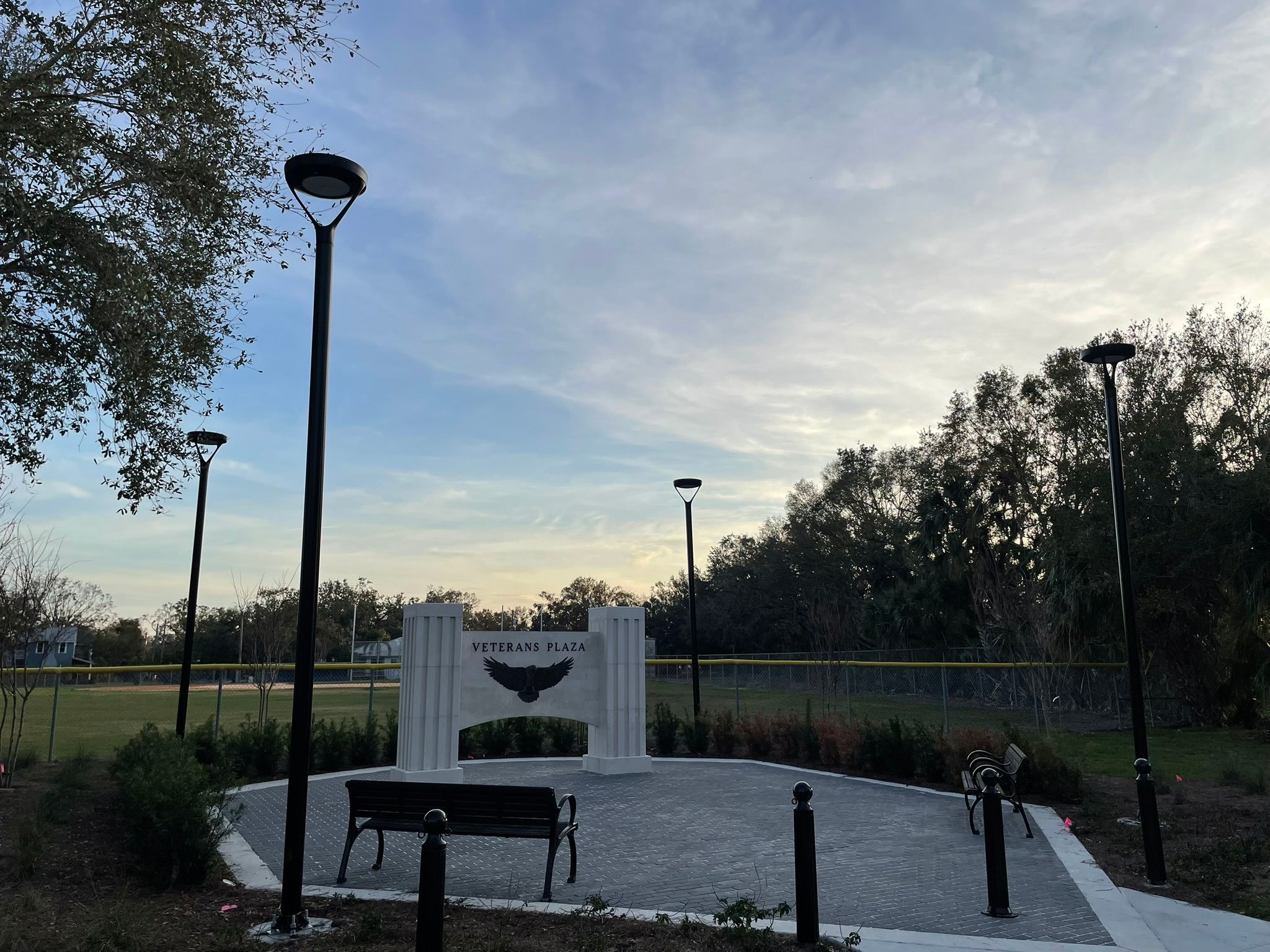

Veterans Plaza with benches, lamp posts, and a white monument featuring an eagle silhouette under a partly cloudy sky.

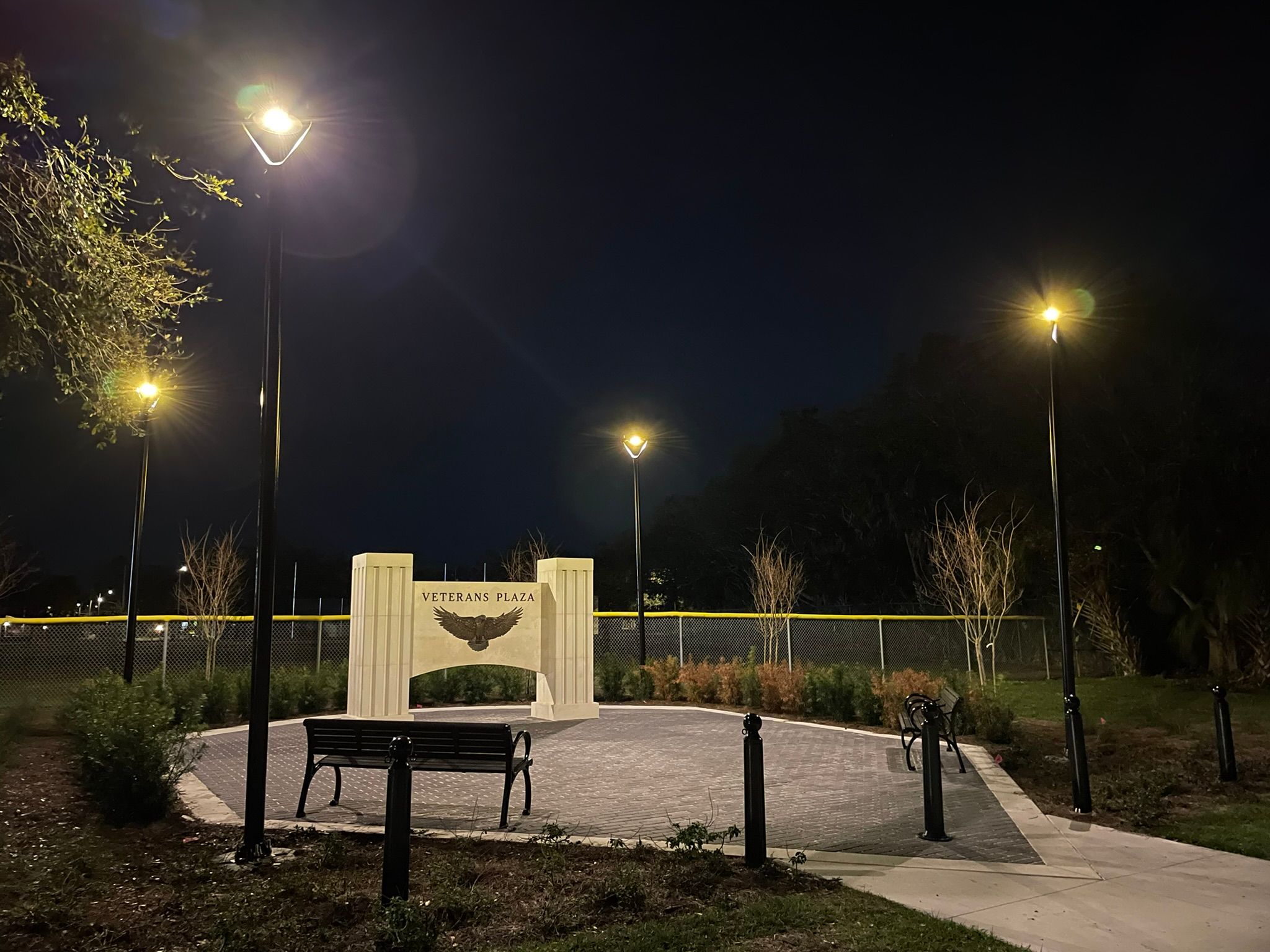

Night view of Veterans Plaza with illuminated lamp posts, benches, and a monument featuring an eagle emblem.

RSL - Pole Top

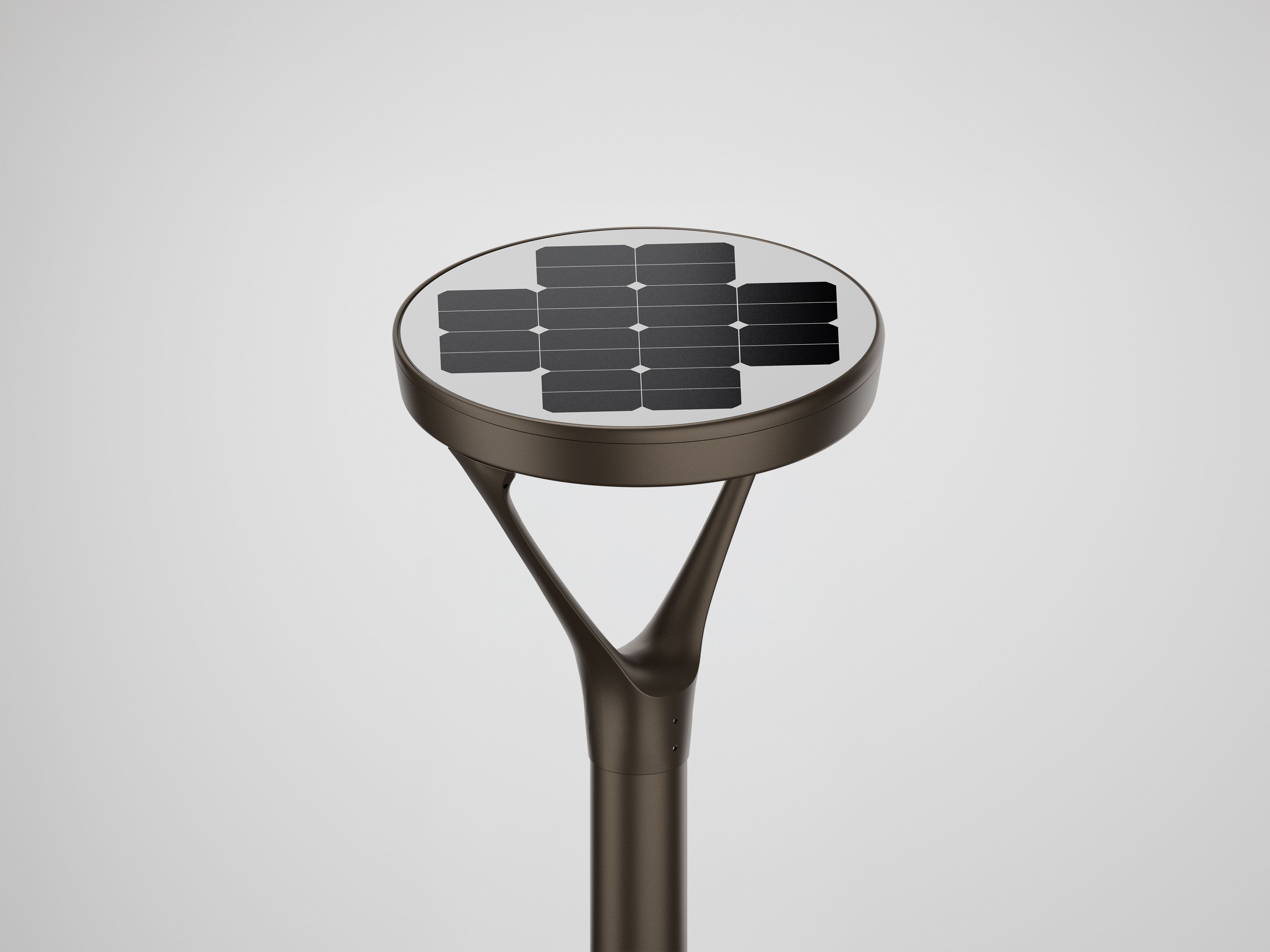

When versatile area lighting is required, the RSL Pole-Top is the perfect solution for pathways, parking lots, and public spaces. Fully integrated solar mounts directly to any vertical tenon—no trenching, no wiring, no maintenance.

request a quotedownload spec sheetDownload IES File

Product details

•
Lumen Output: 3350 lumens
•
Color Temperature: 2700K, 3000K, 4000K, Amber (595nm)
•
Optical: Type 2, 3, 4, 5, and T4F full-cutoff optics

Best for

Parking Lot, Pathway, Area

Product details

•
No wiring, trenching, or electrical service required
•
Self-contained build designed to improve project aesthetics
•
Cost-effective design ships fully assembled and installs in minutes
•
No ongoing maintenance
•
Provides programmed illumination all night, every night
•
Wireless control & communication with your light
Overview
Specifications
Resources
Applications
Warranty

Product Overview

When versatile area lighting is required, the RSL Pole-Top is the perfect solution for pathways, parking lots, and public spaces. Fully integrated solar mounts directly to any vertical tenon—no trenching, no wiring, no maintenance.

Available Finishes

Bronze
Black

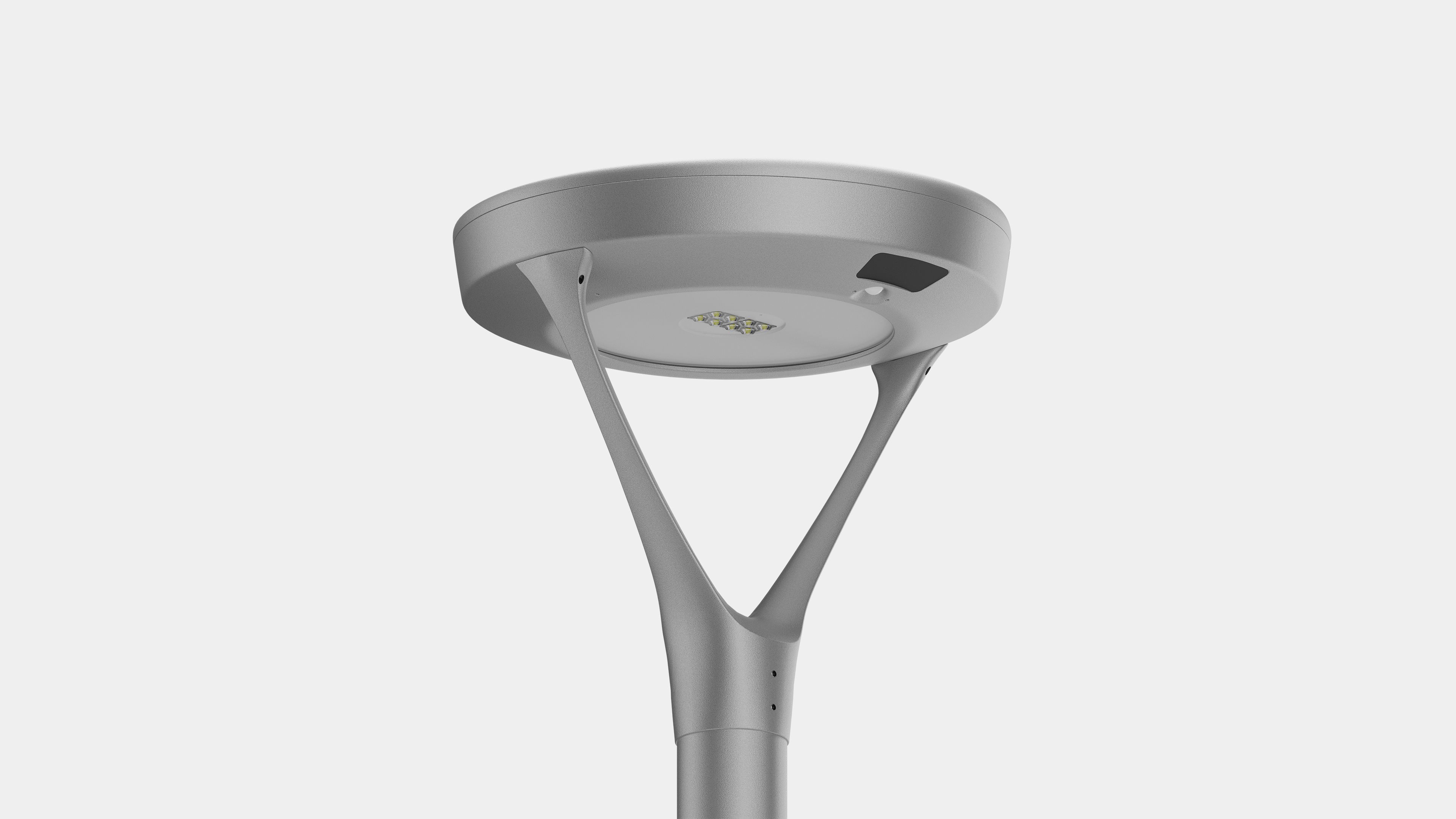

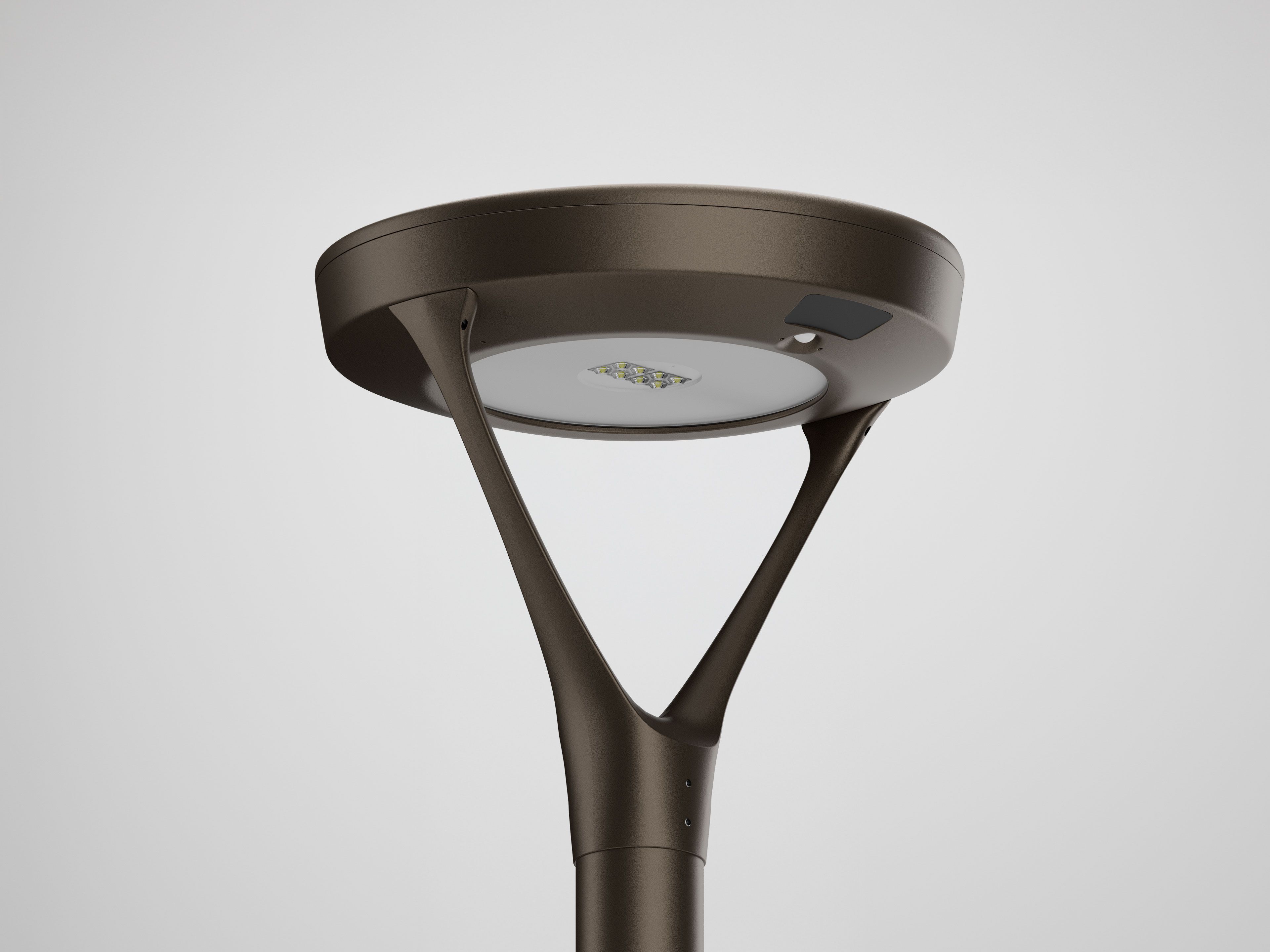

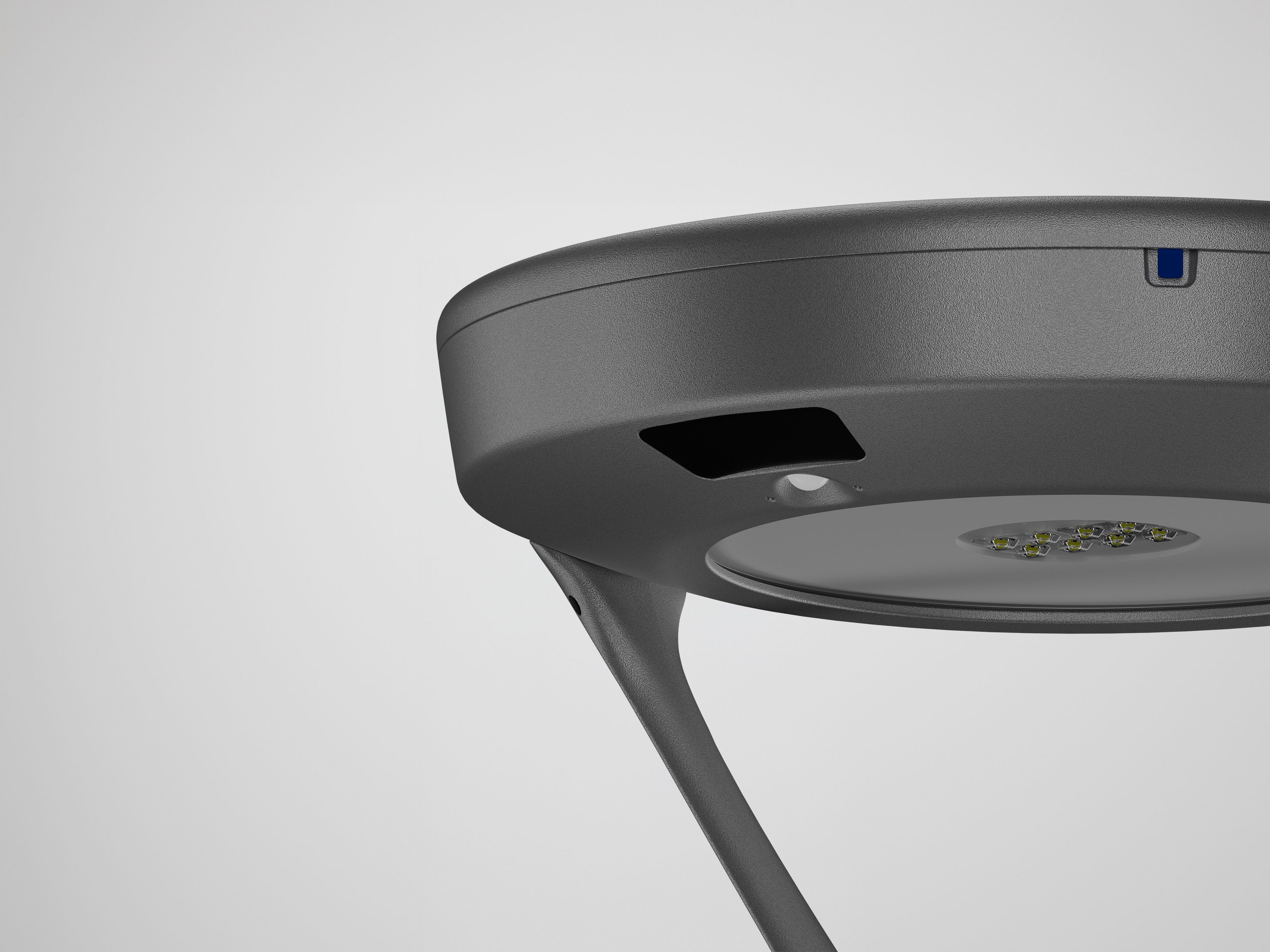

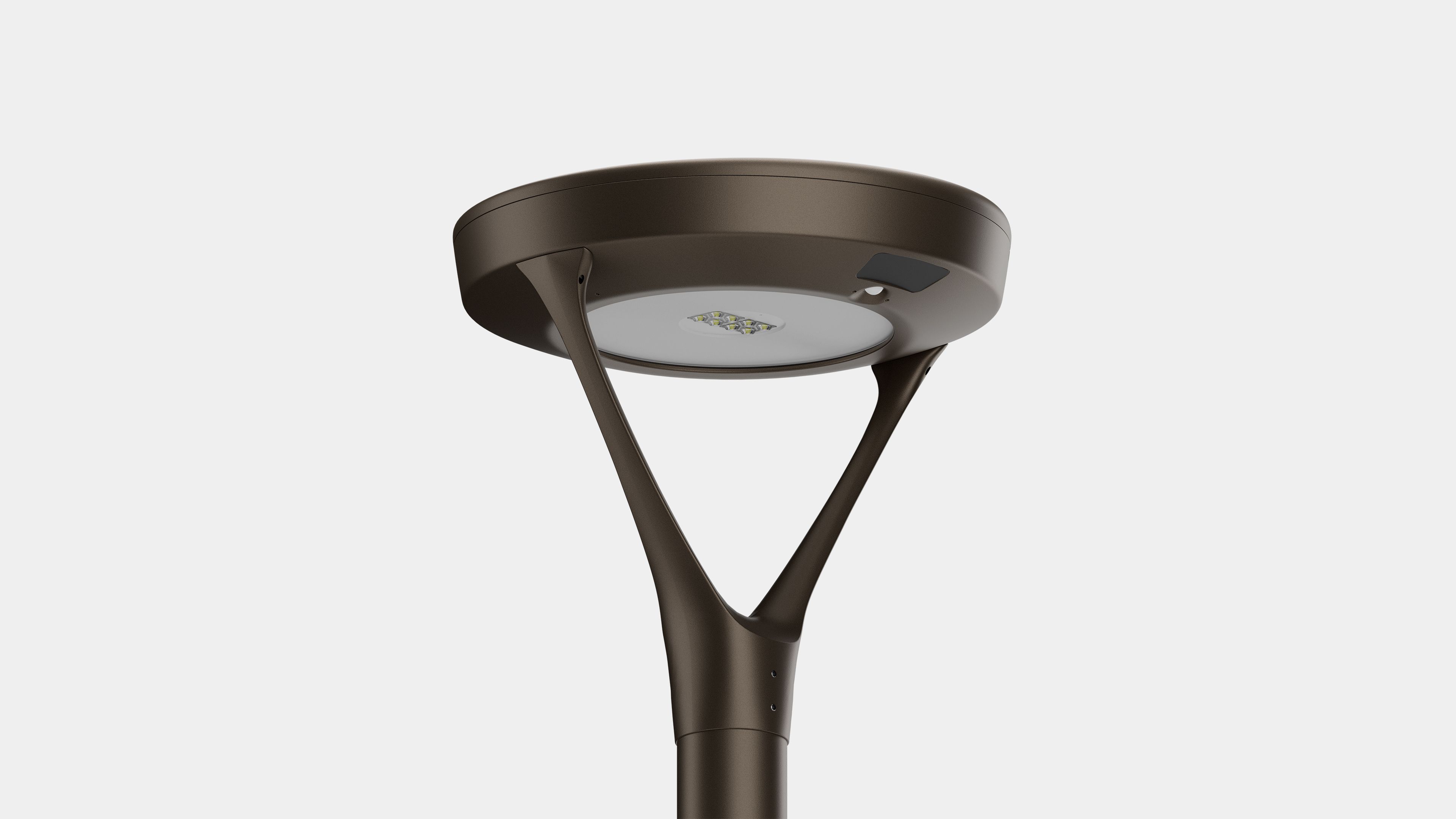

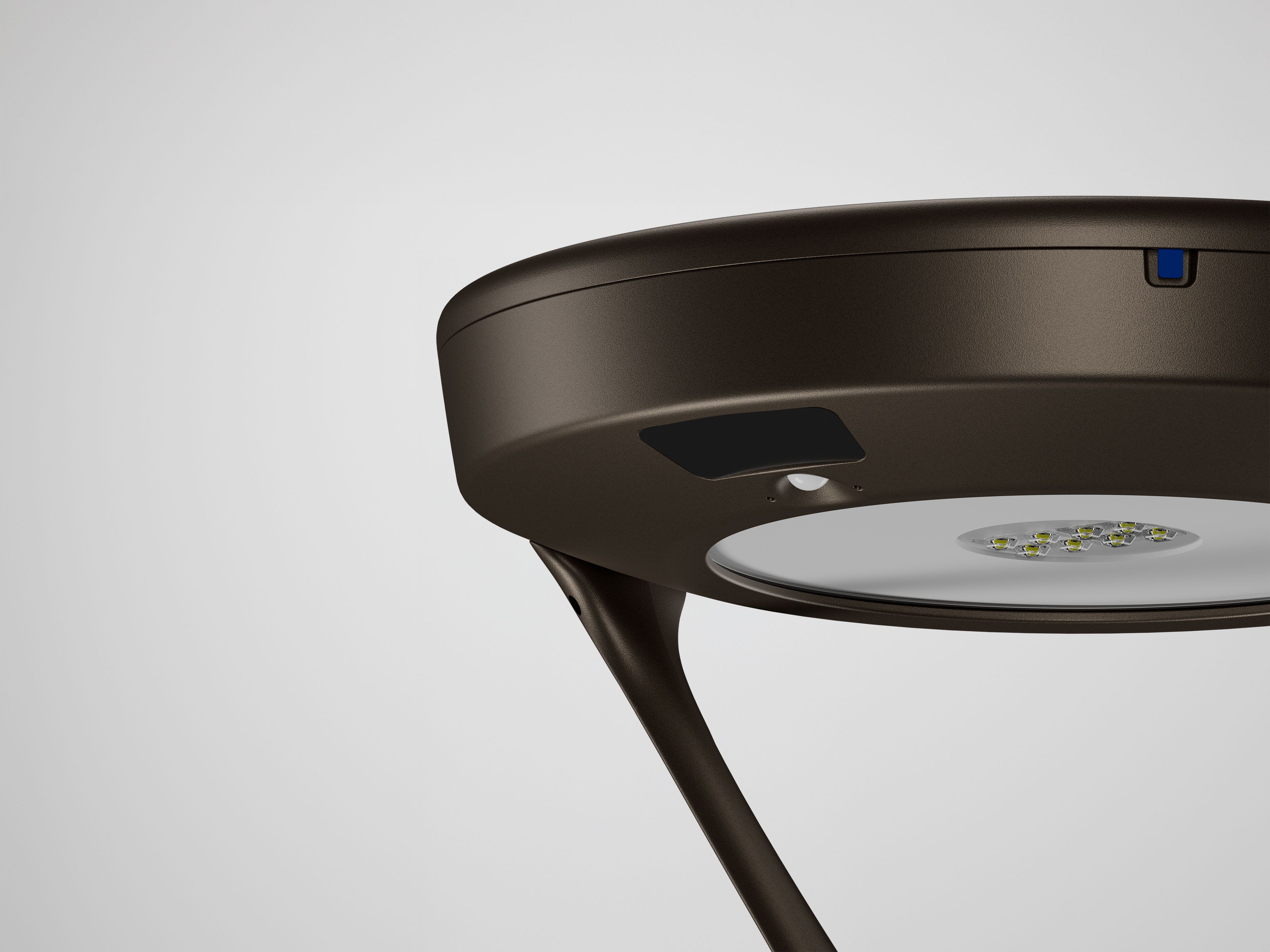

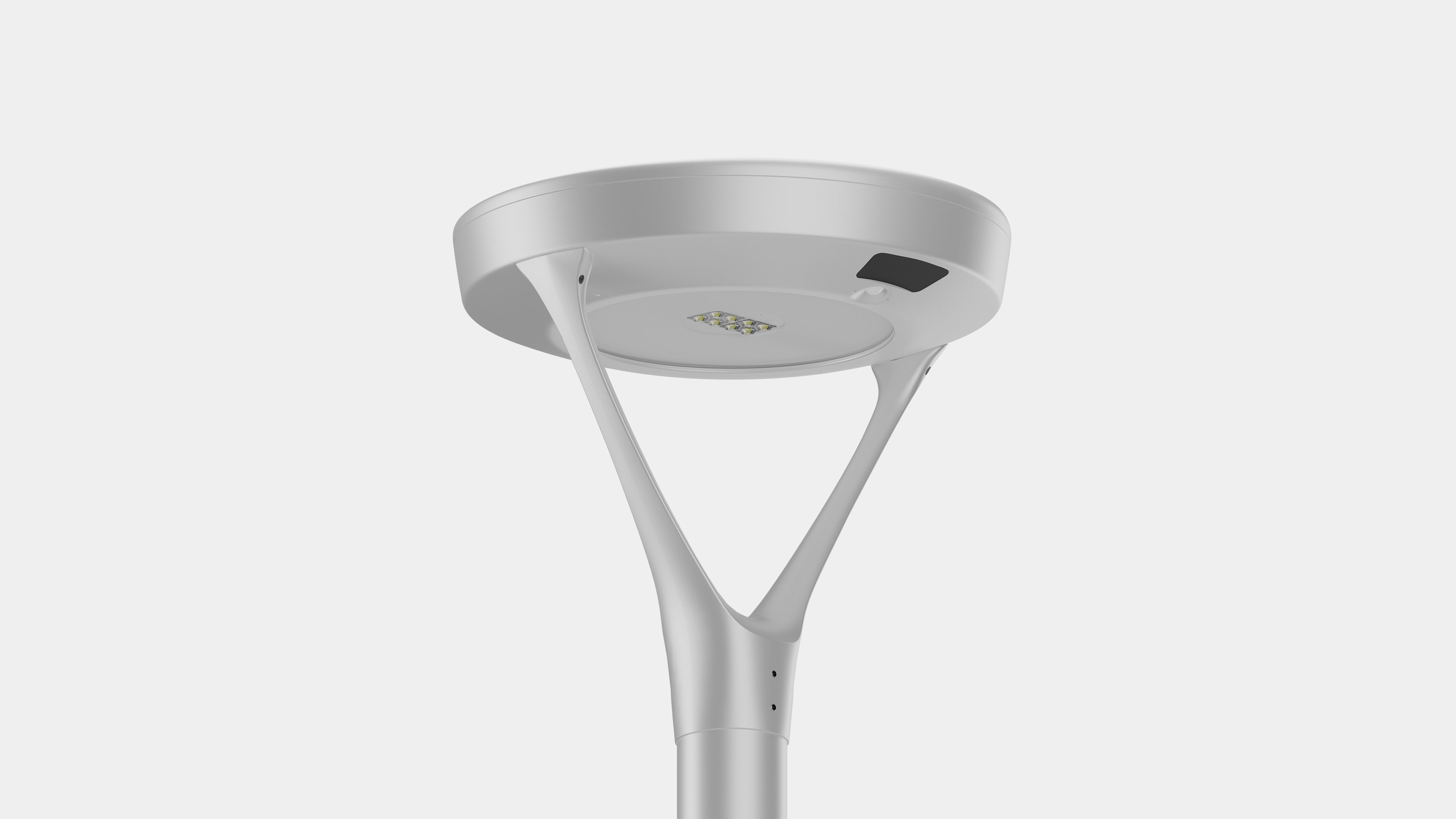

Modern outdoor street lamp with a round light fixture and Y-shaped support on a pole against a light background.

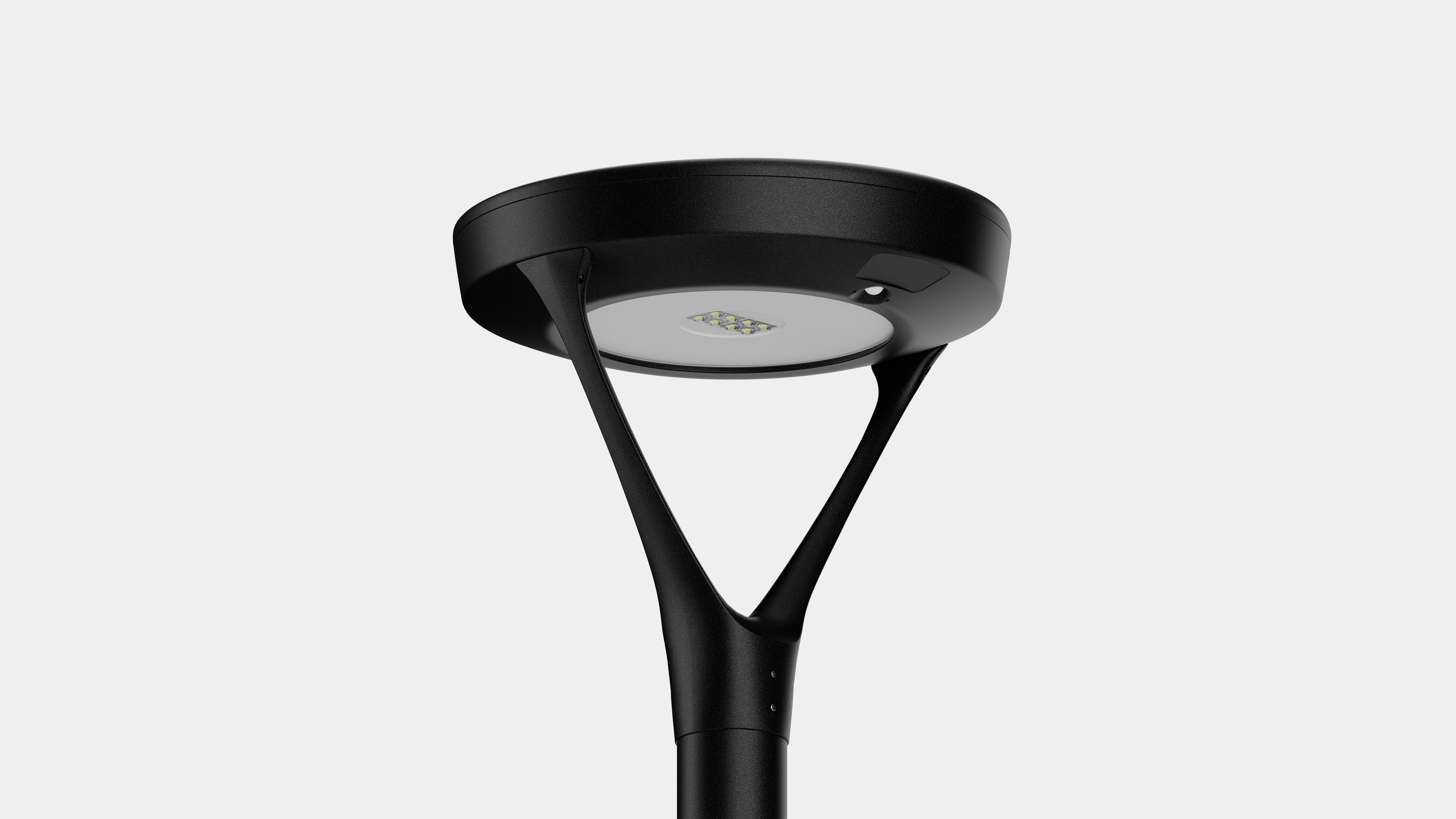

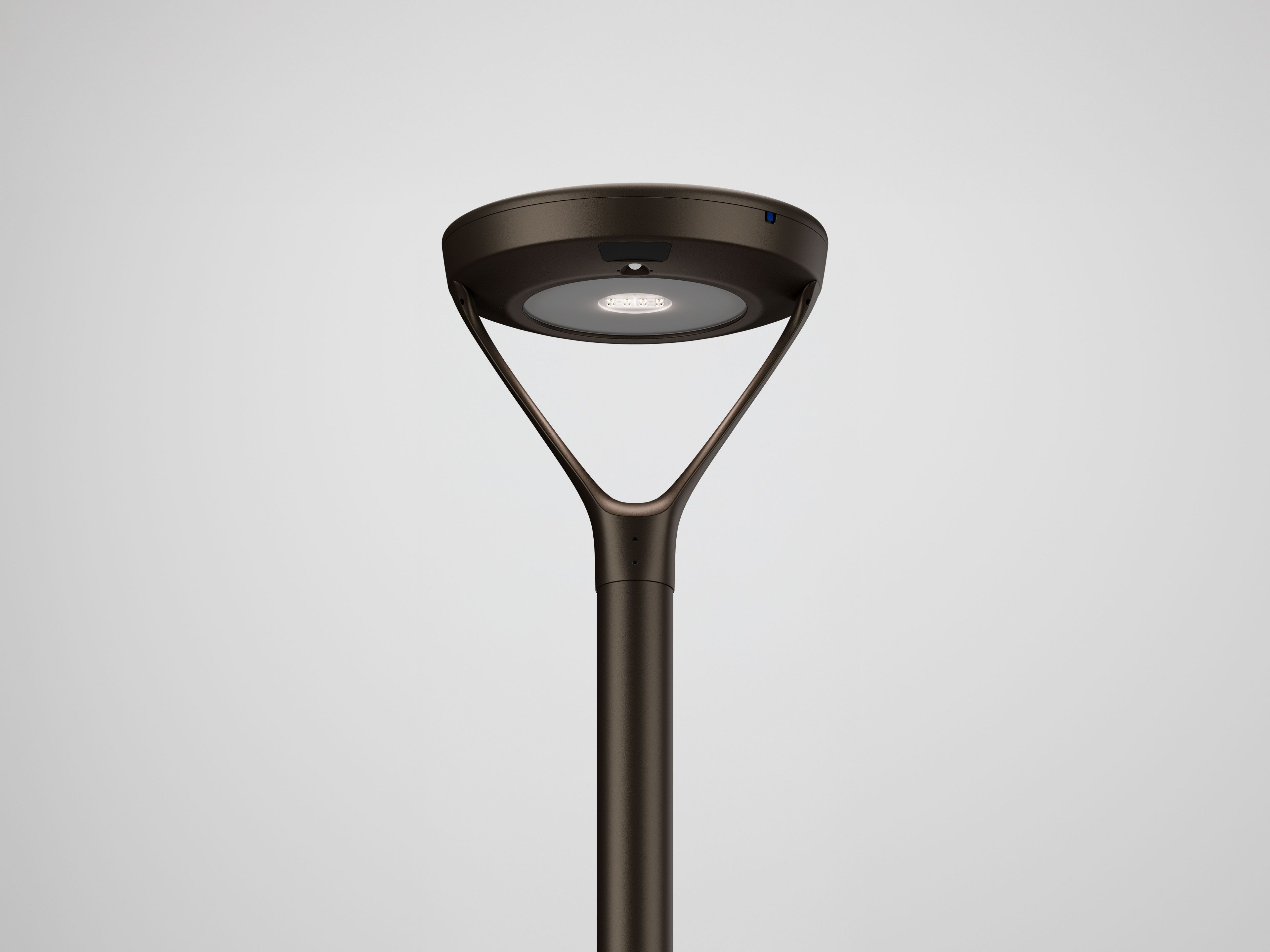

Modern black outdoor LED street lamp against a light gray background.

Photometric Diagrams

Overview

FLT's optical solutions efficiently focus light where it’s needed. There are several standard lighting distributions that optimize performance for different applications. Each lighting distribution is full cutoff and compliant with DarkSky requirements. Measurements are in footcandles.

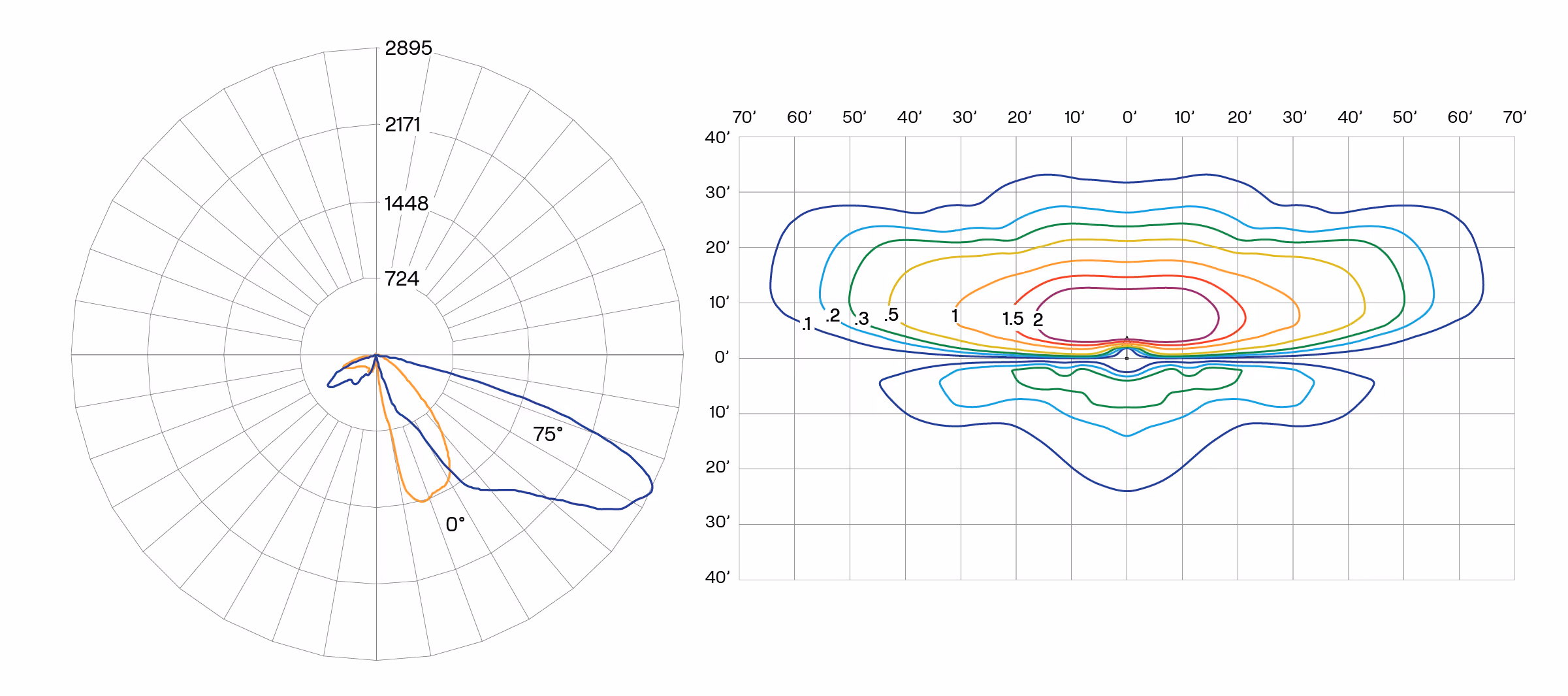

Type 2

Two scientific plots: on the left, a polar plot with arrows and a highlighted red loop; on the right, a contour plot with multiple colorful contour lines on a dark grid background.

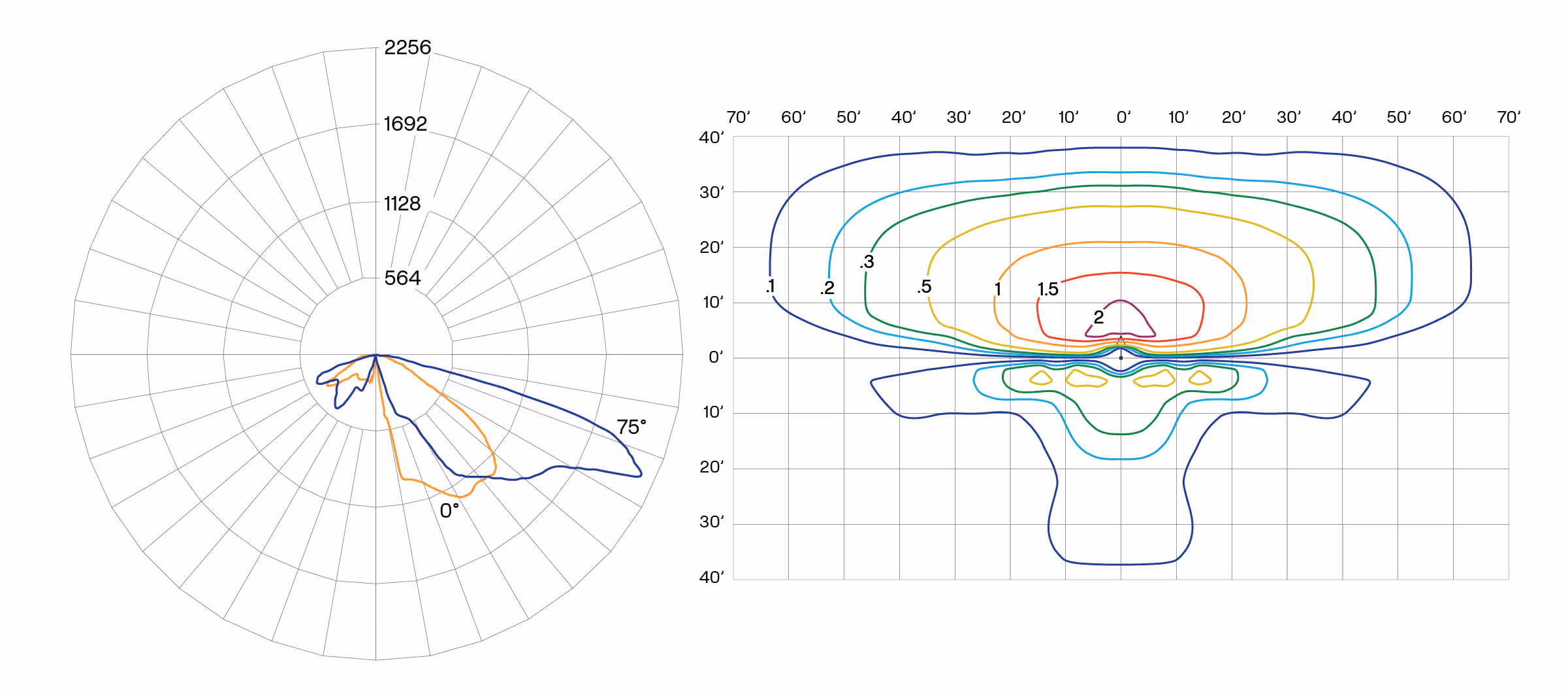

Type 3

Graph with two scientific plots: a circular radial heatmap on the left with concentric rings and a red outline, and a multicolored horizontal contour plot on the right showing layered curved shapes on a black background.

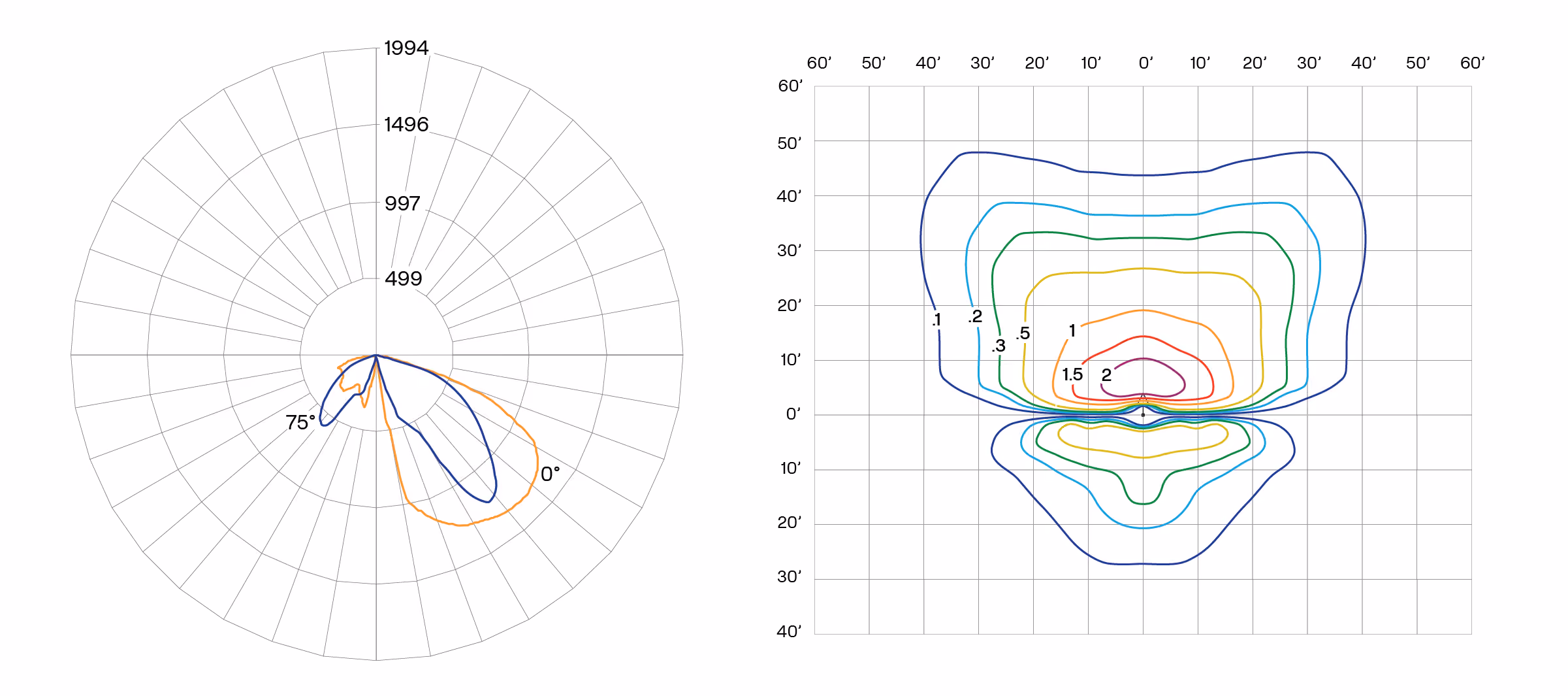

Type 4

Two scientific plots: a red polar plot with angular coordinates on the left and a multi-colored contour plot on the right featuring layered curves over a grid.

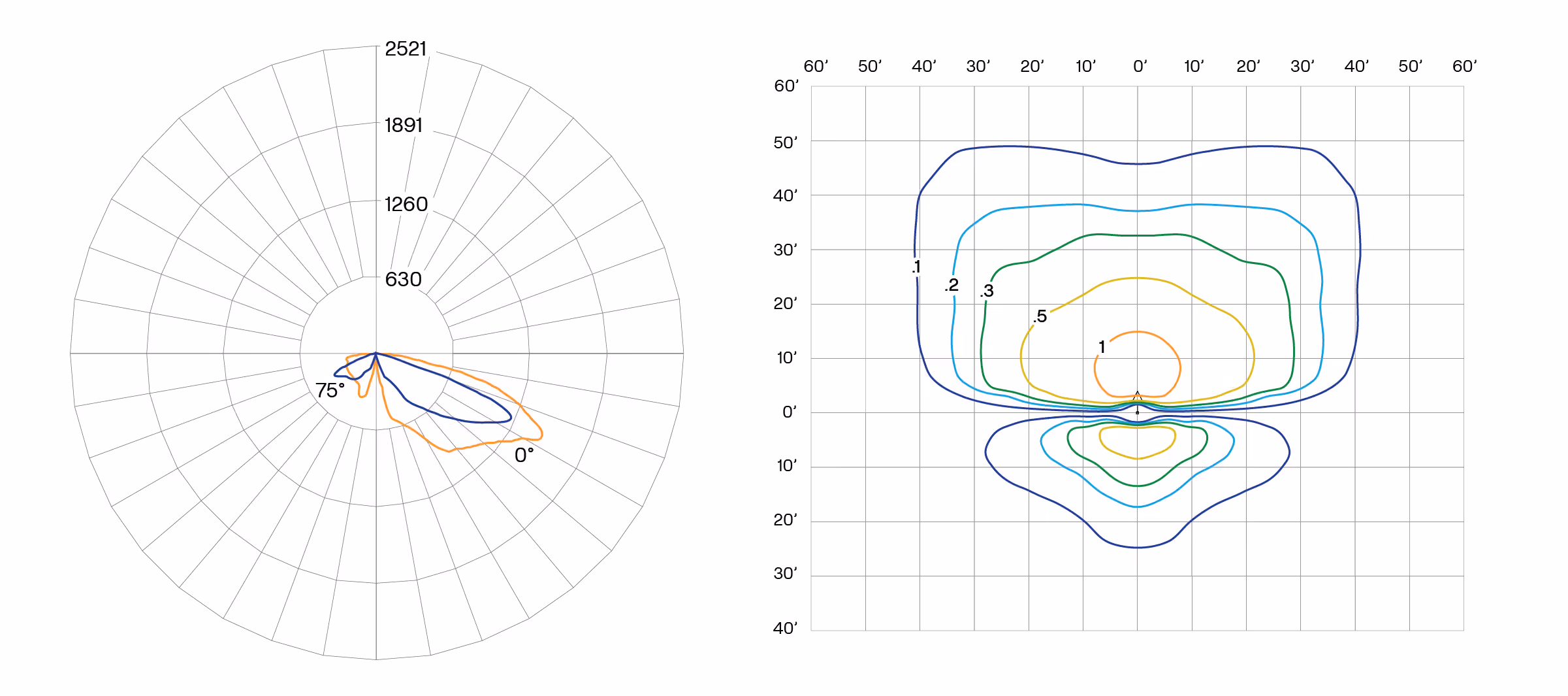

Type 4F

Two scientific plots side by side: a circular polar plot with a red irregular line, and a contour plot with concentric colored lines on a grid background.

Type 5

Left: Polar plot with a red curved shape extending from the center across a 180-degree arc marked with angular and radial gridlines; Right: Contour plot with four nested closed curves in yellow, green, light blue, and dark blue on a black background with gridlines.

Technical Specifications

Technical Specifications

Style
Commercial pole top area light
Fixture Diameter
24.4 inches x 23.6 inches
Fixture Height
3.9 Inches
Fixture Weight
41.04 lbs (18.78 kg) including battery
Fixture EPA
0.52 feet2 (0.048 m2)
Construction
Die-cast, marine-grade, aluminum
Stainless fasteners
Pre-drilled for seamless installation
Finish
Architectural grade, durable TGIC powder coat
Powder Coat Color
Bronze and Black

Mounting Specifications

Mounting Options
Pole top, yoke mount

Pole Recommendations

Pole Considerations
Full range of pole options that are seamlessly matched to the RSL luminaire. The expert team at FLT can answer questions about mounting, poles, or installation for your project
Pole Shape Options
The RSL can be easily affixed to a round pole
Pole Height Options
16 feet
18 feet
20 feet
Pole Material Options
Aluminum or steel pole options are available

Adaptive Intelligence

Management
Intelligently manages lighting performance based on environmental conditions and lighting requirements
Data Logging
On-board multi-year data logging
Integration
Microcontroller and electronics integrated within the luminaire
Motion Sensing
Equipped for motion sensing

LED Engine & Controller

Lumen Output
3350 lumens
Color Temperature & Amber Options
4000K Not DarkSky compatible
3000K DarkSky Approved
2700K DarkSky Approved
Amber (595nm) DarkSky Approved
LED Lifetime
100,000 hour LED L70 lifetime
Control
High-efficiency, Maximum Power Point Tracking (MPPT) battery charger
High-efficiency integrated LED driver
Integrated optics maximize application efficiency and light distribution

Power

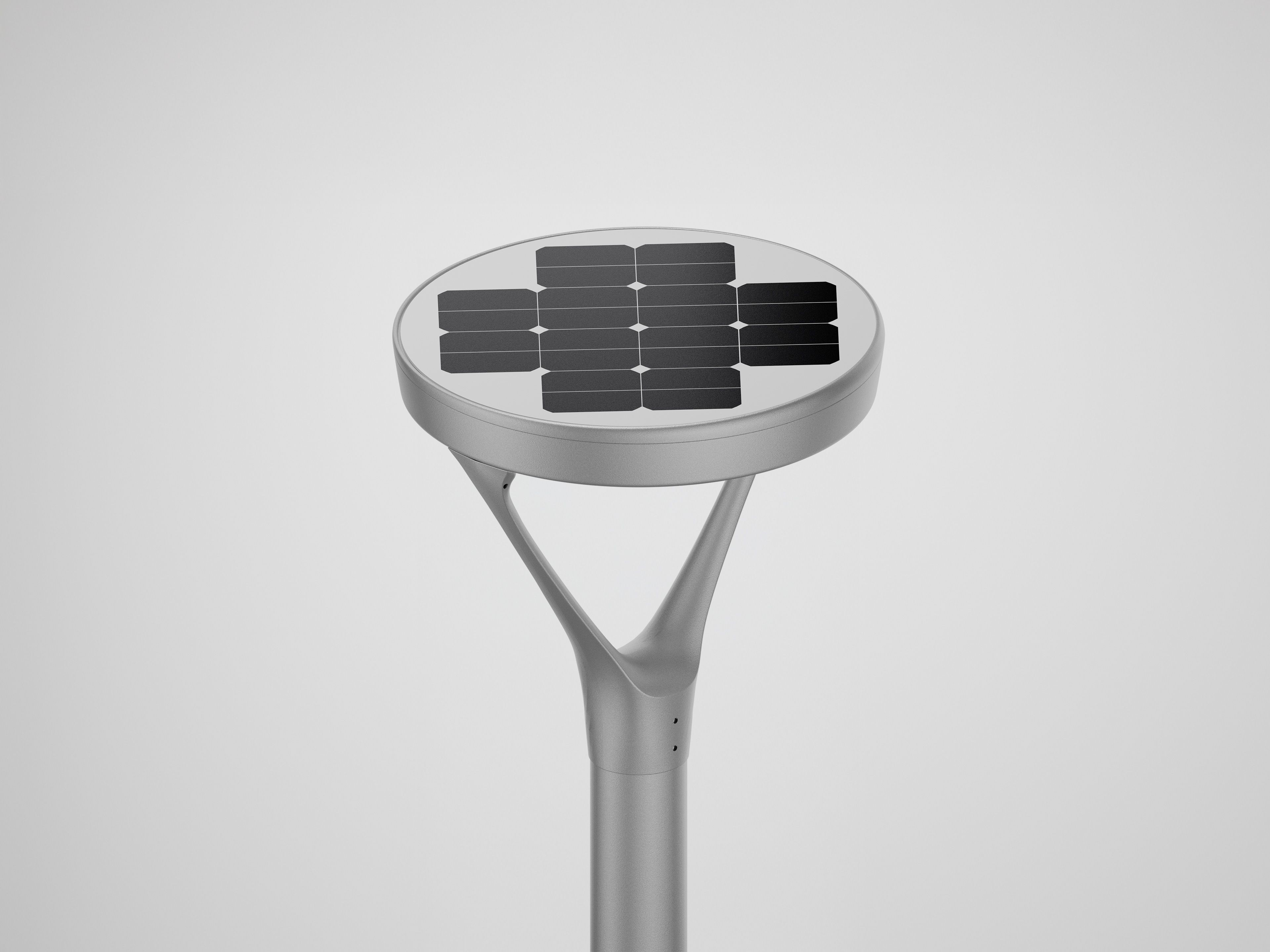

Solar Panel
Industry’s most efficient solar panel technology
Integrated into the top of the luminaire
Active cell technology optimizes power generation even when partially blocked
Battery
High-performance Lithium Iron Phosphate (LiFePO4) technology
Exceptional 10+ year life cycle
High and low temperature tolerance
Integrated within the luminaire housing
Optical
High-efficiency type 2, 3, 4, 5 and T4F full cutoff optics
Optional backlight shield
Achieves pathway and area lighting standards with typical output of 3350 lumens
B1 – U0 – G1 BUG Rating

Downloads & Resources

Supporting Resources

Spec Sheets

RSL - Pole Top - Specifications
PDF Download

IES Files

RSL Pole Top IES Files
PDF Download

Installation

RSL Pole Mount Installation Instructions
PDF Download

Lighting profile Sheet

Choosing the right lighting profile
PDF Download

Ideal Applications

Area

RSL - Pole Top is engineered for optimal performance in area environments, providing reliable solar-powered illumination without trenching or wiring.

Parks

RSL - Pole Top is engineered for optimal performance in parks environments, providing reliable solar-powered illumination without trenching or wiring.

Parking Lots

RSL - Pole Top is engineered for optimal performance in parking lots environments, providing reliable solar-powered illumination without trenching or wiring.

Pathways

RSL - Pole Top is engineered for optimal performance in pathways environments, providing reliable solar-powered illumination without trenching or wiring.

Perimeter Security

RSL - Pole Top is engineered for optimal performance in perimeter security environments, providing reliable solar-powered illumination without trenching or wiring.

Plazas

RSL - Pole Top is engineered for optimal performance in plazas environments, providing reliable solar-powered illumination without trenching or wiring.

Reliability & Warranty

•
Tested for high- & low- heat and humidity
•
10+ year battery life
•
5-year warranty
•
20 -year lifespan
•
Designed and manufactured in North America
