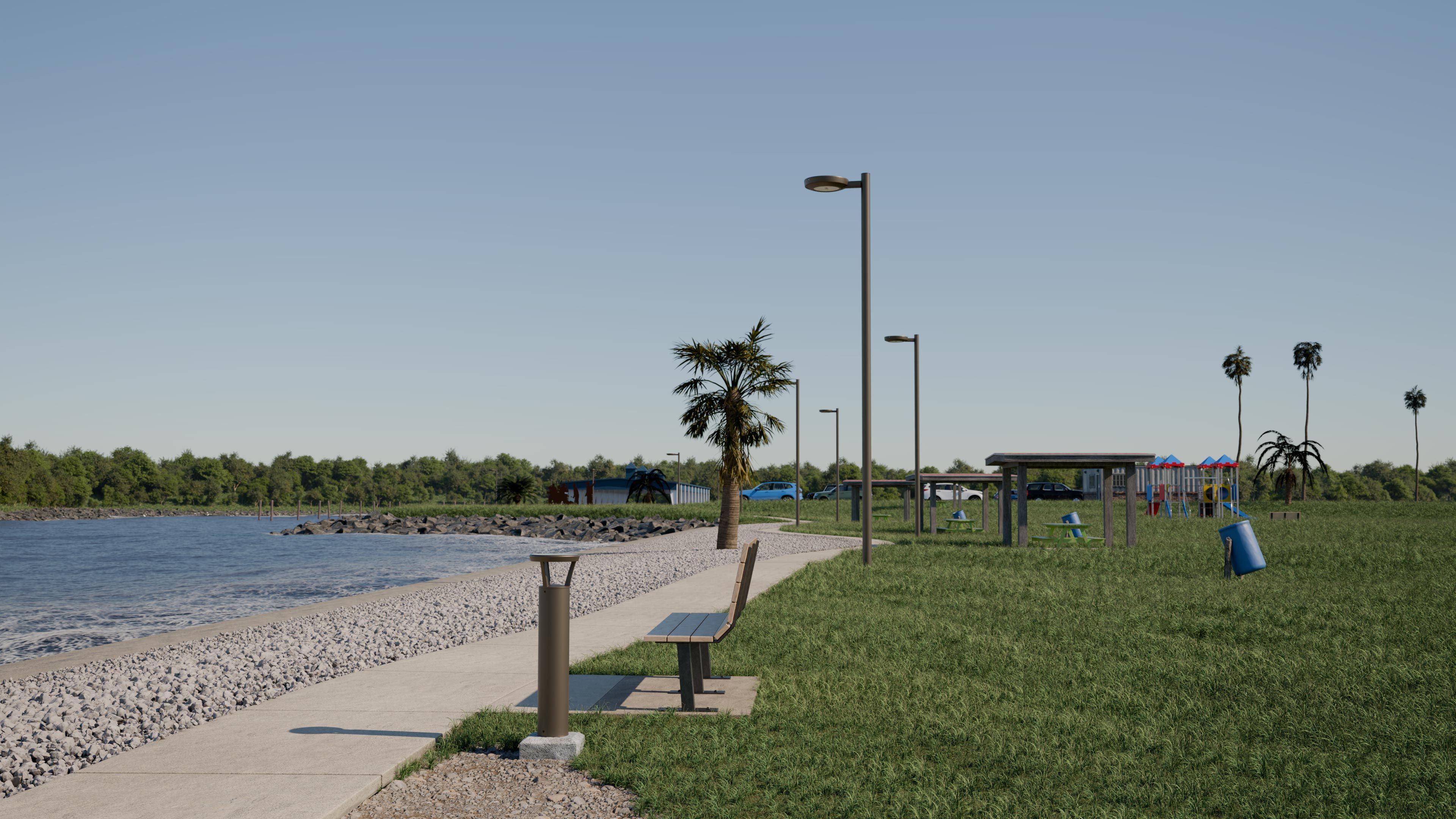

Waterfront park with a paved walkway beside a rocky shore, benches, palm trees, lamp posts, picnic tables, and a playground in the grassy area under a clear blue sky.

RSL - Side Mount

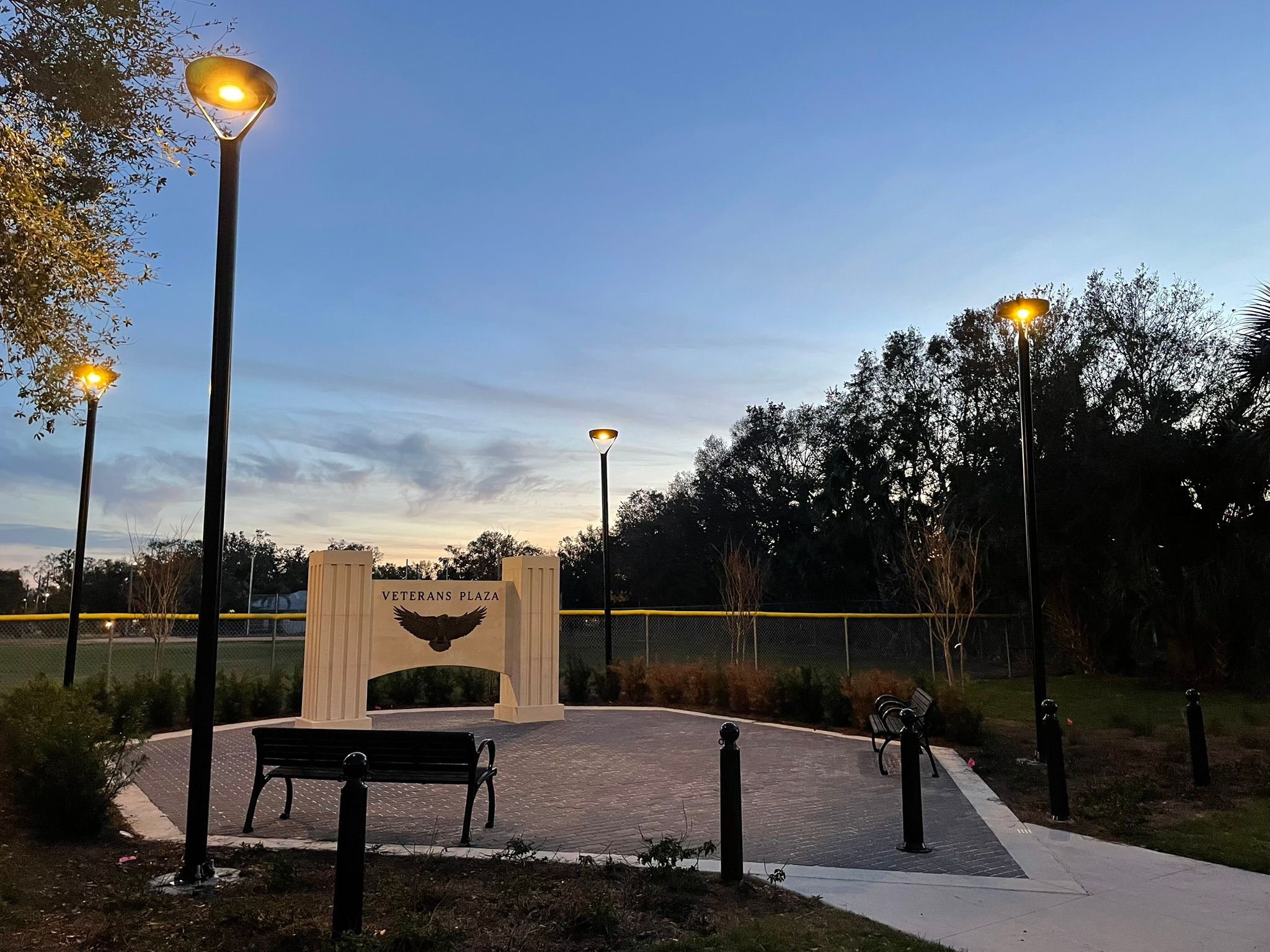

When flexible mounting options are required, the RSL Side Mount is the perfect solution for parking lots, pathways, and public spaces. Cleat or tenon mounting installs in minutes on any pole—no trenching, no wiring, no electrical service.

request a quotedownload spec sheetDownload IES File

Product details

•
Lumen Output: 3570 lumens
•
Color Temperature: 2700K, 3000K, 4000K, Amber (595nm)
•
Optical: Type 2, 3, 4, 5 and T4F full-cutoff optics

Best for

Parking Lot, Pathway, Area

Product details

•
No wiring, trenching, or electrical service required
•
Easy mounting to side of pole with a convenient cleat mount, or onto a horizontal tenon with the tenon mount option
•
Self-contained build designed to improve project aesthetics
•
Cost-effective design ships fully assembled and installs in minutes with a convenient cleat or tenon mount
•
No ongoing maintenance
•
Provides programmed illumination all night, every night
•
Wireless control & communication with your light
Overview
Specifications
Resources
Applications
Warranty

Product Overview

When flexible mounting options are required, the RSL Side Mount is the perfect solution for parking lots, pathways, and public spaces. Cleat or tenon mounting installs in minutes on any pole—no trenching, no wiring, no electrical service.

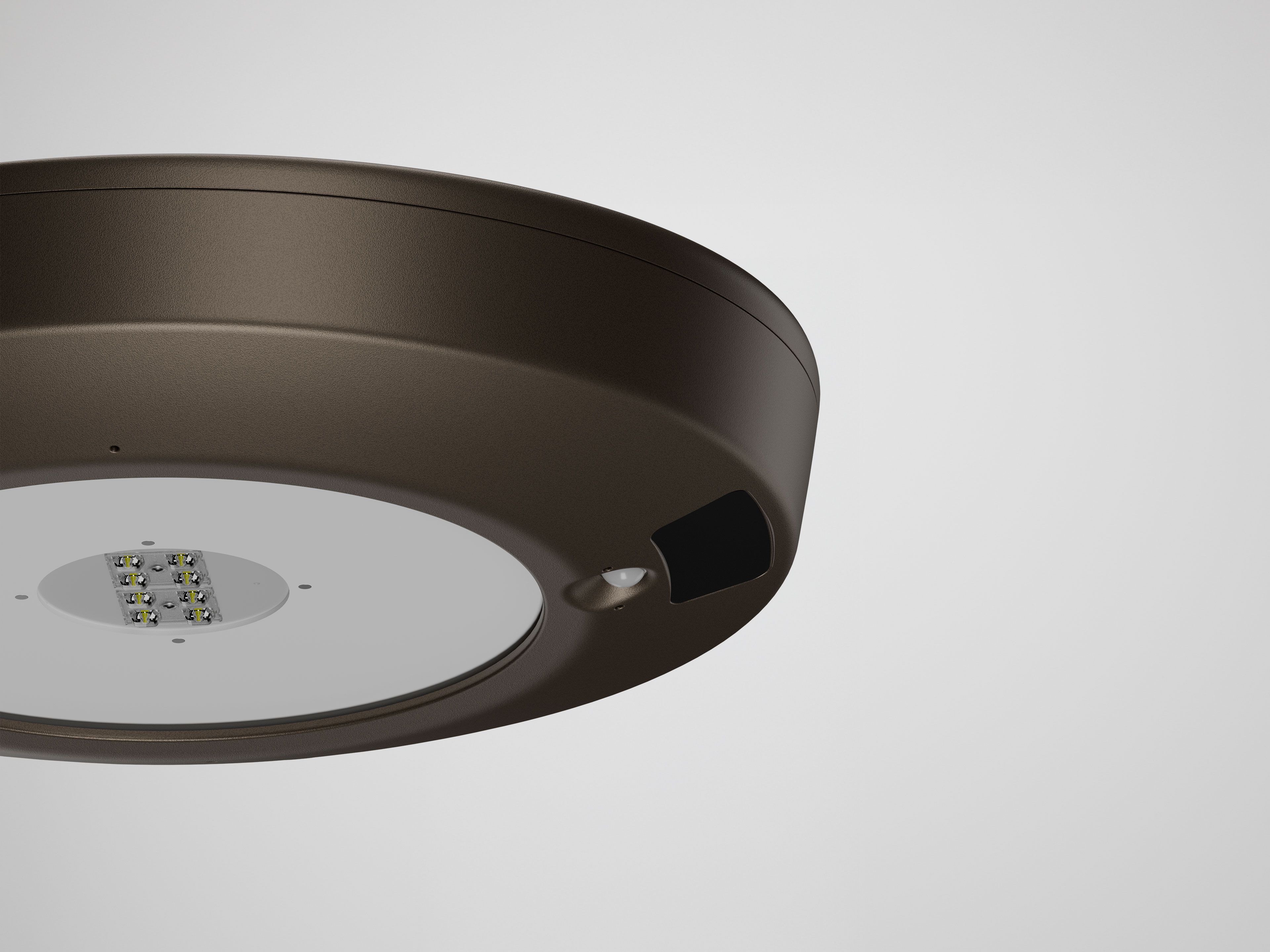

Available Finishes

Bronze
Black

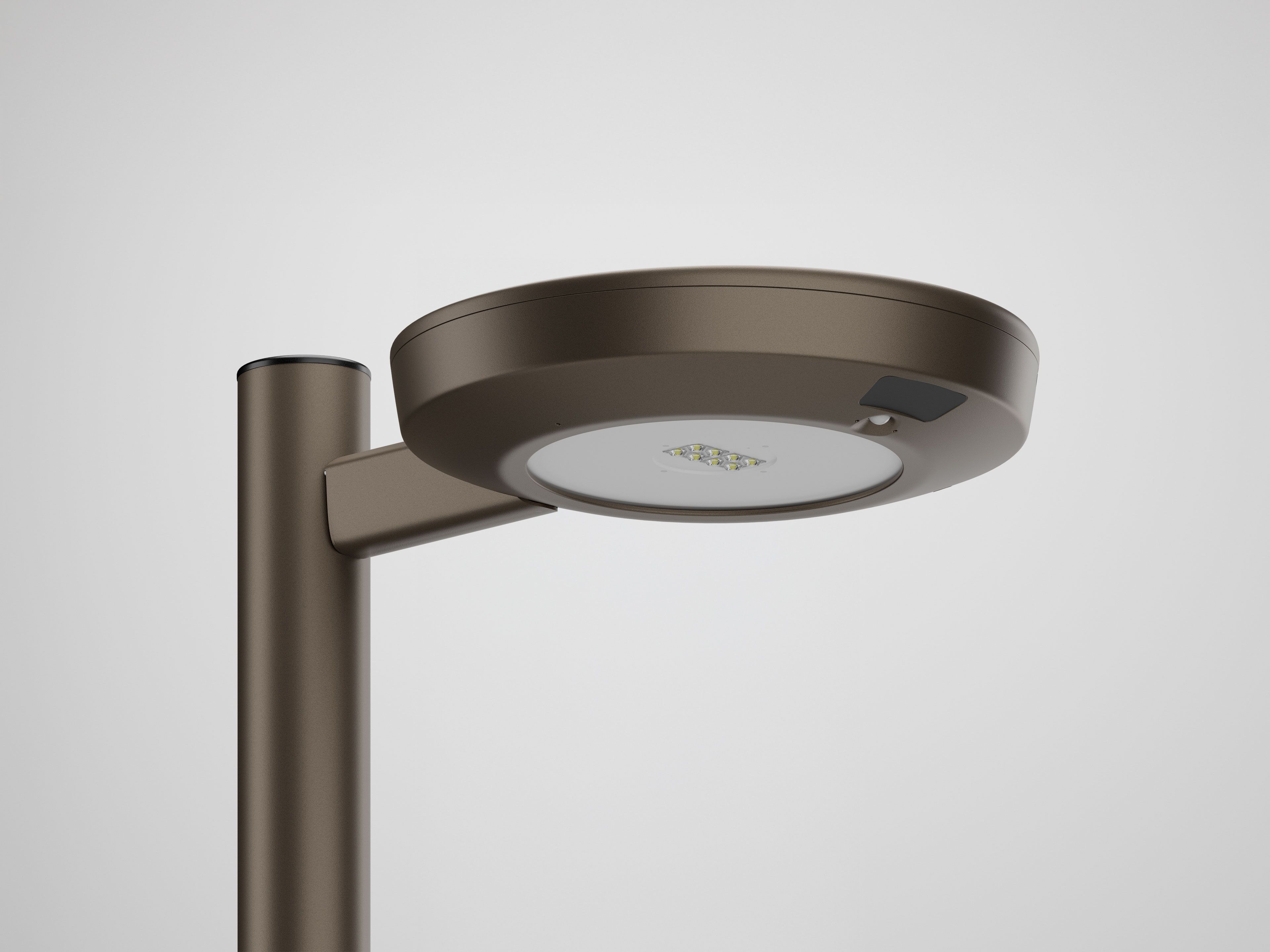

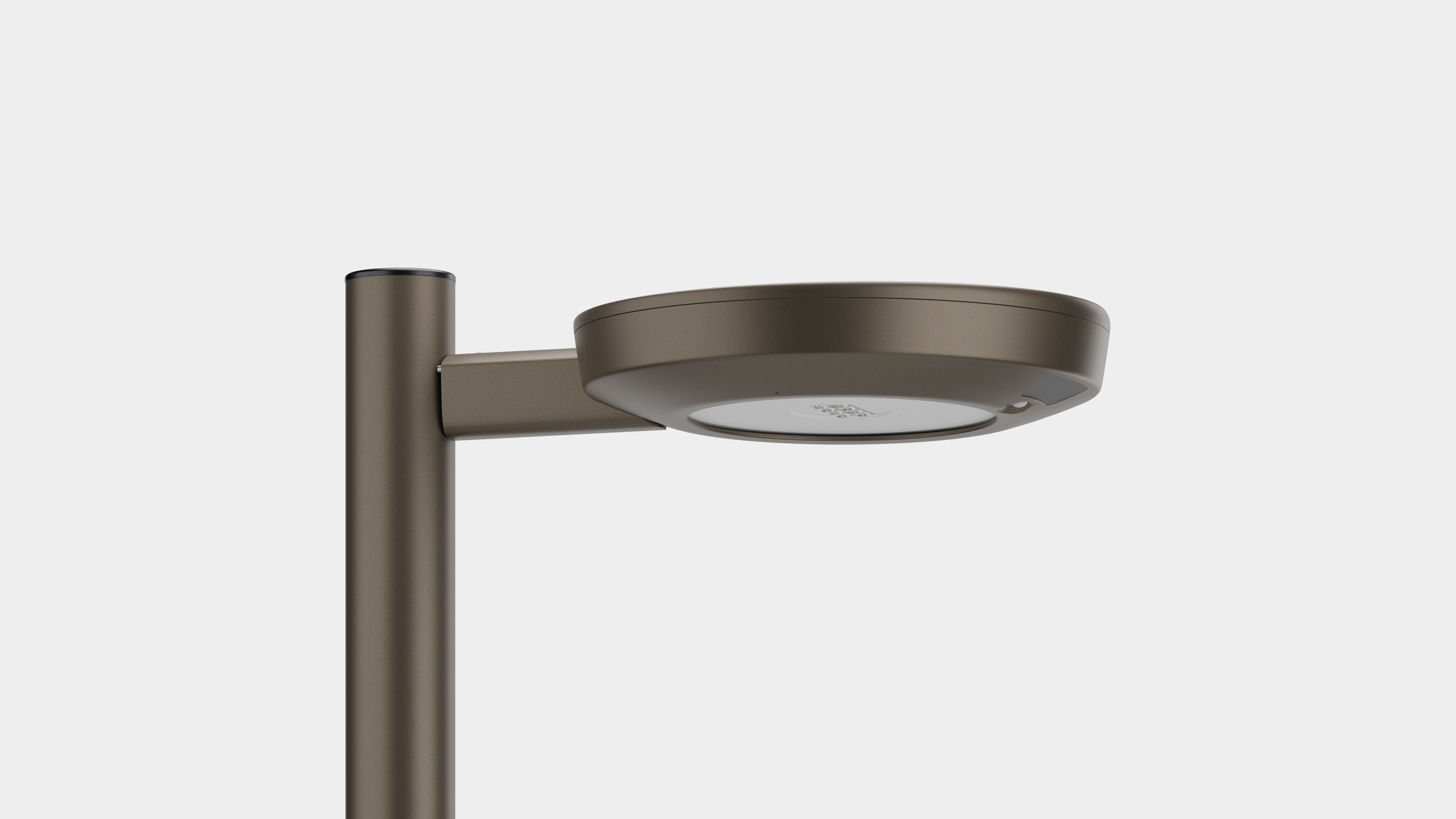

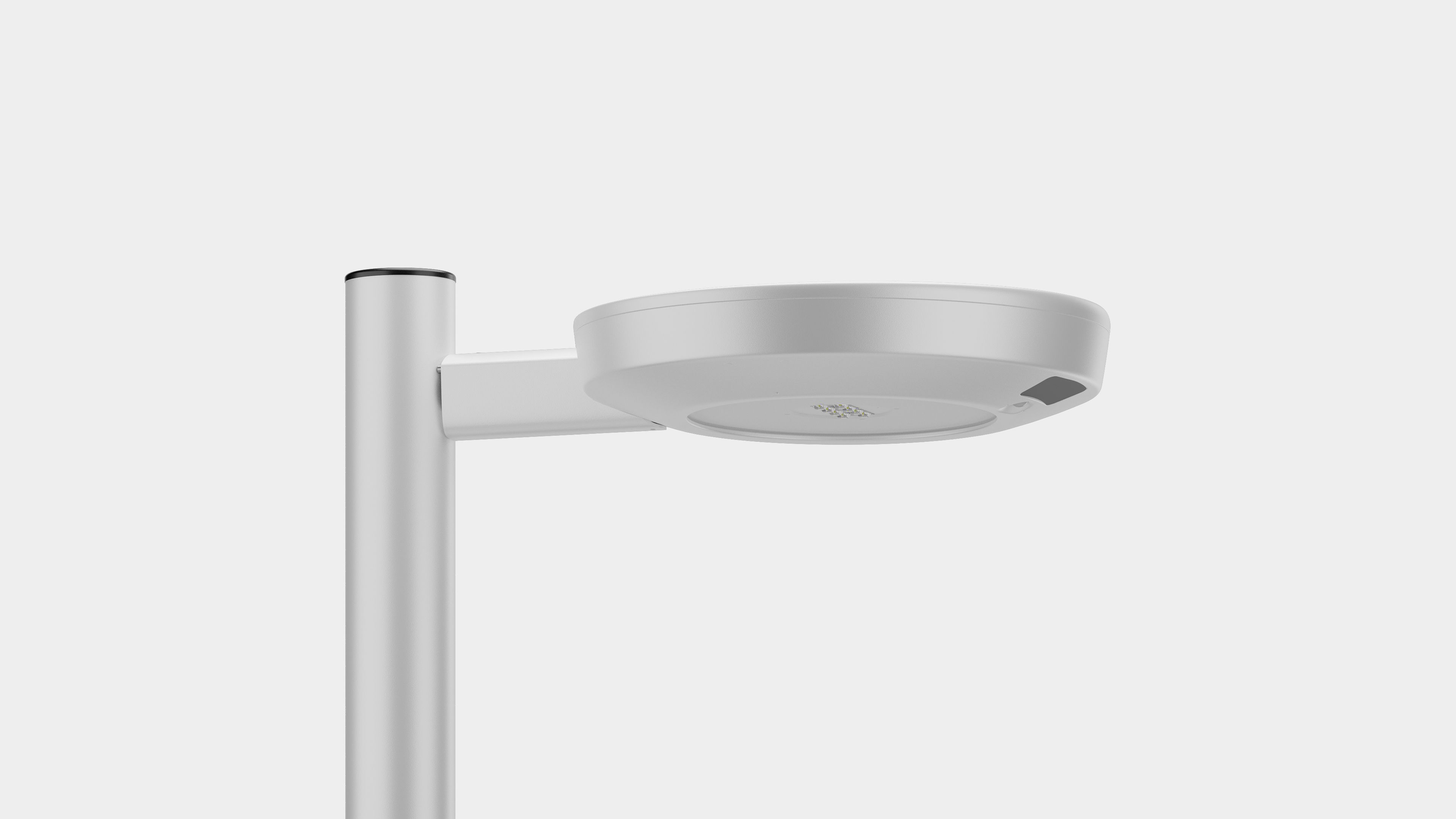

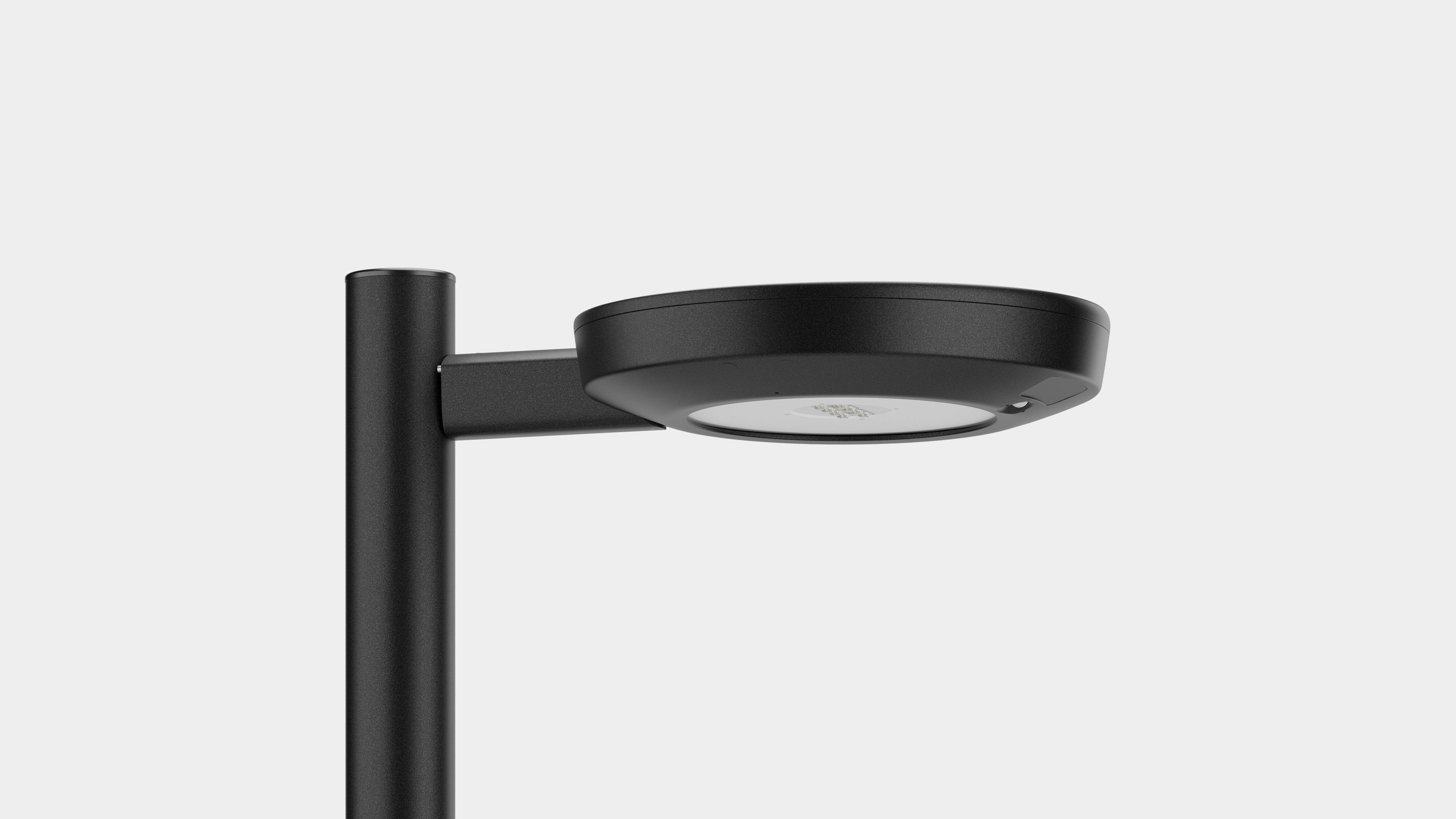

Modern street lamp with a round flat light fixture mounted on a vertical pole against a white background.

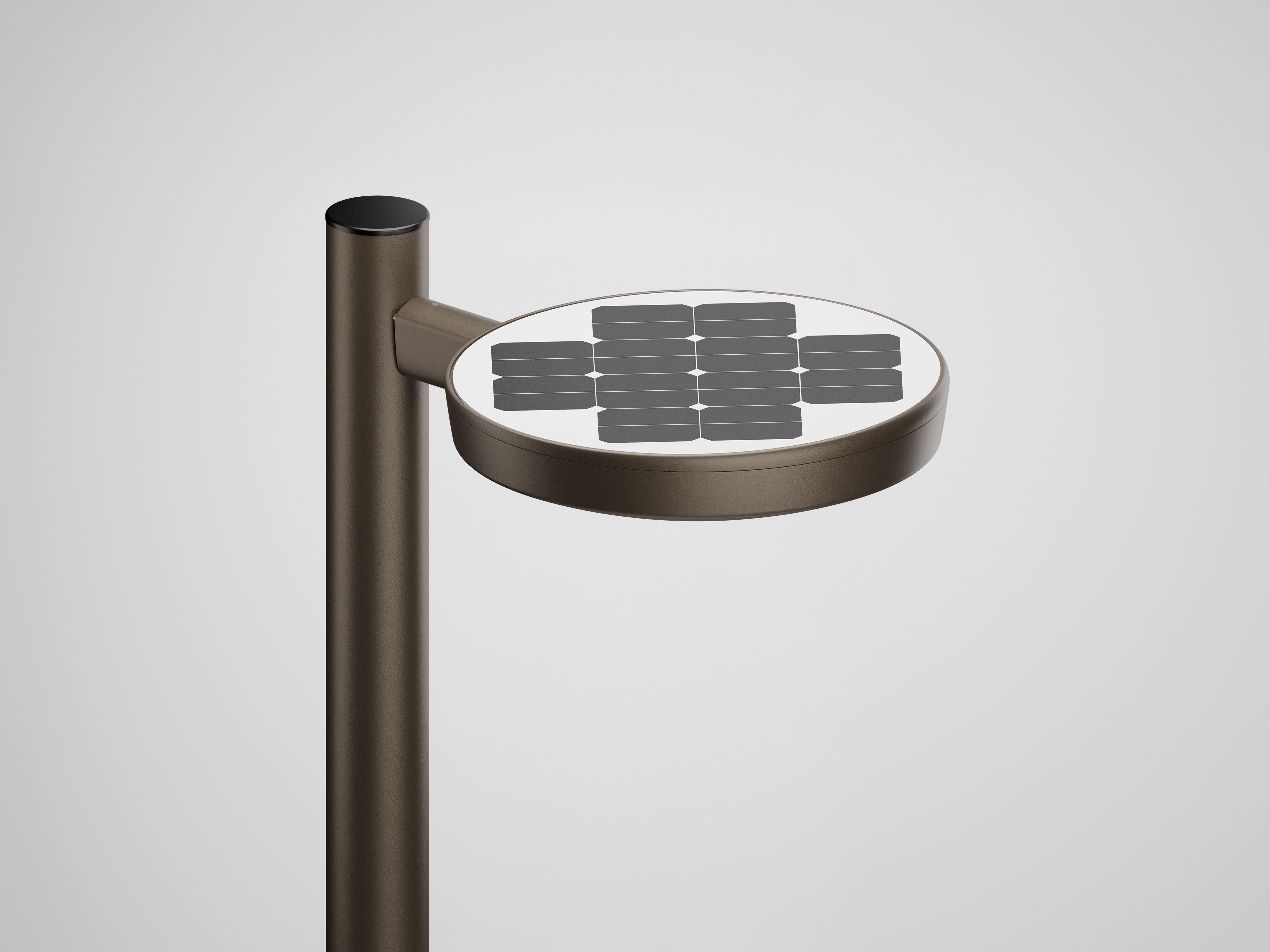

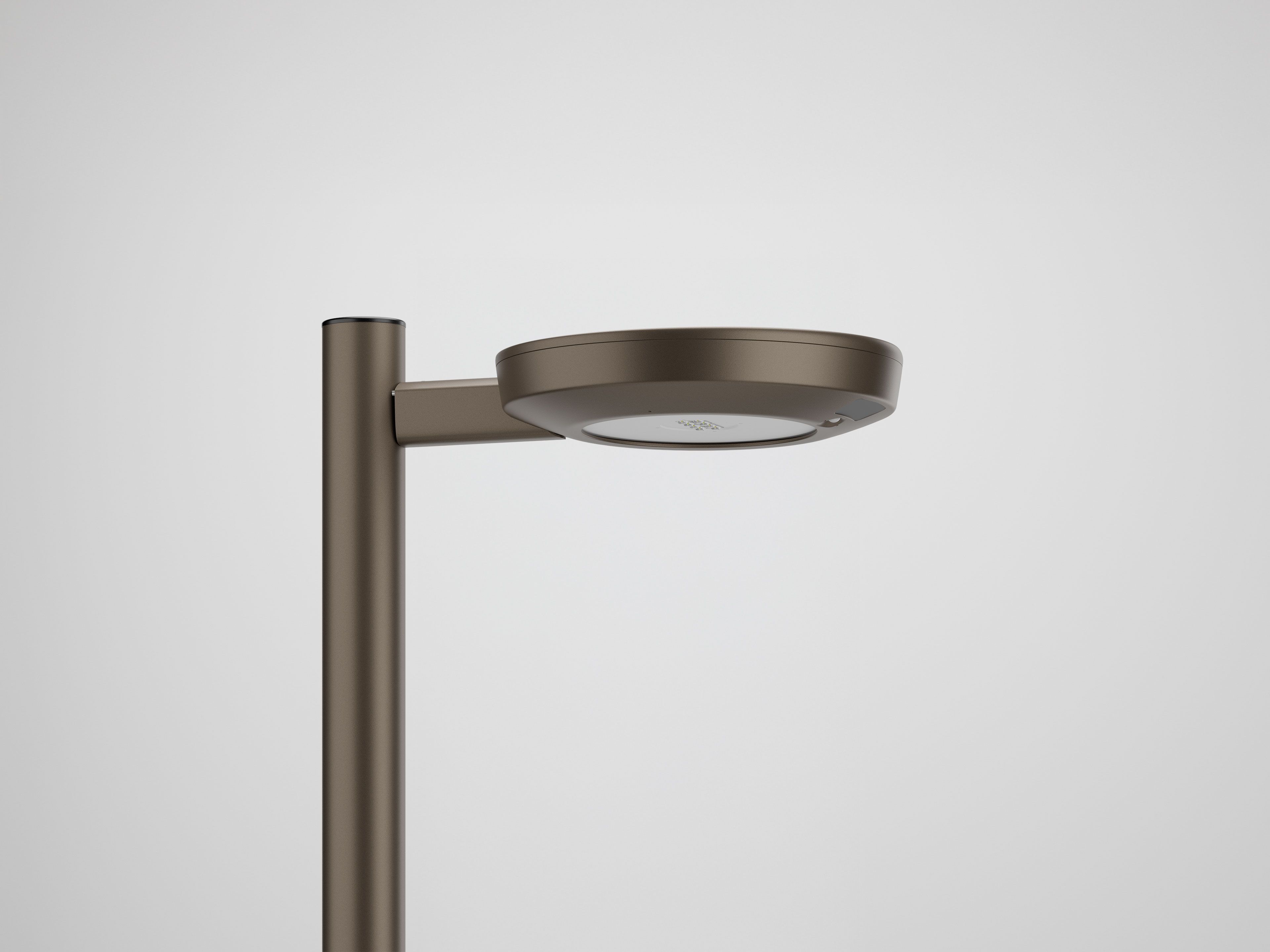

Modern black outdoor street lamp with a round flat light head mounted on a vertical pole.

Photometric Diagrams

Overview

FLT's optical solutions efficiently focus light where it’s needed. There are several standard lighting distributions that optimize performance for different applications. Each lighting distribution is full cutoff and compliant with DarkSky requirements. Measurements are in footcandles.

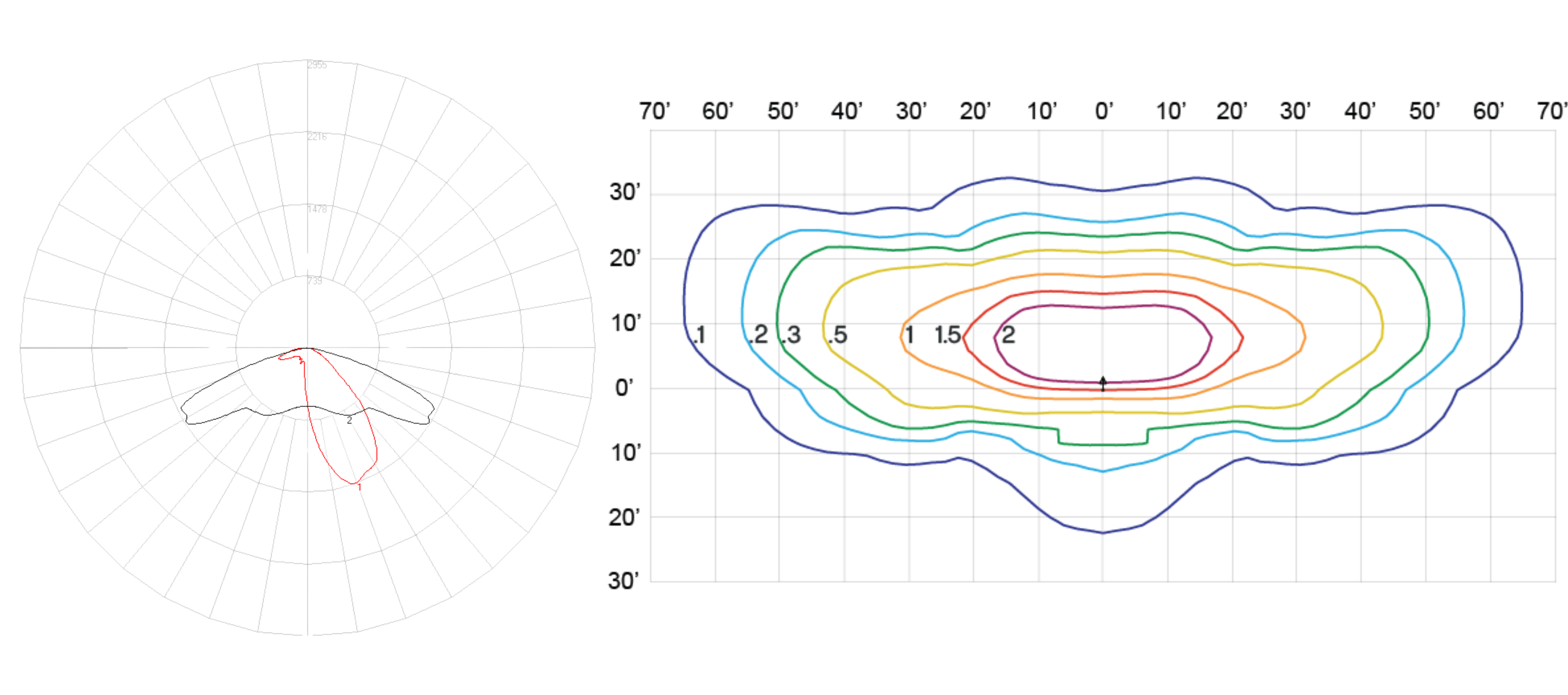

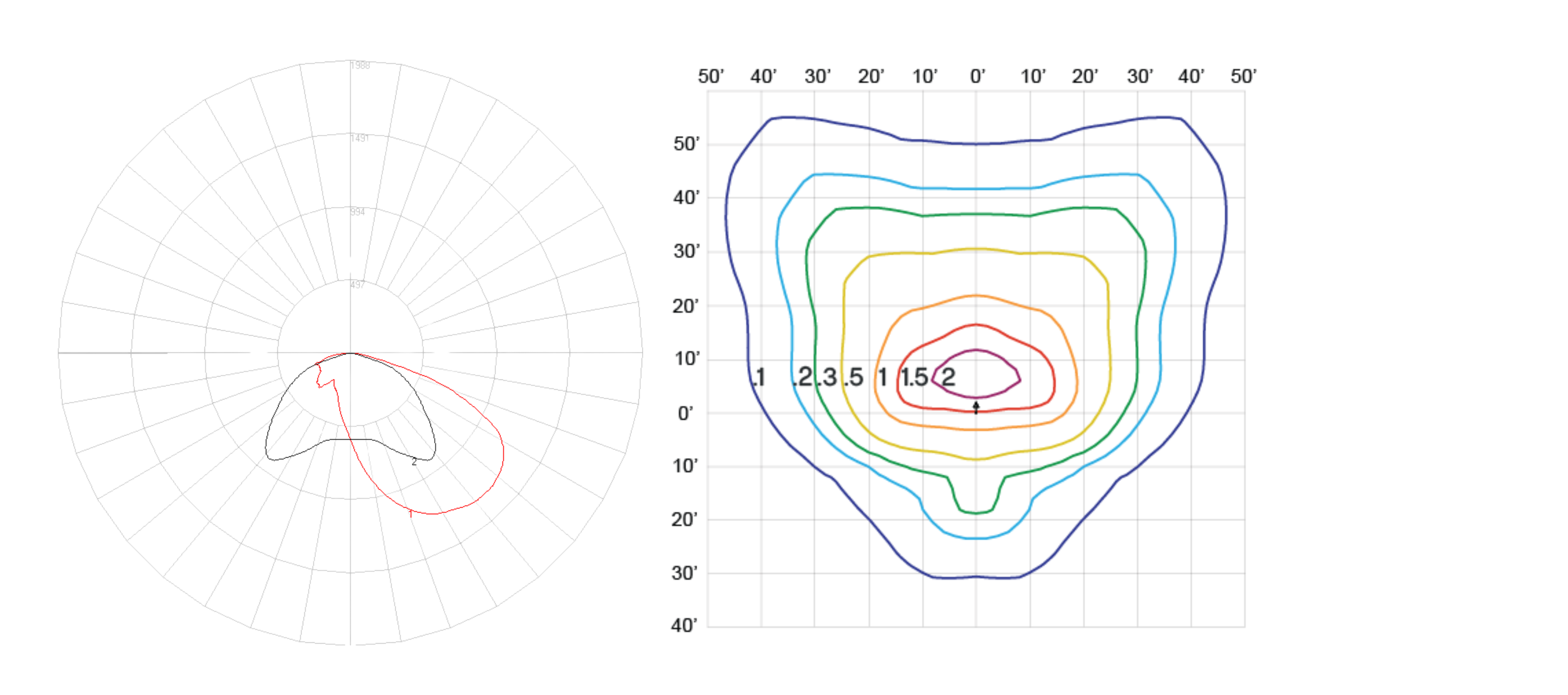

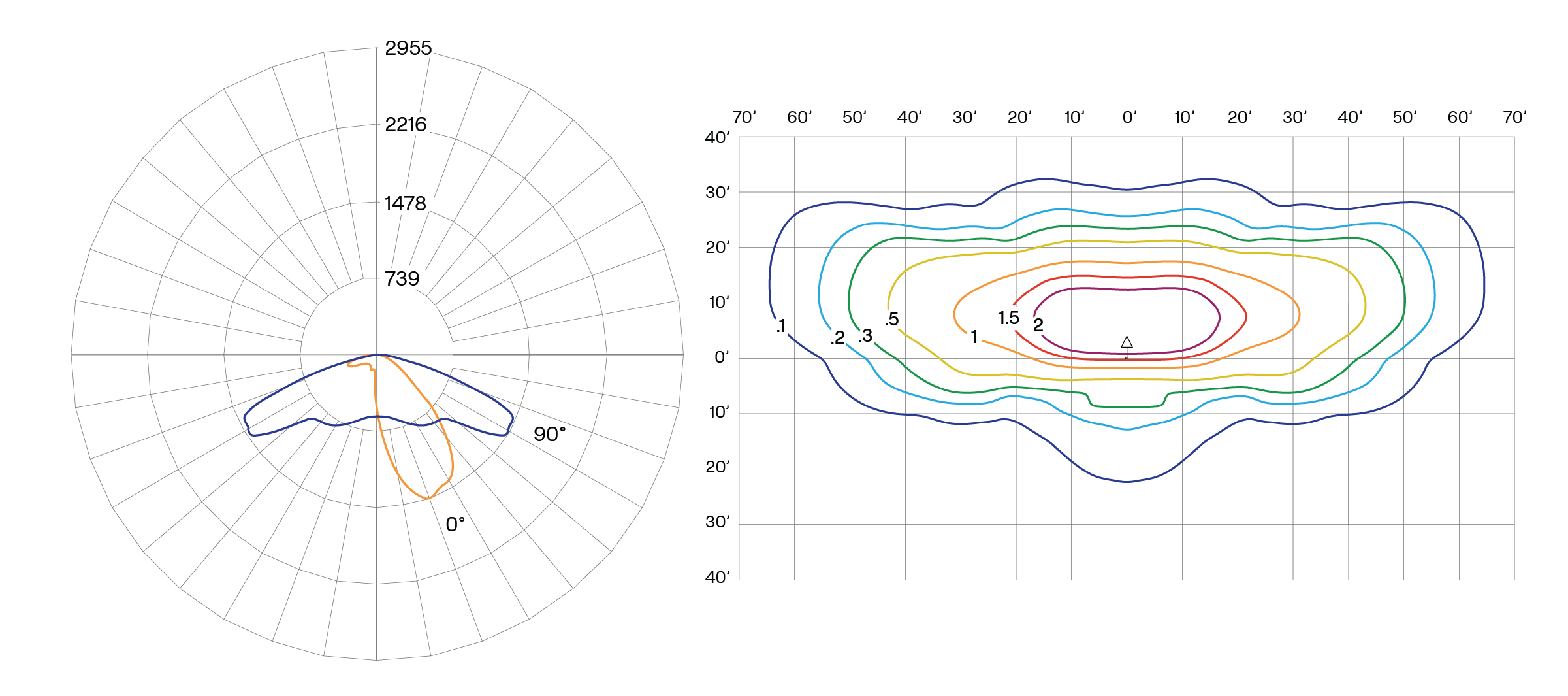

Type 2

Polar plot and contour plot side by side displaying a red highlighted region on the polar plot and multiple color-coded contour lines on the contour plot against a black background grid.

Type 3

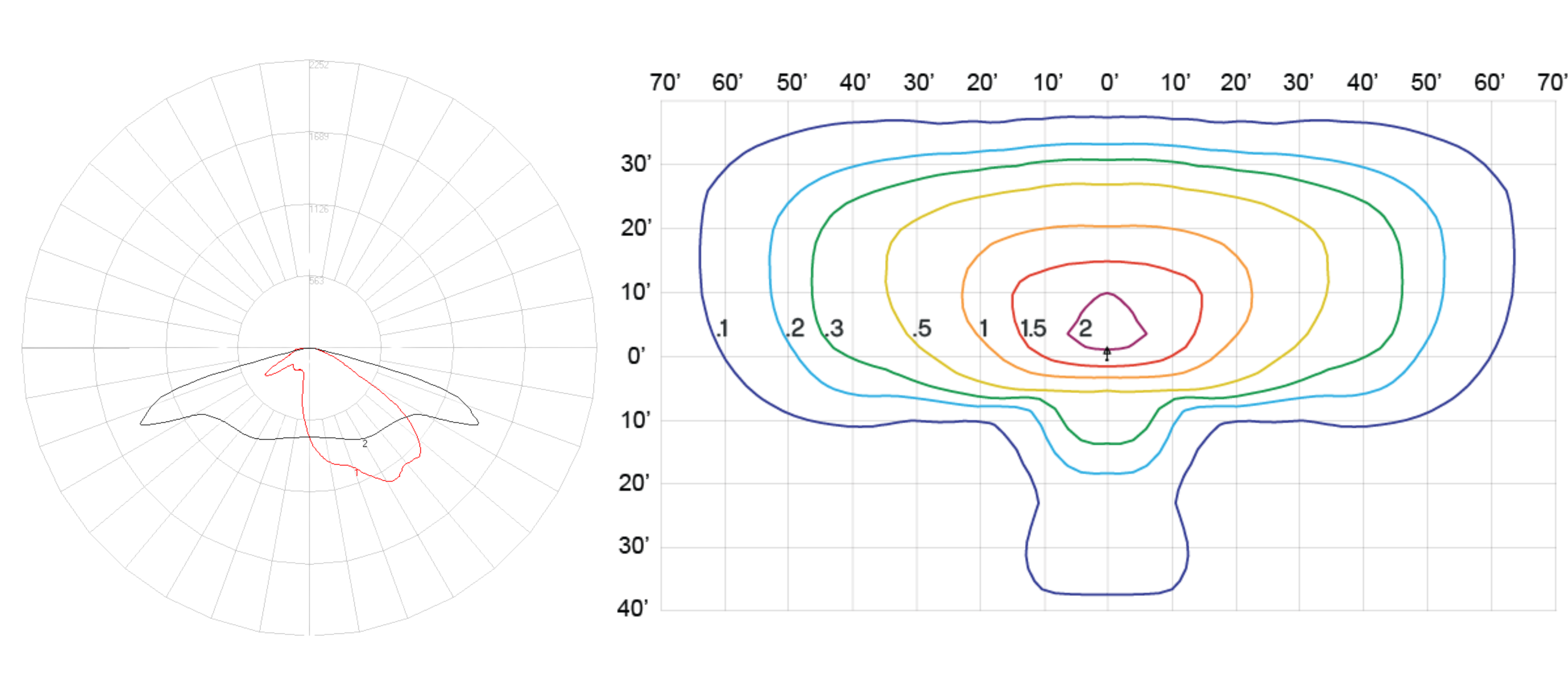

Complex contour plots with colored lines representing different levels on black background; left plot is circular with a red irregular shape, right plot is rectangular with multi-colored closed contours.

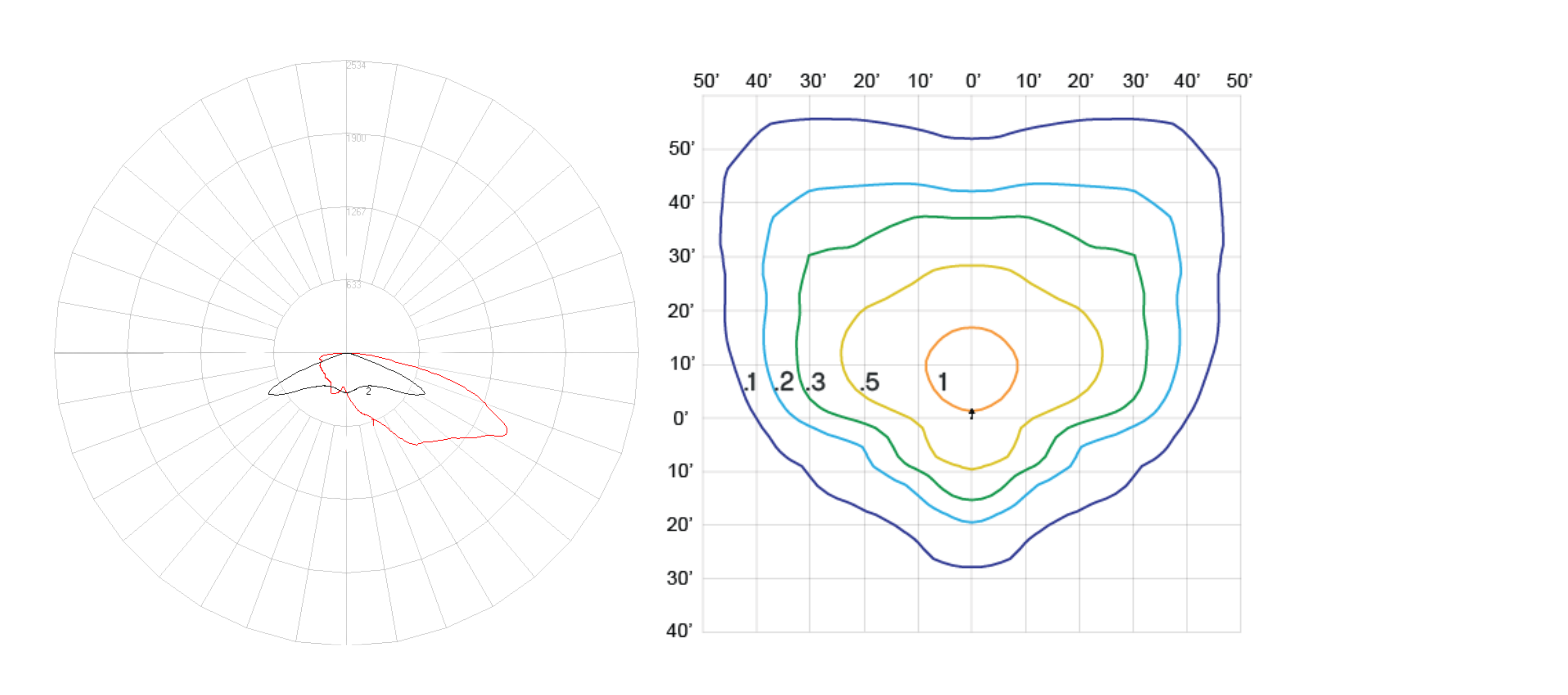

Type 4

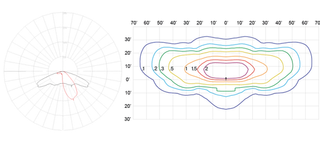

Two scientific plots side by side: left is a circular radial grid with a highlighted red teardrop-shaped area; right is a colorful contour plot with multiple concentric, irregular loops on a dark background.

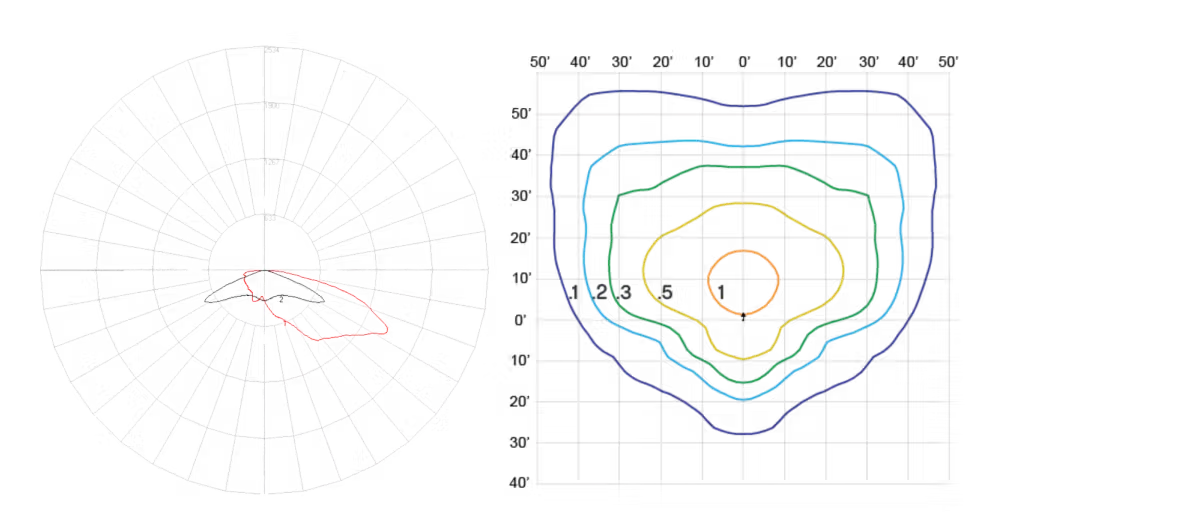

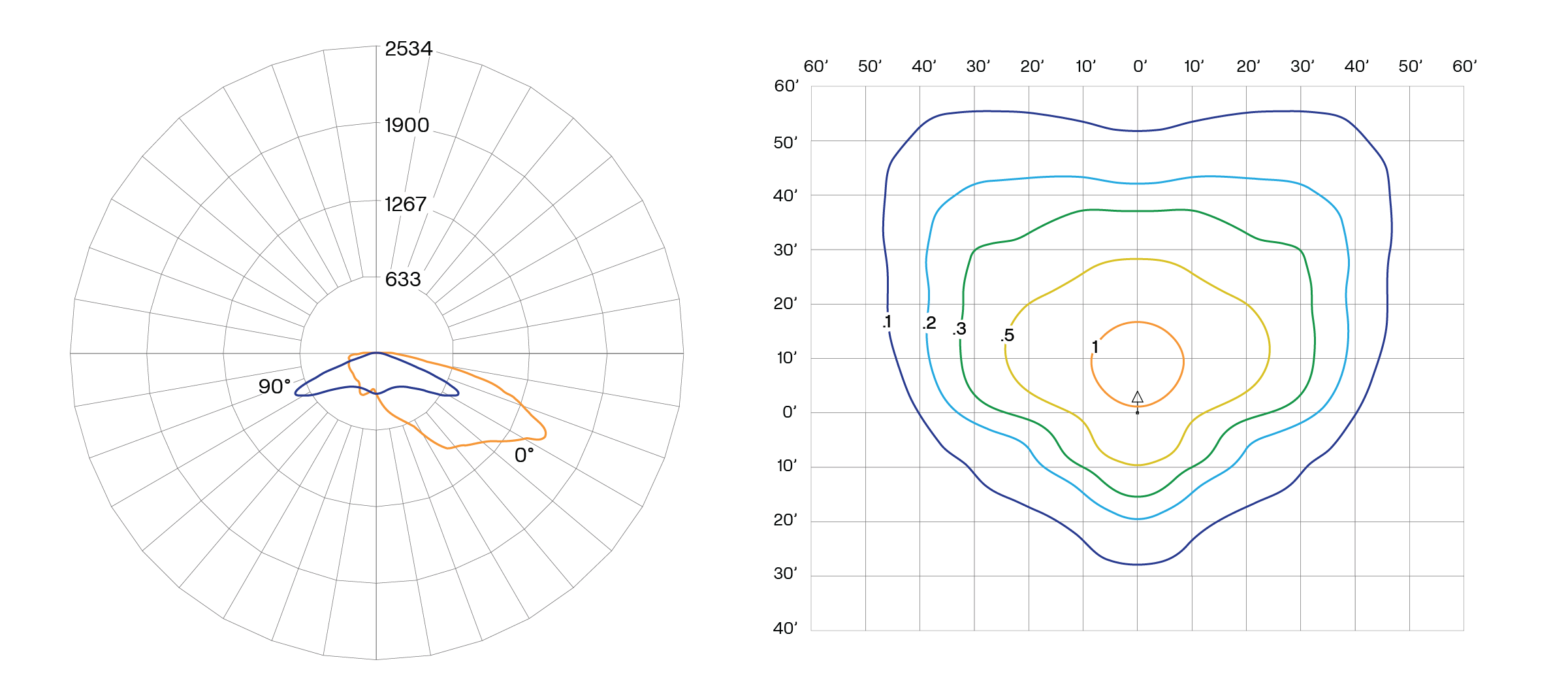

Type 4F

Two scientific graphs side by side: left is a polar plot with concentric circles and radial lines marked, highlighting a red enclosed area; right is a contour plot with five colored contour lines in orange, yellow, green, light blue, and dark blue on a black grid background.

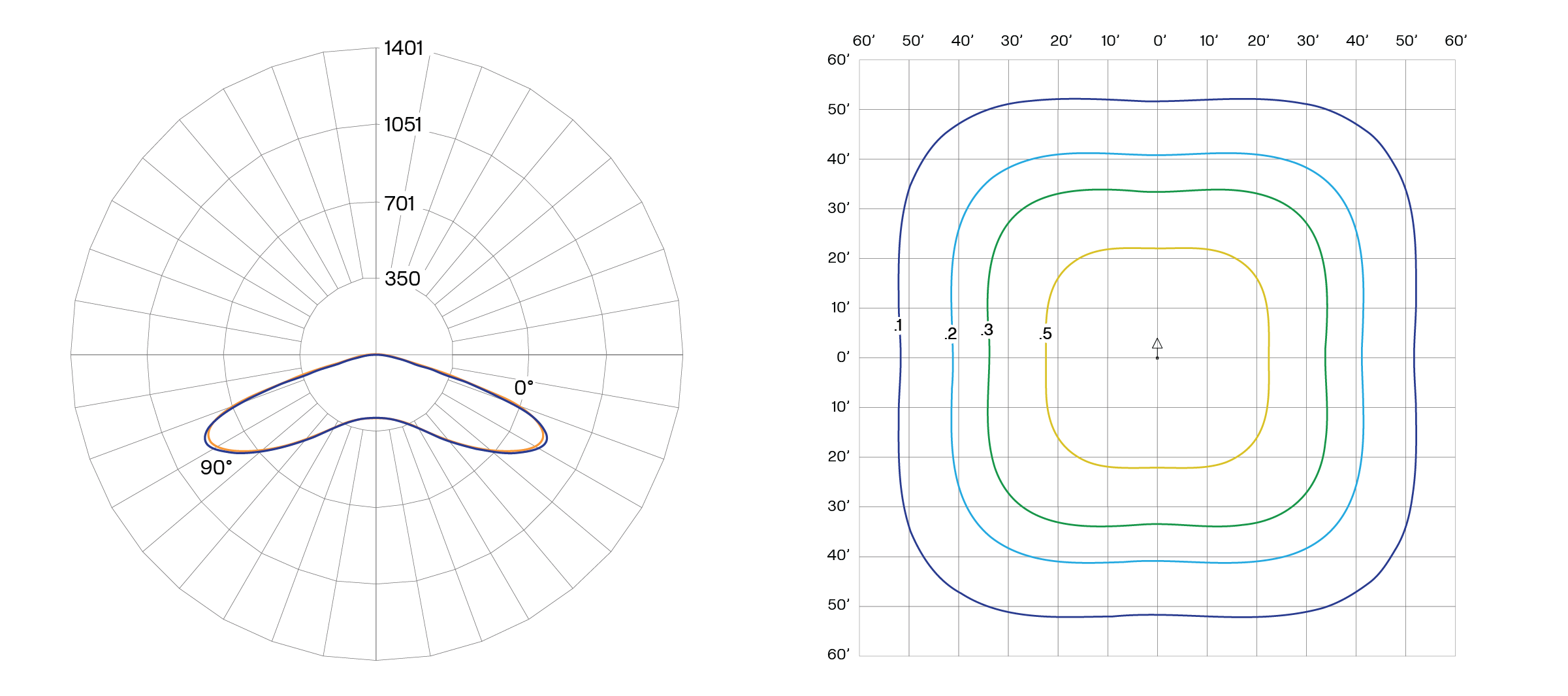

Type 5

Two plots showing contour maps of different shapes, one circular with radial lines and a red contour inside, and one square-shaped with four nested contours in yellow, green, blue, and purple.

Technical Specifications

Technical Specifications

Style
Commercial side pole area light with tenon or cleat mount
Fixture Diameter
24.4 inches x 24.4 inches
Fixture Height
3.9 inches
Fixture Weight
38.5 lbs (17.46 kg) including battery
Fixture EPA
0.52 ft² (0.048 m²)
Construction
Rugged, die-cast aluminum
Stainless fasteners
Pre-drilled for seamless installation
Finish
Architectural grade, durable, TGIC powder coat
Powder Coat Color
Bronze and Black

Mounting Specifications

Mounting Options
Tenon mount and cleat mount

Pole Recommendations

Pole Considerations
Full range of pole options that are seamlessly matched to the RSL luminaire. The expert team at FLT can answer questions about mounting, poles, or installation for your project.
Pole shape options
The RSL can be affixed as a side mount fixture on square or round pole

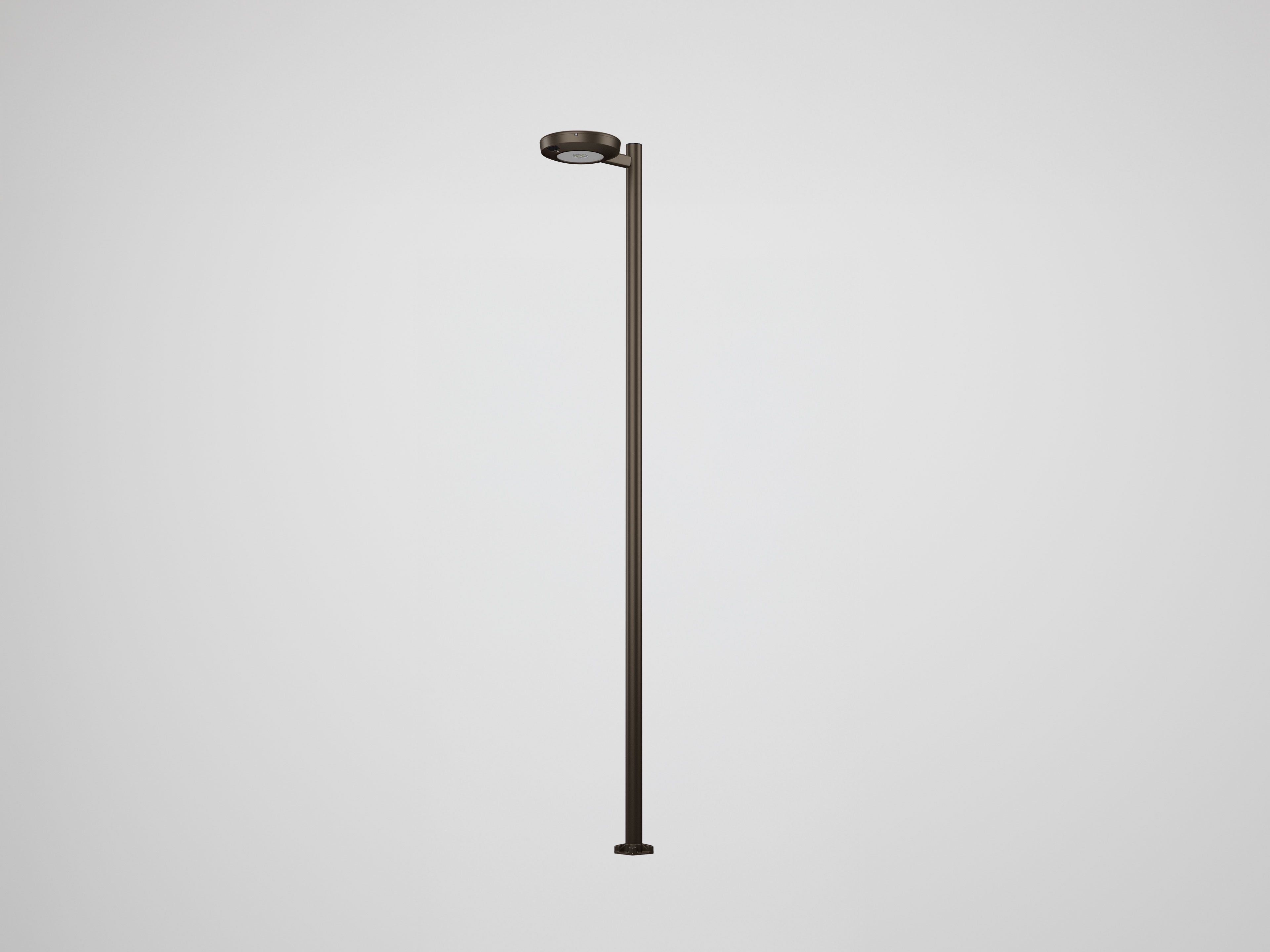

Pole Height Options
16 feet
18 feet
20 feet
Pole Material Options
Aluminum or steel pole options are available.

Adaptive Intelligence

Management
Intelligently manages lighting performance based on environmental conditions and lighting requirements
Data logging
On-board multi-year data logging
Integration
Microcontroller and electronics integrated within the luminaire
Motion Sensing
Equipped for motion sensing

LED Engine & Controller

Lumen Output
3570 lumens
Color Temperature & Amber Options
4000K Not DarkSky compatible
3000K DarkSky Approved
2700K DarkSky Approved
Amber (595nm) DarkSky Approved
LED Lifetime
100,000 hour LED L70 lifetime
Control
High-efficiency, Maximum Power Point Tracking (MPPT) battery charger
High-efficiency integrated LED driver
Integrated optics maximize application efficiency and light distribution

Power

Solar Panel
Industry’s most efficient solar panel technology
Integrated into the top of the luminaire
Active cell technology optimizes power generation even when partially blocked
Battery
High-performance Lithium Iron Phosphate (LiFePO4) technology
Exceptional 10+ year life cycle
High and low temperature tolerance
Integrated within the luminaire housing
Optical
High-efficiency type 2, 3, 4, 5, and T4F full cutoff optics
Optional backlight shield
Achieves pathway and area lighting standards with typical output of 3570 lumens
B1 – U0 – G1 BUG Rating

Downloads & Resources

Supporting Resources

Spec Sheets

RSL - Side Mount Specifications
PDF Download

IES Files

RSL Side Mount IES Files
PDF Download

Installation

RSL Cleat-Mount Installation Instructions
PDF Download
RSL Tenon-Mount Installation Instructions
PDF Download

Lighting Profile Sheet

Choosing the right lighting profile
PDF Download

Ideal Applications

Area

RSL - Side Mount is engineered for optimal performance in area environments, providing reliable solar-powered illumination without trenching or wiring.

Parks

RSL - Side Mount is engineered for optimal performance in parks environments, providing reliable solar-powered illumination without trenching or wiring.

Parking Lots

RSL - Side Mount is engineered for optimal performance in parking lots environments, providing reliable solar-powered illumination without trenching or wiring.

Pathways

RSL - Side Mount is engineered for optimal performance in pathways environments, providing reliable solar-powered illumination without trenching or wiring.

Perimeter Security

RSL - Side Mount is engineered for optimal performance in perimeter security environments, providing reliable solar-powered illumination without trenching or wiring.

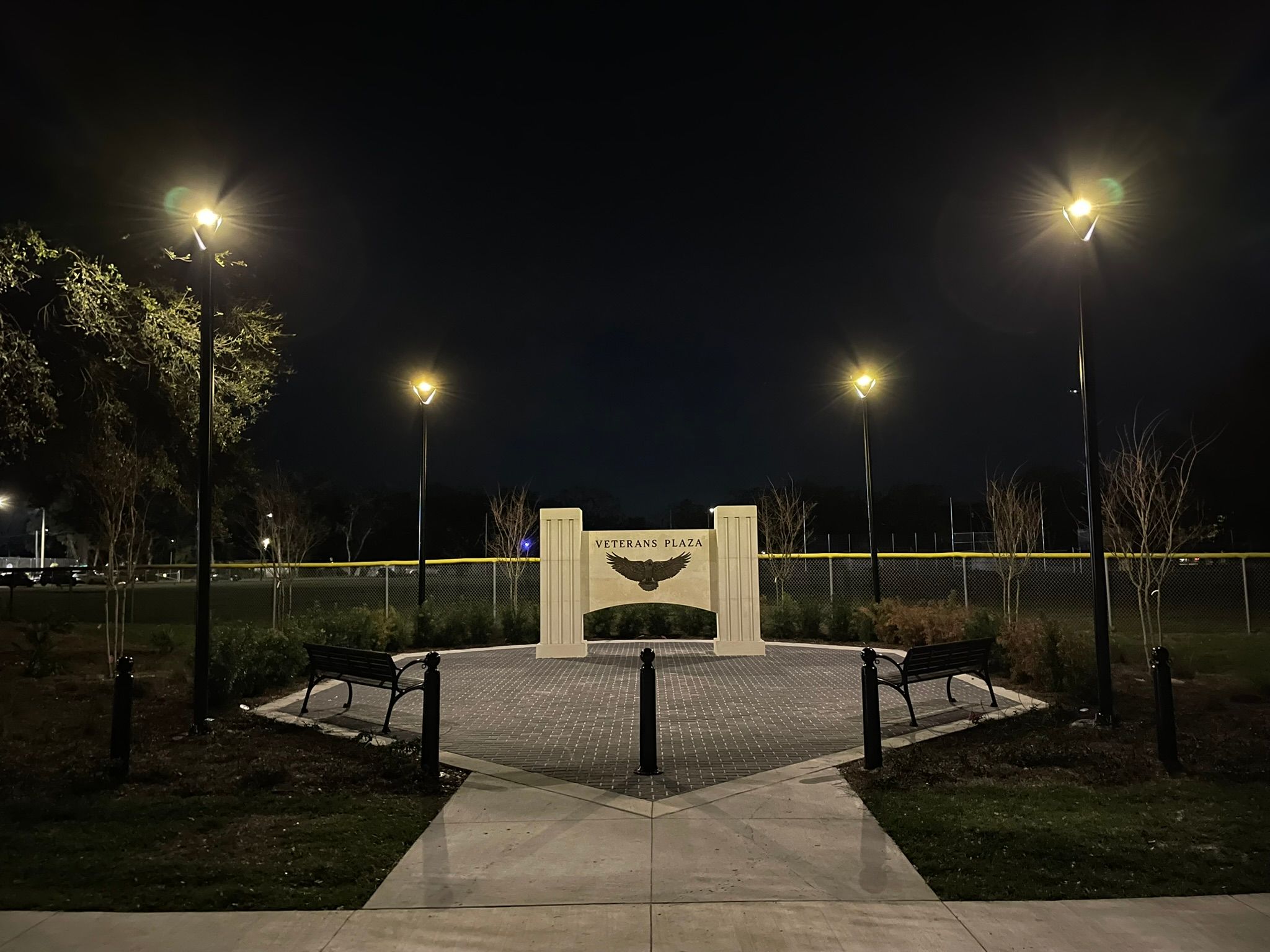

Plazas

RSL - Side Mount is engineered for optimal performance in plazas environments, providing reliable solar-powered illumination without trenching or wiring.

Reliability & Warranty

•
Tested for high- & low- heat and humidity
•
10+ year battery life
•
5-year warranty
•
20-year lifespan
•
Designed and manufactured in North America
