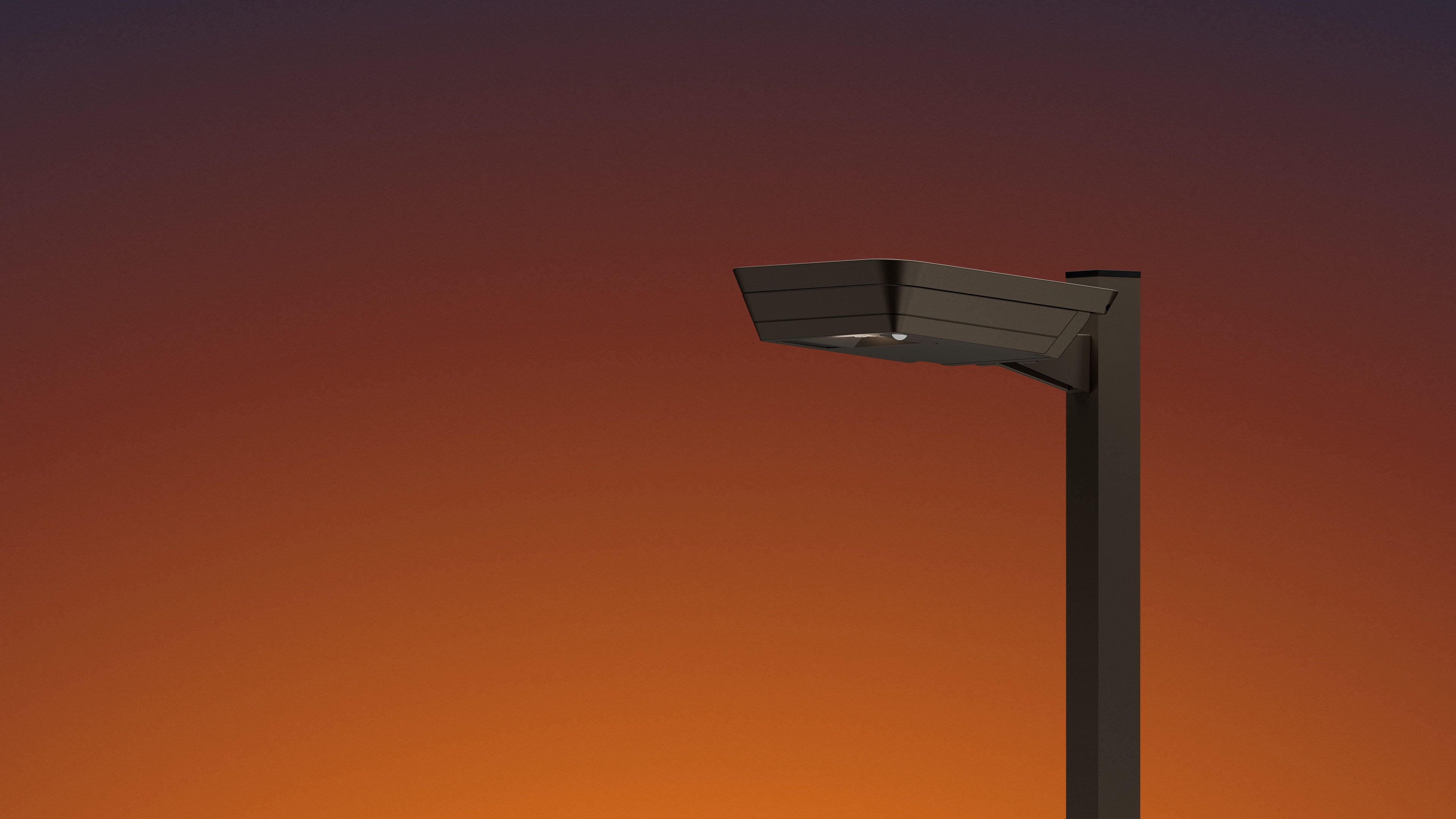

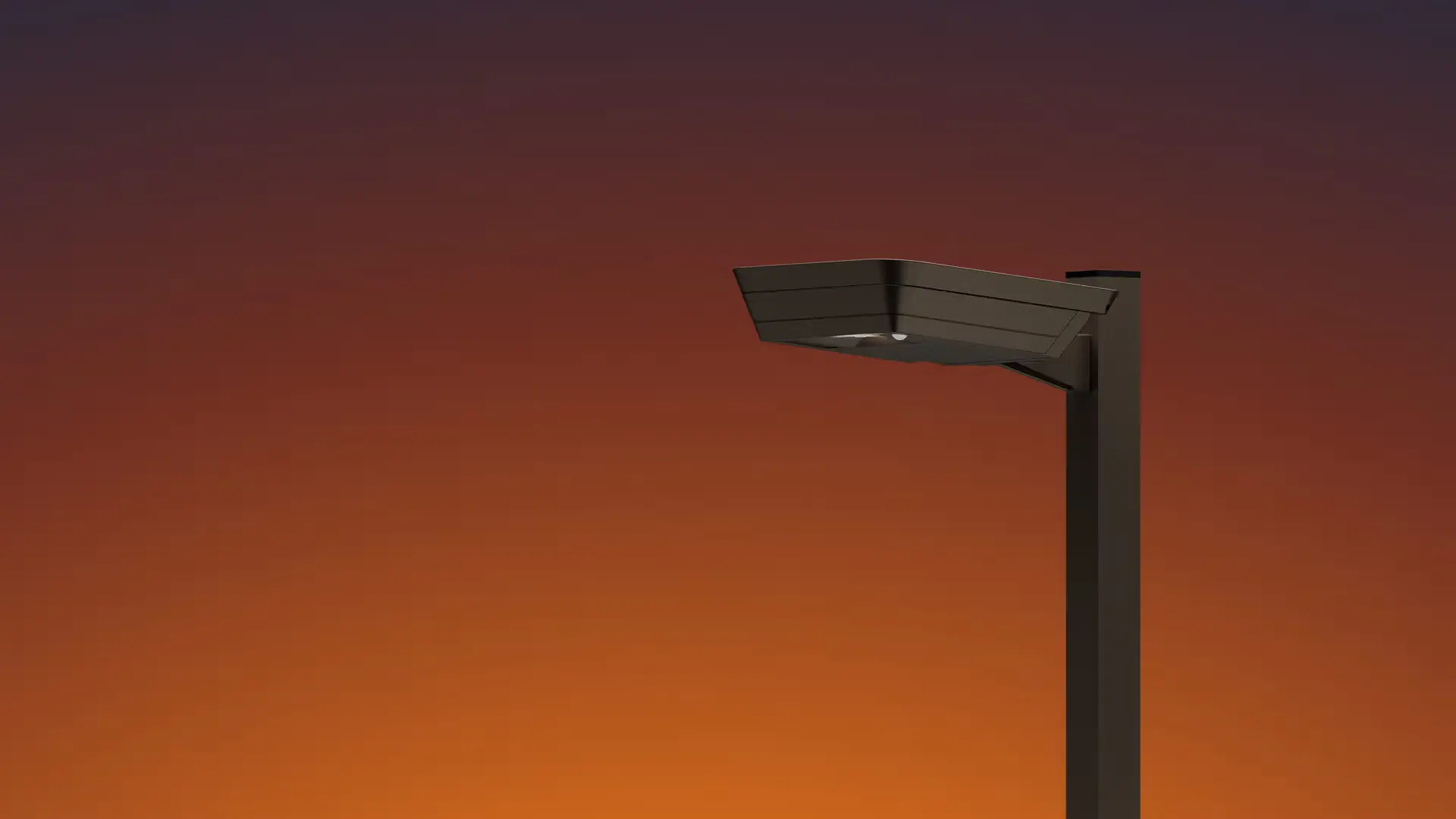

Modern street lamp with a sleek rectangular design against a sunset sky gradient of orange to dark purple.

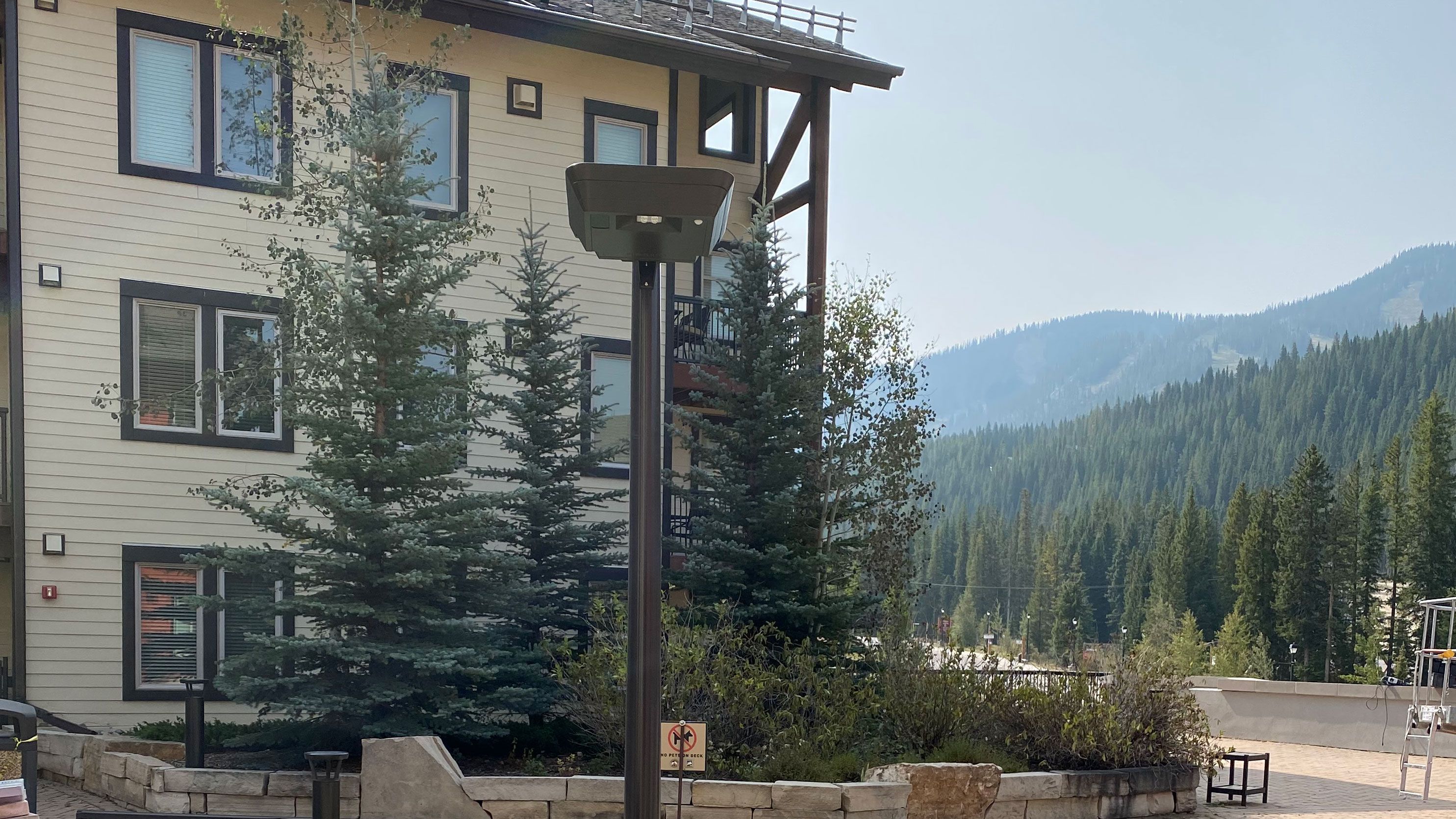

Outdoor area with spruce trees, a beige building with black window frames, stone wall planters, and distant forested mountains under a clear sky.

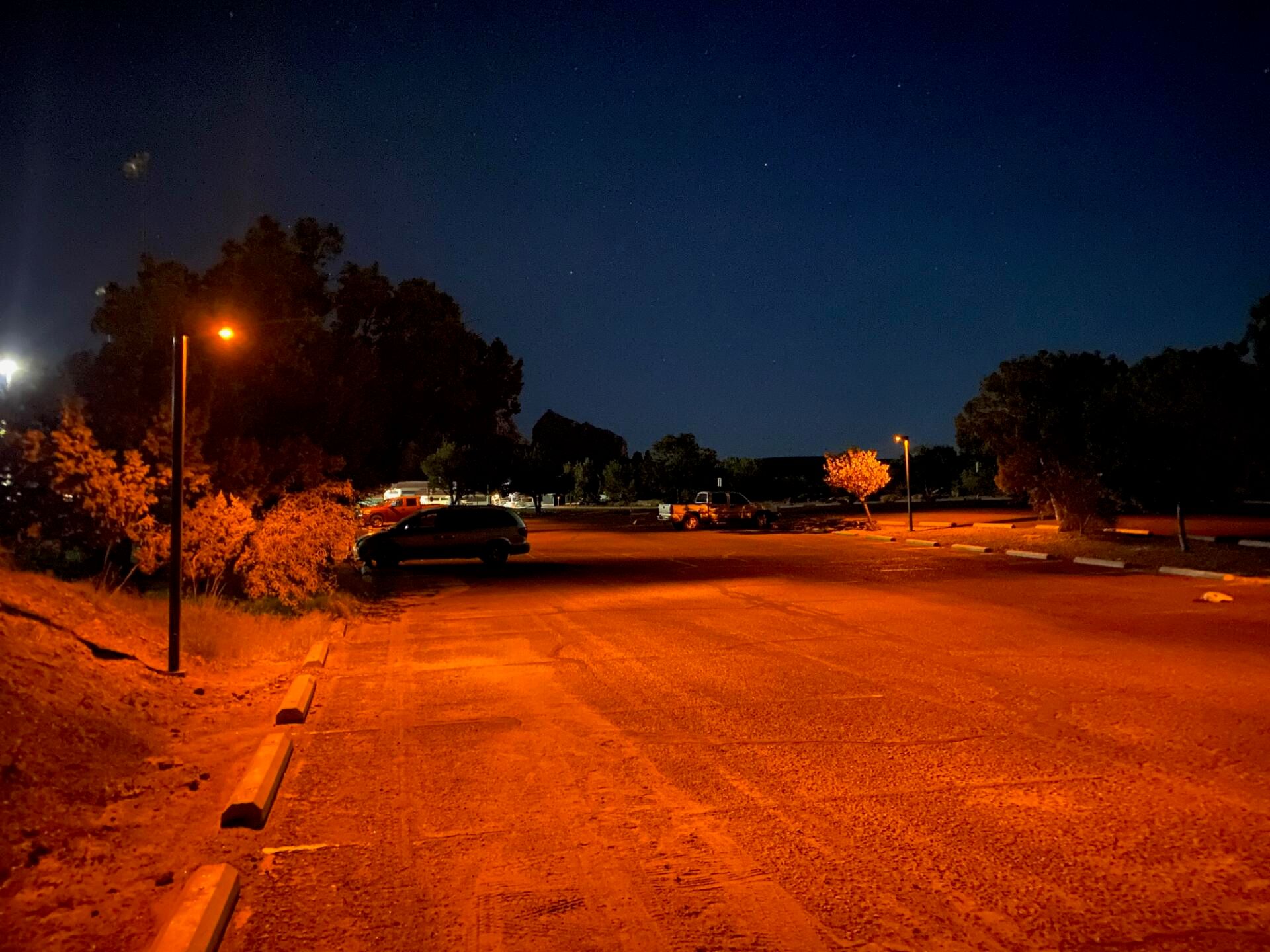

Quiet parking lot at night illuminated by orange streetlights with a few parked vehicles and trees in the background.

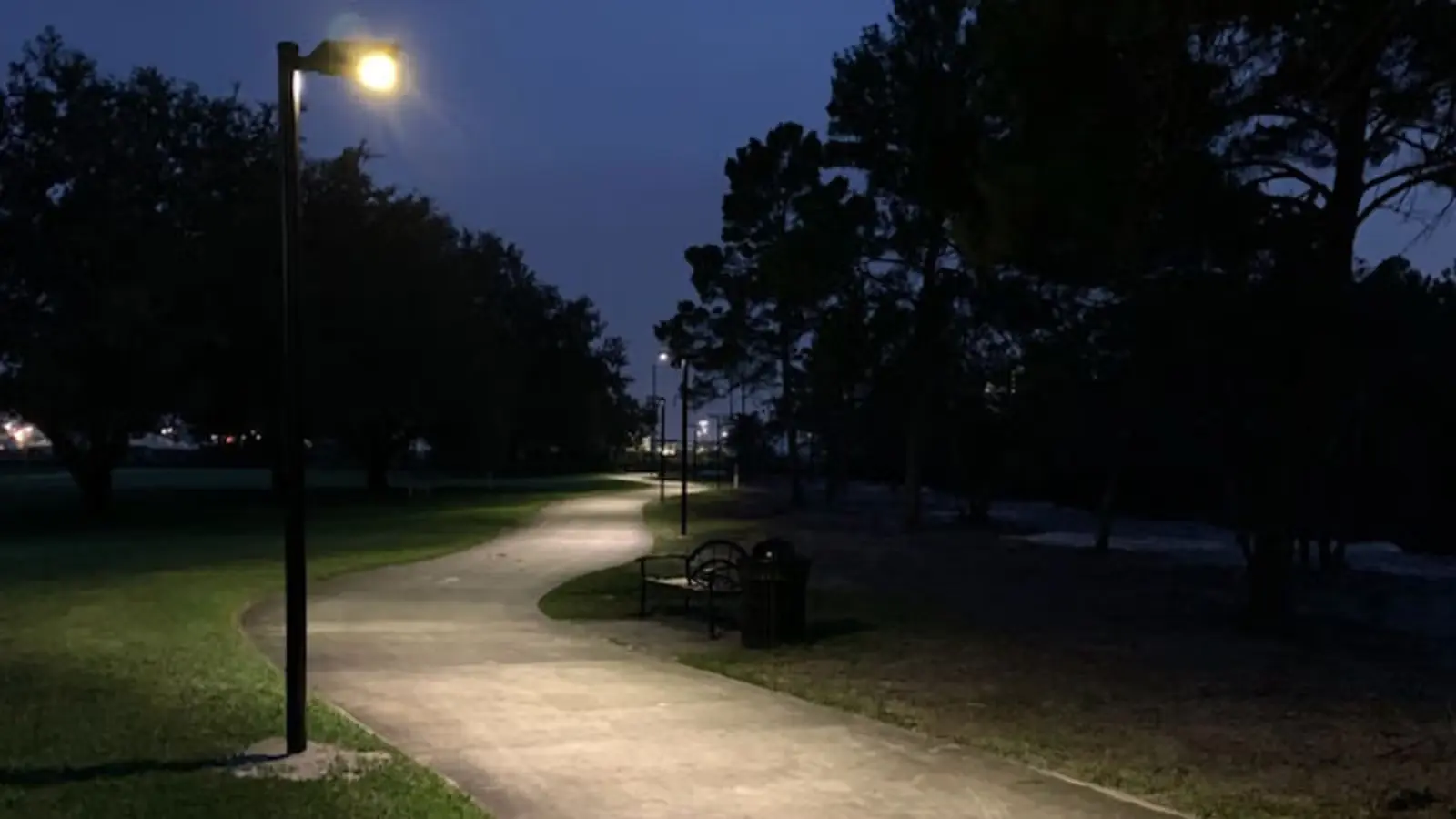

Curved park pathway illuminated by lampposts at night with benches and trees alongside.

SCL

When a compact side-mount fixture needs to deliver serious performance, the SCL provides 1,360 lumens with motion sensing and flexible distribution options. Integrated solar, universal pole mounting, and a contemporary square profile.

request a quotedownload spec sheetDownload IES File

Product details

•
Lumen Output: 1360 lumens
•
Color Temperature: 2700K, 3000K, 4000K, Amber (595nm)
•
Optical: Type 2, 3, 4, 5, and T4F full cutoff optics

Best for

Parking Lot, Pathway, Area

Product details

•
No wiring, trenching, or electrical service required
•
Self-contained build designed to improve project aesthetics
•
Cost-effective design ships fully assembled and installs in minutes
•
No ongoing maintenance
•
Provides programmed illumination all night, every night
•
Wireless control & communication with your light
•
Note: 3000K and 2700K are Dark Sky approved. Choose Amber for Wildlife Friendly lighting compliance.
Overview
Specifications
Resources
Applications
Warranty

Product Overview

When a compact side-mount fixture needs to deliver serious performance, the SCL provides 1,360 lumens with motion sensing and flexible distribution options. Integrated solar, universal pole mounting, and a contemporary square profile.

Available Finishes

Bronze
Black
Silver
White

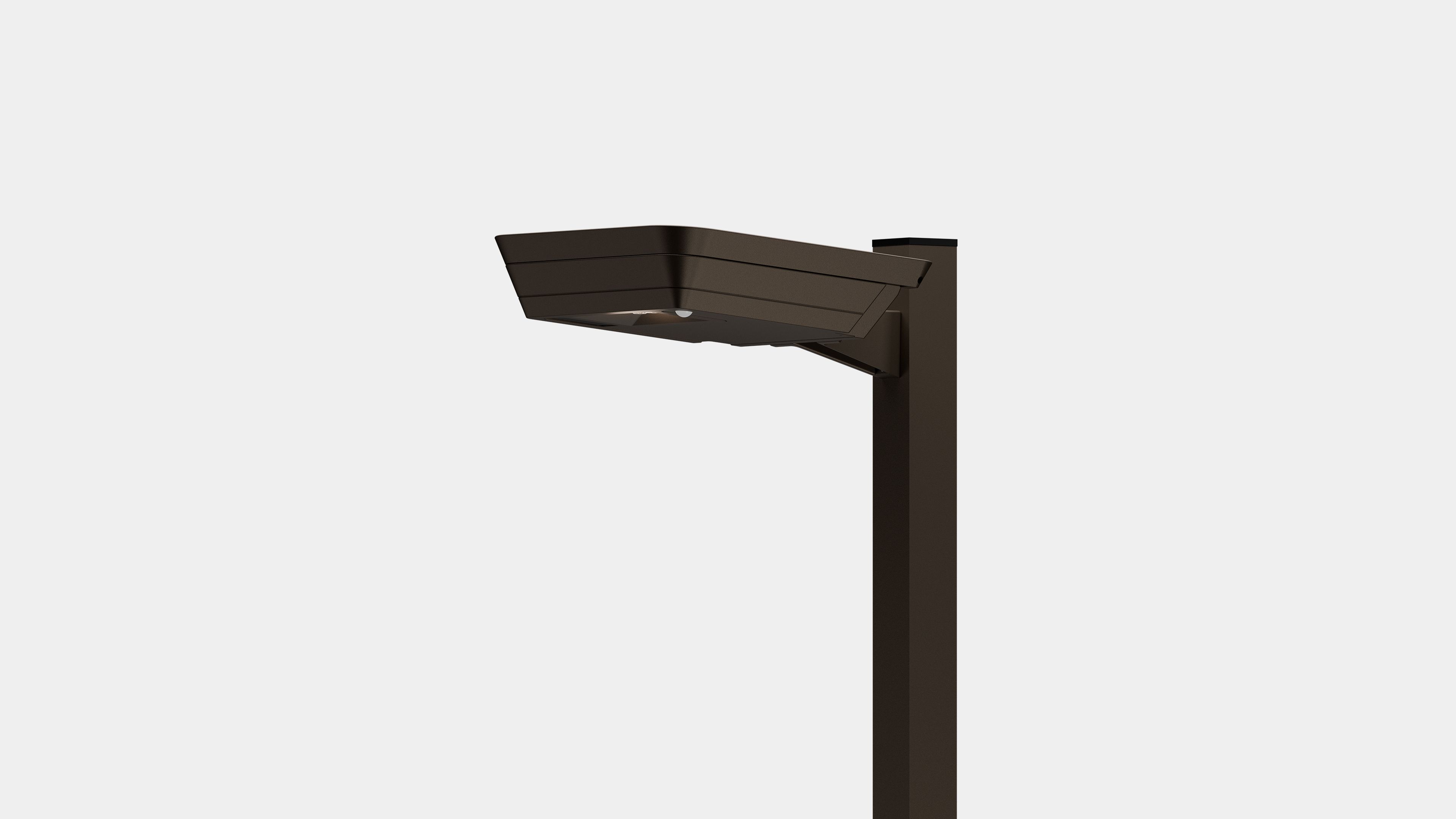

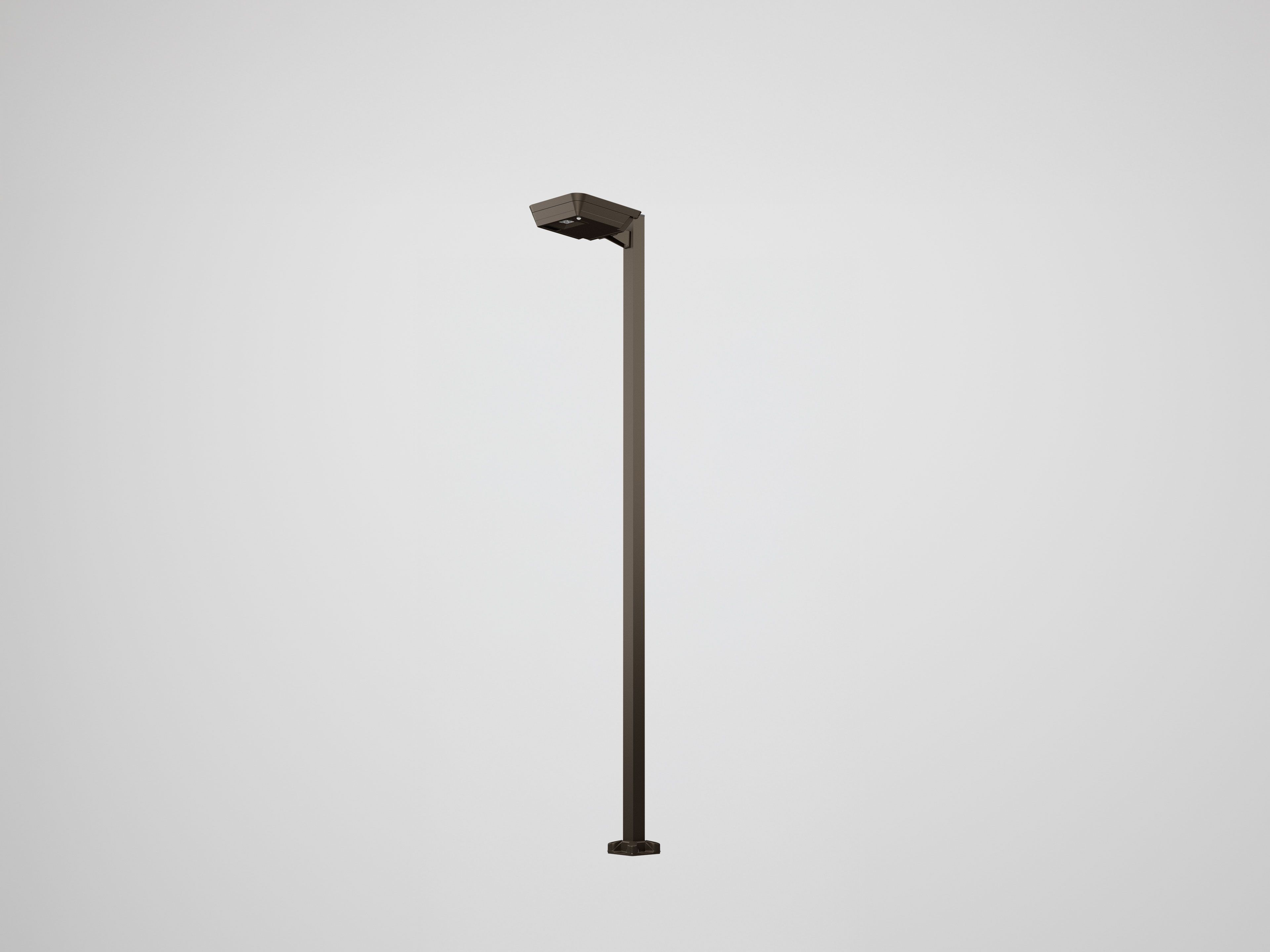

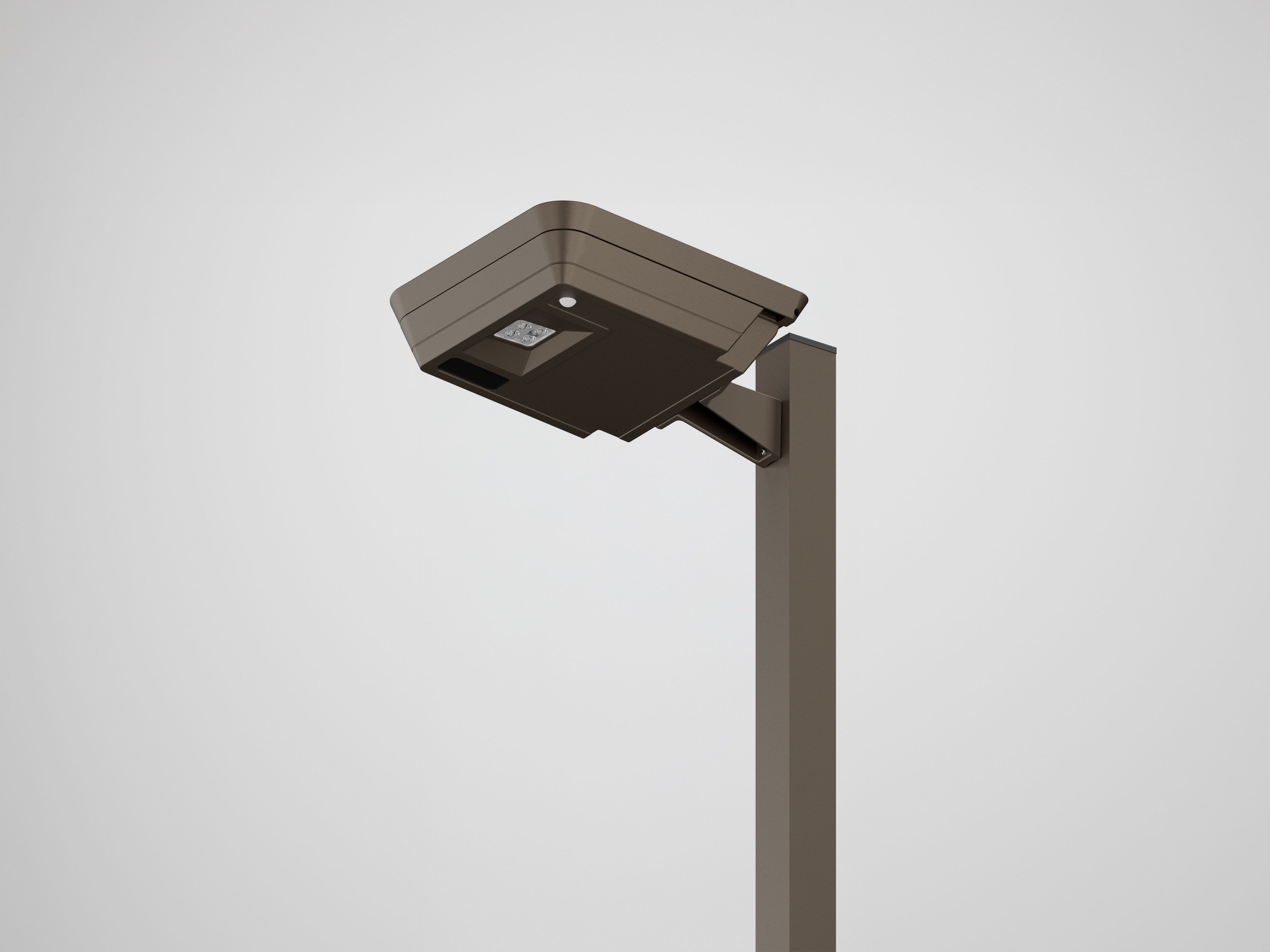

Modern black outdoor street lamp post with a flat, angled light fixture on a gray background.

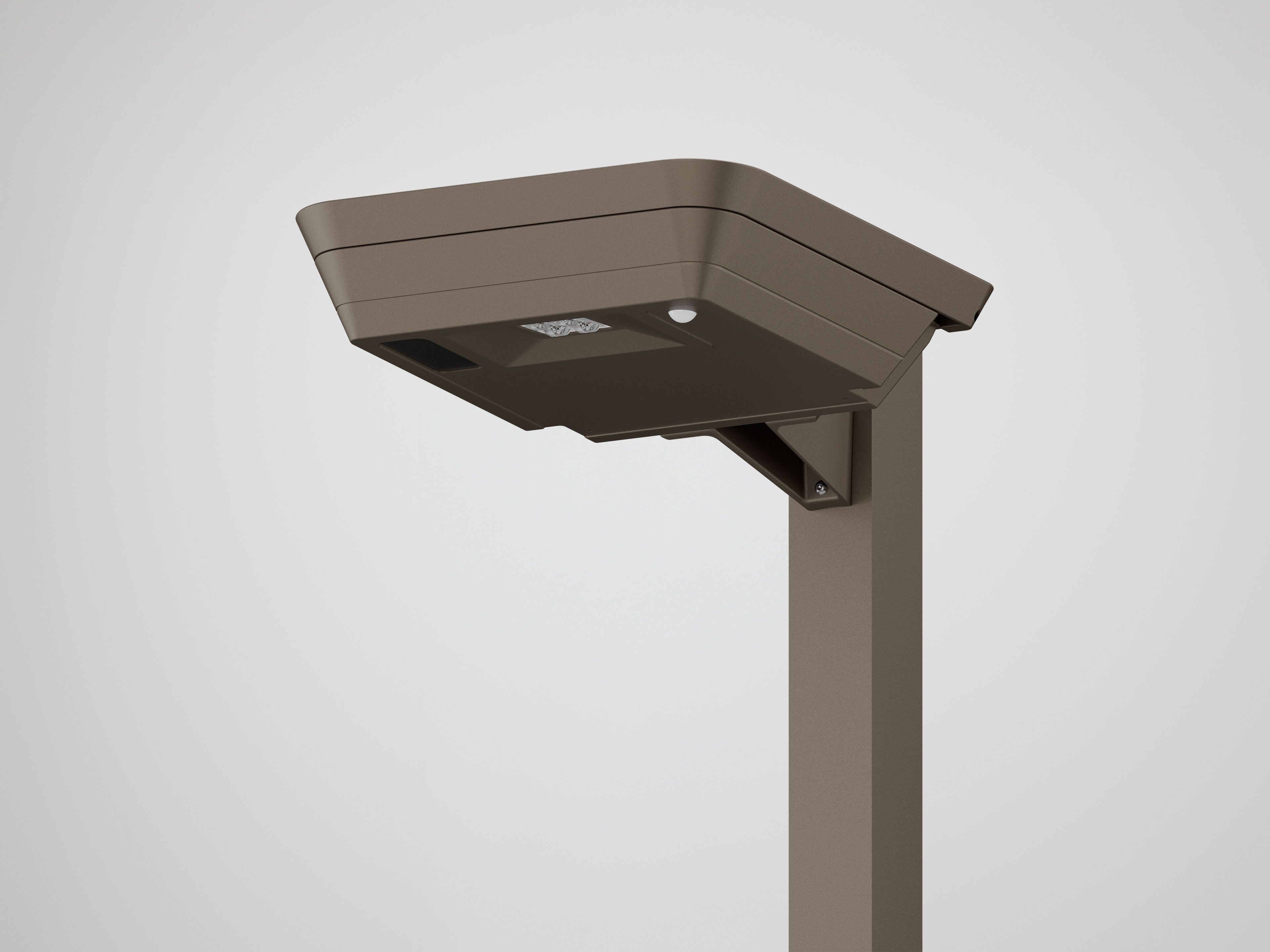

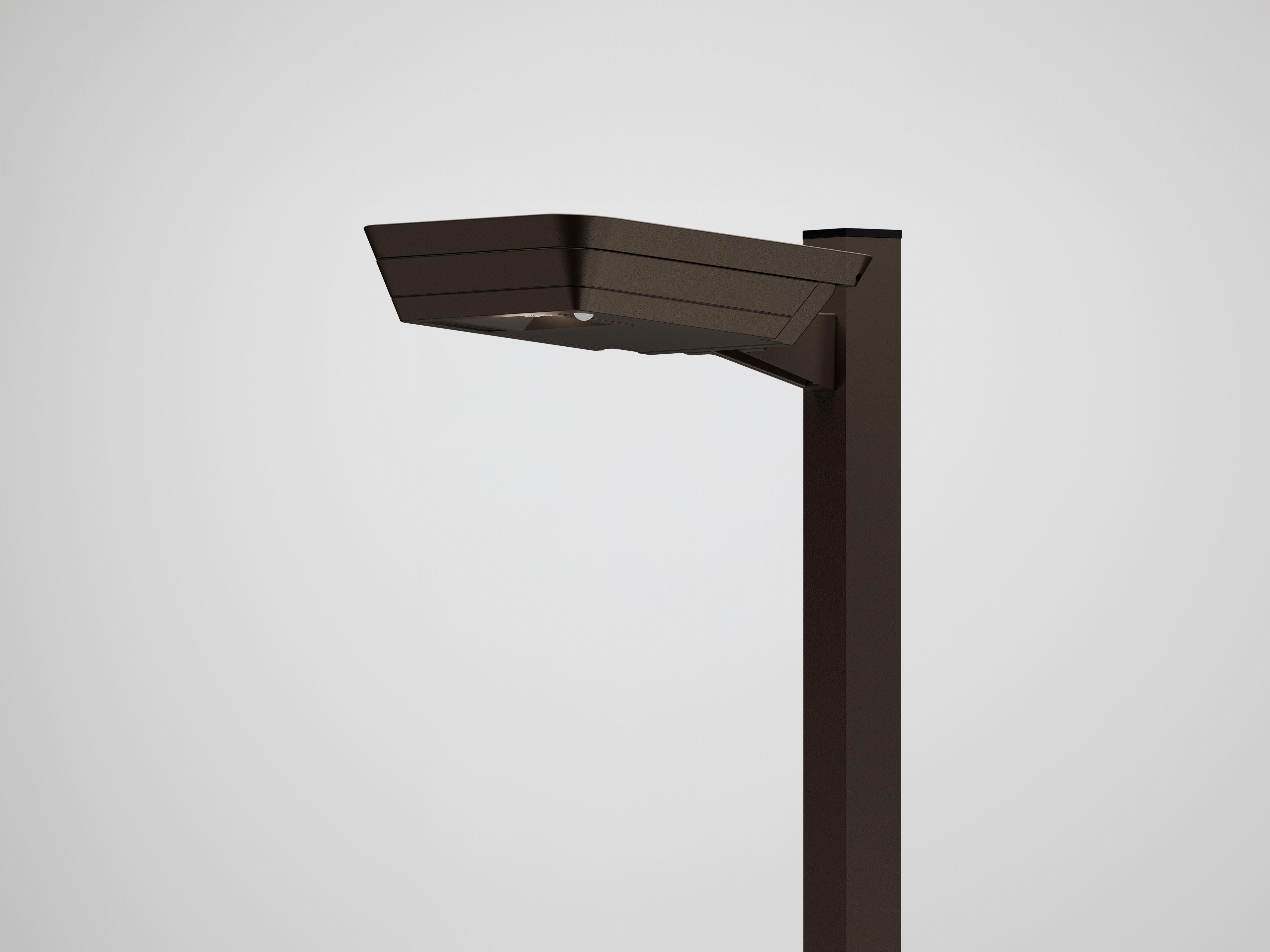

Modern black street lamp with a flat rectangular light fixture against a plain gray background.
Modern dark gray outdoor street lamp pole with a flat, rectangular LED light fixture.

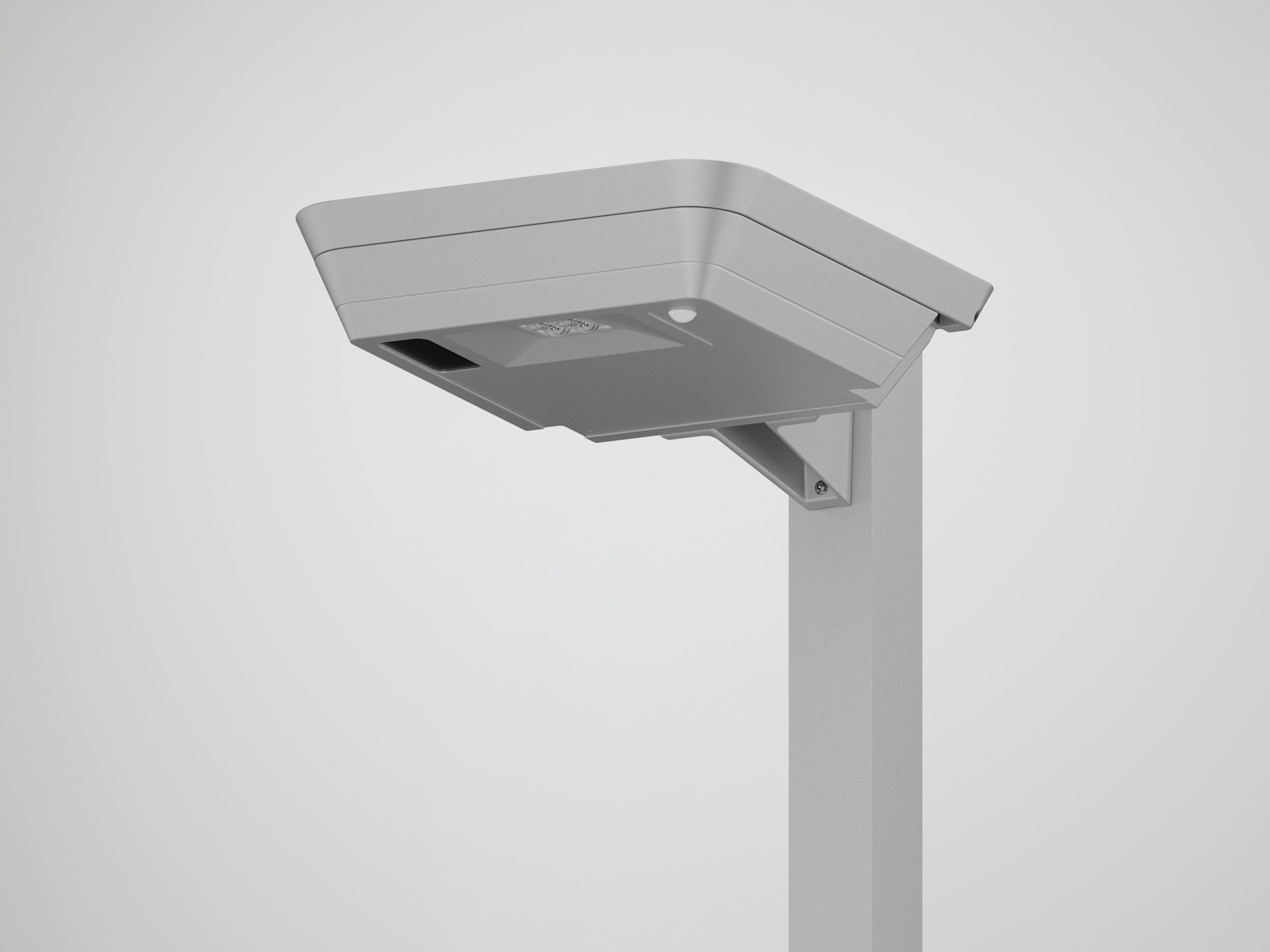

Modern street lamp with a flat, rectangular light fixture on a vertical pole against a plain background.

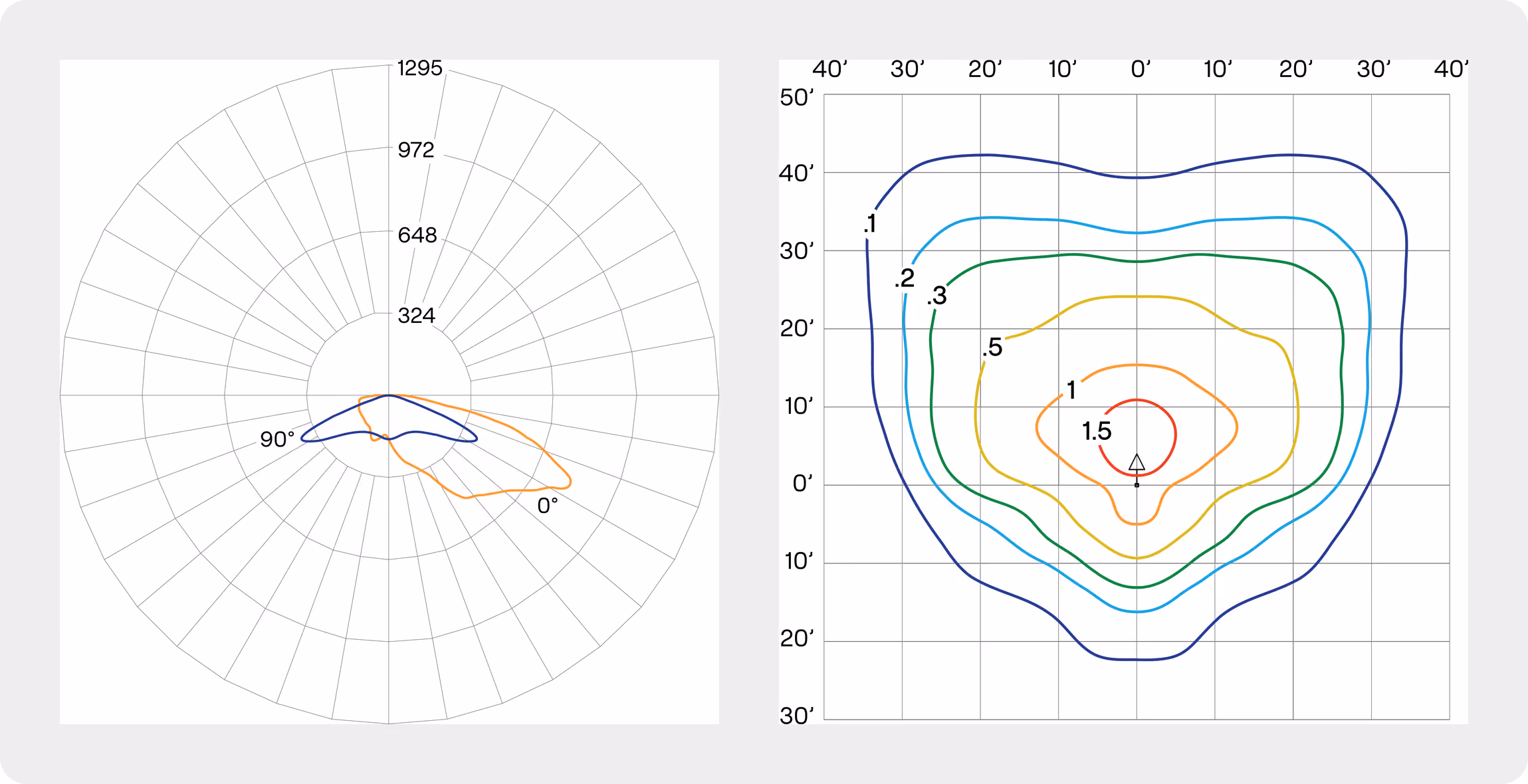

Photometric Diagrams

Overview

FLT's optical solutions efficiently focus light where it’s needed. There are several standard lighting distributions that optimize performance for different applications. Each lighting distribution is full cutoff and compliant with DarkSky requirements. Measurements are in footcandles.

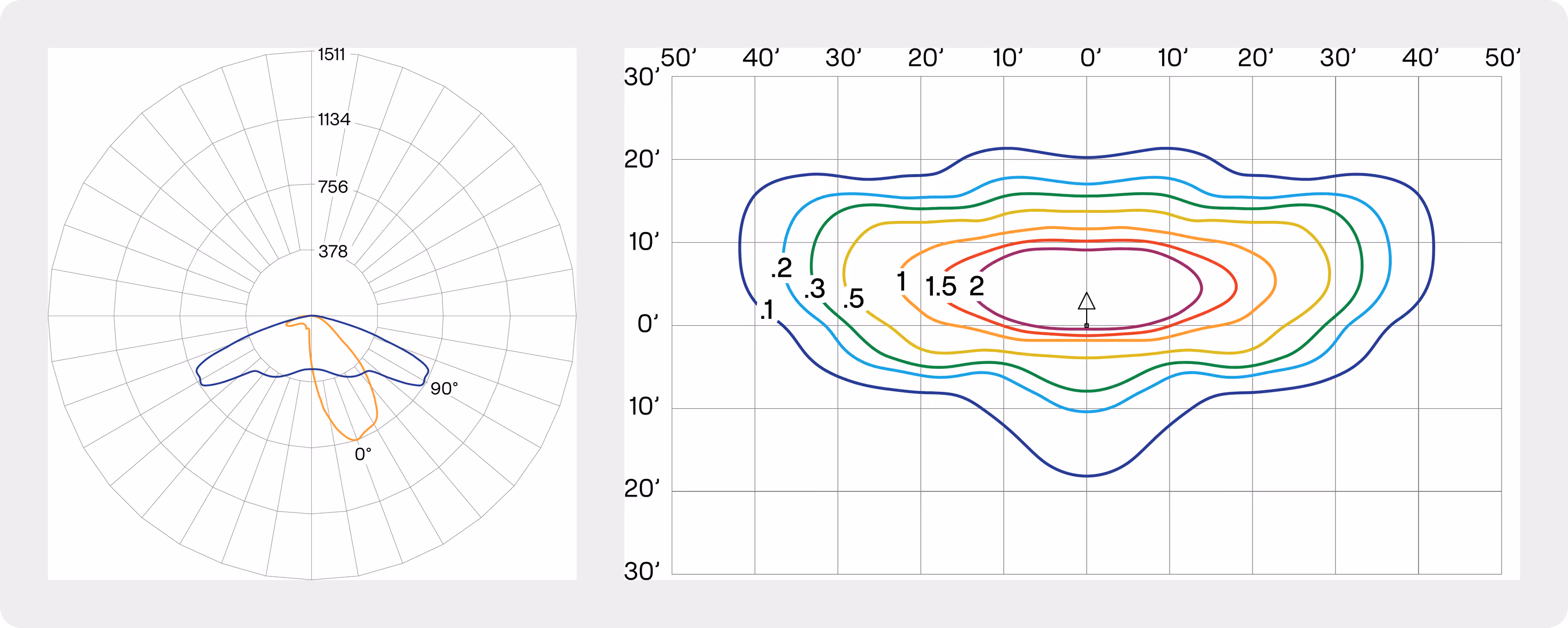

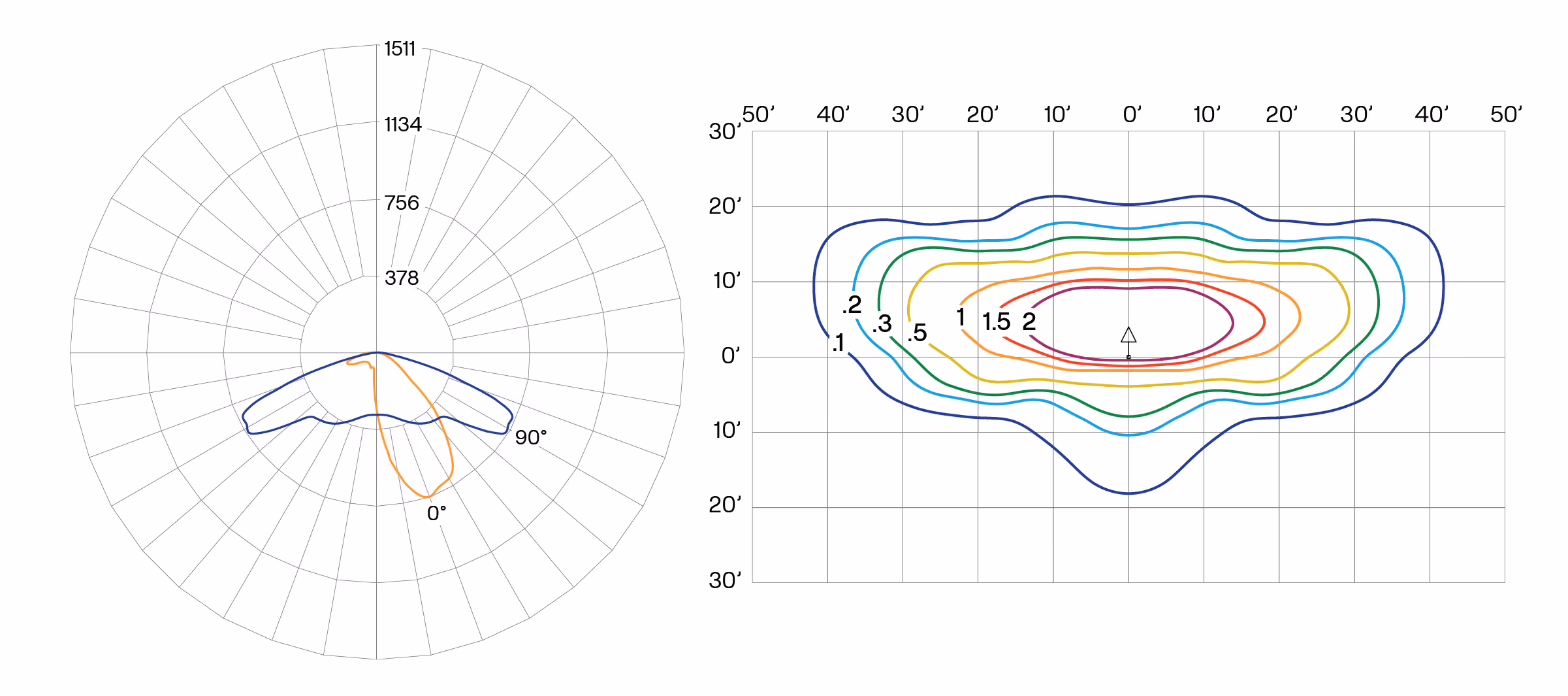

Type 2

Two scientific plots: a polar plot on the left with a red irregular shape and a rectangular contour plot on the right showing layered colored curves from blue to red.

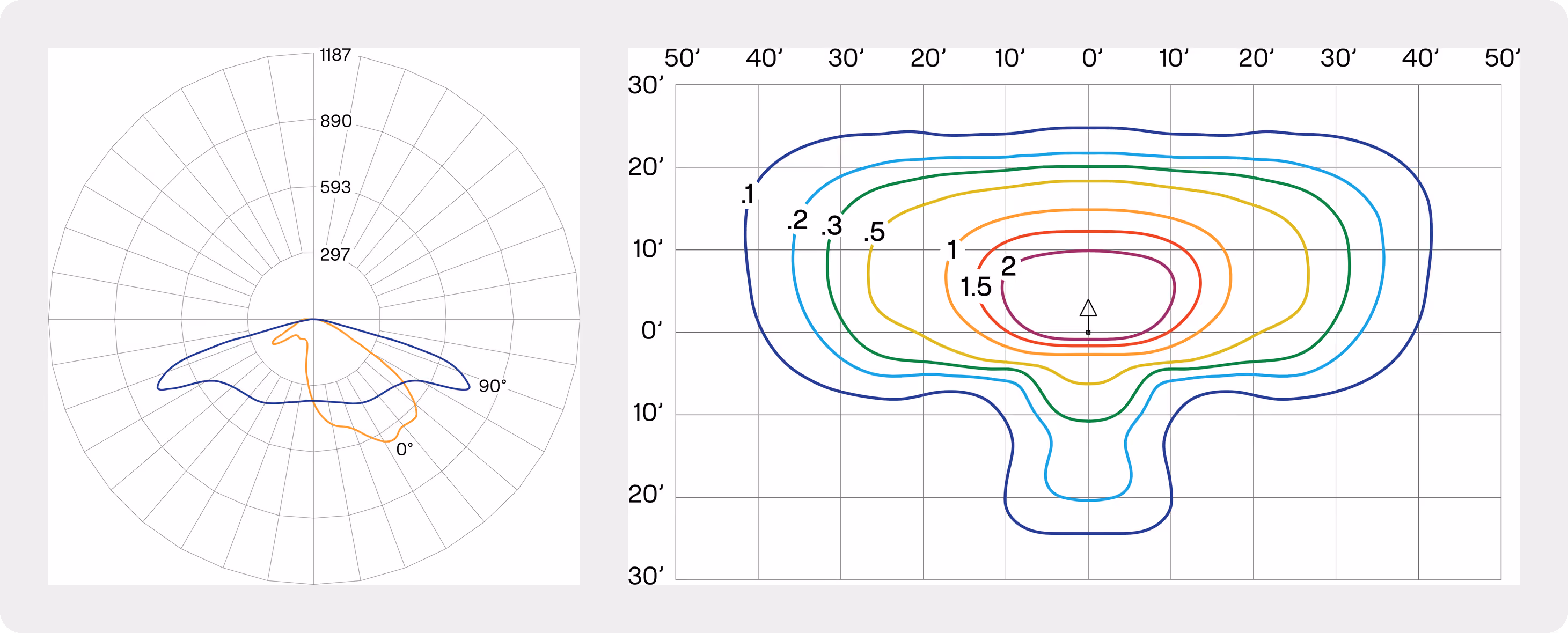

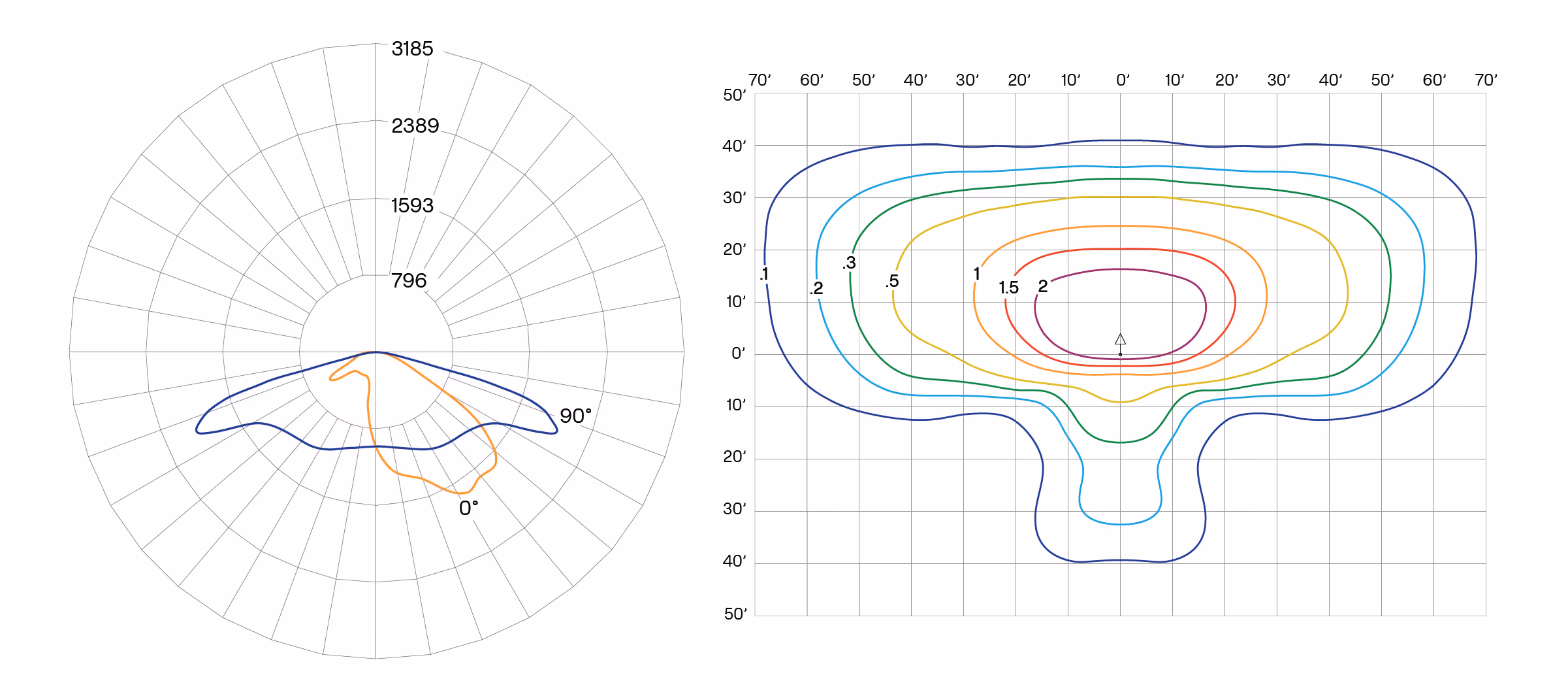

Type 3

Two scientific plots: left is a polar grid with radial lines and a red outlined irregular shape; right is a contour plot with multiple colored contour lines on a black background.

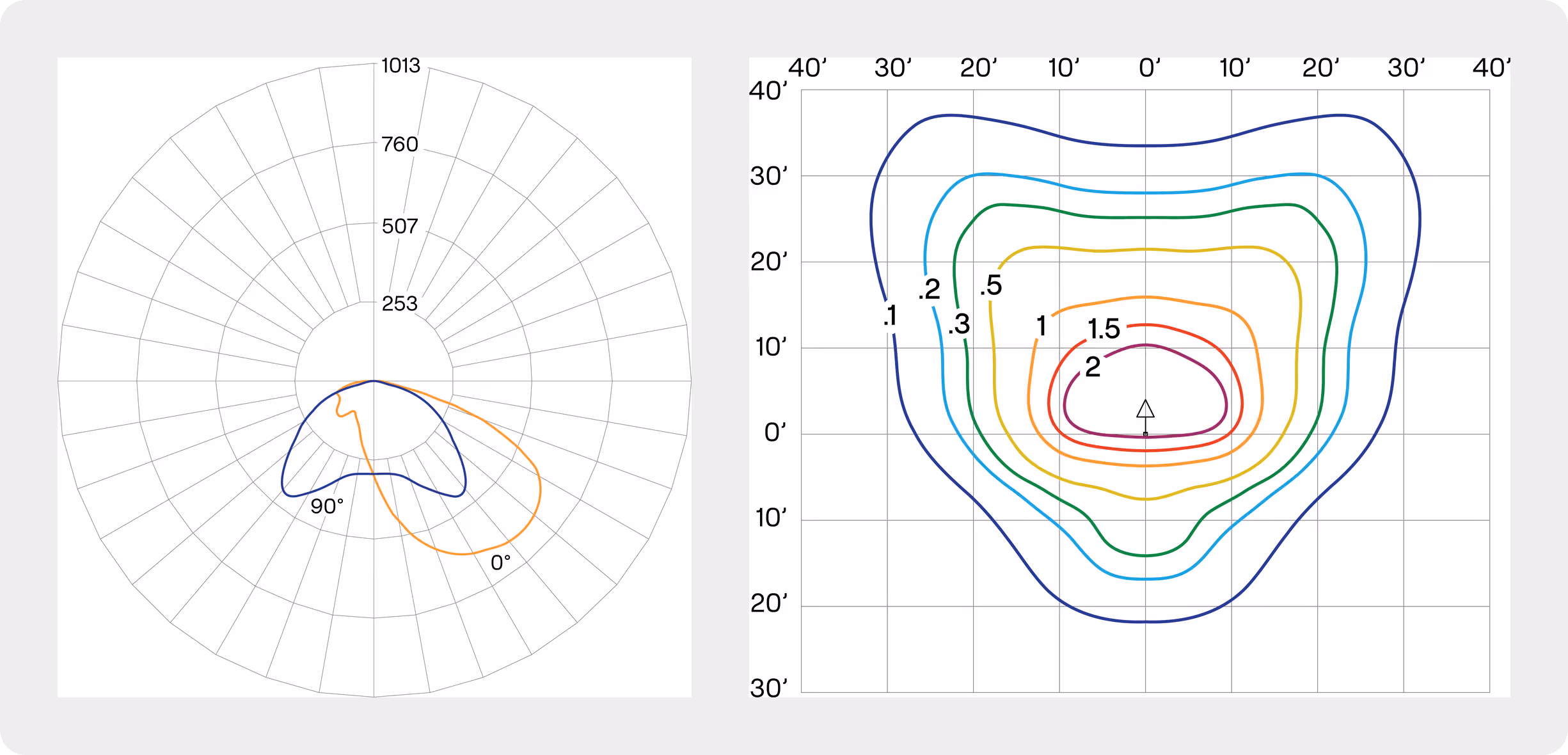

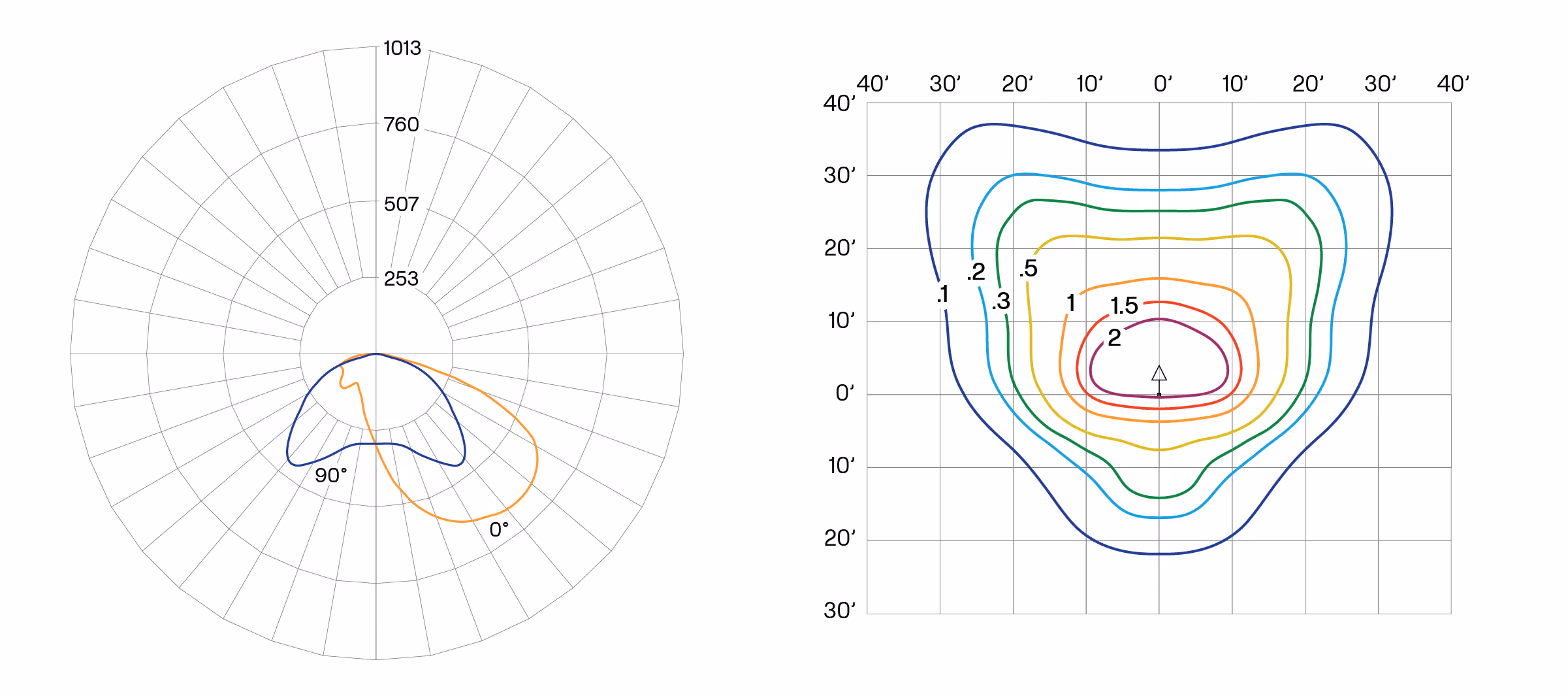

Type 4

Two scientific plots side by side: a polar plot on the left with multiple radial lines and a highlighted red closed curve, and a color-coded contour plot on the right with concentric irregular shapes in colors from purple to blue.

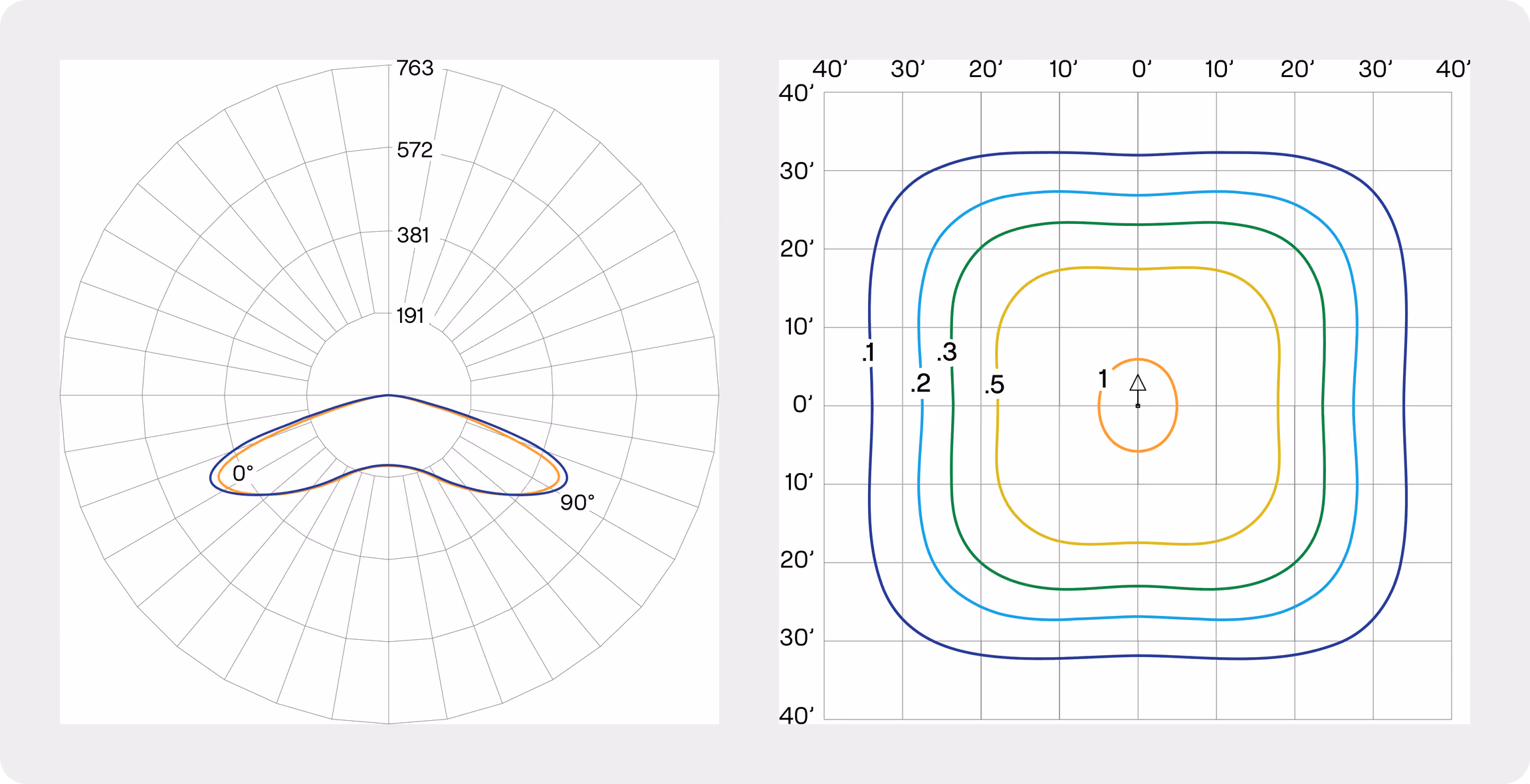

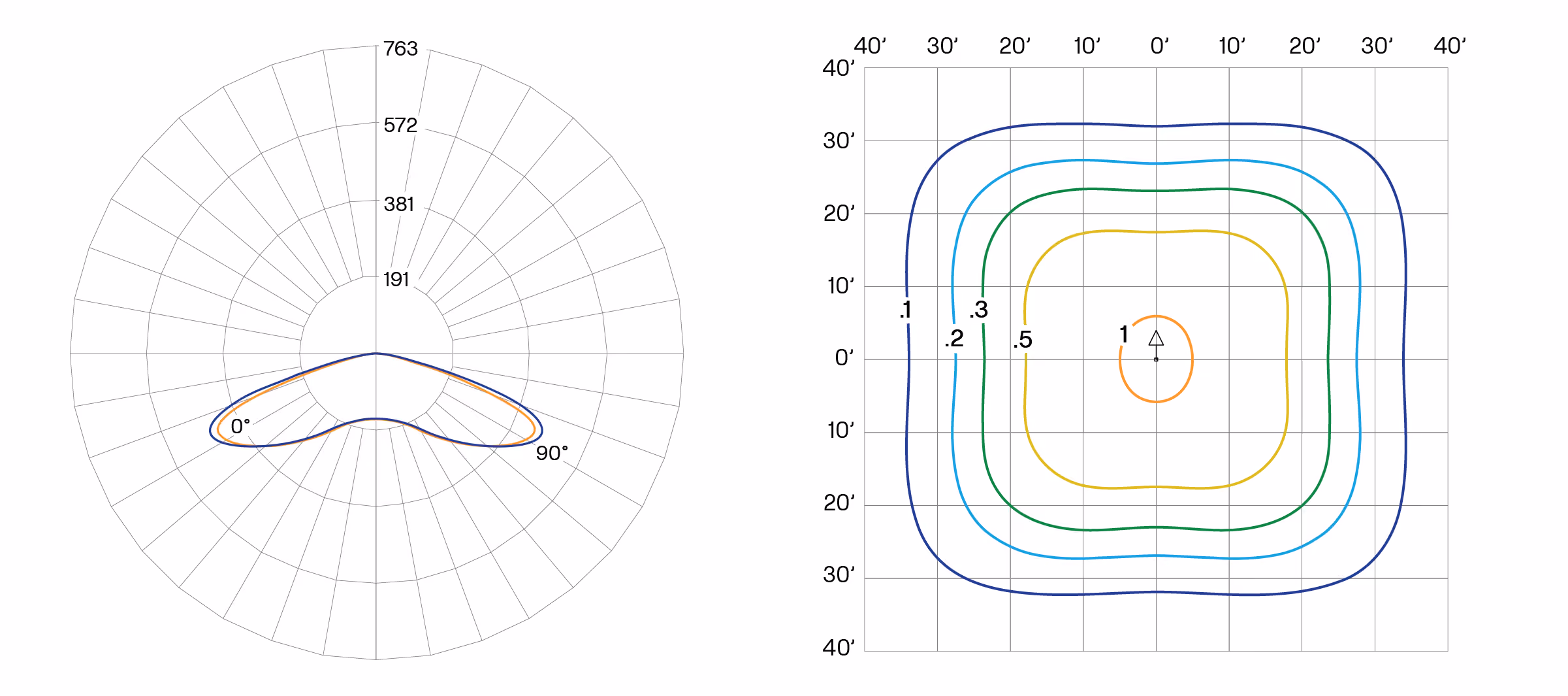

Type 5

Two plots showing a red polar curve on the left and four colored contour lines on the right within a grid.

Technical Specifications

Technical Specifications

Style
Contemporary solar area light
Fixture Dimensions
15.8 inches x 18.9 inches
Fixture Height
6.5 inches (16.6cm)
Fixture Weight
22.2 lbs (10.1 kg) including battery
EPA
0.54 feet2 (0.05 m2)
Construction
Rugged cast-aluminun
Stainless fasteners
Pre-drilled for seamless installation
Finish
Architectural grade, durable TGIC powder coat
Powder Coat Color
Bronze, Black, Gray, White or Custom color

Mounting Specifications

Mounting Options
Side pole mount
Drill Patern
Two clearance holes for 1/4″ bolts with 2″ on-centre spacing

Pole Recommendations

Pole Considerations
FLT offers a range of poles that are seamlessly matched to the SCL luminaire. We’re always available to answer questions about mounting, poles, or installation for your project.
Pole Shape Options
The SCL can be affixed to any square or round pole greater than 3 inches in diameter
Pole Height Options
10 feet
12 feet
14 feet
Pole Material Options
Aluminum and steel options are available

Adaptive Intelligence

Management
Intelligently manages lighting performance based on environmental conditions and lighting requirements
Data Logging
On-board multi-year data logging
Integration
Microcontroller and electronics integrated within the luminaire
Motion Sensing
Equipped for motion sensing

LED Engine & Controller

Lumen Output
1360 lumens
Color Temperature & Amber Options
4000K Not DarkSky compatible
3000K DarkSky Approved
2700K DarkSky Approved
Amber (595nm) DarkSky Approved
LED Lifetime
100,000 hour LED L70 lifetime
Control
High-efficiency, Maximum Power Point Tracking (MPPT) battery charger
High-efficiency integrated LED driver
Integrated optics maximize application efficiency and light distribution

Power

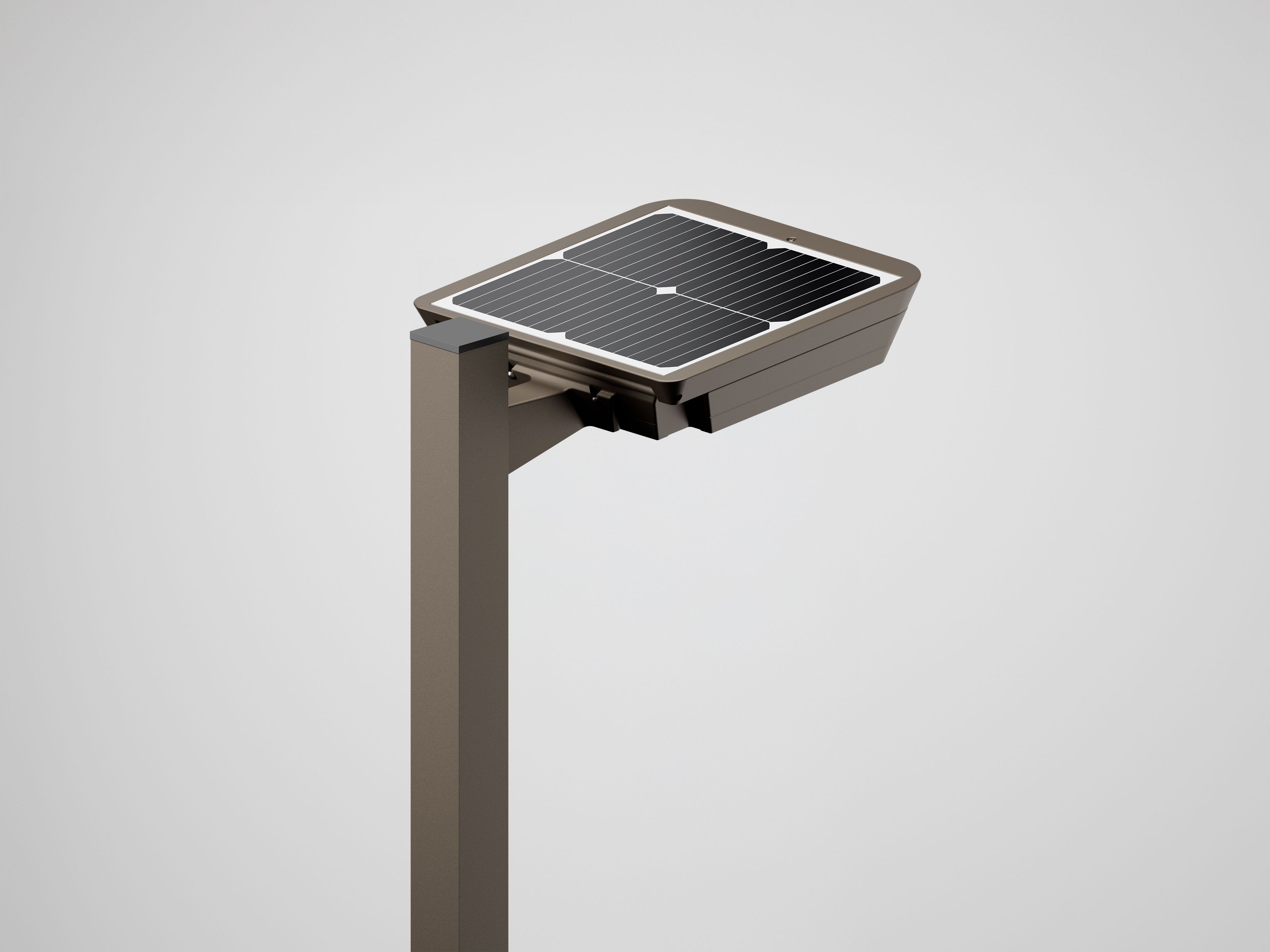

Solar Panel
Industry’s most efficient solar panel technology

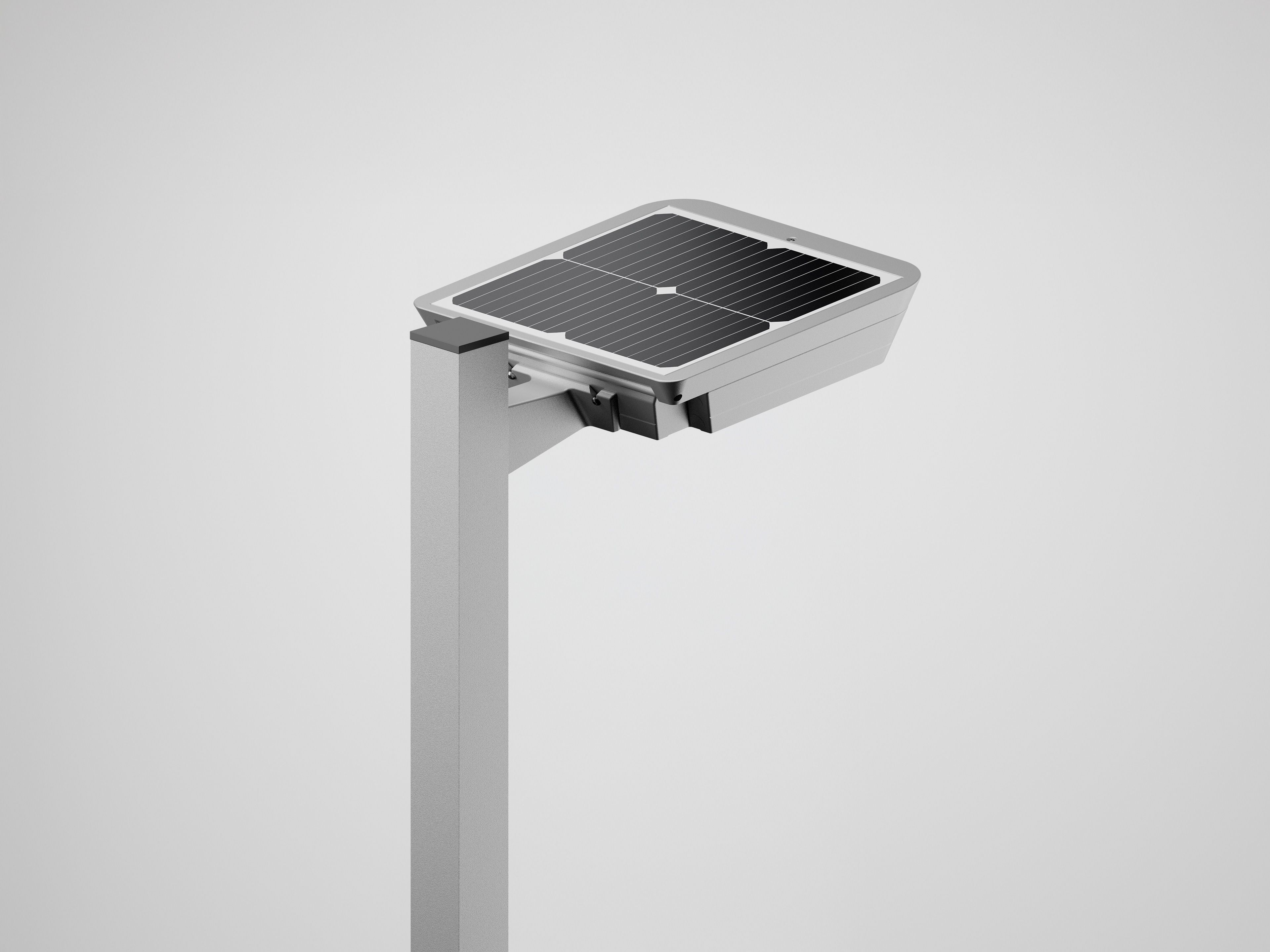

Integrated into the top of the luminaire
Active cell technology optimizes power generation even when partially blocked
Battery
High-performance Lithium Iron Phosphate (LiFePO4) technology
Exceptional 10+ year life cycle
High and low temperature tolerance
Integrated within the luminaire housing
Optical
High-efficiency type 2, 3, 4, and type 5 full cutoff optics
Optional backlight shield
Achieves pathway and area lighting standards with typical output of 1360 lumens
B0 – U0 – G1 BUG Rating

Downloads & Resources

Supporting Resources

Spec Sheets

SCL Spec Sheet
PDF Download

IES Files

SCL IES Files
PDF Download

Installation

SCL Installation Instructions
PDF Download

Backlight Shield Kit Installation

SCL Backlight Shield Kit Installation Instructions
PDF Download

Lighting Profile Sheet

Choosing the right lighting profile
PDF Download

Ideal Applications

Area

SCL is engineered for optimal performance in area environments, providing reliable solar-powered illumination without trenching or wiring.

Pathways

SCL is engineered for optimal performance in pathways environments, providing reliable solar-powered illumination without trenching or wiring.

Parks

SCL is engineered for optimal performance in parks environments, providing reliable solar-powered illumination without trenching or wiring.

Parking lots

SCL is engineered for optimal performance in parking lots environments, providing reliable solar-powered illumination without trenching or wiring.

Plazas

SCL is engineered for optimal performance in plazas environments, providing reliable solar-powered illumination without trenching or wiring.

Perimeter Security

SCL is engineered for optimal performance in perimeter security environments, providing reliable solar-powered illumination without trenching or wiring.

Wildlife Settings

SCL is engineered for optimal performance in wildlife settings environments, providing reliable solar-powered illumination without trenching or wiring.

Reliability & Warranty

•
Tested for high- & low- heat and humidity
•
5-year warranty
•
10+ year battery life
•
20-year lifespan
•
Designed and manufactured in North America
