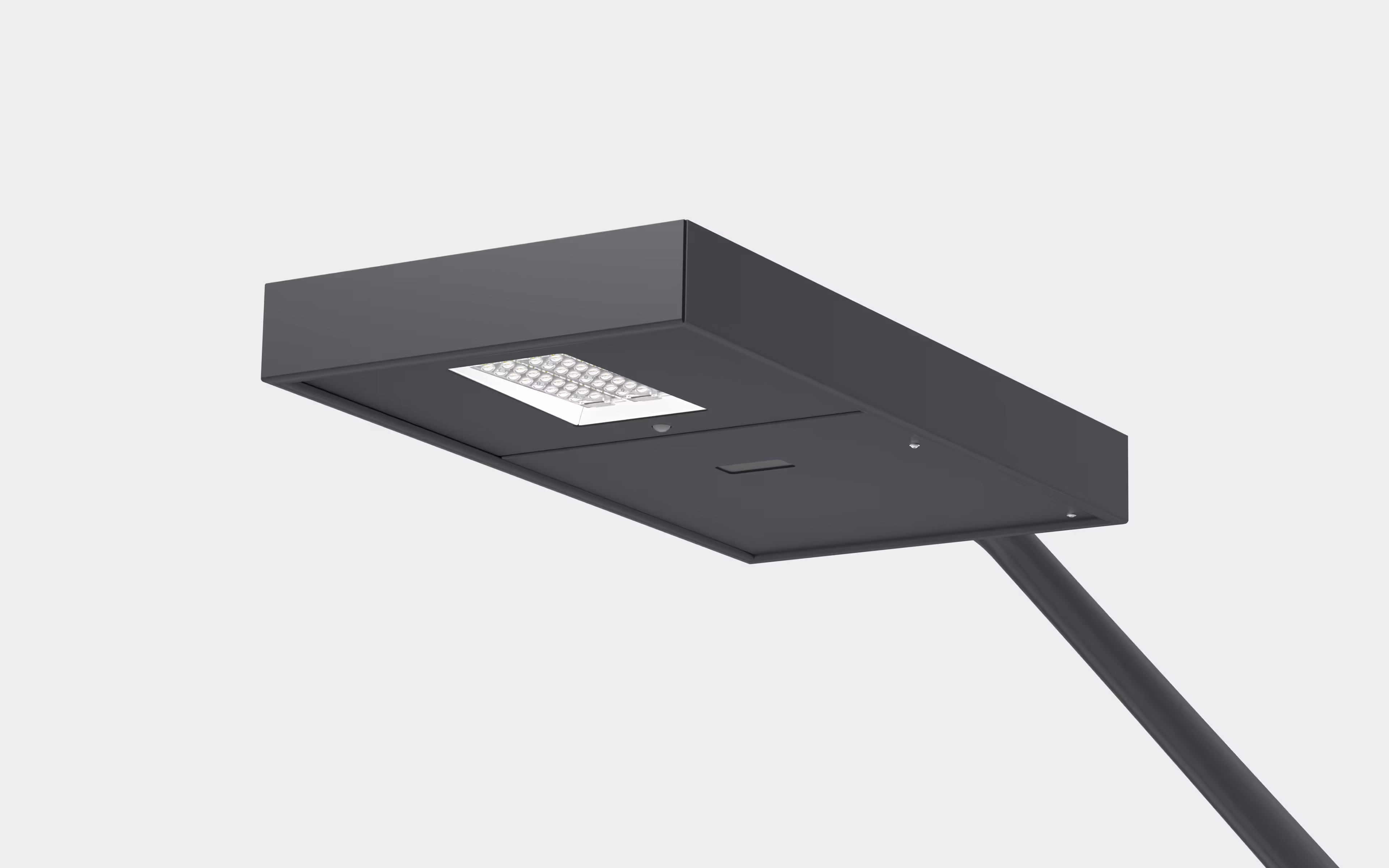

SCL3
The SCL3 is the brightest solar light we offer, easily illuminating large areas and streets with a self-contained panel that offers communities a minimalist design.
Best for Streets, Pathways, Parking Lots and Area Lighting
Product Details:
•
Lumen Output: 8060 lm
•
Color Temperature: 2700K, 3000K, 4000K
•
Optical: Type 2, 3, 4, 5 full cutoff optics
•
Heights: 16-25 ft
•
Connectivity: FLT Link remote monitoring (optional add-on)
•
Minimalist design to eliminate visual clutter in communities
•
Illuminates large residential and commercial areas
.avif)
Product Overview
When reliable solar illumination is required, the SCL3 is the perfect solution for streets, pathways and parking lots.
Available Finishes
Match your project's palette with
a custom powder coat finish.
a custom powder coat finish.

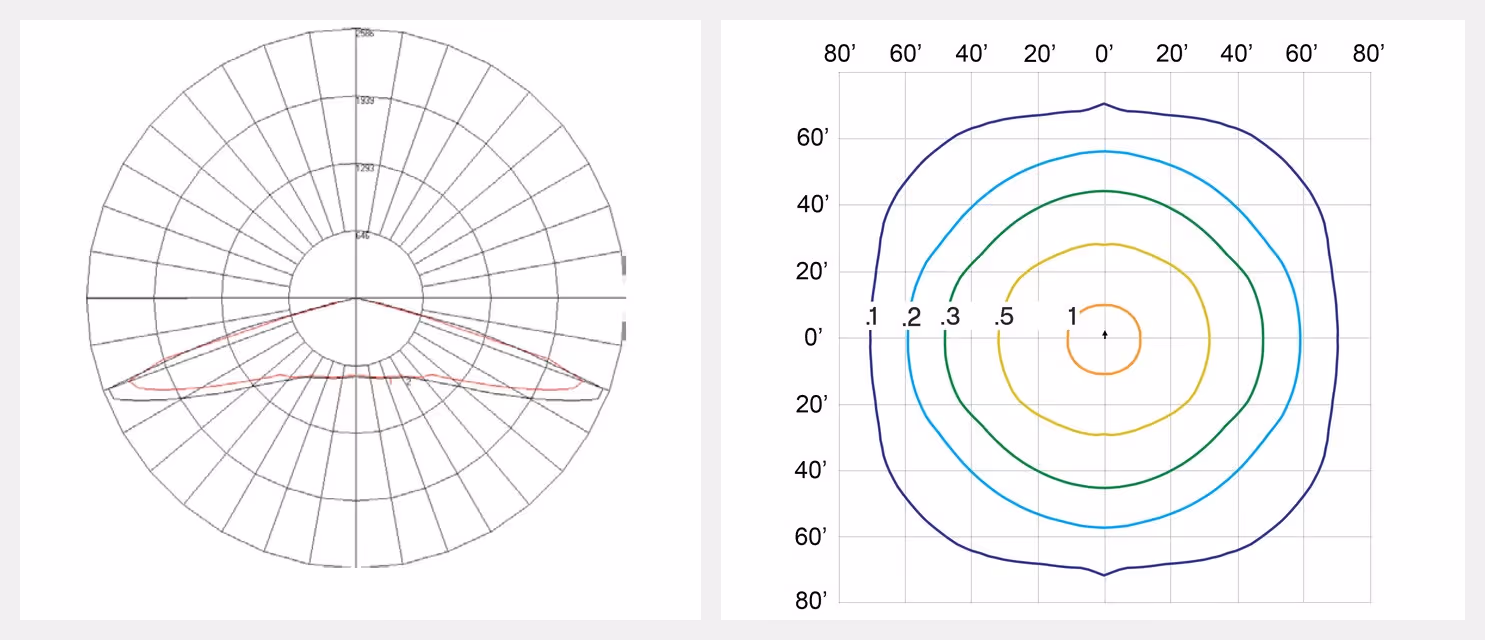

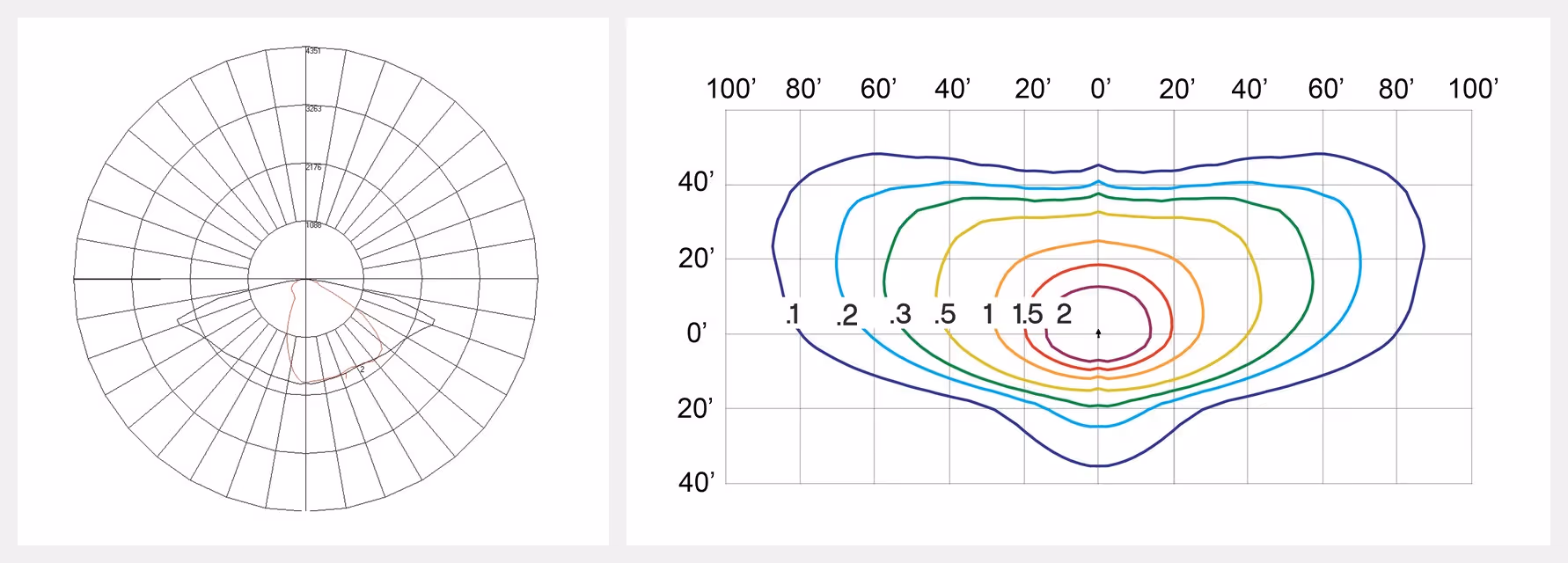

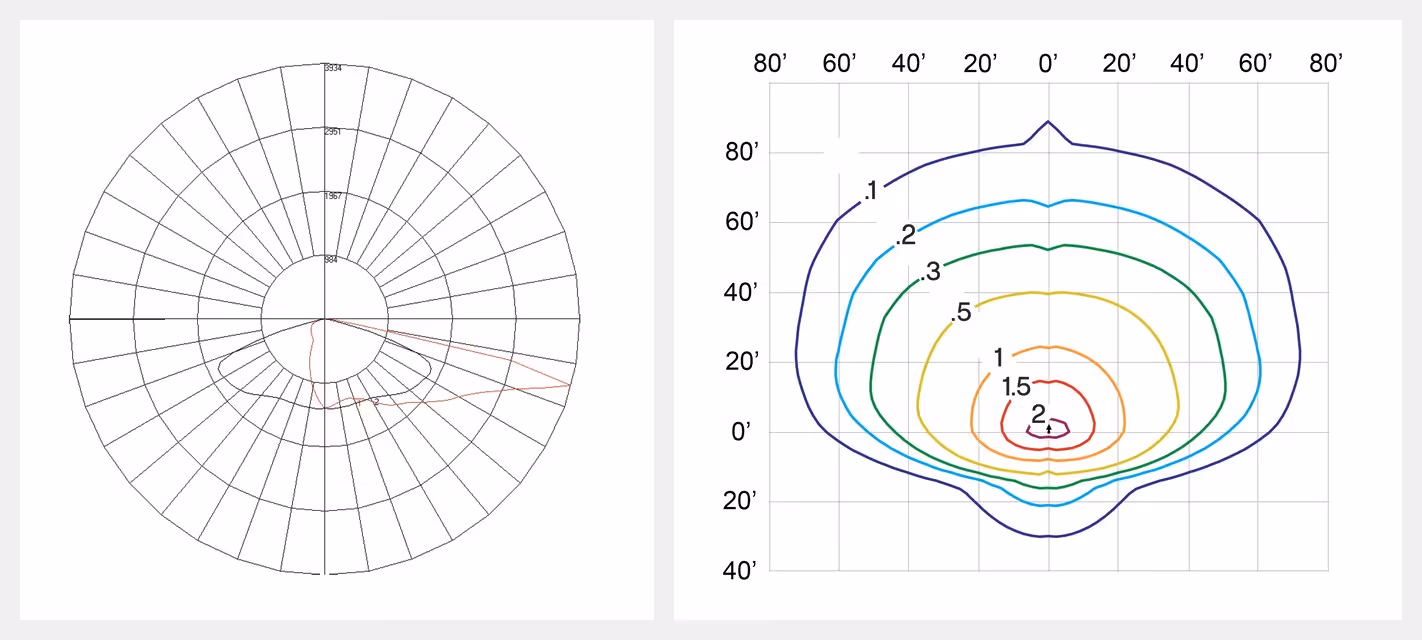

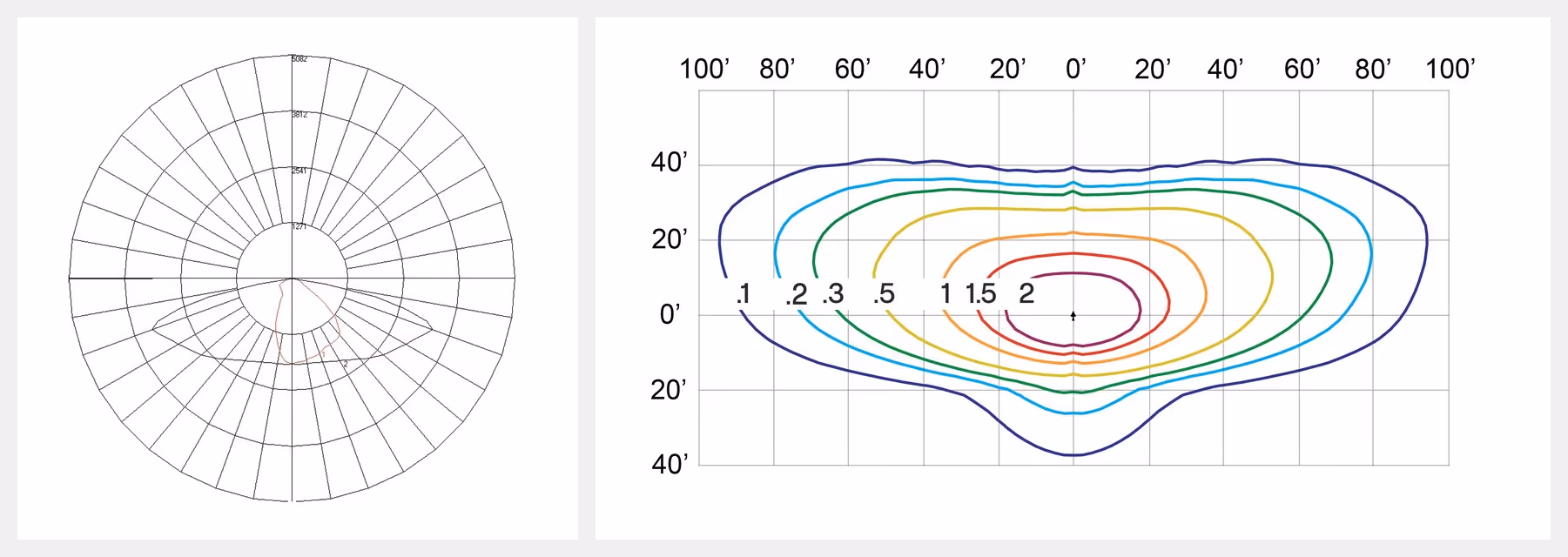

Photometric Diagrams
Overview
FLT's optical solutions efficiently focus light where it’s needed. There are several standard lighting distributions that optimize performance for different applications. Each lighting distribution is full cutoff. Measurements are in footcandles.
Type 2
Type 3
Type 4
Type 5
Technical Specifications
Technical Specifications
Style
Contemporary solar area light
Fixture Diameter
41.1 in x 21.0 in (1044mm x 534mm)
Fixture Height
4.4 in (111mm)
Fixture Weight
65 lbs (29.5 kg)
Luminaire EPA
1.5 ft² (0.139 m²)
Construction
Durable aluminum body
Stainless fasteners
Pre-drilled for seamless installation
Stainless fasteners
Pre-drilled for seamless installation
Finish
Architectural grade powder coat rated to superdurable AAMA 2604 specifications
Powder Coat Color
Bronze, Black, Light Grey or Custom Color
Mounting Specifications
Mounting Options
2 3⁄8" Tenon Mount
Fits square, round, tapered poles or mast arm
Fits square, round, tapered poles or mast arm
Pole Recommendations
Pole Considerations
FLT offers a range of poles that are seamlessly matched to the SCL3 luminaire. We’re always available to answer questions about mounting, poles, or installation for your project.
Pole Shape Options
The SCL3 can be easily affixed as a side mount fixture on square, round or tapered poles
Pole Height Options
16 ft
18 ft
20 ft
25 ft
30 ft
18 ft
20 ft
25 ft
30 ft
Pole Material Options
Aluminum and steel poles are available
FLT Adaptive Intelligence™ Lighting Controller
Management
Intelligently manages lighting performance based on environmental conditions and lighting requirements
Smart dusk/dawn detection synchronizes across the installation using astronomical calculations
Automatically detects its timezone and sets its time for time of night profiles
Smart dusk/dawn detection synchronizes across the installation using astronomical calculations
Automatically detects its timezone and sets its time for time of night profiles
Data Logging
On-board multi-year data logging
Integration
Microcontroller and electronics integrated within the luminaire
Motion Sensing
Equipped for motion sensing
LED Engine & Controller
Lumen Output
8060 lm
Color Temperature
4000K
3000K
2700K
3000K
2700K
LED Lifetime
100,000 hour LED L70 lifetime
Control
High-efficiency, FLT ChargeLogic MPPT™ battery charger
High-efficiency integrated LED driver
Integrated optics maximize application efficiency and light distribution
High-efficiency integrated LED driver
Integrated optics maximize application efficiency and light distribution
Power

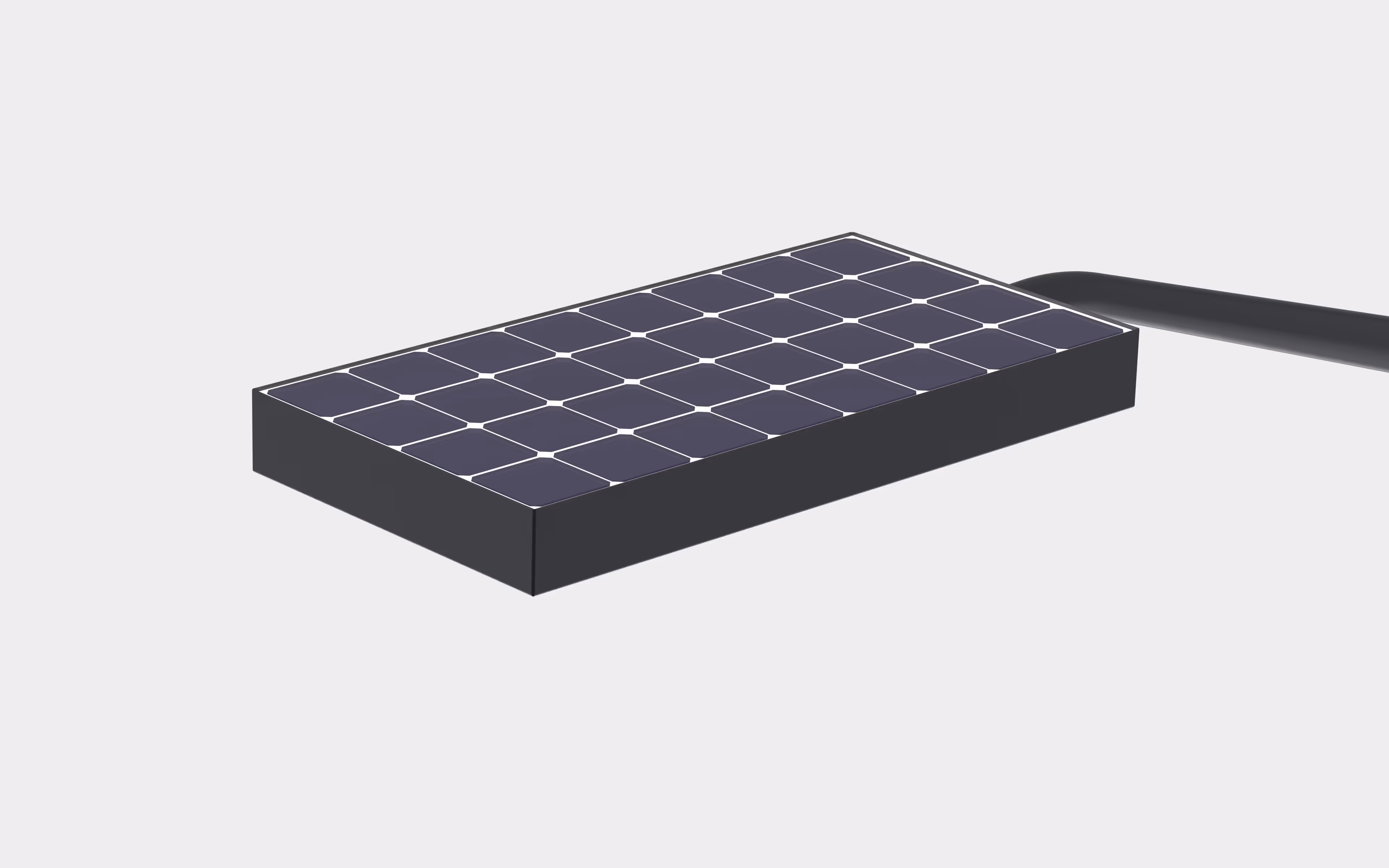

Solar Panel
Industry’s most efficient solar panel technology
Integrated into the top of the luminaire
Active cell technology optimizes power generation even when partially blocked
Integrated into the top of the luminaire
Active cell technology optimizes power generation even when partially blocked
Battery
High-performance FLT All-Weather™ LiFePO4 technology
Exceptional 10+ year life cycle
High and low temperature tolerance
Integrated within the luminaire housing
Exceptional 10+ year life cycle
High and low temperature tolerance
Integrated within the luminaire housing
Optical
High-efficiency type 2, 3, 4, and 5 full cutoff optics
Optional backlight shield
Achieves pathway and area lighting standards with typical output of 8060 lumens
B1 – U0 – G1 (T3) BUG Rating
Optional backlight shield
Achieves pathway and area lighting standards with typical output of 8060 lumens
B1 – U0 – G1 (T3) BUG Rating
Downloads & Resources
Supporting Resources
Spec Sheets
SCL3 Spec Sheet
PDF Download
IES Files
SCL3 IES Files
PDF Download
Installation
Install Instructions
PDF Download
Lighting Profile Sheet
Choosing the right lighting profile
PDF Download
Reliability & Warranty
•
Tested for high & low heat and humidity
•
5-year warranty
•
10+ year battery life
•
20-year lifespan
•
Designed and manufactured in North America
