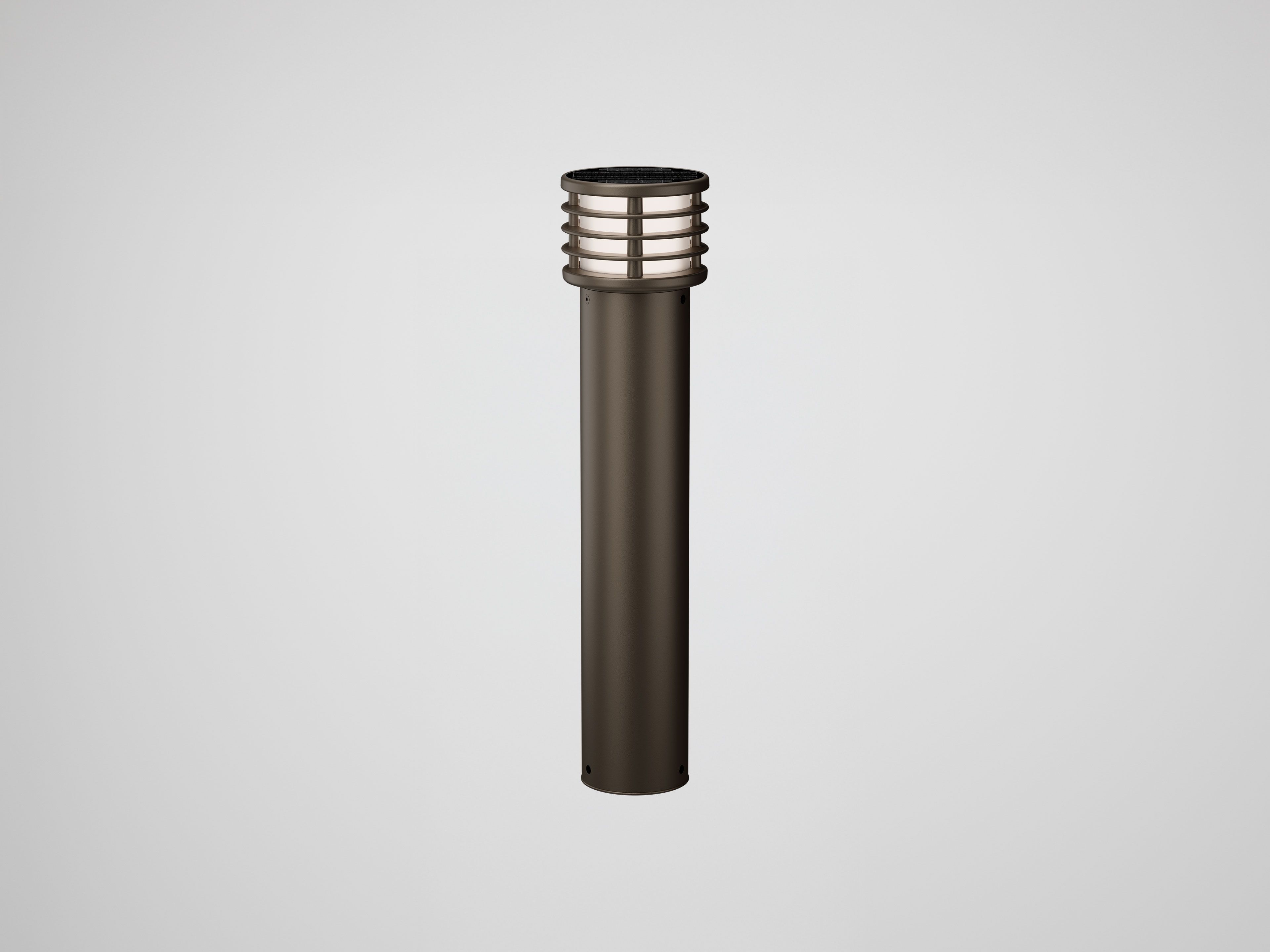

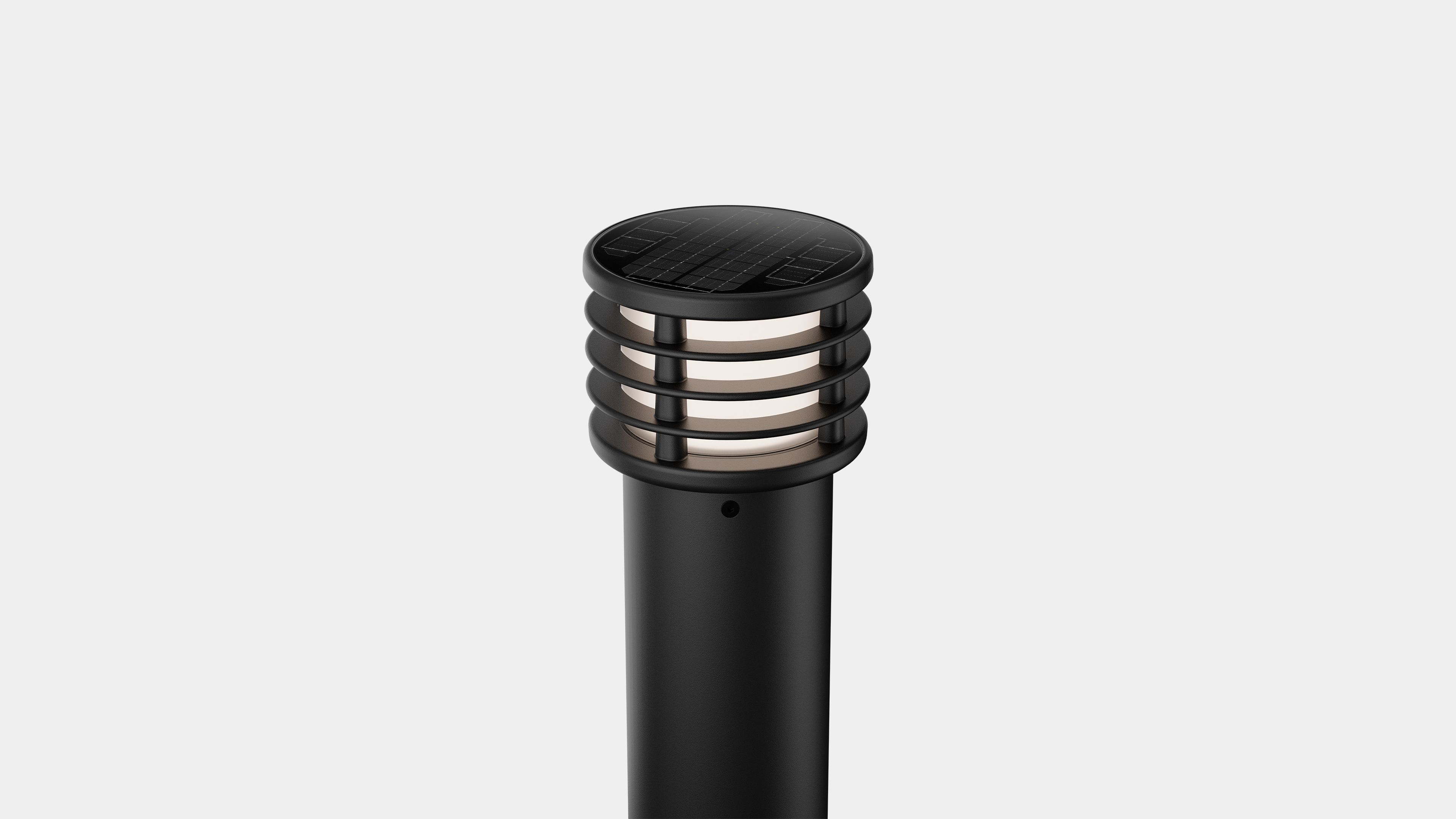

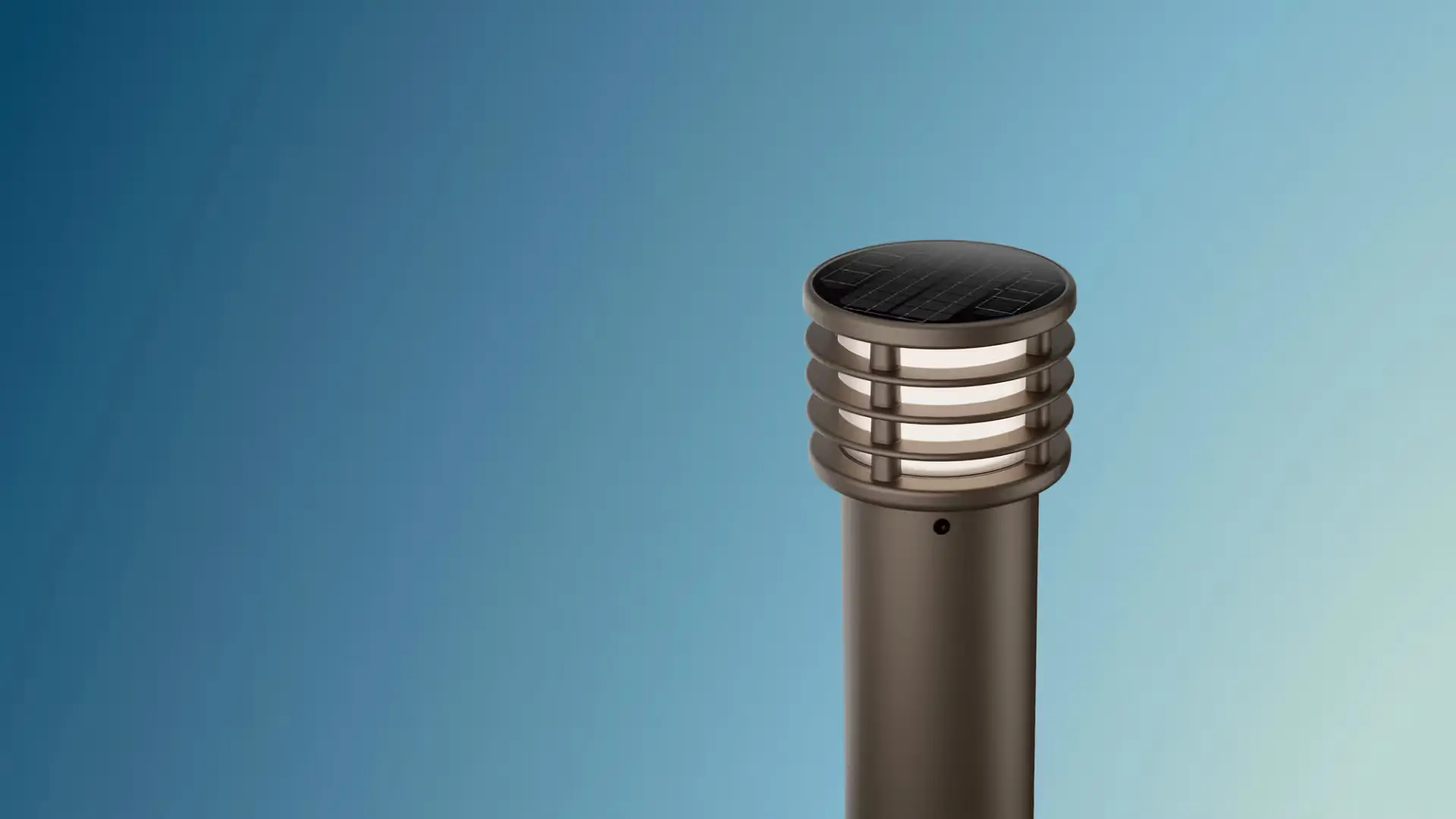

Modern outdoor solar-powered garden lamp with a cylindrical metal body and horizontal rings around the light.

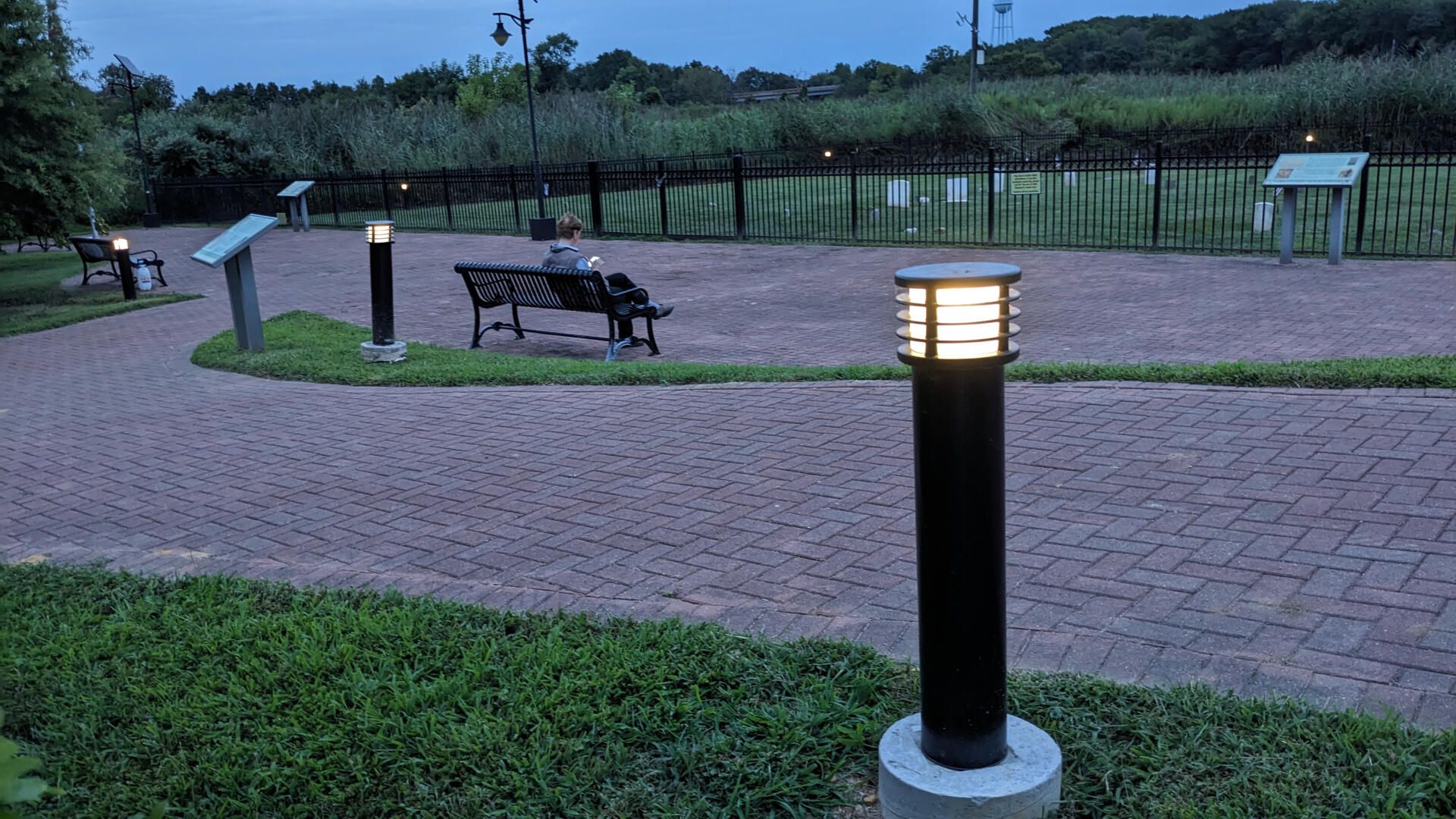

Person sitting on a bench in a park at dusk near illuminated path lights and brick-paved pathways.

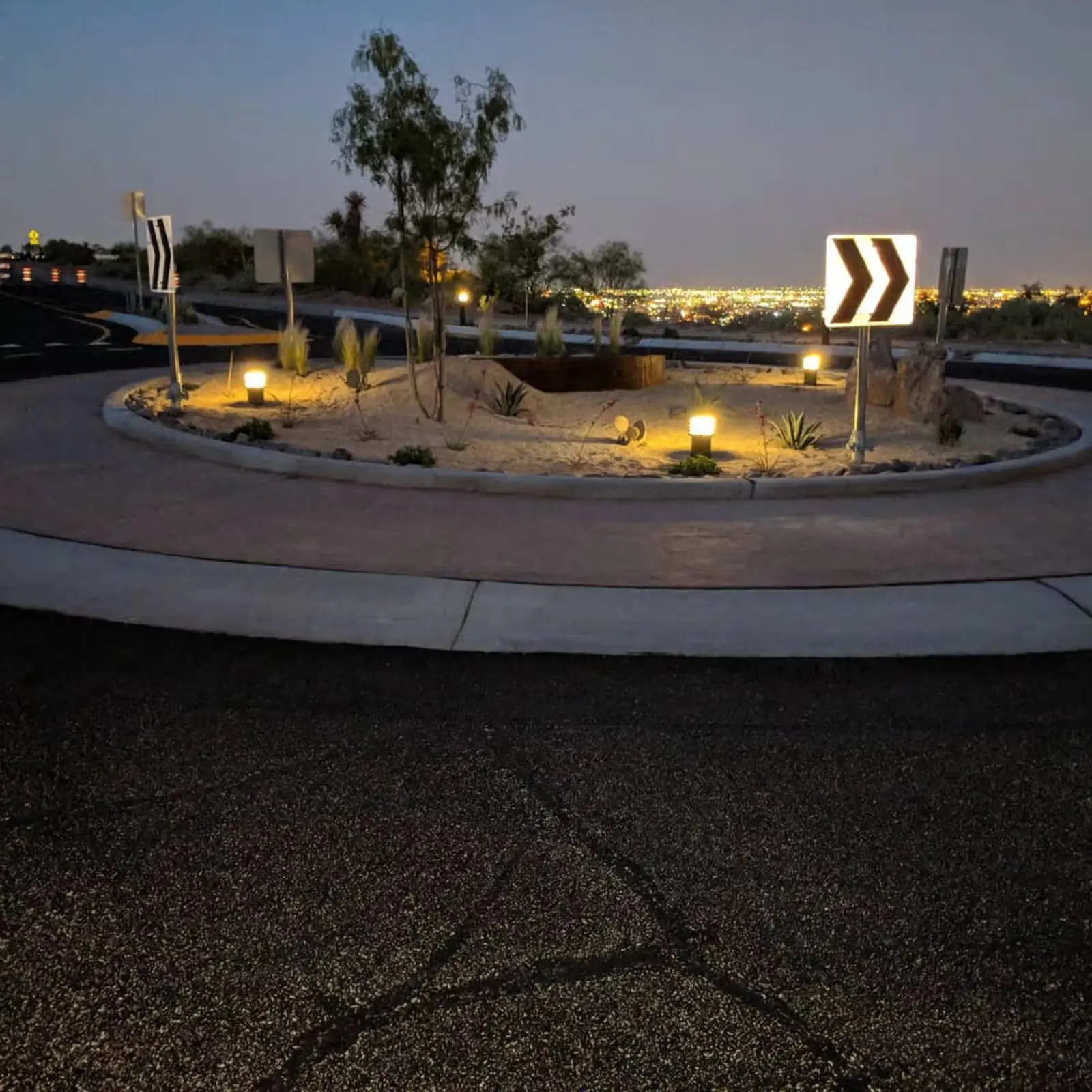

Night view of a desert-themed roundabout with illuminated arrow signs and city lights in the background.

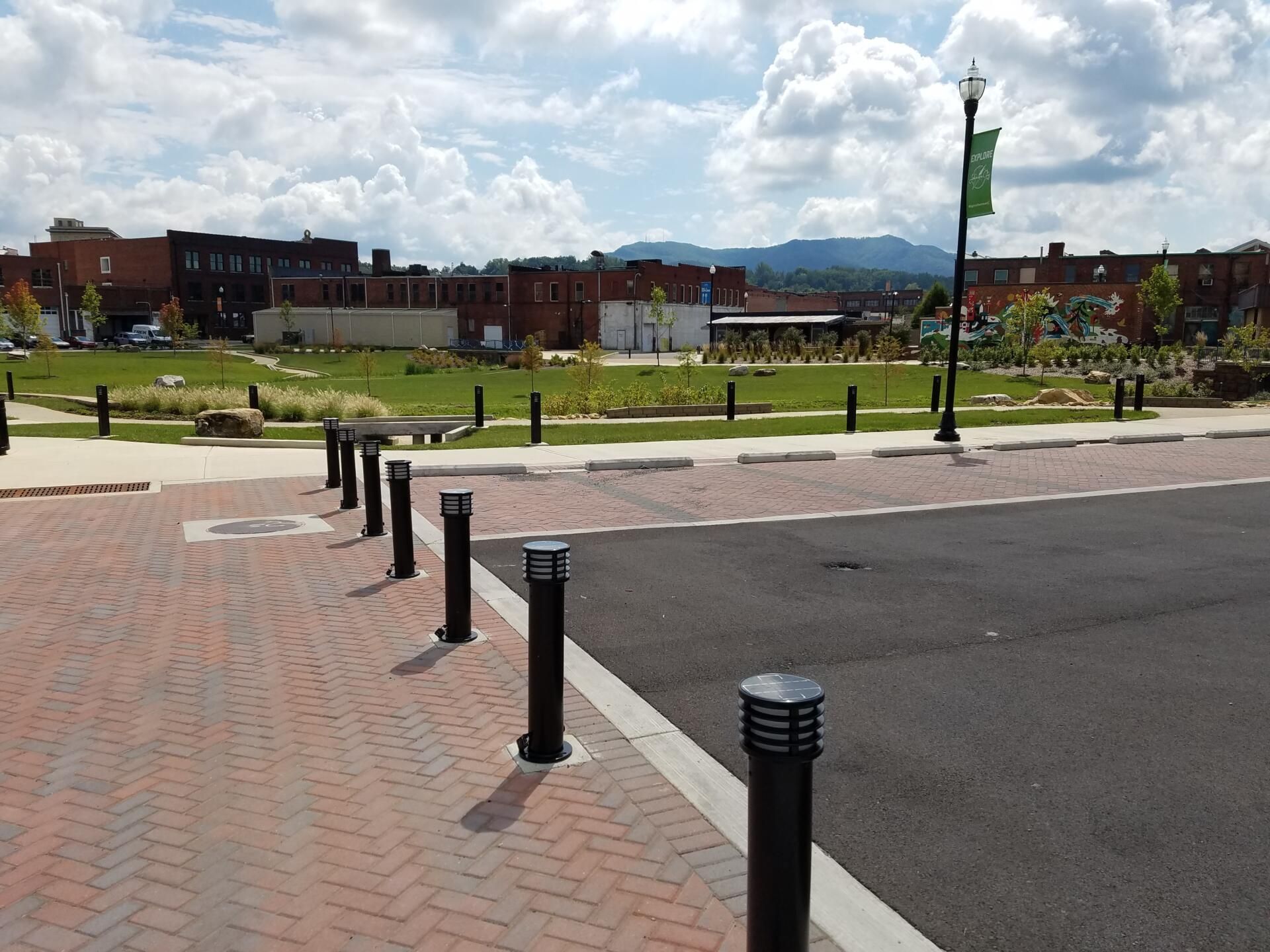

Urban park with green lawn, brick sidewalk, black bollards, street lamp, and red brick buildings under a partly cloudy sky.

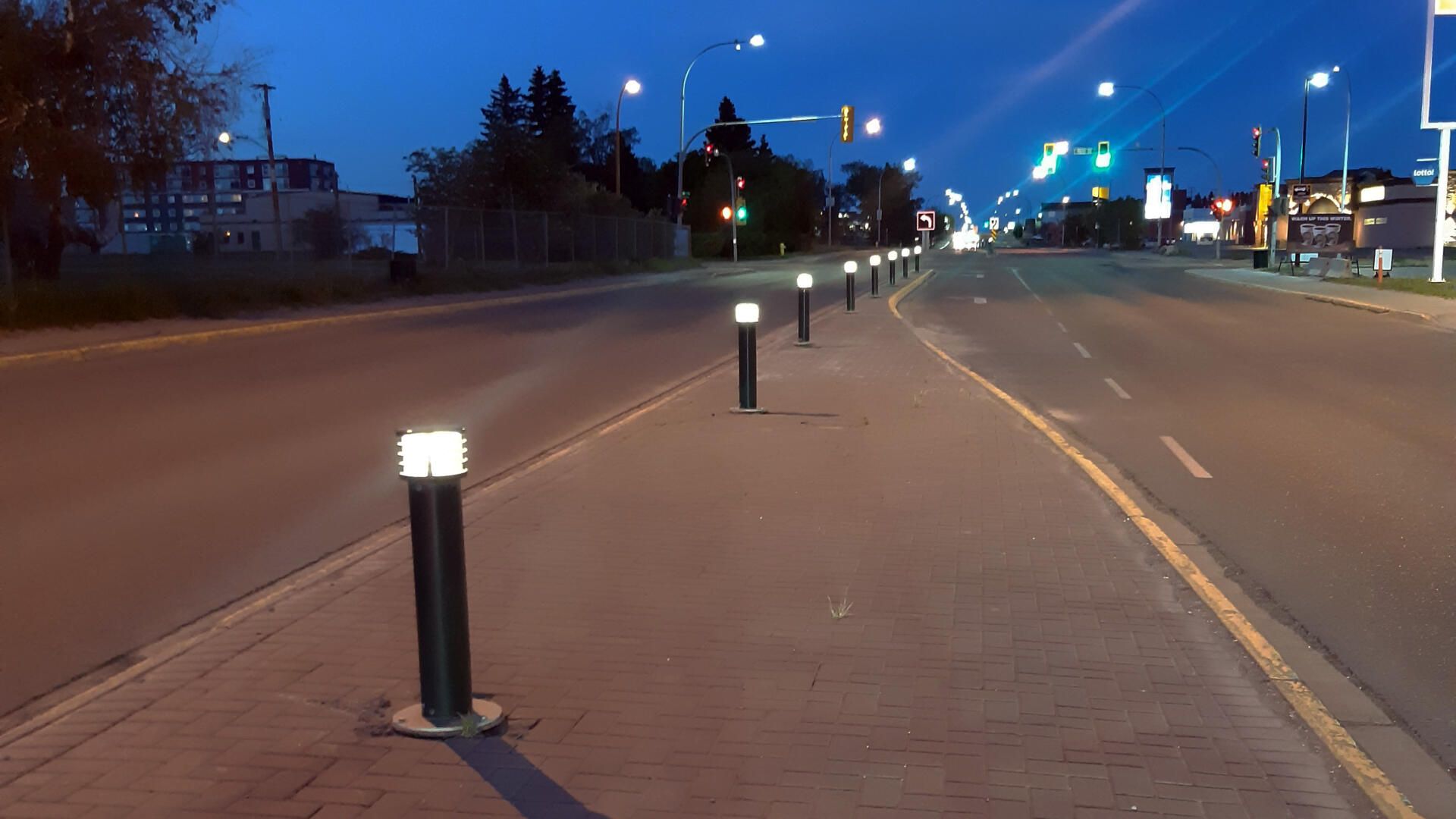

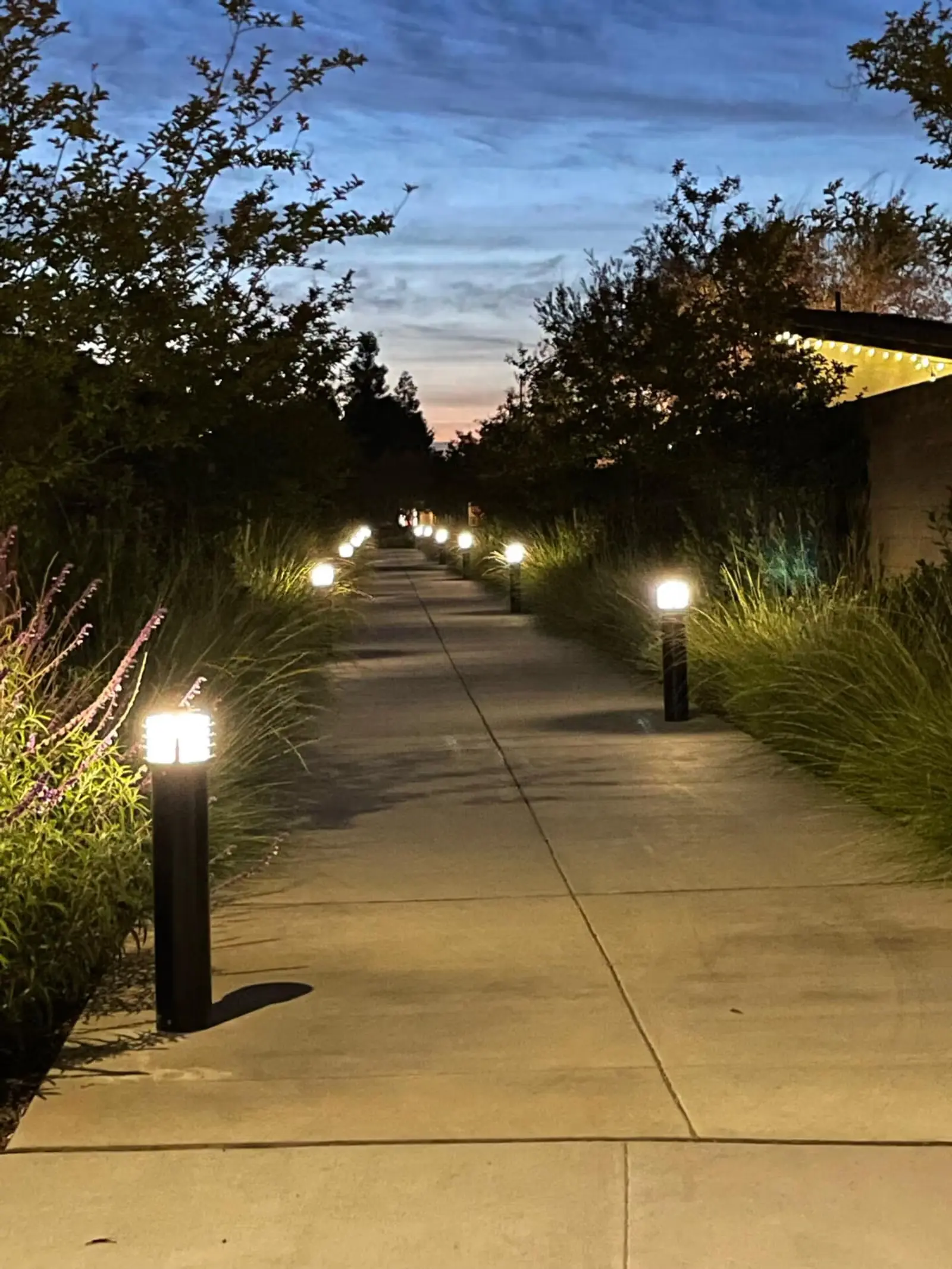

Evening sidewalk lined with glowing pathway lights and bordered by grass and trees under a darkening sky.

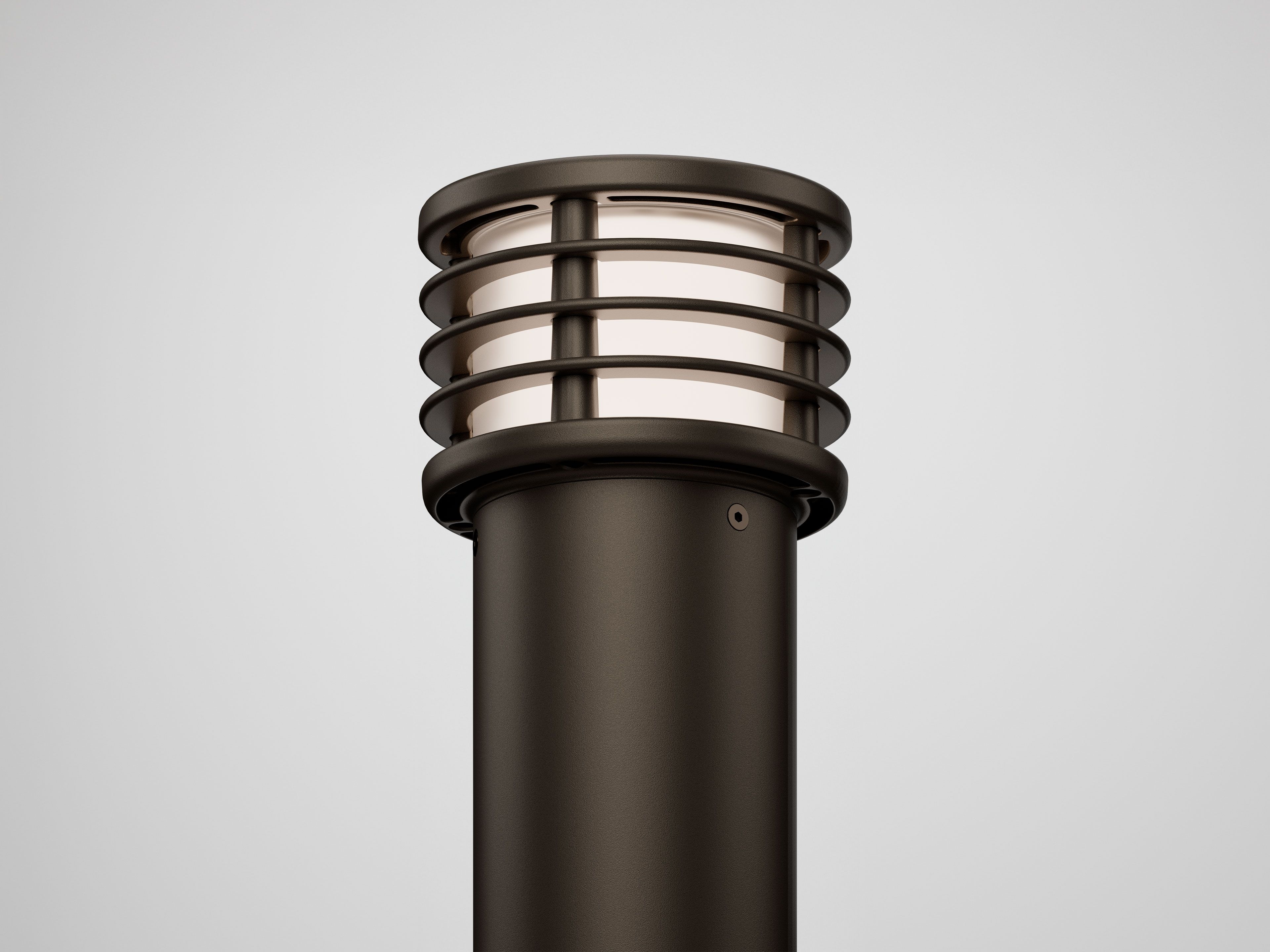

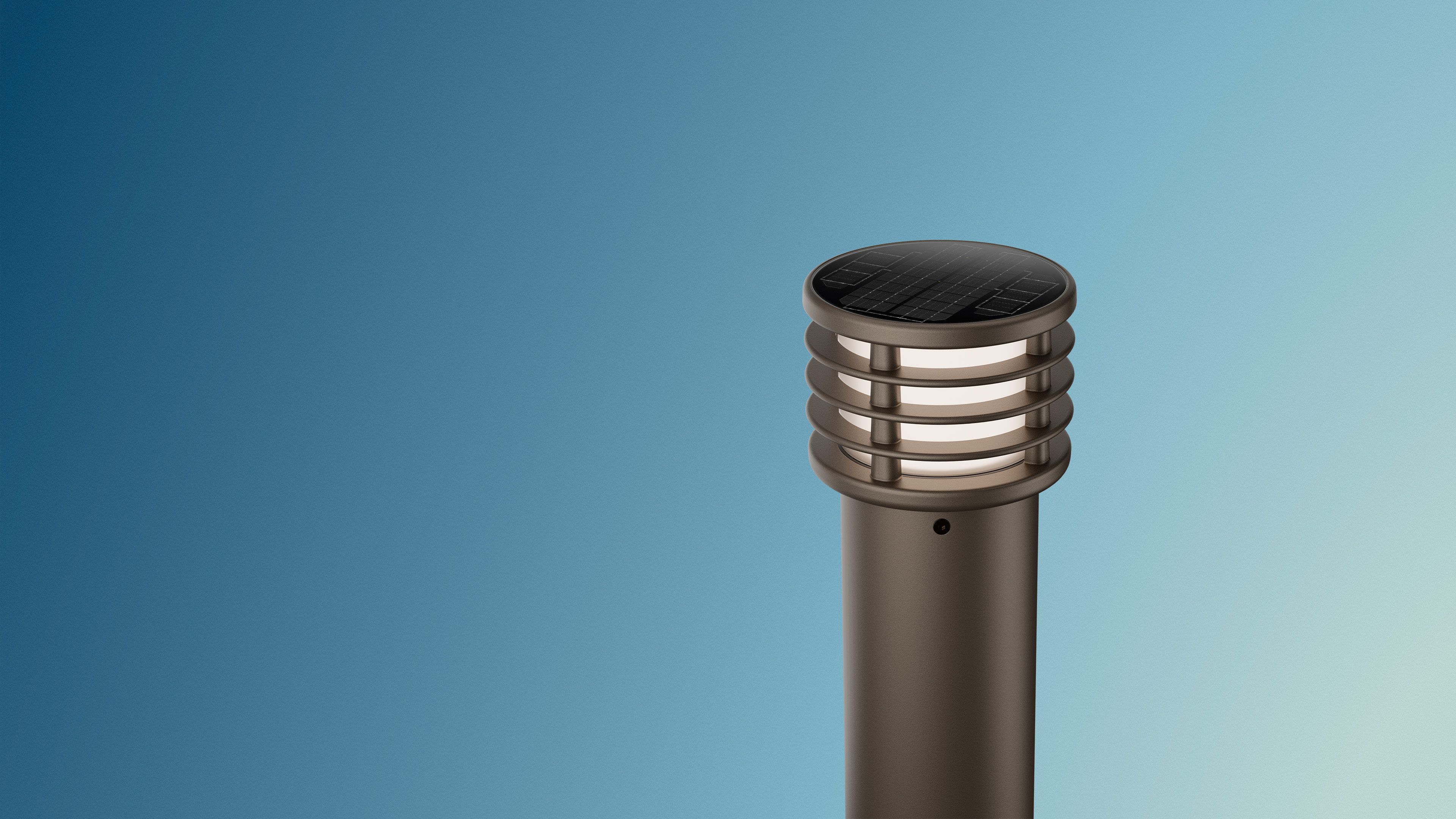

WLB

When illuminated visual separation is the goal, the WLB is the perfect solution for pathways and plazas requiring subtle wayfinding guidance. Integrated solar with a distinctive louvered design—no trenching, no wiring, no maintenance.

request a quotedownload spec sheetDownload IES File

Product details

•
Lumen Output: 130 lumens
•
Color Temperature: 2700K, 3000K, 4000K, Amber (595nm)
•
Optical: Symmetrical light distribution

Best for

Pathway, Walkway, Garden

Product details

•
No wiring, trenching, or electrical service required
•
Self-contained build designed to improve project aesthetics
•
Cost-effective design ships fully assembled and installs in minutes
•
No ongoing maintenance
•
Provides programmed illumination all night, every night
•
Compact design ideal for walkways and gardens
Overview
Specifications
Resources
Applications
Warranty

Product Overview

When illuminated visual separation is the goal, the WLB is the perfect solution for pathways and plazas requiring subtle wayfinding guidance. Integrated solar with a distinctive louvered design—no trenching, no wiring, no maintenance.

Available Finishes

Bronze
Black
Silver

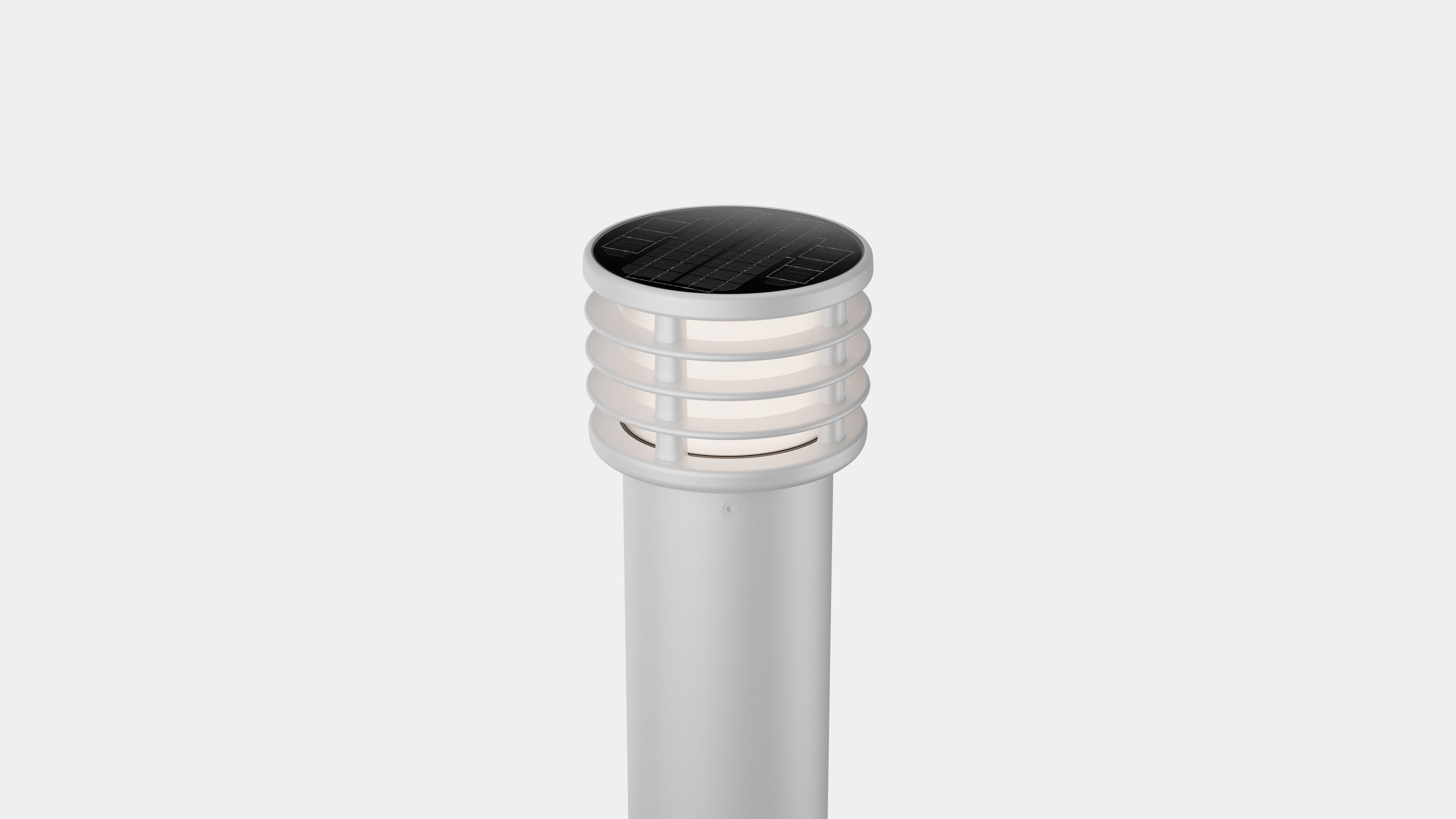

White

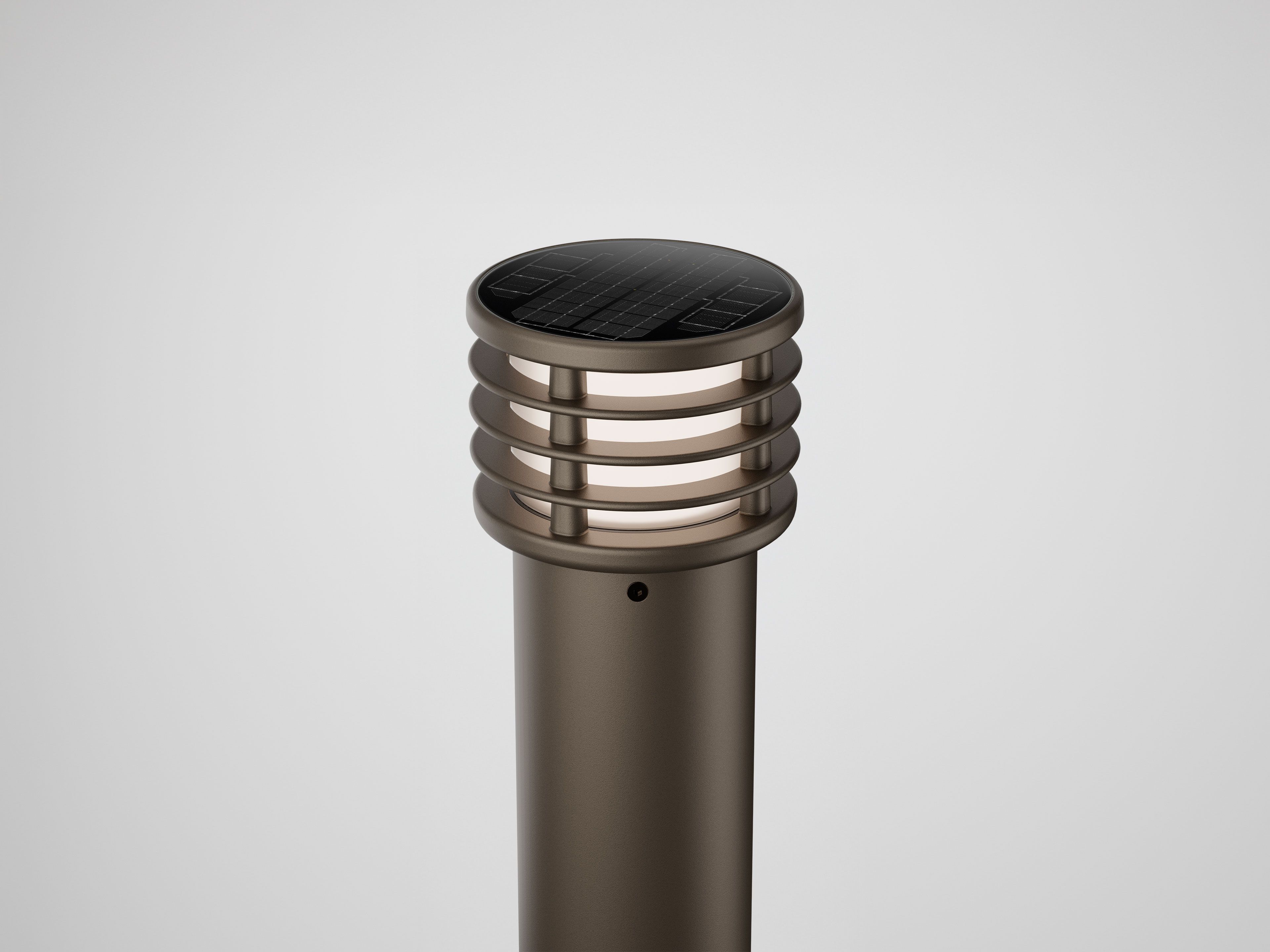

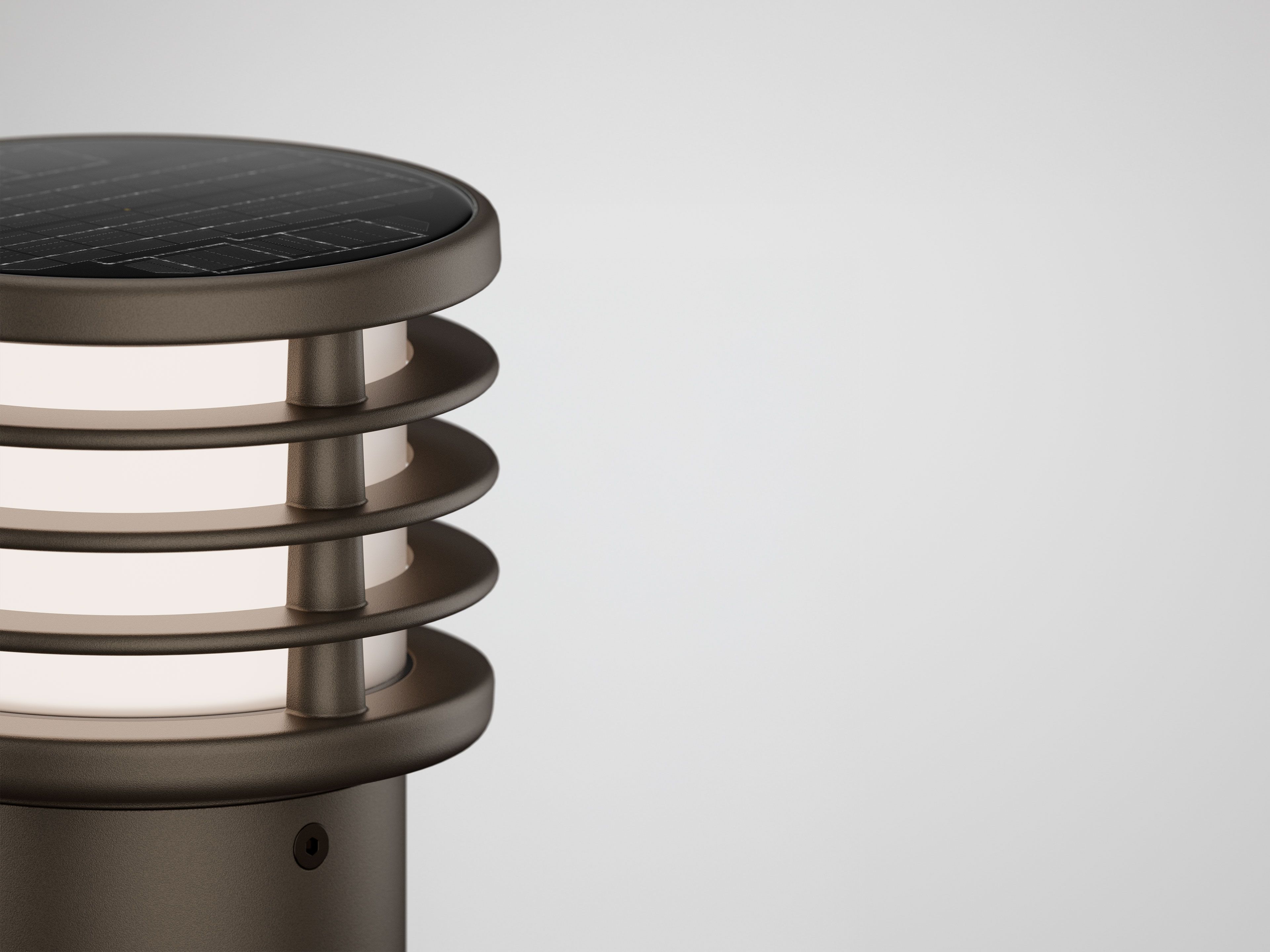

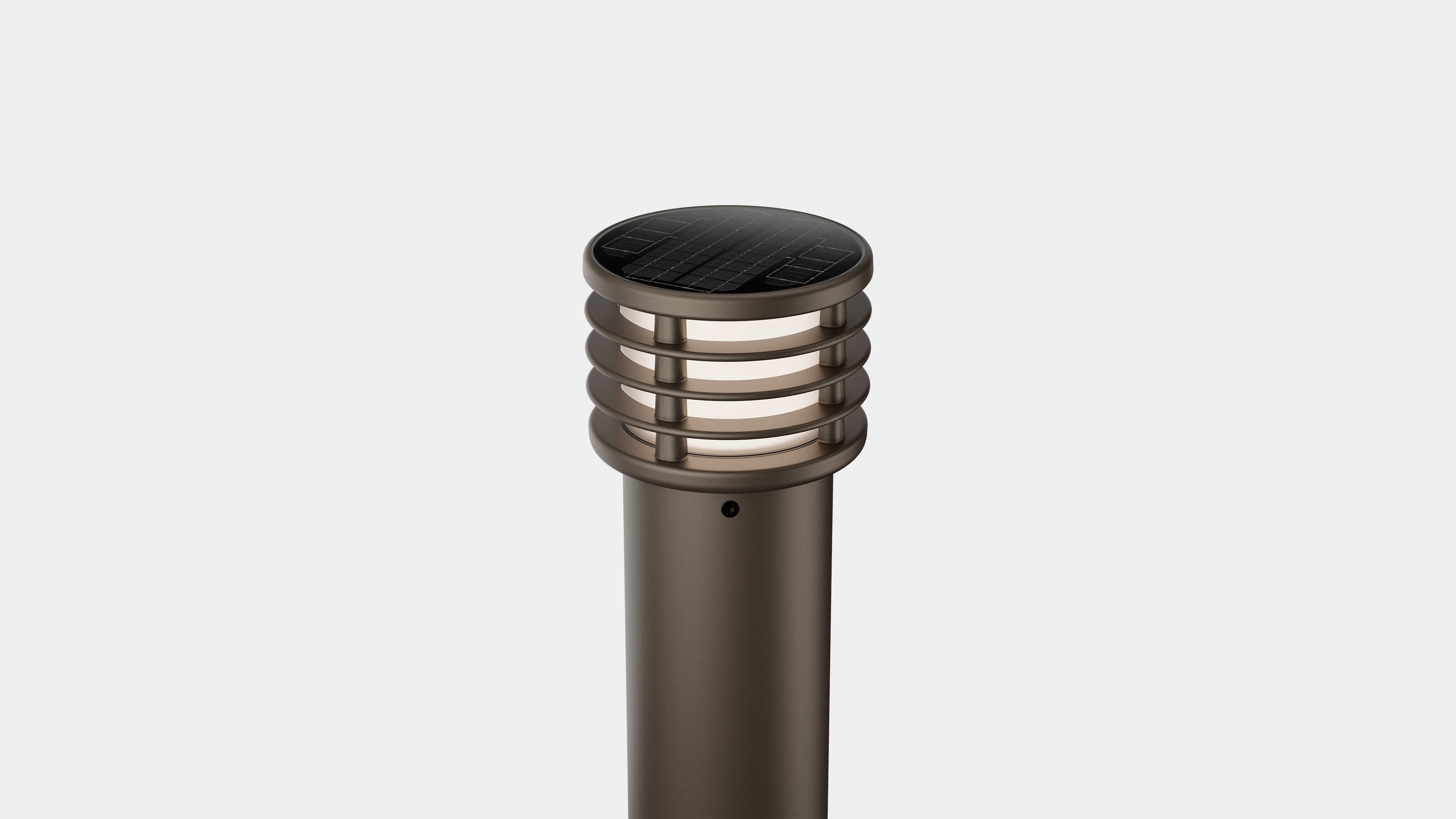

Modern metallic outdoor post light with horizontal slats and solar panel on top.
Black outdoor solar garden light post with horizontal grille design.

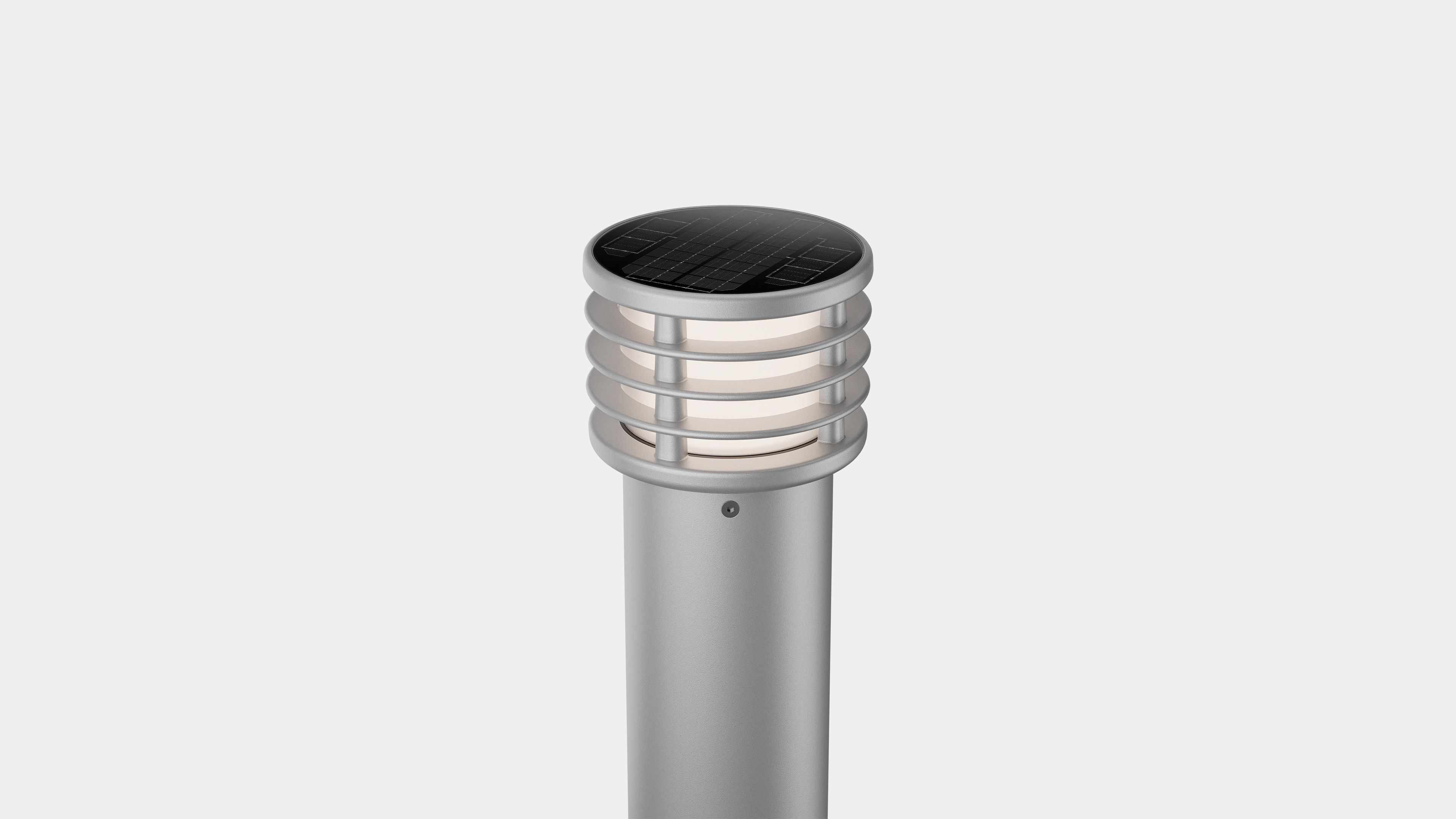

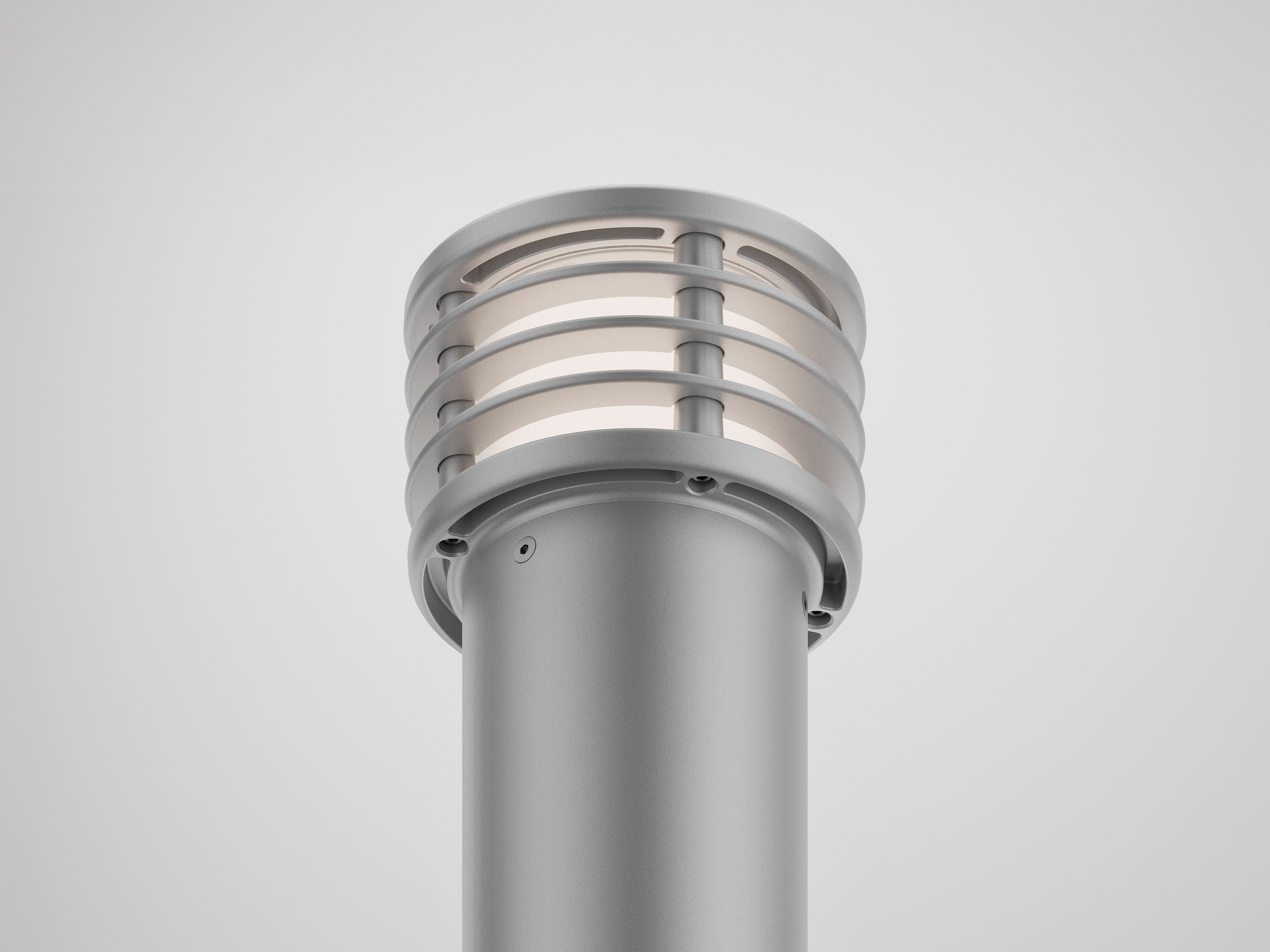

Modern stainless steel solar-powered outdoor bollard light with a round top and horizontal slats.
Solar-powered outdoor post light with cylindrical shape and white protective casing.

Technical Specifications

Technical Specifications

Style
Commercial louvered bollard
Fixture Diameter
Top diameter: 10 inch (24.7cm)
Post diameter: 6 inch (15.2cm)
Fixture Height
14 inches (36.7cm)
35 inches (88.9cm)
Construction
Rugged cast-aluminum
Stainless fasteners
Pre-drilled for seamless installation
Finish
Architectural grade, durable TGIC powder coat
Powder Coat Color
Bronze, Black, Silver, White or Custom color

Mounting Specifications

Mounting Options
Cast aluminum mounting plate on concrete footer or ground screw

Adaptive Intelligence

Management
Intelligently manages lighting performance based on environmental conditions and lighting requirements
Commissioning
Automatically calibrates and commissions for location using GPS
Data Logging
On-board multi-year data logging
Integration
Microcontroller and electronics integrated within the luminaire

LED Engine & Controller

Lumen Output
130 lumens
Color Temperature & Amber Options
4000K Not DarkSky compatible
3000K
2700K
Amber (595nm)
LED Lifetime
100,000 hour LED L70 lifetime
Control
High-efficiency, Maximum Power Point Tracking (MPPT) battery charger
High-efficiency integrated LED driver
Integrated optics maximize application efficiency and light distribution

Power

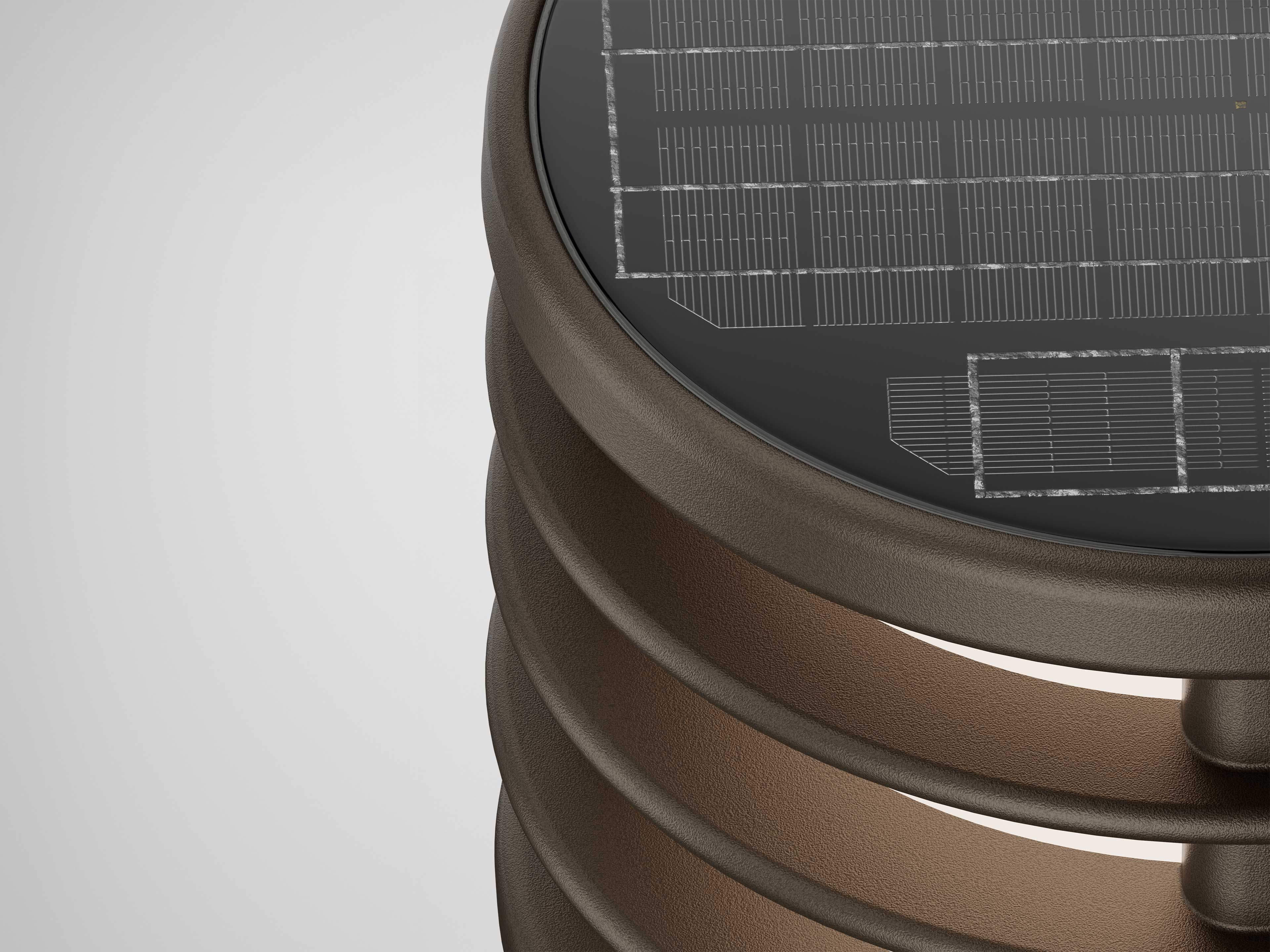

Solar Panel
Industry’s most efficient solar panel technology
Integrated into the top of the luminaire
Battery
High-performance Lithium Iron Phosphate (LiFePO4) technology
Exceptional 10+ year life cycle
High and low temperature tolerance
Integrated within the luminaire housing
Optical
Symmetrical optics
Achieves way-finding and space delineation standards with a typical output of 130 lumens

Downloads & Resources

Supporting Resources

Spec Sheets

FLT-WLB
PDF Download

IES Files

WLB IES Files
PDF Download

Installation

WLB Installation Instructions
PDF Download

Lighting Profile Sheet

Choosing the right lighting profile
PDF Download

Ideal Applications

Parking Lots

WLB is engineered for optimal performance in parking lots environments, providing reliable solar-powered illumination without trenching or wiring.

Pathways

WLB is engineered for optimal performance in pathways environments, providing reliable solar-powered illumination without trenching or wiring.

Reliability & Warranty

•
Tested for high- & low-heat and humidity
•
5-year warranty
•
No wiring, trenching, or electrical service required
•
No wiring, trenching, or electrical service required
•
IP67 protection
•
Designed and manufactured in North America
